Poly CCX 505 Teams Edition Phone User Manual

Introducció

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Poly CCX 505 Teams Edition Phone with Handset. Designed for seamless integration with Microsoft Teams, this phone offers advanced audio technologies and a user-friendly interface for enhanced communication.

Què hi ha a la caixa

Verifiqueu que tots els elements siguin presents al paquet:

• Poly CCX 505 Teams Edition Phone
• Telèfon
• Cable de l'auricular
• Cable Ethernet
• Suport d'escriptori

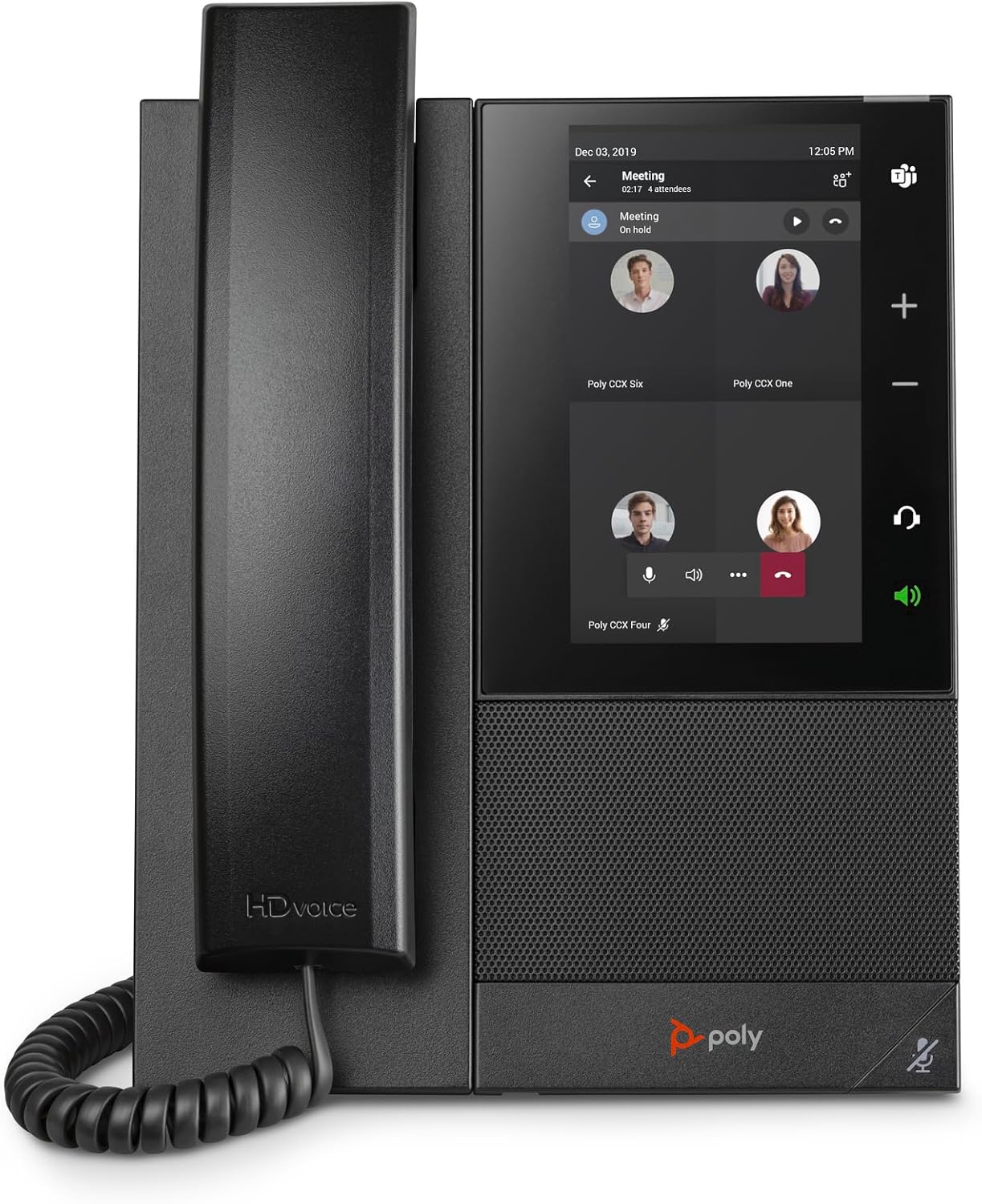

Image: The Poly CCX 505 Teams Edition Phone, showing the main unit with its 5-inch LCD display, handset, and base. This image represents the primary components included in the box.

Configuració

1. Muntatge del telèfon

1. Attach the desk stand to the back of the phone unit. Ensure it clicks securely into place.
2. Connect the coiled handset cord to the handset and the designated RJ9 port on the phone base.

Imatge: Part posterior view of the Poly CCX 505 phone, highlighting the various ports for power (48V), Ethernet (LAN), PC, headset, and the handset connection. This view is crucial for understanding cable connections during setup.

2. Connexió a la xarxa i a l'alimentació

The Poly CCX 505 supports both Ethernet (PoE or external power adapter) and Wi-Fi connectivity.

• Ethernet Connection (Recommended for wired networks):
  1. Connect one end of the Ethernet cable to the LAN port on the phone.
  2. Connect the other end to a network switch or router that provides Power over Ethernet (PoE). If PoE is not available, connect an optional 48V power adapter (sold separately) to the power port.
• Connexió Wi-Fi:
  1. Ensure the phone is powered on (via PoE or external adapter).
  2. On the phone's display, navigate to Configuració > Wi-Fi.
  3. Select your desired Wi-Fi network and enter the password.

3. Configuració Inicial

Upon first boot, the phone will guide you through initial setup, including language selection and network configuration if not using PoE. For Microsoft Teams integration, you will be prompted to sign in with your Teams credentials.

Image: The Poly CCX 505 phone display showing the Microsoft Teams login screen. This indicates the phone is ready for user authentication to integrate with Teams services.

Funcionament del telèfon

Funcions de trucada bàsiques

• Fer una trucada: Lift the handset or press the speakerphone button, then dial the number using the on-screen keypad or select a contact.
• Respondre una trucada: Lift the handset or press the flashing answer button on the screen.
• Finalització d'una trucada: Replace the handset or press the hang-up button on the screen.
• Silenciar: Press the mute button on the phone or on the screen during a call.
• Control de volum: Use the volume buttons (+/-) on the side of the phone.

Integració de Microsoft Teams

The Poly CCX 505 is optimized for Microsoft Teams, providing a dedicated Teams button for quick access to calls, meetings, and contacts.

• Accessing Calls: Tap the "Calls" icon on the touchscreen or the dedicated Teams button.
• Joining Meetings: Scheduled meetings will appear on the display. Tap "Join" to enter a meeting.
• Correu de veu: Access your voicemail messages directly from the phone's interface.

Image: The Poly CCX 505 phone display showing a list of recent calls within the Microsoft Teams interface. This demonstrates the phone's ability to display call history and manage communications.

Image: The Poly CCX 505 phone display showing an active Microsoft Teams meeting with multiple participants. This illustrates the phone's capability to manage and display meeting participants and controls.

Headset and Bluetooth Connectivity

The phone supports various headset options for hands-free communication.

• Wired Headsets: Connect a wired headset to the dedicated headset port (RJ9) or USB-A/USB-C ports.
• Bluetooth Headsets:
  1. Navega a Configuració > Bluetooth al telèfon.
  2. Enable Bluetooth and put your headset into pairing mode.
  3. Select your headset from the list of available devices to pair.

Manteniment

Neteja del telèfon

• Use a soft, lint-free cloth to clean the display and phone surface.
• No utilitzeu netejadors abrasius, dissolvents ni aerosols.
• Per a marques difícils, esbandiu lleugeramentampen el drap amb aigua.

Actualitzacions de programari

The phone may receive software updates automatically through your network or Microsoft Teams. Ensure the phone remains connected to power and the network during updates.

Resolució de problemes

Especificacions

• Model: Poly CCX 505 Teams Edition Phone
• Número de peça: 2200-49735-019
• Visualització: 5-inch multi-touch LCD display
• Tecnologies d'àudio: Poly HD Voice, Acoustic Fence, NoiseBlockAI
• Connectivitat: Wi-Fi, Bluetooth, 2x USB ports (Type A, Type C), RJ9 headset port, EHS port, Ethernet (LAN, PC)
• Compatibilitat: Certificat Microsoft Teams
• Dimensions (L x A x A): Approximately 7 x 8.5 inches (dimensions for the phone itself, not packaging)
• Pes: 2.86 lliures
• Font d'alimentació: Power over Ethernet (PoE) or optional 48V DC power adapter (sold separately)

Garantia i Suport

For warranty information and technical support, please refer to the official Plantronics (Poly) weblloc web o poseu-vos en contacte amb el seu servei d'atenció al client. Mantingueu a mà el rebut de compra i el número de sèrie del producte per a qualsevol reclamació de garantia.

Fabricant: Plantronics

Weblloc: www.poly.com (Note: Plantronics is now Poly)
