1. Introducció

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your VONROC MS500AC Radial Miter Saw. Please read these instructions carefully before using the tool and keep them for future reference. This powerful 2200W electric wood saw features a 216mm blade, integrated laser, and LED light for precision and visibility, along with a compact sliding system and adjustable table extensions.

2. Instruccions generals de seguretat

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Keep your work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Always wear appropriate personal protective equipment, including safety glasses, hearing protection, and a dust mask. Ensure the power tool is disconnected from the power source before making any adjustments, changing accessories, or storing the tool. Keep children and bystanders away while operating a power tool.

• Seguretat elèctrica: Ensure the power supply matches the tool's requirements. Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions.
• Seguretat personal: Estigueu alerta, vigileu el que esteu fent i feu servir el sentit comú. No utilitzeu l'eina mentre esteu cansats o sota la influència de drogues, alcohol o medicaments.
• Ús i cura de l'eina: Do not force the power tool. Use the correct power tool for your application. Ensure the blade is sharp and clean. Secure the workpiece before cutting.

3. Producte acabatview

The VONROC MS500AC Radial Miter Saw is designed for precise cutting of wood and similar materials. Key features include:

• Motor potent: 2200 Watts providing 5200 RPM for efficient cutting.
• Integrated Laser & LED Light: For accurate cut line guidance and improved visibility in low-light conditions.
• Adjustable Table Extensions: Supports long workpieces for safe and precise cuts.
• Compact Sliding System: Allows use in confined spaces or close to a wall, as it does not require rear clearance.
• Tall versàtil: Capable of miter cuts from -45° to +45°, bevel cuts from 0° to +45°, and double miter cuts.
• Característiques de seguretat: Transparent blade guard and electric motor brake that stops the blade upon release of the on/off button.
• Bossa de recollida de pols: For a cleaner work environment.

4. Configuració

Before initial use, ensure all components are present and undamaged. Refer to the included parts list for verification.

4.1 Desembalatge i muntatge

Carefully remove the saw from its packaging. Place it on a stable, level workbench. Attach any necessary accessories such as the dust bag and workpiece clamp.

Image: The VONROC MS500AC Radial Miter Saw set up on a workbench, demonstrating its readiness for operation. A piece of wood is positioned on the saw's table, and a hand is shown near the handle, indicating preparation for a cut.

4.2 Attaching the Dust Collection Bag

Locate the dust port on the saw. Securely attach the dust collection bag to this port. Ensure it is firmly attached to prevent dust leakage during operation.

4.3 Adjusting Table Extensions

The saw is equipped with adjustable table extensions to support longer workpieces. Pull out the extensions to the desired length and secure them. This provides stability and safety when cutting larger materials.

Imatge: Un primer pla view of a hand adjusting the green and black table extension on the miter saw. This shows how to extend the support for longer workpieces.

Imatge: Una imatge detallada view of the workpiece clamp mechanism and the integrated measurement scale on the saw's table. This illustrates how to secure material and measure cuts.

5. Instruccions de funcionament

Always ensure the saw is unplugged before making any adjustments or changing blades.

5.1 Engegada/apagada

Connect the saw to a suitable power outlet. To start the saw, press the ON button. To stop, release the ON button; the electric brake will quickly stop the blade.

5.2 Using the Laser and LED Light

The integrated laser provides a visual guide for your cut line, enhancing accuracy. The LED light illuminates the workpiece, improving visibility, especially in dimly lit areas. Activate these features using their respective switches, typically located near the blade housing.

Image: A detailed shot of the laser and LED light system on the saw. The red laser line is projected onto the cutting surface, and the LED light provides illumination, highlighting the precision features.

5.3 Ajust de l'angle del bisell

To perform miter cuts, adjust the turntable to the desired angle between -45° and +45°. Loosen the locking knob, rotate the table, and then tighten the knob to secure the angle. Always ensure the table is firmly locked before cutting.

Image: An illustrative diagram demonstrating the range of miter angle adjustments possible with the saw, from -45 degrees to +45 degrees, with arrows indicating movement.

5.4 Ajust de l'angle del bisell

For bevel cuts, the saw head can be tilted. Loosen the bevel lock, tilt the saw head to the desired angle between 0° and +45°, and then secure the lock. This allows for angled cuts through the thickness of the material.

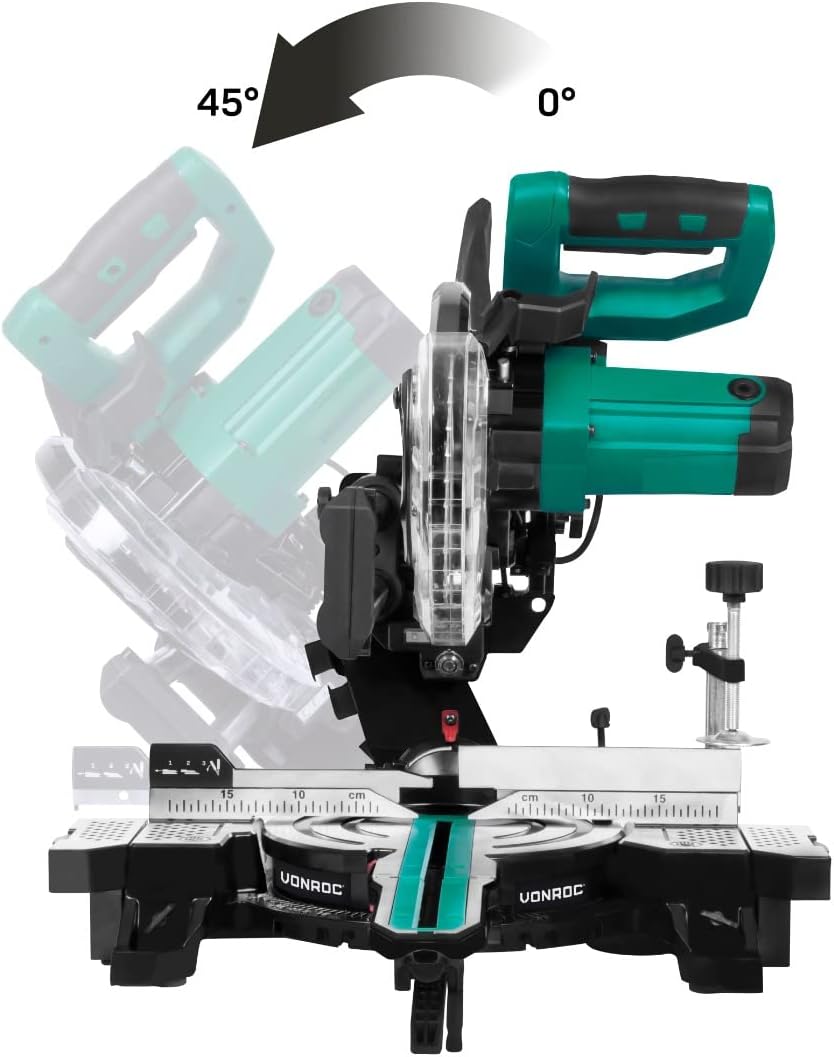

Image: A diagram illustrating the bevel angle adjustment of the saw head, showing it tilting from 0 degrees to 45 degrees, with an arrow indicating the direction of tilt.

5.5 Fer un tall

Position the workpiece firmly against the fence and secure it with the clamp. Lower the blade slowly into the material, allowing the saw to reach full speed before engaging the workpiece. Use a steady, controlled motion. For radial cuts, pull the saw head forward, lower the blade, and push it back through the material.

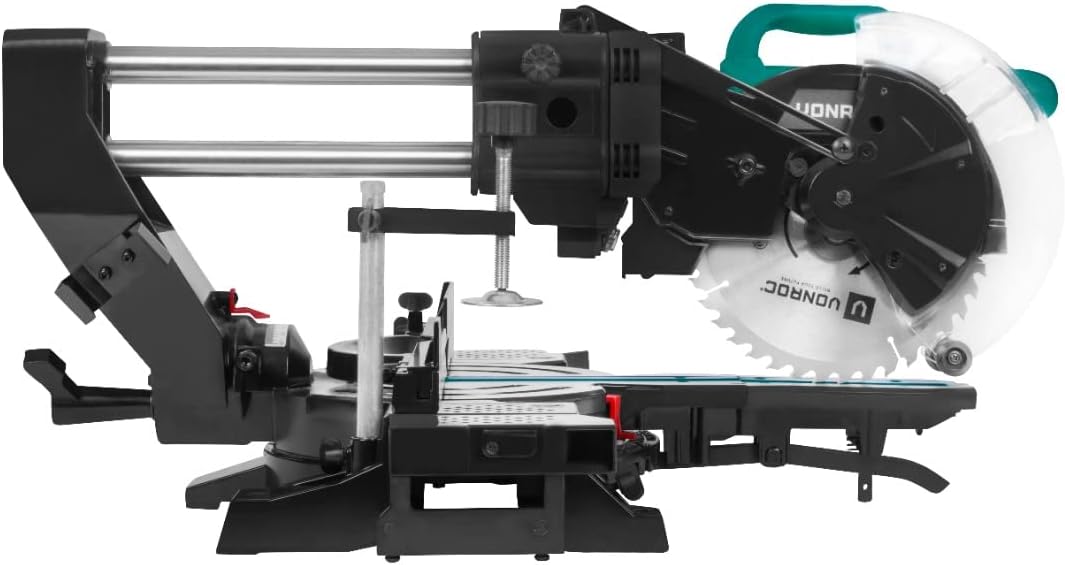

Imatge: Un professional lateralfile view of the miter saw, highlighting its compact sliding system. This design allows the saw to be used in tight spaces without requiring extra clearance behind the machine.

6. Manteniment

Regular maintenance ensures the longevity and safe operation of your saw. Always disconnect the power supply before performing any maintenance.

• Neteja: After each use, clean the saw to remove dust and debris. Use a brush or compressed air. Ensure the blade guard and ventilation slots are clear.
• Inspecció de la fulla: Regularly check the saw blade for sharpness and damage. A dull or damaged blade can cause kickback and poor cut quality. Replace blades as needed. The saw comes with a 40T blade.
• Lubricació: Periodically lubricate moving parts as indicated in the full product manual (if applicable).
• Emmagatzematge: Store the saw in a dry, secure location, out of reach of children. The compact design allows for efficient storage, even close to a wall.

Image: The VONROC MS500AC Radial Miter Saw is shown stored on a wooden shelf, demonstrating its compact footprint. The saw is positioned against a brick wall, highlighting its space-saving design.

7. Solució De Problemes

Si teniu problemes amb la serra, consulteu els següents problemes i solucions habituals:

For issues not listed here, please contact VONROC customer support.

8. Especificacions

9. Garantia i Suport

VONROC products are manufactured to high-quality standards. For warranty information, please refer to the documentation included with your purchase or visit the official VONROC website. For technical support, spare parts, or service inquiries, please contact VONROC customer service through their official channels. Always provide your model number (MS500AC) when seeking support.

Podeu trobar més informació i dades de contacte a VONROC Brand Store.
