1. Introducció
This manual provides instructions for the installation, operation, and maintenance of the LKV 51mm Universal Motorcycle DB Killer Silencer Baffle. This product is designed to reduce the sound levels of louder motorcycle exhaust systems, offering a more controlled acoustic output.
The LKV DB Killer is a removable insert compatible with most motorcycle exhaust pipes featuring a 51mm (2-inch) inlet diameter. Constructed from high-grade stainless steel, it offers durability, corrosion resistance, and rust protection, enhanced by a high-temperature coating process.
Figura 1.1: The LKV DB Killer is widely used for racing motorcycles, mountain bikes, and commuter motorcycles with 51mm exhaust pipes.

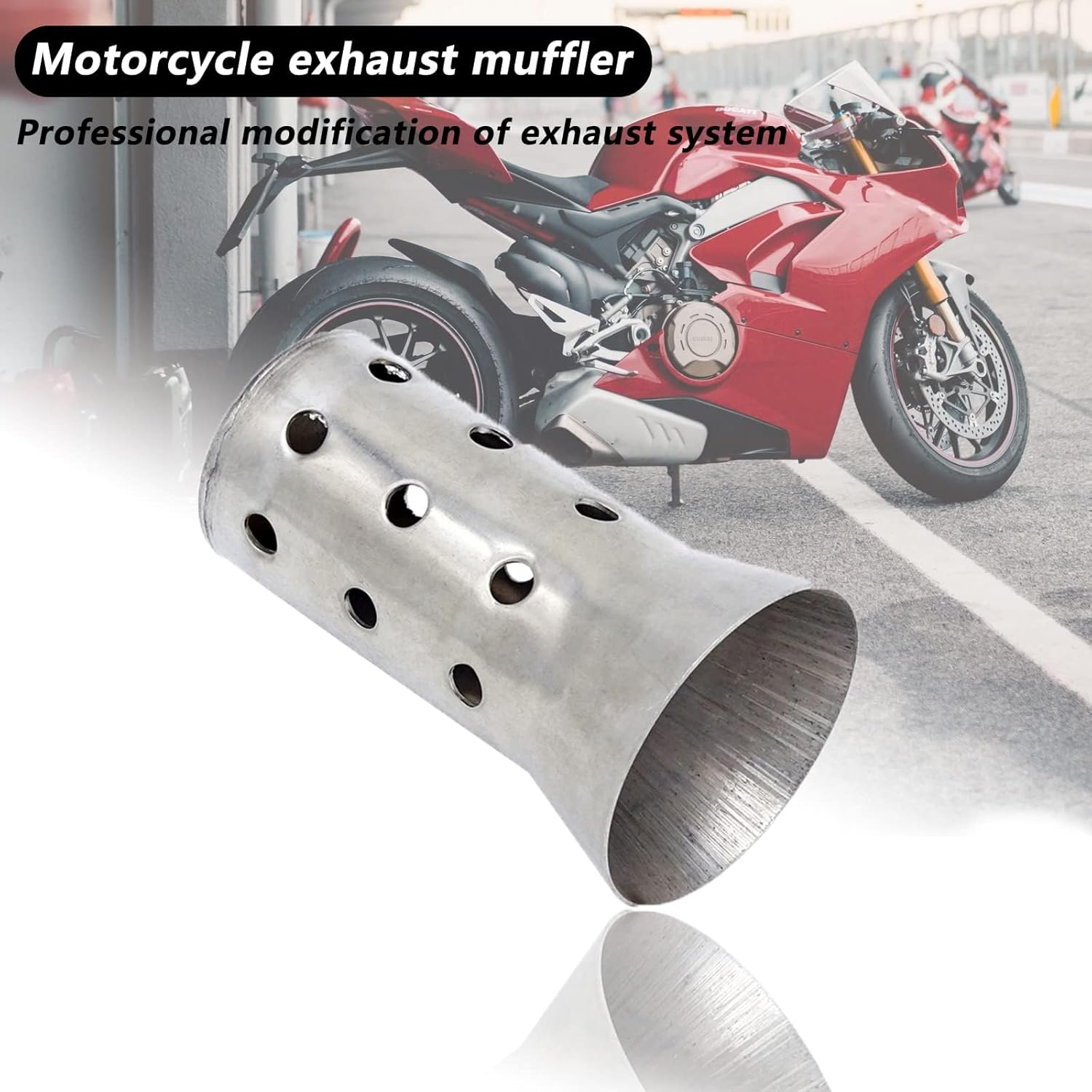

Figura 1.2: The LKV DB Killer integrated into a motorcycle exhaust system, demonstrating its professional modification capability.
2. Informació de seguretat
- Always ensure the motorcycle engine and exhaust system are completely cool before attempting installation or removal to prevent burns.
- Wear appropriate personal protective equipment, including gloves and eye protection, during installation.
- Ensure the motorcycle is stable on a stand or level ground before beginning any work.
- Improper installation can lead to product failure or damage to the exhaust system. If unsure, consult a qualified mechanic.
- Verify local regulations regarding motorcycle exhaust noise levels.
3. Producte acabatview
The LKV 51mm Universal Motorcycle DB Killer is a perforated stainless steel insert designed to fit into the outlet of a motorcycle exhaust muffler. Its primary function is to attenuate exhaust sound without significantly impeding exhaust flow.
Figura 3.1: The LKV 51mm Universal Motorcycle DB Killer Silencer Baffle, showing its conical shape and perforated body.
Figura 3.2: Un primer pla view of the DB Killer's internal structure, highlighting the sound-dampening perforations.
Figura 3.3: Diagram illustrating the key dimensions of the DB Killer, including its 51mm inlet diameter, 80mm length, and 38mm outlet diameter.
4. Configuració i instal·lació
The LKV DB Killer is designed for straightforward installation into compatible motorcycle exhaust mufflers. Ensure your exhaust pipe has an internal diameter of approximately 51mm (2 inches) at the insertion point.
- Prepare the Exhaust: Ensure the motorcycle exhaust system is cool to the touch. Locate the outlet of your motorcycle's muffler where the DB Killer will be inserted.
- Neteja la zona: Clean any debris or carbon buildup from the inside of the muffler outlet to ensure a smooth fit.
- Insert the DB Killer: Carefully slide the LKV DB Killer into the muffler outlet. It should fit snugly. If it is too loose, it may rattle or fall out. If it is too tight, do not force it, as this may damage the DB Killer or the exhaust.
- Secure the DB Killer: Most DB killers are secured with a small screw or bolt through a pre-drilled hole in the exhaust pipe. Align the hole on the DB Killer with the corresponding hole on your muffler (if present) and secure it with the provided hardware or appropriate fasteners. If no hole is present, you may need to drill one, or use a high-temperature sealant if the fit is very tight and secure.
- Verifica la instal·lació: Gently tug on the installed DB Killer to ensure it is securely in place and will not dislodge during operation.

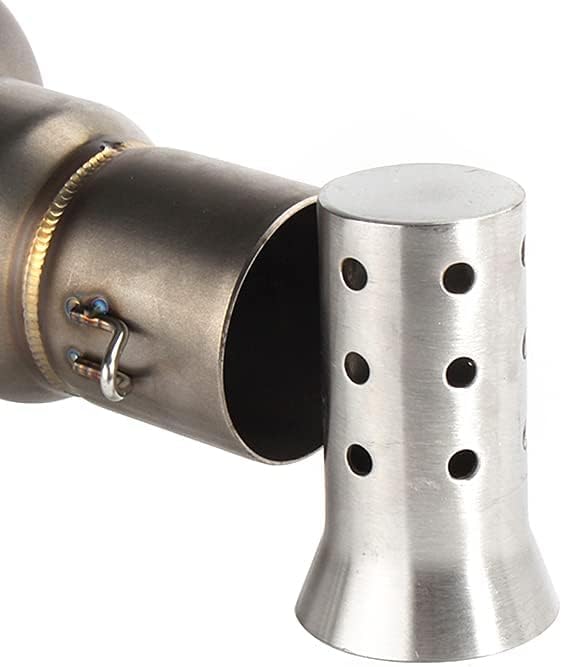

Figura 4.1: Un example of the DB Killer being inserted into a motorcycle exhaust pipe, illustrating the typical installation process.
5. Instruccions de funcionament
Once installed, the LKV DB Killer will immediately begin to reduce the sound output of your motorcycle's exhaust system. The degree of noise reduction will vary depending on the original exhaust system design and the specific motorcycle model.
- Reducció de so: The perforated design of the DB Killer helps to dissipate exhaust gases and sound waves, resulting in a lower and often deeper exhaust note compared to an unrestricted system.
- Consideracions de rendiment: While designed to minimize impact, any restriction in the exhaust system can subtly affect engine performance. Most users report acceptable performance with the DB Killer installed.
- Disseny extraïble: The DB Killer is designed to be removable, allowing you to revert to the original exhaust sound if desired. Follow the installation steps in reverse for removal.
Figura 5.1: Visual representation comparing the sound output of an exhaust system without a DB Killer (loud) versus with a DB Killer installed (low and deep).
6. Manteniment
The LKV DB Killer is constructed from durable stainless steel and requires minimal maintenance.
- Inspecció periòdica: Periodically inspect the DB Killer for any signs of damage, corrosion, or looseness. Ensure the securing screw (if used) remains tight.
- Neteja: Carbon buildup can occur over time. If necessary, remove the DB Killer and clean it with a wire brush or appropriate exhaust cleaner. Ensure it is thoroughly dry before reinstallation.
- Cura del material: The stainless steel material is resistant to rust and corrosion. Avoid using harsh abrasive cleaners that could damage the surface finish.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| DB Killer is too loose or rattles. | Incorrect diameter match; securing screw is loose or missing. | Ensure the DB Killer diameter matches your muffler's internal diameter. Tighten or install the securing screw. Consider using high-temperature exhaust sealant for a tighter fit if the diameter mismatch is minor. |
| DB Killer does not fit into the muffler. | Muffler internal diameter is too small. | Verify the internal diameter of your muffler. This DB Killer is designed for 51mm (2-inch) openings. Do not force installation. |
| Reducció de soroll insuficient. | Exhaust system design; DB Killer style. | The degree of noise reduction varies. Ensure the DB Killer is fully seated. Some exhaust systems may require additional sound dampening solutions. |
| Noticeable loss of engine performance. | Excessive exhaust restriction. | While minor performance changes are possible, significant loss may indicate excessive restriction. Ensure the DB Killer is not obstructed. If performance loss is unacceptable, consider removing the DB Killer. |
8. Especificacions
- Marca: LKV
- Model: 51mm Motorcycle Exhaust DB Killer
- Material: High-grade Stainless Steel
- Mida de la connexió d'entrada: 51 mil·límetres (2 polzades)
- Mida de la connexió de sortida: 51 mil·límetres (2 polzades)
- Forma: Round, Conical
- Pes de l'article: Aproximadament 3.2 unces
- Compatibilitat: Universal fit for motorcycles with 51mm exhaust pipe inlet diameter (e.g., Harley, Moto Guzzi, Honda, Kawasaki, Suzuki, Yamaha, Cruiser, Scooter).
9. Garantia i Suport
For information regarding warranty coverage or technical support, please contact LKV customer service through the retailer where the product was purchased or visit the official LKV brand store online. Keep your purchase receipt as proof of purchase.
