Makita 629918-2 Motor Instruction Manual

1. Introducció

This manual provides essential information for the proper installation, maintenance, and troubleshooting of the Makita 629918-2 motor, designed specifically for use with Makita TD126D and TD127D impact wrenches. Please read this manual thoroughly before attempting any installation or service to ensure safe and effective operation of your tool.

2. Informació de seguretat

Always prioritize safety when working with power tools and their components. Failure to follow these safety guidelines may result in injury or damage to the product.

• Desconnecteu l'alimentació: Always disconnect the impact wrench from its battery or power source before performing any installation, maintenance, or repair.
• Utilitzeu EPI: Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, to protect against potential hazards.
• Manejar amb cura: Handle all components, especially the motor, with care to avoid damage.
• Qualified Assistance: If you are unsure about any procedure or lack the necessary tools, consult a qualified technician or Makita service center.

3. Producte acabatview

The Makita 629918-2 is a genuine replacement DC motor designed to restore full functionality to your compatible Makita TD126D or TD127D impact wrench. This motor is a critical internal component responsible for generating the rotational force of the tool.

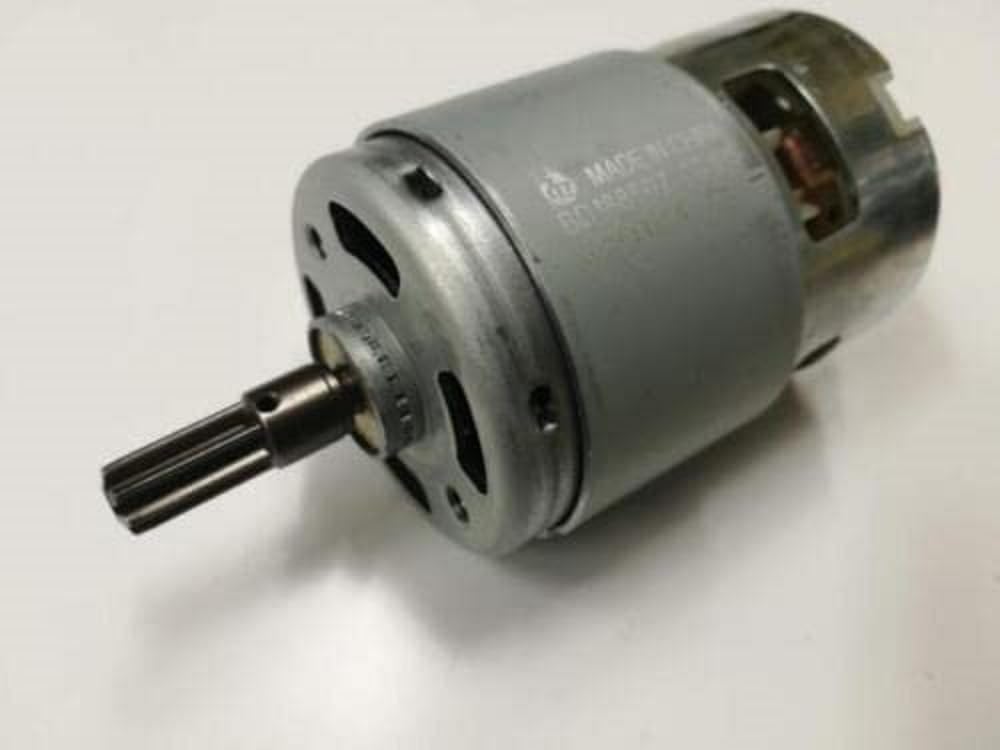

Figura 1: Un primer pla view of the Makita 629918-2 DC motor, showing its cylindrical body, cooling vents, and the splined output shaft. The motor casing is grey with 'MADE IN CHINA' and a serial number visible.

4. Configuració / Instal·lació

Replacing the motor in your Makita TD126D or TD127D impact wrench requires careful attention to detail. It is highly recommended to consult the service manual for your specific impact wrench model for detailed disassembly and reassembly instructions, as procedures may vary slightly.

Passos generals d'instal·lació:

1. Preparar l'eina: Ensure the impact wrench is disconnected from its battery or power source.
2. Disassemble Casing: Carefully disassemble the impact wrench casing to access the motor compartment. Keep track of all screws and small parts.
3. Desconnecta el motor antic: Disconnect the electrical connections from the old motor. Note the polarity of the wires if applicable.
4. Treure el motor antic: Remove the old motor from its housing.
5. Instal·lar un motor nou: Insert the new Makita 629918-2 motor into the housing, ensuring it seats correctly and aligns with any mounting points.
6. Reconnectar els cables: Reconnect the electrical wires to the new motor, matching the original connections and ensuring they are secure.
7. Remunta Casing: Carefully reassemble the impact wrench casing, ensuring all screws are tightened securely and no wires are pinched.
8. Funcionalitat de prova: Perform a functional test with the battery connected to verify proper operation before full use.

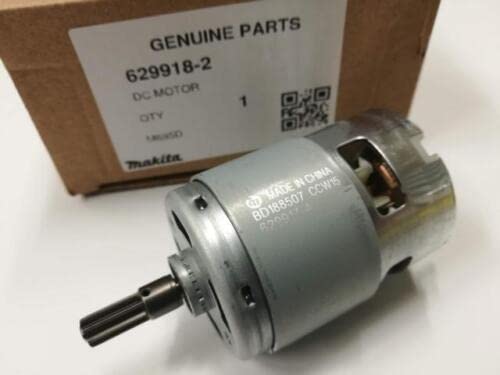

Figure 2: The Makita 629918-2 DC motor resting in front of its brown cardboard packaging. The packaging has a white label with 'GENUINE PARTS', '629918-2', 'DC MOTOR', and the Makita logo printed on it.

5. Instruccions de funcionament

Once the Makita 629918-2 motor is correctly installed in your TD126D or TD127D impact wrench, its operation is integrated with the tool itself. This motor functions as the power source for the impact mechanism. For detailed operating procedures, safety guidelines, and usage recommendations for the impact wrench, please refer to the original instruction manual provided with your specific Makita TD126D or TD127D impact wrench model.

6. Manteniment

To ensure the longevity and optimal performance of your Makita 629918-2 motor, consider the following general maintenance practices. The motor itself is a sealed unit and typically does not require internal user-level maintenance.

• Mantenir net: Regularly clean the exterior of the impact wrench to prevent dust and debris from entering the motor's ventilation openings.
• Eviteu la humitat: Protect the tool and motor from moisture and rain to prevent electrical damage and corrosion.
• Inspeccionar per danys: Periodically inspect the motor and its connections for any signs of wear, loose wires, or physical damage.
• Emmagatzematge adequat: Store the impact wrench in a dry, clean environment when not in use.

7. Solució De Problemes

If your impact wrench experiences issues after motor replacement, consider these troubleshooting steps. Always ensure the tool is disconnected from its power source before inspecting internal components.

• L'eina no s'inicia:
  • Comproveu el nivell de càrrega de la bateria.
  • Verify all electrical connections to the motor are secure and correctly polarized.
  • Ensure the trigger switch is functioning correctly.
• Soroll o vibració inusual:
  • Ensure the motor is properly seated and secured within the tool housing.
  • Check for any obstructions or foreign objects inside the tool.
• Potència reduïda:
  • Confirm the battery is fully charged and in good condition.
  • Verify the motor is receiving adequate power.

If problems persist after checking these points, it is recommended to seek assistance from a qualified Makita service technician.

8. Especificacions

9. Informació de la garantia

For detailed warranty information regarding the Makita 629918-2 motor, please refer to the official Makita warranty policy provided with your original product purchase or visit the official Makita website. Warranty terms and conditions may vary by region and product type.

10. Suport

Should you require further assistance, technical support, or service for your Makita 629918-2 motor or compatible impact wrench, please contact Makita customer service or visit an authorized Makita service center. You can find contact information and service center locations on the official Makita weblloc.
