1. Introducció
Thank you for choosing the RELAX4LIFE Foot Spa Massager. This professional foot bath is designed to provide a relaxing and therapeutic experience for your feet. It features adjustable temperature control, a customizable timer, red light therapy, automatic massage functions, and a convenient shower system. Please read this manual thoroughly before initial use to ensure safe and optimal operation of your device.
Image 1.1: User enjoying the RELAX4LIFE Foot Spa Massager.
2. Advertències de seguretat
ADVERTÈNCIA: Per reduir el risc de cremades, electrocució, incendi o ferides a les persones:
- This product is not intended for use by children. Keep out of reach of children.
- Always handle the electrical appliance with caution.
- Ensure the device is moved and secured safely using the lockable wheels before and during use.
- Due to its weight (approximately 5.23 kg), exercise care when moving the appliance.
- No utilitzar sense aigua.
- Do not stand up in the foot massager.
- Read the entire user manual carefully before the first use.
- Always unplug the appliance immediately after using and before cleaning.
- No feu servir mai aquest aparell si té un cable o un endoll danyats, si no funciona correctament o si s'ha caigut o s'ha fet malbé.
3. Característiques del producte
- Temperatura i temporitzador ajustables: Rapid heating function with temperature control from 35°C to 48°C (95°F - 118°F) and a timer adjustable from 10 to 60 minutes.
- Professional Massage: Features 4 Shiatsu massage points and 2 electric massage rollers to stimulate acupuncture points on the soles of your feet, promoting relaxation and blood circulation. The massage board is detachable for easy cleaning.
- Comfortable Shower & Red Light: A 3-angle adjustable shower system ensures thorough rinsing of all foot areas. The red light function aids in muscle relaxation and can help with disinfection.
- Disseny fàcil d'utilitzar: Equipped with a convenient control panel for easy operation, a retractable cover to prevent dust and heat loss, a gravity drainage pipe for easy water disposal, and lockable universal wheels for mobility and stability.
Image 3.1: Motorized massage, adjustable shower, and red light function.
Image 3.2: Detachable massage plate with massage balls and rollers.
Image 3.3: Key design features including handle, cover, drain, and wheels.
4. Contingut del paquet
En desembalar, assegureu-vos que tots els elements que s'enumeren a continuació hi siguin presents i no estiguin danyats:
- 1x Electric Foot Spa Massager
- 1 x manual d'usuari
5. Configuració
- Col·locació: Place the foot spa on a flat, stable, and dry surface. Ensure there is enough space around the unit for comfortable use and access to the power outlet.
- Rodes segures: If moving the unit, use the integrated handle. Once in position, engage the locks on the two lockable universal wheels to prevent accidental movement.
- Omplir amb aigua: Open the retractable cover. Fill the foot spa with warm or cold water, ensuring the water level is between the minimum and maximum fill lines indicated inside the basinNo ompliu massa.
- Opcional: If desired, place a foot bath bag or medication into the designated medicine box.
- Connectar l'alimentació: Connecteu el cable d'alimentació a una presa de corrent adequada (220-240 V, 50/60 Hz).
6. Instruccions de funcionament
The large, convenient control panel allows for easy operation of various functions.

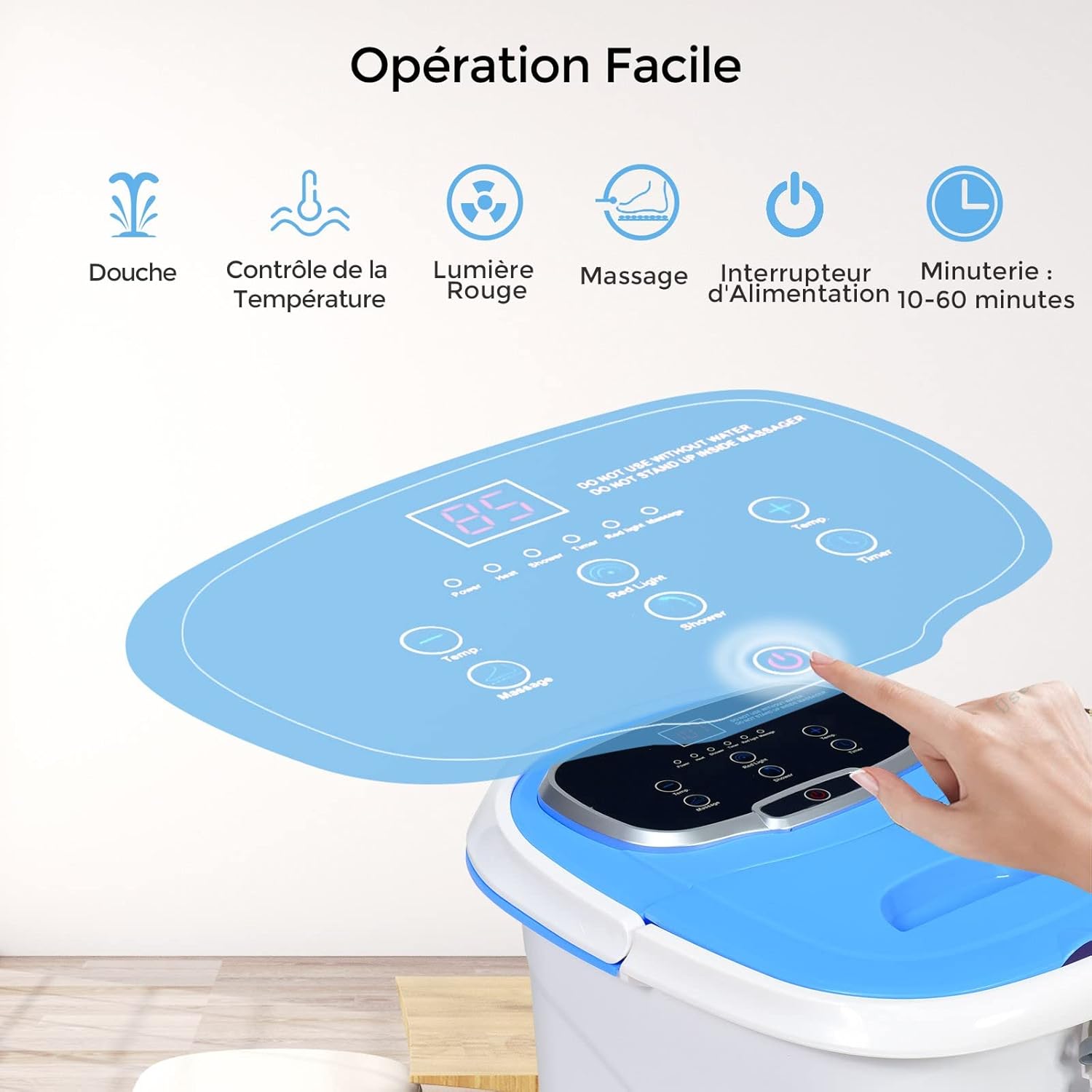

Image 6.1: Control panel for easy operation.
- Encès/apagat: Premeu el botó d'engegada del tauler de control per encendre o apagar la unitat.
- Temperatura establerta: Use the temperature control buttons to adjust the water temperature between 35°C and 48°C. The unit will rapidly heat the water to your desired setting.
- Estableix el temporitzador: Use the timer buttons to set the duration of your foot bath from 10 to 60 minutes. The unit will automatically shut off once the timer expires.
- Activa el massatge: Press the massage button to activate the automatic Shiatsu and roller massage functions.
- Funció de llum vermella: Press the red light button to turn on the red light therapy.
- Shower Function: Press the shower button to activate the 3-angle adjustable shower. Adjust the angle as needed for comprehensive rinsing.
- Gaudeix: Place your feet into the foot spa and relax.
7. Manteniment
- Drenatge d'aigua: After use, unplug the unit. Position the foot spa near a drain. Pull out the gravity drainage pipe located on the side of the unit and allow the water to flow out completely.
- Neteja: Netegeu l'interior i l'exterior del spa per als peus amb un drap suau i sec.amp cloth. For thorough cleaning, the massage board can be detached. Do not use abrasive cleaners or immerse the entire unit in water.
- Emmagatzematge: Ensure the unit is completely dry before storing. Close the retractable cover to prevent dust accumulation. Store in a cool, dry place away from direct sunlight.
8. Solució De Problemes
- La unitat no s'encén:
- Comproveu si el cable d'alimentació està ben connectat a una presa de corrent que funcioni.
- Ensure the power button on the control panel has been pressed.
- Water is not heating:
- Verify that the temperature setting is correctly adjusted above the current water temperature.
- Ensure the unit has sufficient water (between min/max lines).
- Massage function not working:
- Confirm the massage button has been pressed.
- Check for any obstructions around the massage rollers.
- Fuga d'aigua:
- Ensure the drainage pipe is properly sealed and not damaged.
- Check for cracks or damage to the main basin. If damage is found, discontinue use immediately.
Si els problemes persisteixen després d'intentar aquests passos de resolució de problemes, poseu-vos en contacte amb l'atenció al client.
9. Especificacions
| Especificació | Valor |
|---|---|
| Marca | RELAX4LIFE |
| Número de model | IT68702HI-FPFR |
| Material | Polipropilè (PP) |
| Dimensions (L x A x A) | 46 x 37.5 x 38.5 cm (18.1 x 14.8 x 15.2 polzades) |
| Pes de l'article | 5.23 kg (11.53 lliures) |
| Voltage | 220-240V |
| Freqüència | 50/60Hz |
| Poder | 500 W |
| Longitud del cable | 1.5 m (4.9 peus) |
| Gamma de calefacció | 35-48 ℃ (95-118 ℉) |
| Interval del temporitzador | 10-60 minuts |
| Característiques especials | Automatic Shut-off, Heat, Timer, Red Light, Motorized Massage, Adjustable Shower |

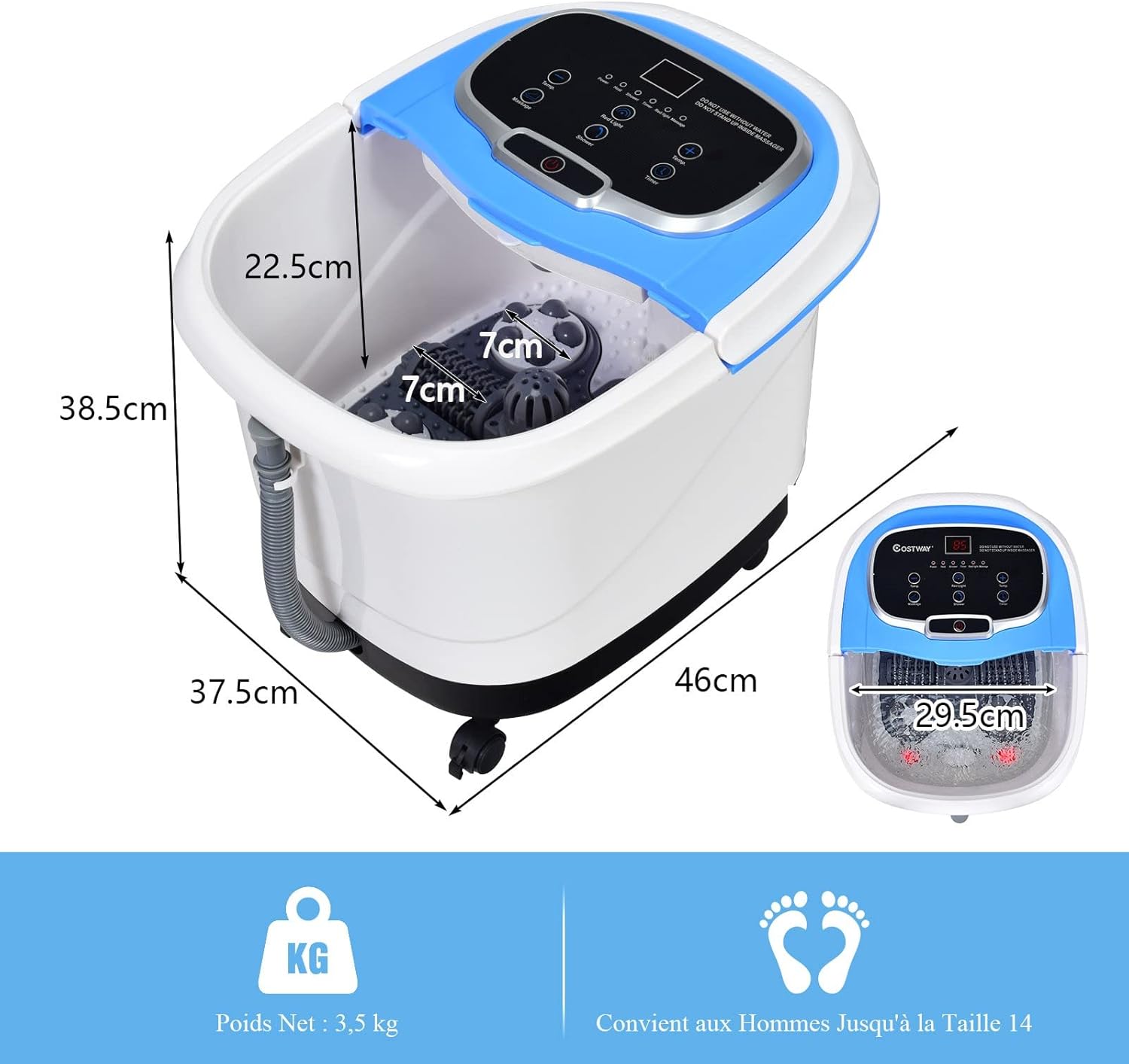

Image 9.1: Product dimensions and weight.
10. Garantia i Suport
Information regarding product warranty and customer support was not provided in the available product data. For warranty details, technical assistance, or to report any issues, please refer to the documentation included with your purchase or contact the manufacturer directly using the contact information provided on their official weblloc o embalatge del producte.
