Manual d'usuari del router Xiaomi AX3000

1. Producte acabatview

The Xiaomi AX3000 Router is a high-performance WiFi 6 Gigabit router designed for robust home networking. It features dual-frequency support (2.4GHz and 5GHz) and advanced technologies like Mesh networking for comprehensive coverage.

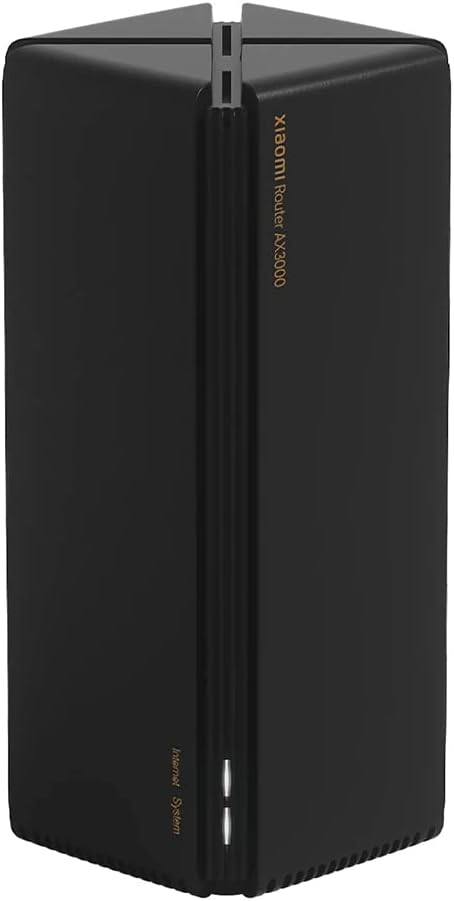

Figura 1: Frontal view of the Xiaomi AX3000 Router, showcasing its sleek black design and vertical orientation.

Característiques principals:

• Powerful WiFi 6 (802.11ax): Delivers up to 3000Mbps theoretical maximum rate for fast and efficient wireless connectivity.
• Suport de doble banda: Operates on both 2.4GHz (up to 574Mbps) and 5GHz (up to 2402Mbps) frequencies, with 160MHz bandwidth on 5GHz for higher speeds.
• Xarxa en malla: Supports seamless roaming and full house coverage by combining multiple routers.
• 256MB Large Memory: Enables stable connection for up to 128 devices simultaneously.
• 4 Independent Signal Ampelevadors: Enhances signal coverage and strength, improving penetration through walls.
• Tecnologia OFDMA: Improves multi-device simultaneous transmission efficiency, reducing latency.
• Qualcomm Chip: Provides stable and reliable performance with an independent network acceleration engine.
• Xiaomi Easy Connect: Simplifies connecting Xiaomi smart devices to the network.

Figura 2: Mésview of the Xiaomi AX3000 Router's main features, including its 3000Mbps wireless rate, 256MB memory, 160MHz bandwidth, hidden antennas, and Mesh networking capabilities.

Figure 3: Illustration of WiFi6 benefits for large homes, showing 360° signal coverage from four hidden antennas, signal amplification for wall penetration, and seamless Mesh networking.

Figure 4: Details on the 3000Mbps wireless rate, 5G 160MHz high bandwidth, and OFDMA multi-device simultaneous transmission for the Xiaomi AX3000 Router.

Figure 5: Information on Xiaomi Easy Connect for quick device pairing and the 256MB large memory supporting stable connections for up to 128 devices.

Figura 6: Mésview of the router's technical support features like Beamforming, BSS Coloring, WPA3, and IPv6, alongside rigorous quality testing procedures.

Figure 7: Details on the Next Generation Qualcomm Chip for stable operation, the independent network acceleration engine, and the cool dark cube design for effective heat dissipation.

2. Guia de configuració

2.1 Contingut del paquet

Abans de començar, assegureu-vos que tots els elements estiguin presents al paquet:

• 1 x Xiaomi AX3000 Router
• 1 x Manual d'usuari (aquest document)
• 1 x Cable de xarxa
• 1 x Power Adapter (CN-plug)

2.2 Connexió física

1. Connexió d'alimentació: Connect the provided power adapter to the router's power input interface and plug it into a power outlet.
2. Connexió WAN: Connect one end of the network cable to the WAN port (labeled 10/100/1000M Adaptive WAN) on the router. Connect the other end to your modem or main internet source.
3. Connexió LAN (opcional): For wired devices, connect them to any of the three LAN ports (labeled 10/100/1000M Adaptive LAN) on the router using network cables.

2.3 Configuració inicial

After physical connections are made, the router will power on. Wait for the System Indicator and Internet Indicator LEDs to stabilize. The System Indicator should be solid blue, and the Internet Indicator should be solid blue or green, indicating a successful connection.

Per configurar l'encaminador:

1. Connecteu-vos al router: Connect your computer or mobile device to the router's default Wi-Fi network. The default SSID (network name) and password are usually found on a sticker on the bottom of the router.
2. Accés Web Interfície: Obre a web browser and enter the default router IP address (e.g., 192.168.31.1 or miwifi.com) a la barra d'adreces.
3. Segueix les instruccions que apareixen a la pantalla: The setup wizard will guide you through setting up your internet connection, Wi-Fi network name (SSID), and password. It is recommended to change the default Wi-Fi password for security.
4. Xiaomi Home App (Optional): For easier management and advanced features, download the Xiaomi Home app (available on Android and iOS) and add your router.

3. Instruccions de funcionament

Connectivitat Wi-Fi 3.1

• Dispositius de connexió: Cerca your Wi-Fi network name (SSID) on your device and enter the password you set during initial configuration.
• Funcionament de doble banda: The router broadcasts both 2.4GHz and 5GHz networks. For older devices or wider coverage, use 2.4GHz. For newer devices requiring higher speeds and less interference, use 5GHz.
• Xiaomi Easy Connect: For compatible Xiaomi smart devices, use the Xiaomi Home app's Easy Connect feature to quickly add them to your network without manual password entry.

3.2 Xarxa de malla

The Xiaomi AX3000 Router supports Mesh networking for seamless whole-home Wi-Fi coverage. This allows multiple compatible Xiaomi routers to work together as a single network.

1. Adding Mesh Nodes: Place additional compatible Xiaomi Mesh routers in areas with weak Wi-Fi signals.
2. Mesh Button: Press the "Mesh Button" on both the main router and the new Mesh node to initiate the pairing process. Refer to the specific Mesh node's manual for detailed pairing instructions.
3. Itinerància perfecta: Devices will automatically switch to the strongest signal as you move around your home, ensuring uninterrupted connectivity.

3.3 Advanced Settings (Web Interface/App)

Accedir al router web interface or the Xiaomi Home app for advanced settings:

• Seguretat sense fils: Configure WPA-PSK/WPA2-PSK/WPA3-SAE encryption, manage wireless access control (black/white lists), and hide your SSID.
• Network Acceleration: Utilize the independent network acceleration engine for optimized performance, especially for gaming or streaming.
• Controls parentals: Gestiona els temps d'accés a Internet i el contingut dels dispositius connectats.
• Actualitzacions de firmware: Comproveu i instal·leu regularment si hi ha actualitzacions de firmware per garantir un rendiment i una seguretat òptims.

4. Manteniment

• Col·locació: Col·loqueu el router en un lloc central, allunyat d'obstacles, objectes metàl·lics grans i altres dispositius electrònics que puguin causar interferències.
• Neteja: Mantingueu el router net i lliure de pols. Feu servir un drap suau i sec per netejar-lo. No utilitzeu netejadors líquids ni aerosols.
• Ventilació: Ensure the router's ventilation slots are not blocked to allow for proper natural heat dissipation.
• Actualitzacions de firmware: Regularly check for and apply firmware updates through the router's web interface or the Xiaomi Home app. Updates often include performance improvements, security patches, and new features.
• Reiniciant: Periodically rebooting the router (unplugging the power for 10 seconds and plugging it back in) can help resolve minor connectivity issues and improve performance.

5. Solució De Problemes

5.1 Sense connexió a Internet

• Comproveu els cables: Ensure the network cable from your modem is securely connected to the router's WAN port.
• Indicadors de comprovació: Verify that the Internet Indicator LED on the router is solid blue or green. If it's off or blinking, there might be an issue with your internet service provider (ISP) connection.
• Reiniciar dispositius: Power cycle your modem first, then the router. Wait a few minutes for both to fully restart.
• Problema amb el proveïdor d'Internet: Si el problema persisteix, poseu-vos en contacte amb el vostre proveïdor de serveis d'Internet.

5.2 Slow Wi-Fi Speed or Weak Signal

• Col·locació del router: Move the router to a more central location, away from walls, large furniture, and electronic devices that can cause interference.
• Interferència: Other wireless devices (cordless phones, microwaves, Bluetooth devices) can interfere. Try changing the Wi-Fi channel in the router settings.
• Selecció de la banda: For devices closer to the router and requiring higher speeds, ensure they are connected to the 5GHz network.
• Xarxa de malla: Consider adding compatible Xiaomi Mesh nodes to extend coverage in larger homes.
• Compatibilitat del dispositiu: Ensure your devices support Wi-Fi 6 (802.11ax) to fully utilize the router's capabilities.

5.3 No puc accedir a la configuració del router

• Adreça IP correcta: Assegureu-vos que esteu utilitzant l'adreça IP correcta (per exemple, 192.168.31.1) o domini (miwifi.com).
• Connexió de xarxa: Verify your device is connected to the router's Wi-Fi network or via an Ethernet cable to a LAN port.
• Restableix l'encaminador: If you forgot your password or cannot access settings, press and hold the "System Reset" button on the router for about 5-10 seconds until the System Indicator blinks. This will restore factory default settings, and you will need to reconfigure the router.

6. Especificacions

7. Garantia i Suport

7.1 Informació de la garantia

Xiaomi products typically come with a limited warranty. Please refer to the warranty card included in your product packaging or visit the official Xiaomi weblloc web per obtenir informació detallada sobre els termes i condicions de la garantia específics de la vostra regió. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.

7.2 Atenció al client

For technical assistance, troubleshooting, or product inquiries, please contact Xiaomi customer support through their official weblloc web o la informació de contacte que es proporciona a la documentació del producte. També podeu visitar el Botiga Xiaomi a Amazon per obtenir més informació sobre el producte i recursos.
