Producte acabatview
Image: The LTC SS-503 TWS Wireless Earbuds shown with their charging case, highlighting the sleek white design and RGB lighting on the case.
The LTC SS-503 TWS Wireless Earbuds are designed for an immersive audio experience, featuring Bluetooth 5.1 connectivity, dual music and gaming modes, and a distinctive RGB light charging case. They are built for comfort and durability, with an IPX4 waterproof rating suitable for various activities.
Característiques principals:
- Cool RGB Light: Customizable lighting modes on the charging case.
- IPX4 Impermeable: Resistant to splashes and sweat, ideal for workouts.
- Quick Charging & Long Playtime: Fast charging via USB-C or wireless, with extended battery life.
- Bluetooth 5.1 & Low Latency: Stable connection and minimal audio delay.
- Dual Mode (Music & Gaming): So optimitzat professionalfiles for different uses.
- So estèreo d'alta fidelitat: Delivers clear audio with deep bass and crisp treble.
- Simply Pairing & Touch Controls: Easy device connection and intuitive touch-sensitive controls.
Configuració
1. Què hi ha a la caixa
Upon unboxing, ensure the following components are present:
- LTC SS-503 TWS Wireless Earbuds (Left and Right)
- Estoig de càrrega sense fil
- Cable de càrrega USB-C
- Manual d'usuari (aquest document)
2. Càrrega inicial
Abans del primer ús, carregueu completament els auriculars i l'estoig de càrrega.
Image: The charging case demonstrating both USB-C cable charging and wireless charging capabilities.
- Mitjançant un cable USB-C: Connect the provided USB-C cable to the charging case and a power source. The charging case will indicate charging status.
- Càrrega sense fils: Place the charging case on a compatible wireless charging pad. Ensure the case is properly aligned for efficient charging.
- Temps de càrrega: The charging case takes approximately 1.5 hours to fully charge. Earbuds charge when placed inside the case.
Note: Wireless charging devices with fast charging functions may adversely affect the charging case. Avoid using such devices to charge the case.
3. Emparellament amb el dispositiu
The earbuds support hassle-free pairing with iOS/Android phones, Mac, or Windows laptops.
Image: A smartphone displaying Bluetooth settings, showing the "SS-503" earbuds available for connection, with the charging case open beside it.
- Primera parella:
- Obre l'estoig de càrrega. Els auriculars s'encendran automàticament i entraran en mode d'emparellament.
- Al dispositiu (telèfon intel·ligent, tauleta, ordinador portàtil), activeu el Bluetooth i cerqueu els dispositius disponibles.
- Select "SS-503" from the list of found devices to connect.
- Un cop connectat, un missatge de veu confirmarà l'emparellament correcte.
- Connexió a altres dispositius:
- To connect to a new device or reset pairing, open the earbud compartment without removing the earbuds.
- Press and hold the function key (MFB) in the middle of the charging case for approximately 5 seconds until both earbud indicators light up simultaneously. This indicates a successful reset.
- When the earbud indicators begin single blinking, the headset is in pairing state and ready to connect to a new device.
Instruccions de funcionament
1. Encendre/apagar
- Encès: Obriu l'estoig de càrrega i els auriculars s'encendran automàticament i es connectaran a l'últim dispositiu emparellat.
- Apagar: Torneu a col·locar els auriculars a l'estoig de càrrega i tanqueu la tapa. S'apagaran automàticament i començaran a carregar-se.
2. Toqueu Controls
The earbuds feature intuitive touch controls on both the left and right earbuds (MFB - Multi-Function Button).

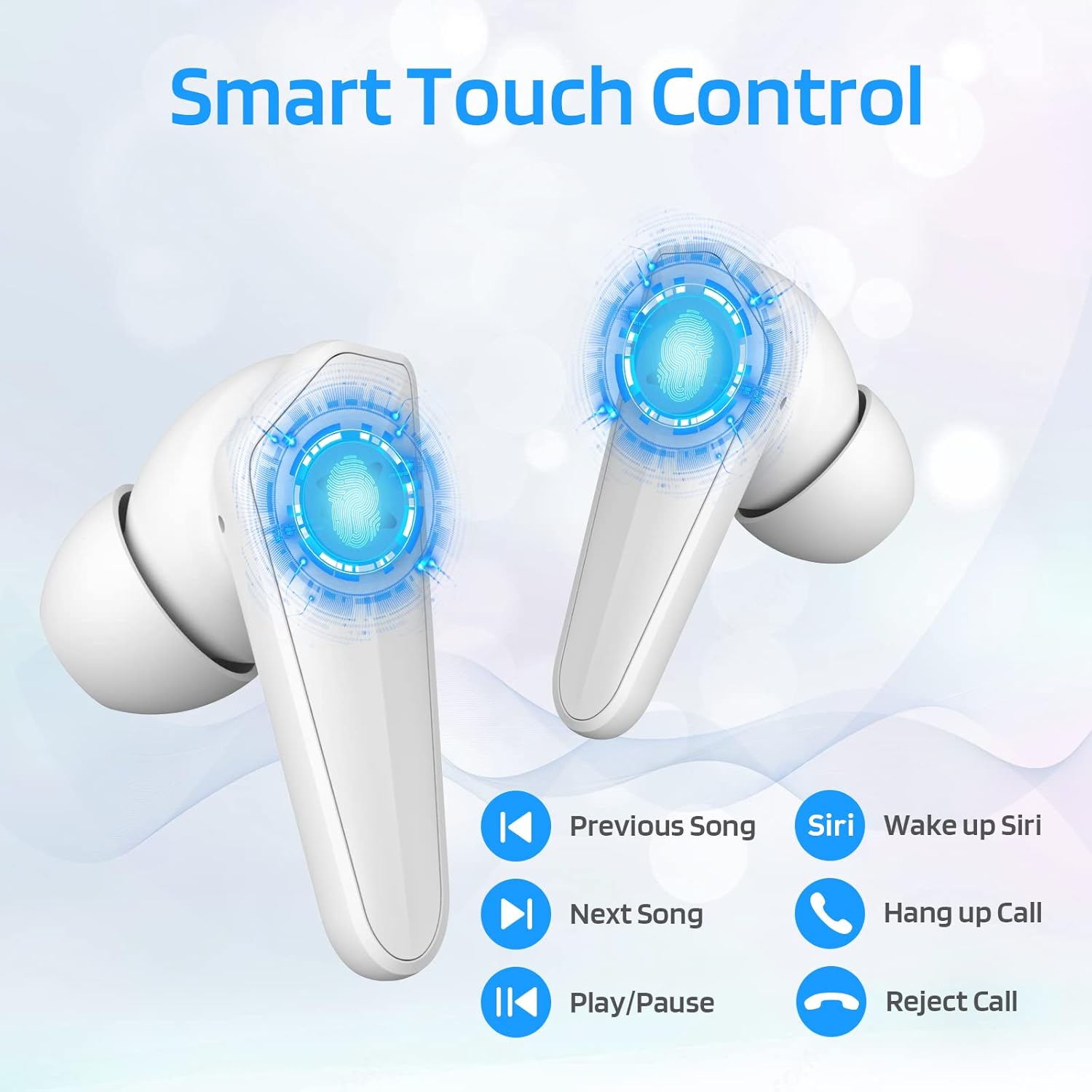

Image: Diagram illustrating the touch control functions on the earbuds, including play/pause, track navigation, call management, and voice assistant activation.
| Funció | Acció |
|---|---|
| Reproduir/Pausa | Un sol toc a qualsevol dels auriculars. |
| Següent Cançó | Toqueu dues vegades l'auricular dret. |
| Cançó anterior | Toqueu dues vegades l'auricular esquerre. |
| Respondre/Finalitzar la trucada | Un sol toc a qualsevol dels auriculars. |
| Rebutja la trucada | Manteniu premut qualsevol dels auriculars durant 2 segons. |
| Activa l'assistent de veu (Siri/Google) | Toqueu tres vegades l'auricular esquerre. |
3. Dual Mode Switching (Music/Gaming)
The LTC SS-503 earbuds offer two distinct audio modes for optimized performance.
Image: A smartphone screen displaying both music playback and a gaming interface, with icons indicating "Music Mode" and "Gaming Mode" for the earbuds.
- Canvi de modes: Press the right earbud's MFB for 3 seconds to switch between modes.
- Mode de joc: This mode is designed to weaken ambient sound and strengthen specific in-game audio cues, such as footsteps, providing a low-latency experience for immersive gaming.
- Mode de música: This mode produces high-fidelity stereo sound with deep bass and clear treble, optimized for general music listening.
4. RGB Light Control (Charging Case)
The charging case features customizable RGB lighting.
Image: The charging case illuminated with vibrant RGB lights, emphasizing its colorful and fashionable design.
- Canvi de modes de llum: Short press the MFB (Multi-Function Button) in the middle of the charging box to cycle through 9 different light modes.
- Encendre/apagar els llums: Double-press the MFB in the middle of the charging box to turn the RGB lights on or off.
Manteniment
Un manteniment adequat garanteix la longevitat i el rendiment òptim dels teus auriculars.
- Neteja: Regularly wipe the earbuds and charging case with a soft, dry, lint-free cloth. Avoid using abrasive materials or harsh chemicals. For ear tips, remove them and clean with mild soap and water, then dry thoroughly before reattaching.
- Resistència a l'aigua (IPX4): The earbuds are IPX4 waterproof, meaning they are resistant to splashing water from any direction. This makes them suitable for workouts and light rain. However, they are not designed for submersion in water, swimming, or showering. Do not expose them to pressurized water or high-velocity water.
- Emmagatzematge: When not in use, store the earbuds in their charging case to protect them and keep them charged. Store in a cool, dry place away from extreme temperatures and direct sunlight.
- Cura de la bateria: To preserve battery life, avoid fully discharging the earbuds and charging case frequently. Charge them regularly, even if not used for extended periods.
Image: The earbuds and charging case shown with water droplets, illustrating their IPX4 waterproof capability.
Resolució de problemes
If you encounter issues with your LTC SS-503 earbuds, refer to the following common problems and solutions:
Issue 1: Only one earbud has sound.
This product supports a dual-host function, allowing use of a single earbud. If only one earbud has sound when both are in use, it may require a reset.
- Solució: Place both earbuds back into the charging case. Close the lid, then open it again. This will reset and re-pair the earbuds. If the issue persists, perform a full reset as described in the "Connecting to Other Devices" section under Setup.
Issue 2: Occasional disconnection or unstable connection.
Bluetooth 5.1 technology provides a stable connection, but environmental factors can affect performance.
- Solució:
- Ensure the effective connection distance (less than 10 meters) is maintained between the earbuds and your device.
- Avoid signal-blocking objects such as thick walls or large metal structures between your device and the earbuds.
- Ensure there is no significant electromagnetic interference from other electronic devices nearby.
- Try resetting the earbuds and re-pairing them with your device.
Issue 3: Earbuds or charging case not charging.
If your device is not charging as expected, check the following:
- Solució:
- Verify that the USB-C cable is securely connected to both the charging case and the power adapter.
- Ensure the power adapter is functioning correctly and plugged into a live outlet.
- If using wireless charging, ensure the charging case is correctly positioned on the wireless charging pad and the pad is powered.
- Try using a different USB-C cable or power adapter to rule out faulty accessories.
- Clean the charging contacts on both the earbuds and inside the charging case with a dry cotton swab to ensure good connection.
Especificacions
Detailed technical specifications for the LTC SS-503 TWS Wireless Earbuds:
| Característica | Detall |
|---|---|
| Nom del model | Sound Slave (SS-503) |
| Tecnologia de connectivitat | Sense fil (Bluetooth 5.1) |
| Interval Bluetooth | Fins a 10 metres |
| Nivell de resistència a l'aigua | IPX4 (resistent a l'aigua) |
| Durada de la bateria dels auriculars | Fins a 5 hores |
| Temps de reproducció total (amb estoig de càrrega) | Fins a 20 hores |
| Temps de càrrega (cas) | 1.5 hores |
| Tipus de control | Control tàctil (control multimèdia) |
| Tipus de controlador d'àudio | Conductor dinàmic |
| Interval de freqüència | 20 Hz - 20,000 Hz |
| Material | Plàstic |
| Pes de l'article | 5 unces (paquet total) |
| Color | Blanc |
Garantia i Suport
LTC products are manufactured with high standards of quality. For specific warranty details, please refer to the warranty card included with your product or visit the official LTC weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
For further assistance, technical support, or inquiries, please refer to the official user manual PDF available online or contact LTC customer service through their official channels. The user manual PDF can be accessed via this link: LTC SS-503 User Manual (PDF).
