1. Producte acabatview
The FLYLINKTECH CF200 Battery Jump Starter is a versatile and powerful device designed to jump start 12V vehicles with up to 6.0L gasoline or 5.0L diesel engines. Beyond its primary function, it also serves as a portable power bank and features an integrated LED flashlight with multiple modes, making it an essential tool for automotive emergencies and outdoor activities.
Figure 1: FLYLINKTECH CF200 Jump Starter and included accessories.
2. Informació important de seguretat
Llegiu atentament tots els avisos i instruccions de seguretat abans d'utilitzar aquest producte. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis i/o lesions greus.
- Always ensure the jump starter is fully charged before use for optimal performance.
- No arrenqueu un vehicle amb ajuda d'un cable si la bateria està carregadatage is extremely low (below 10V) without consulting a professional.
- Eviteu curtcircuitar el cl del pontamps. Do not connect the red and black clamps junts.
- Keep the device away from water, moisture, and extreme temperatures. It is IP67 waterproof, but prolonged submersion is not recommended.
- No desmunteu la unitat. Envieu totes les tasques de manteniment a personal de servei qualificat.
- Mantenir fora de l'abast dels nens.
- Operate within the specified temperature range: -20℃ to 60℃ (-4°F to 140°F).
Figure 2: The smart clamps provide multiple protection features including short circuit, high temperature, over charge, over discharge, reverse polarity, and over current protection.
3. Contingut del paquet
- FLYLINKTECH CF200 Jump Starter
- Cables de pont intel·ligents
- Cable micro USB
- Manual d'usuari
4. Configuració inicial i càrrega
Before first use, fully charge the jump starter. It is recommended to charge the product once every 3 months to maintain optimal battery health, even if not in use.
Càrrega del Jump Starter:
- Connect the Micro USB cable to the jump starter's Micro USB Input port.
- Connect the other end of the Micro USB cable to a 5V/2A USB power adapter (not included).
- Els indicadors LED s'il·luminaran per mostrar el progrés de la càrrega. Tots els llums estaran fixos quan estigui completament carregat.
Nota: Do not charge the jump starter immediately after jump starting an engine. Allow at least 30 minutes for the unit to cool down.
Figure 3: The jump starter can also function as a portable power bank to charge your electronic devices.
5. Instruccions de funcionament
5.1. Arrencada d'un vehicle amb ajuda d'un cable
- Connect Smart Jumper Cables: Insert the blue plug of the smart jumper cables into the 12V Auto Jump Port on the jump starter. Ensure a firm connection.
- Adjunteu Clamps a la bateria: Connecteu el cl vermell (+).amp to the positive (+) terminal of the vehicle's battery. Connect the black (-) clamp to the negative (-) terminal of the vehicle's battery. The indicator light on the smart clamp will show green if the connection is correct and safe. If it shows red, check the connections for reverse polarity or short circuit.
- Inici del vehicle: Un cop el cl intel·ligentamp indicator is green, start your vehicle's engine.
- Eliminar Clamps: After the vehicle starts, immediately remove the jumper clamps from the car battery, then disconnect the smart jumper cables from the jump starter.
Figura 4: Guia pas a pas per a l'arrencada amb ajuda d'un vehicle.
Video 1: Demonstration of the FLYLINKTECH CF200 Jump Starter in action, showing its features and how to jump start a vehicle.
5.2. Ús com a bateria externa
The jump starter features dual USB output ports (5V 2.4A) and a Type-C input/output port, allowing you to charge various electronic devices such as smartphones, tablets, and other USB-powered gadgets.
- Connect your device's charging cable to one of the USB output ports or the Type-C port on the jump starter.
- L'arrencador començarà a carregar el dispositiu automàticament.
5.3. Funcions de la llanterna LED
The built-in LED flashlight offers three modes for different situations:
- Mode d'il·luminació: Premeu i manteniu premut el botó d'engegada durant 3 segons per encendre la llanterna.
- Mode estroboscòpic: Press the power button once more to activate the strobe light, useful for signaling.
- Mode SOS: Press the power button a third time to activate the SOS signal, for emergency situations.
- To turn off the flashlight, press the power button again or press and hold for 3 seconds.

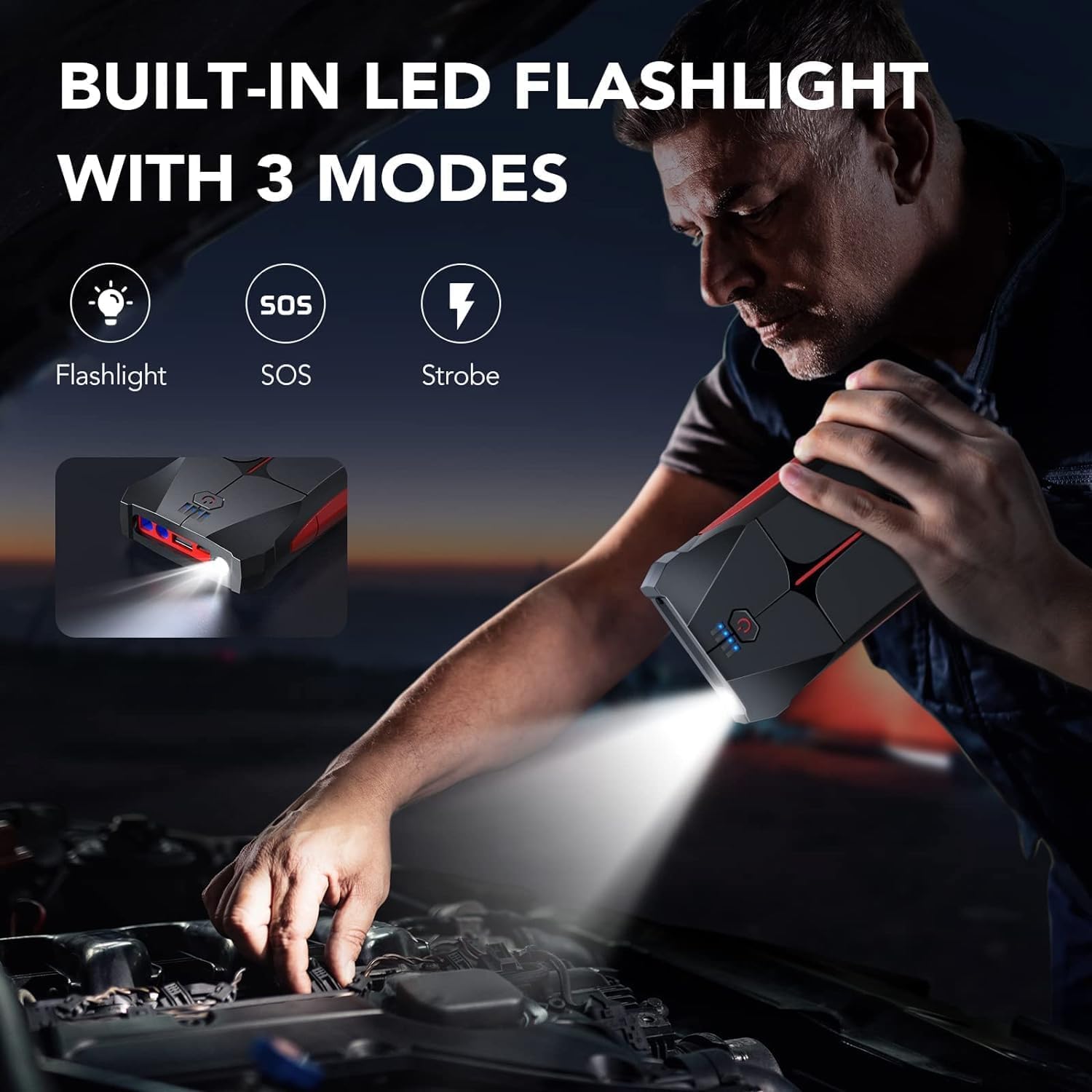

Figure 5: The integrated LED flashlight provides three useful modes for various scenarios.
5.4. Emergency Tools (Glass Breaker & Belt Cutter)
For added safety in emergencies, the CF200 is equipped with a glass breaker and a seatbelt cutter. The glass breaker is located at one end of the unit, and the belt cutter is safely concealed under a cap. These tools are designed for use in critical situations where quick escape from a vehicle is necessary.
6. Manteniment i emmagatzematge
- Clean the jump starter with a dry, soft cloth. Do not use harsh chemicals or abrasive materials.
- Guardeu la unitat en un lloc fresc i sec, allunyat de la llum solar directa i de fonts de calor.
- For long-term storage, ensure the unit is charged to at least 50% and recharge it every 3 months to prevent deep discharge and prolong battery life.
- Keep the smart jumper cables clean and free from corrosion.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El vehicle no arrenca | La bateria de l'arrencador de botons és baixa. | Recarregueu l'arrencada de salt. |
| Clamps no estan connectats correctament. | Assegureu-vos que clamps are securely connected to the correct battery terminals. Check smart clamp indicator for green light. | |
| La bateria del vehicle està greument danyada. | Consulta un mecànic professional. | |
| Smart clamp shows red light | Polaritat inversa o curtcircuit. | Desconnectar clamps and re-attach correctly (red to positive, black to negative). Ensure clamps do not touch each other. |
| El dispositiu no es carrega | Problema amb el cable o l'adaptador de càrrega. | Try a different Micro USB cable or power adapter. |
8. Especificacions tècniques
| Característica | Especificació |
|---|---|
| Model | CF200 |
| Corrent màxima | 1200A |
| Compatibilitat del motor | Fins a 6.0 L de gasolina / 5.0 L de dièsel |
| Capacitat de la bateria | 13200 mAh |
| Entrada | 5V/2A (Micro USB) |
| Sortida | 5V 2.4A (Dual USB), 12V Jump Start |
| Temperatura de funcionament | -20 ℃ a 60 ℃ (-4 °F a 140 °F) |
| Tota la vida | >1000 cicles |
| Dimensions | 158 x 88 x 33mm (6.22 x 3.46 x 1.29 polzades) |
| Pes | 380 g (0.83 lliures) |
| Classificació impermeable | IP67 |
Figure 6: Detailed diagram showing the dimensions and various ports/features of the jump starter.
9. Garantia i atenció al client
FLYLINKTECH provides 12 months technical support and after-sales customer service. If you encounter any problems during use, please feel free to contact us through Amazon. Our professional technical team is always here to help you.
For further assistance, please refer to the official FLYLINKTECH store on Amazon: FLYLINKTECH Store
