suitU Handheld Cordless Wet & Dry Vacuum Cleaner Instruction Manual

1. Producte acabatview

The suitU Handheld Cordless Wet & Dry Vacuum Cleaner is designed for efficient cleaning in various environments, including homes and vehicles. It features a powerful 120W motor providing 12000Pa suction, a high-efficiency HEPA filter system, and a rechargeable battery for cordless operation.

Les característiques clau inclouen:

• 12000Pa Powerful Suction: Equipped with a 120W high-power motor for effective debris, dust, and pet hair pickup.
• Poder de llarga durada: Features a 3*2000 mAh lithium-ion battery, offering up to 35 minutes of runtime on lower suction and 15 minutes on higher suction after a 3-4 hour charge.
• Lleuger i portàtil: Designed for easy maneuverability, making it suitable for cleaning stairs, kitchens, cars, and hard-to-reach areas.
• Wet & Dry Capability: Capable of vacuuming both solid debris and liquid spills.
• Funcionalitat 2 en 1: Easily converts between an upright stick vacuum and a handheld vacuum cleaner.

Image 1.1: The suitU Handheld Cordless Wet & Dry Vacuum Cleaner shown in both stick and handheld modes, alongside its included attachments.

Image 1.2: Visual representation of the vacuum's ability to clean both dry debris (like pet food) and wet spills (like liquids).

2. Contingut del paquet

Si us plau, verifiqueu que tots els elements que s'enumeren a continuació estiguin inclosos al vostre paquet:

• 1 x Vacuum Cleaner (Main Host)
• 1 x Adjustable Metal Tube
• 1 x raspall de terra
• 1 x Long Flat Nozzle (Crevice Nozzle)
• 1 x Small Brush (Brush Nozzle)
• 1 x Extension Hose
• 1 x Auxiliary Connector
• 1 x cable de càrrega USB
• 1 x Manual d'usuari

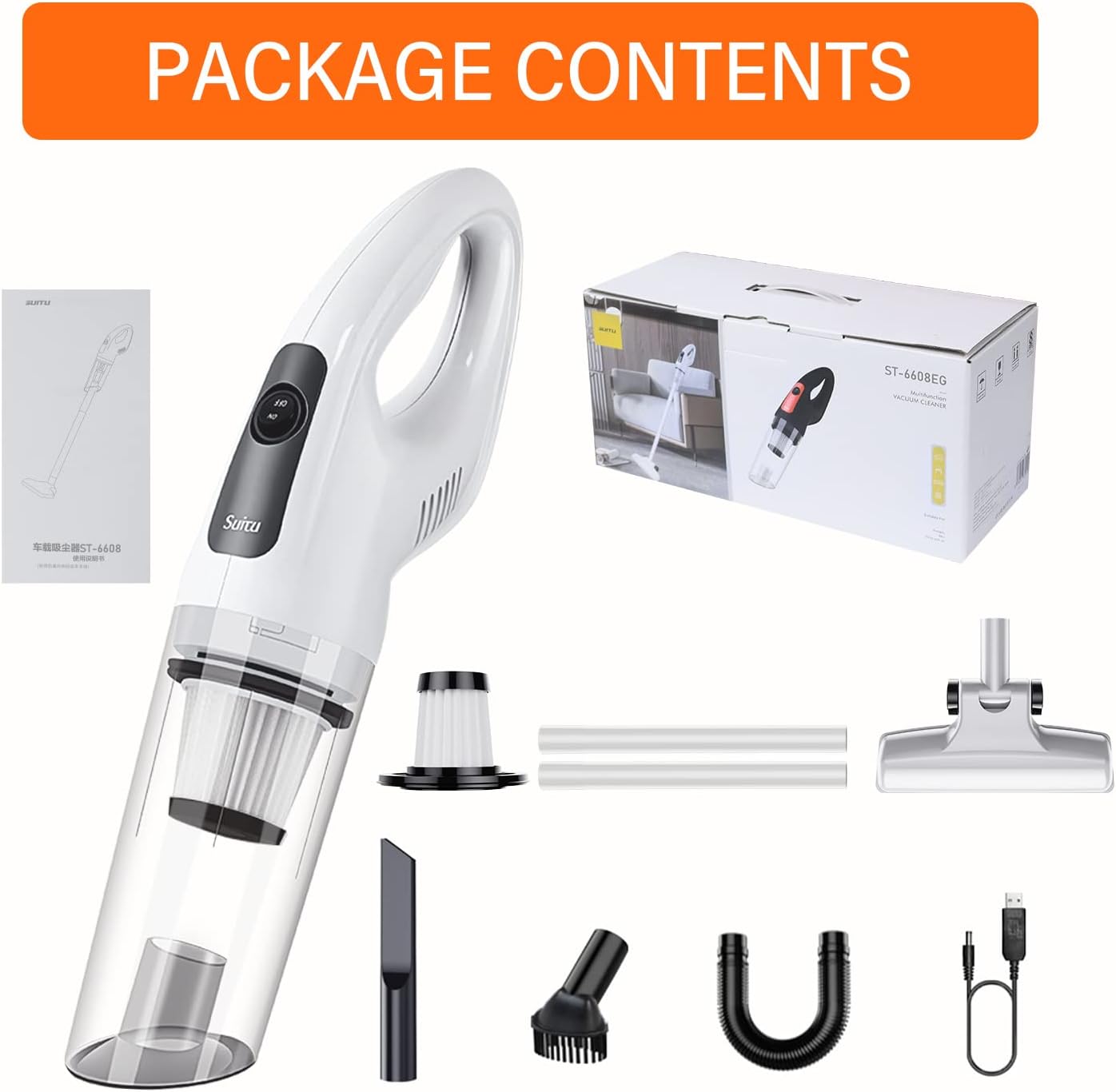

Image 2.1: Contents of the product package, showing the vacuum unit, attachments, and accessories.

3. Configuració

Abans del primer ús, assegureu-vos que l'aspiradora estigui completament carregada.

1. Càrrega de la bateria:
   • Connect the USB charging cable to the vacuum's charging port and to a suitable USB power adapter (not included).
   • The charging indicator light will show red during charging and turn green when fully charged.
   • Una càrrega completa sol trigar aproximadament 3-4 hores.
2. Muntatge de fitxers adjunts:
   • For handheld use, directly attach the desired nozzle (Flat Crevice Nozzle or Brush Nozzle) to the vacuum's suction inlet.
   • For stick vacuum use, connect the adjustable metal tube to the main vacuum unit, then attach the floor brush to the other end of the metal tube.
   • The extension hose and auxiliary connector can be used with various nozzles for extended reach or specific cleaning tasks.

4. Instruccions de funcionament

Seguiu aquests passos per a una neteja eficaç:

1. Encès/apagat: Locate the power switch on the vacuum cleaner. Press it to turn the unit on. Press it again to turn it off.
2. Select Suction Level: The vacuum may have different suction levels. Refer to the device's controls to adjust as needed. Higher suction is suitable for stubborn debris, while lower suction conserves battery life.
3. Trieu el broquet adequat:
   • Flat Crevice Nozzle: Ideal for narrow gaps, corners, and hard-to-reach areas (e.g., car seats, sofa crevices).
   • Broquet de raspall: Suitable for cleaning delicate surfaces, upholstery, and pet hair.
   • Floor Brush with Extension Tube: For general floor cleaning, converting the unit into a stick vacuum.
   • Mànega d'extensió: Proporciona flexibilitat per netejar angles incòmodes o l'interior de vehicles.
4. Comença la neteja: Move the vacuum slowly over the surface to be cleaned, allowing the suction to pick up debris. For wet spills, ensure the dustbin is empty and clean before use, and empty it immediately after vacuuming liquids.
5. Bateria del monitor: The charging indicator light will provide feedback on battery status. Recharge when the battery is low to avoid interruption.

Image 4.1: Demonstrates the handheld vacuum's power and its effectiveness against various types of debris.

Image 4.2: The vacuum being used in stick configuration to clean elevated surfaces, highlighting its lightweight design.

Image 4.3: The vacuum in use on a carpet, illustrating its role in maintaining a clean living space.

Imatge 4.4: Ex.amples of the vacuum's application in cleaning car interiors, sofas, and pet areas.

5. Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de l'aspiradora.

1. Buidant la paperera:
   • After each use, or when the dustbin is full, detach it from the main unit.
   • Buideu les restes recollides en un contenidor d'escombraries.
2. Neteja del filtre:
   • The vacuum is equipped with a high-efficiency HEPA filter. Remove the filter from the dustbin.
   • Tap the filter gently to dislodge dust. For a more thorough cleaning, rinse the filter under running water.
   • Important: Ensure the filter is completely dry before reinserting it into the vacuum. Using a wet filter can damage the motor.
3. Neteja de la unitat principal i els accessoris:
   • Wipe the exterior of the vacuum and attachments with a soft, damp tela.
   • No utilitzeu productes químics ni productes de neteja abrasius.
4. Emmagatzematge:
   • Store the vacuum cleaner and its accessories in a cool, dry place, away from direct sunlight and moisture.

6. Solució De Problemes

Si teniu problemes amb l'aspiradora, consulteu els següents problemes i solucions habituals:

• L'aspiradora no s'encén:
  • Assegureu-vos que la bateria estigui completament carregada.
  • Check that the power switch is pressed firmly.
• Baixa potència de succió:
  • Empty the dustbin if it is full.
  • Clean or replace the HEPA filter. A clogged filter significantly reduces suction.
  • Check for blockages in the nozzle, extension tube, or main suction inlet.
  • Ensure all attachments are securely connected.
• La bateria no es carrega:
  • Verify the USB charging cable is properly connected to both the vacuum and the power source.
  • Ensure the USB power adapter is functional.
  • Comproveu si hi ha danys al cable o al port de càrrega.
• Soroll inusual durant el funcionament:
  • Turn off the vacuum and check for any foreign objects lodged in the brush roll (if applicable) or suction path.
  • Ensure the dustbin and filter are correctly installed.

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

7. Especificacions

8. Garantia i Suport

Per obtenir informació sobre la garantia o assistència tècnica, consulteu la documentació inclosa amb la compra o poseu-vos en contacte directament amb el fabricant. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
