ELISWEEN Wireless Switch Controller Instruction Manual

Introducció

This instruction manual provides detailed guidance for using your ELISWEEN Wireless Switch Controller, designed for Nintendo Switch, Switch Lite, and Switch OLED consoles. This controller offers an enhanced gaming experience with advanced features and ergonomic design, ensuring comfort and precision during gameplay.

Imatge: Frontal view of the black ELISWEEN Wireless Switch Controller with red and blue accents on the joysticks.

Característiques clau

• Botons programables: Two back programming buttons (M1/M2) for single or multi-programming (A+B+Y+L+ZL+R+ZR+D-pad) to optimize gameplay.
• Despertador amb un sol botó: Conveniently wake up your Switch console by simply pressing the HOME button after initial pairing.
• Funció de vibració: Dual vibration motors with 3-level precise vibration (weak, medium, strong) for enhanced game immersion.
• Sensor giroscòpic de 6 eixos: Detects controller inclination for quick and precise response in motion-sensing games.
• Disseny ergonòmic: Non-slip design ensures stable control and comfortable grip during extended gaming sessions.
• Funció turbo: Adjustable auto or manual TURBO mode with 3 speeds (5, 12, 20 shots/s). Customizable TURBO buttons (A/B/X/Y/L/ZL/R/ZR).
• Funció de captura de pantalla: Continuous screenshot capability for capturing in-game moments.
• Bateria d'alt rendiment: Built-in 600mAh rechargeable battery providing 10-15 hours of play time with 2-3 hours full charge.

Image: Visual representation of the controller highlighting Programmable, TURBO Function, 6-Axis Gyro, and Dual Shock features.

Contingut del paquet

• 1 x ELISWEEN Wireless Switch Controller (Model: B18)
• 1 x cable de càrrega USB
• 1 x Manual d'usuari

Configuració

Initial Pairing with Nintendo Switch/Lite/OLED

1. Assegura't que la consola Nintendo Switch estigui engegada i actualitzada a l'última versió del sistema.
2. Al menú INICI, seleccioneu "Controlants" > "Canvia l'empunyadura/l'ordre".
3. On the ELISWEEN controller, press and hold the "Y + HOME" buttons simultaneously for 3-5 seconds until the LED indicators start flashing rapidly.
4. Once the controller is successfully paired, the player LED(s) on the controller will light up solid.

Waking Up the Console

After the initial pairing, simply press the "HOME" button on the controller to wake up your Nintendo Switch console from sleep mode. The controller will automatically reconnect.

Image: A user demonstrating the one-button wake-up function for the Nintendo Switch console using the controller.

Instruccions de funcionament

Programmable Buttons (M1/M2)

The controller features two programmable back buttons, M1 and M2, which can be assigned to single or multiple button inputs (A+B+Y+L+ZL+R+ZR+D-pad). This allows for more comfortable and efficient gameplay by reducing finger strain.

1. Press and hold the M1 or M2 button you wish to program.
2. While holding M1/M2, press the button(s) you want to assign (e.g., A, B, Y, L, ZL, R, ZR, D-pad).
3. Release the M1/M2 button. The programming is now complete.
4. To clear a programmed button, press and hold the M1/M2 button, then press the assigned button(s) again, and release.

Imatge: Primer pla view of the back of the controller showing the M1 and M2 programmable buttons and their potential assignments.

Funció Turbo

The Turbo function allows for rapid, continuous input of a button. It has 3 adjustable speeds: 5 shots/s, 12 shots/s, and 20 shots/s. You can set Turbo for A/B/X/Y/L/ZL/R/ZR buttons.

1. Configuració del Turbo: Press and hold the desired button (e.g., A) and then press the Turbo button (T). The button will now continuously input when held.
2. Ajust de la velocitat del turbo: While holding the Turbo button (T), move the right joystick up or down to cycle through the 3 speeds.
3. Turbo de neteja: Press and hold the desired button and then press the Turbo button (T) again.

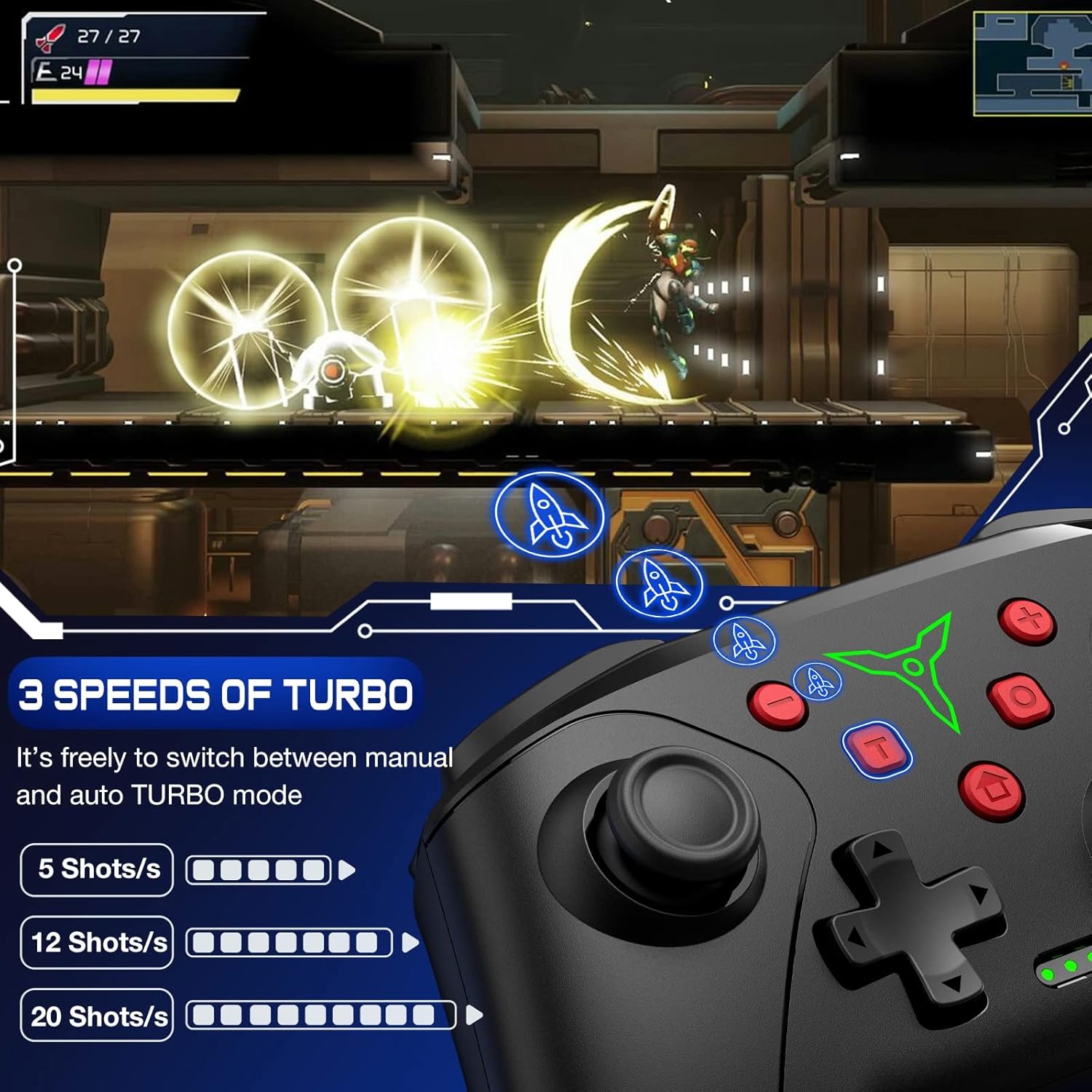

Image: The controller displaying the three adjustable Turbo speeds (5, 12, 20 shots/s) and how they are activated.

Ajust de vibració

The dual vibration motors offer 3 levels of intensity: weak, medium, and strong. This allows you to customize the haptic feedback to your preference.

1. To adjust vibration, press and hold the Vibration Adjustment button (refer to specific button layout in the included manual if unsure).
2. While holding, move the left joystick up or down to cycle through the vibration levels.

Image: The controller illustrating the 3-level vibration feature with visual cues for weak, medium, and strong feedback.

Sensor giroscòpic de 6 eixos

The built-in 6-axis gyro sensor allows for precise motion control in compatible games. Simply tilt and move the controller to interact with the game environment.

Image: The controller demonstrating the 6-axis gyro sensor's ability to control direction and view in a game.

Funció de captura de pantalla

Press the dedicated Screenshot button (usually located near the HOME button) to capture in-game screenshots instantly.

Carregant

The controller is equipped with a 600mAh rechargeable battery. To charge, connect the controller to a USB power source (e.g., Nintendo Switch dock, USB wall adapter, PC) using the provided USB charging cable.

• Temps de càrrega: aproximadament de 2 a 3 hores per a una càrrega completa.
• Play Time: Up to 10-15 hours on a full charge, depending on usage and vibration settings.
• LED Indicators: The LED indicators on the controller will show charging status and battery level.

Image: The controller connected via USB-C cable, illustrating its large capacity battery and charging details.

Manteniment

• Mantingueu el controlador sec i allunyat de la humitat.
• Eviteu temperatures extremes.
• Netegeu el controlador amb un drap suau i sec. No utilitzeu productes químics agressius ni materials abrasius.
• Guardeu-ho en un lloc segur per evitar caigudes accidentals o danys.

Resolució de problemes

El controlador no es connecta/s'emparella

• Assegureu-vos que el controlador estigui carregat.
• Verify the Switch console is in "Change Grip/Order" mode.
• Try resetting the controller by inserting a small pin into the reset hole on the back (if available).
• Move closer to the Switch console to ensure a strong wireless signal.
• Restart the Switch console and try pairing again.

Retard d'entrada o botons que no responen

• Comproveu si hi ha interferències d'altres dispositius sense fil.
• Assegureu-vos que el controlador estigui completament carregat.
• Reset the controller and re-pair it with the console.

Especificacions

Garantia i Suport

For warranty information and customer support, please refer to the contact details provided on the product packaging or the official ELISWEEN weblloc. Conserveu el rebut de compra per a reclamacions de garantia.
