1. Instruccions de seguretat importants
Read all safety warnings and instructions before operating this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference.
- Seguretat personal: Always wear eye protection, hearing protection, and heavy long pants. Do not operate the blower barefoot or in open sandals.
- Seguretat elèctrica: This tool is cordless. Ensure the battery pack is fully charged before use. Do not expose the tool to rain or wet conditions.
- Seguretat de l'àrea de treball: Keep children, bystanders, and pets away while operating the blower. Clear the work area of objects that could be thrown by the air stream.
- Ús i cura de l'eina: Do not force the tool. Use the correct tool for your application. Disconnect the battery pack before making any adjustments, changing accessories, or storing the tool.
- Ús i cura de la bateria: Use only with specified battery packs and chargers. Do not incinerate the battery pack even if it is severely damaged.
2. Producte acabatview
The INGCO 20V Cordless Brushless Electric Leaf Blower is designed for efficient clearing of leaves, dust, debris, and light snow from various surfaces. It features a powerful brushless motor and variable speed control for versatile use.
Components

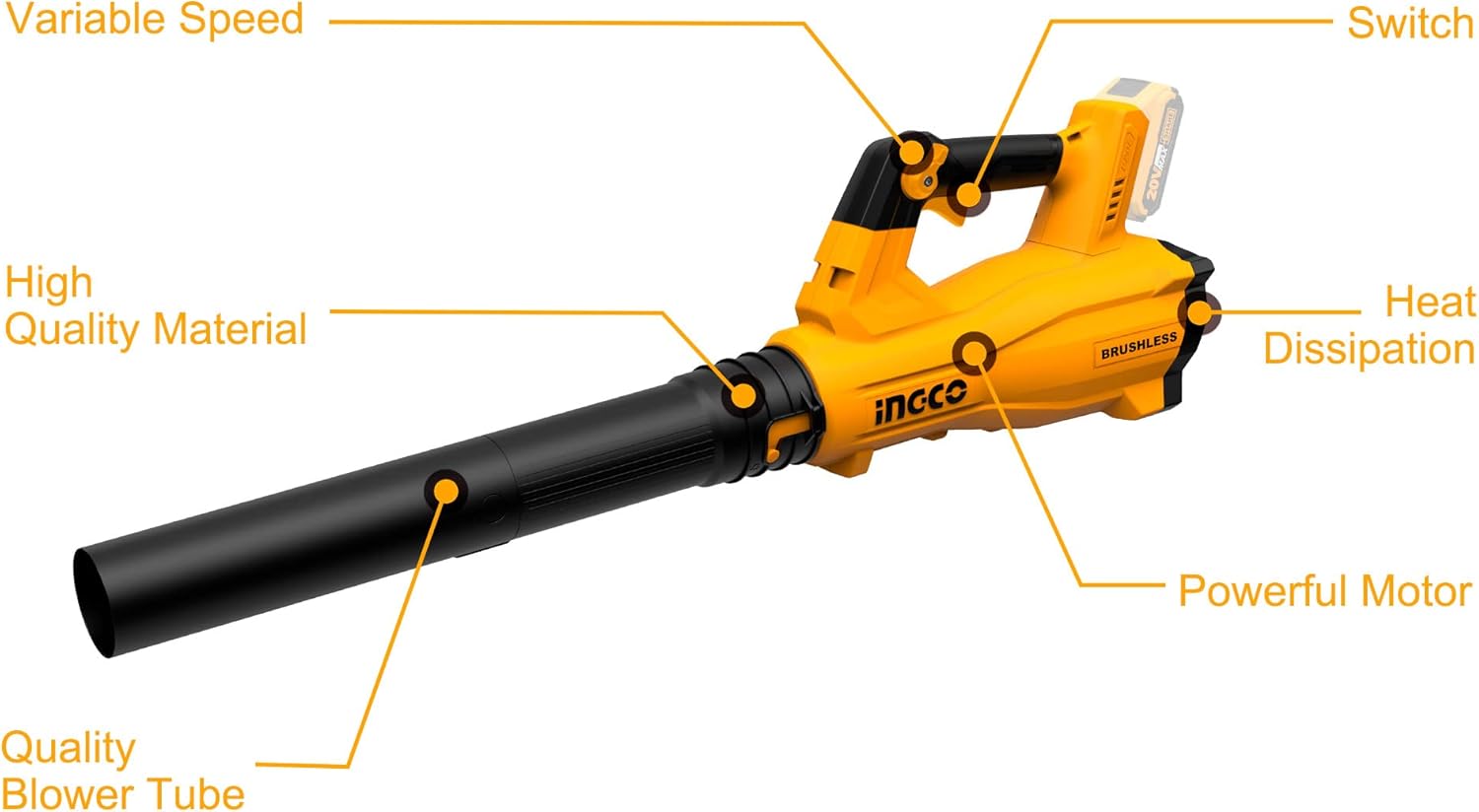

Figura 2.1: Labeled diagram of the leaf blower showing Variable Speed Trigger, Switch, Heat Dissipation Vents, Powerful Brushless Motor, High Quality Material Housing, and Quality Blower Tube.
Característiques clau
- Motor sense escombretes: Provides increased runtime, durability, and reduced noise compared to brushed motors.
- Activador de velocitat variable: Allows for precise control of airflow, moving air up to 94 Mph and 300 CFM.
- Disseny lleuger: Ensures comfortable use for extended periods.
- Disseny ergonòmic: Facilitates easy control and arm movement during operation.
- Large Ventilation Holes: Designed for effective heat dissipation, extending motor life.
- Adjustable Blowing Tube: For convenient storage and transport.
3. Configuració
Follow these steps to prepare your leaf blower for use.
3.1 Fixació del tub del bufador
- Align the blower tube with the main unit's air outlet.
- Push the tube firmly onto the outlet until it clicks into place or is securely seated. Ensure it is tightly connected to prevent it from falling off during operation.
Figura 3.1: Blower main unit and detached tube.
3.2 Instal·lació de la bateria
This tool is sold as 'Tool Only' and requires a compatible INGCO 20V battery and charger (sold separately).
- Assegureu-vos que la bateria estigui completament carregada.
- Slide the charged battery pack into the battery port on the rear of the blower until it locks securely into place.
- Per treure-la, premeu el botó d'alliberament de la bateria i feu lliscar el paquet de bateries cap a fora.
4. Instruccions de funcionament
Before operating, ensure the blower tube is securely attached and the battery is fully charged.
4.1 Inici i aturada
- To start the blower, press the main power switch (if applicable) and then squeeze the variable speed trigger.
- Per aturar el bufador, deixeu anar el disparador de velocitat variable.
4.2 Control de velocitat variable
The blower features a variable speed trigger. Squeeze the trigger gently for lower airflow and press it fully for maximum airflow (up to 94 Mph / 300 CFM). This allows you to adjust the power based on the task.
Figura 4.1: Variable speed trigger for controlled airflow.
4.3 Consells generals d'operació
- Neteja de fulles i deixalles: Walk slowly and sweep the blower from side to side. Use lower speeds for light debris and higher speeds for heavier or wet debris.
- Neteja de neu: The blower is suitable for light, powdery snow. Avoid using it on heavy, wet, or icy snow.
- Dust Clearing: Use low speed to avoid spreading dust excessively.
Vídeo 4.1: Demonstration of the INGCO 20V Brushless Cordless Leaf Blower in action, showcasing its power and ease of use for various clearing tasks.
Figura 4.2: Clearing dry leaves from a paved area.
Figura 4.3: Clearing leaves from a lawn.
Figura 4.4: Using the blower to clear light snow from a vehicle.
5. Manteniment
Regular maintenance ensures optimal performance and extends the life of your leaf blower. Always remove the battery pack before performing any maintenance.
5.1 Neteja
- Exterior: Netegeu l'exterior del bufador amb un drap net.amp tela. No utilitzeu detergents o dissolvents forts.
- Vendes d'aire: Keep the air vents clean and free of obstructions to ensure proper heat dissipation. Use a soft brush or compressed air to clear debris from the ventilation holes.
Figura 5.1: Large ventilation slot for heat dissipation.
5.2 Emmagatzematge
- Store the blower in a dry, secure place out of reach of children.
- Traieu la bateria de l'eina abans de guardar-la durant períodes prolongats.
- Guardeu les bateries en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
6. Solució De Problemes
If you encounter issues with your leaf blower, refer to the following common problems and solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no arrenca | La bateria no s'ha inserit correctament Bateria descarregada Apagat | Assegureu-vos que la bateria estigui completament col·locada Carregueu la bateria Ensure main power switch is on |
| Flux d'aire reduït | Blower tube loose or obstructed Vendes d'entrada d'aire bloquejades | Check and secure blower tube; clear any obstructions Clean air intake vents |
| El ventilador s'atura durant el funcionament | Bateria sobreescalfada Bateria descarregada | Deixeu que la bateria es refredi Carregueu la bateria |
| Sorolls o vibracions inusuals | Components solts Debris inside housing | Check all connections and fasteners Remove battery and inspect for internal debris (if safe to do so, otherwise contact support) |
7. Especificacions
Detailed technical specifications for the INGCO 20V Cordless Brushless Electric Leaf Blower.
- Número de model: CABLI20028A
- Marca: Ingco
- Font d'alimentació: Funciona amb bateria
- Voltage: 20 Volts
- Tipus de motor: Sense raspalls
- Velocitat de l'aire: Up to 94 Mph
- Volum d'aire: Fins a 300 CFM
- Factor de forma: Portàtil
- Pes de l'article: 5.94 lliures
- Dimensions del producte: 18.82 x 10.83 x 10.63 polzades
- Color: Negre, groc
- Característica especial: Electric, Cordless, Variable Speed
- Components inclosos: Tool Only (Battery and Charger sold separately)
- Ús interior/exterior: A l'aire lliure
8. Garantia i Suport
For warranty information, product support, or service inquiries, please refer to the warranty card included with your purchase or visit the official Ingco weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
Informació de contacte: Si us plau, consulteu el document oficial del fabricant website or product packaging for the most current customer support details.
