X-PRO 150cc GY6 Moped Scooter Engine: Installation and Maintenance Manual

Introducció

This manual provides essential information for the safe and effective installation, operation, and maintenance of your X-PRO 150cc GY6 4-stroke moped scooter engine. Please read this manual thoroughly before attempting any installation or maintenance procedures to ensure proper function and longevity of the engine. Retain this manual for future reference.

Producte acabatview i Especificacions

The X-PRO 150cc GY6 engine is a 4-stroke, air-cooled unit designed for moped and scooter applications. It features a CVT automatic transmission and supports both electric and kick starting methods.

Característiques principals:

• 150cc GY6 4-stroke engine
• CVT Automatic Transmission
• Electric and Kick Start capability
• Air-cooled design
• Long Case design (uses 842 belt)
• Auto clutch system

Detailed Specifications:

Compatibilitat

This engine is designed to be compatible with a wide range of 150cc GY6 scooters and most China-made 150cc scooters. It is a long case engine, utilizing an 842 belt.

Compatible Vehicles and Models:

• 150cc GY6 Scooters
• 150cc China made Scooters
• Includes models from brands such as Coolster, Taotao, Roketa, Kazuma, Terminator, Lynx, Redcat, Tank, and others.

Important: Always measure the physical dimensions of your existing engine and compare them with the specifications provided to ensure correct fitment before purchase and installation.

Configuració i instal·lació

Installation of a new engine requires mechanical aptitude. If you are not confident in your abilities, it is recommended to seek professional assistance.

Comprovacions prèvies a la instal·lació:

• Verify Physical Size: Before beginning installation, carefully measure the dimensions of the new engine and compare them to the space available in your scooter frame. Refer to the image below for a visual reference of engine dimensions.
• Initial Oil Change: The engine is shipped with a protective "shipping oil" which is thicker than required for operation. It is crucial to drain this shipping oil and replace it with fresh 10W40 engine oil before the first start. The lubrication capacity is 1200ml (0.26 Gallon).
• Inspeccionar components: Check all visible components, wiring, and hoses for any signs of damage during shipping.

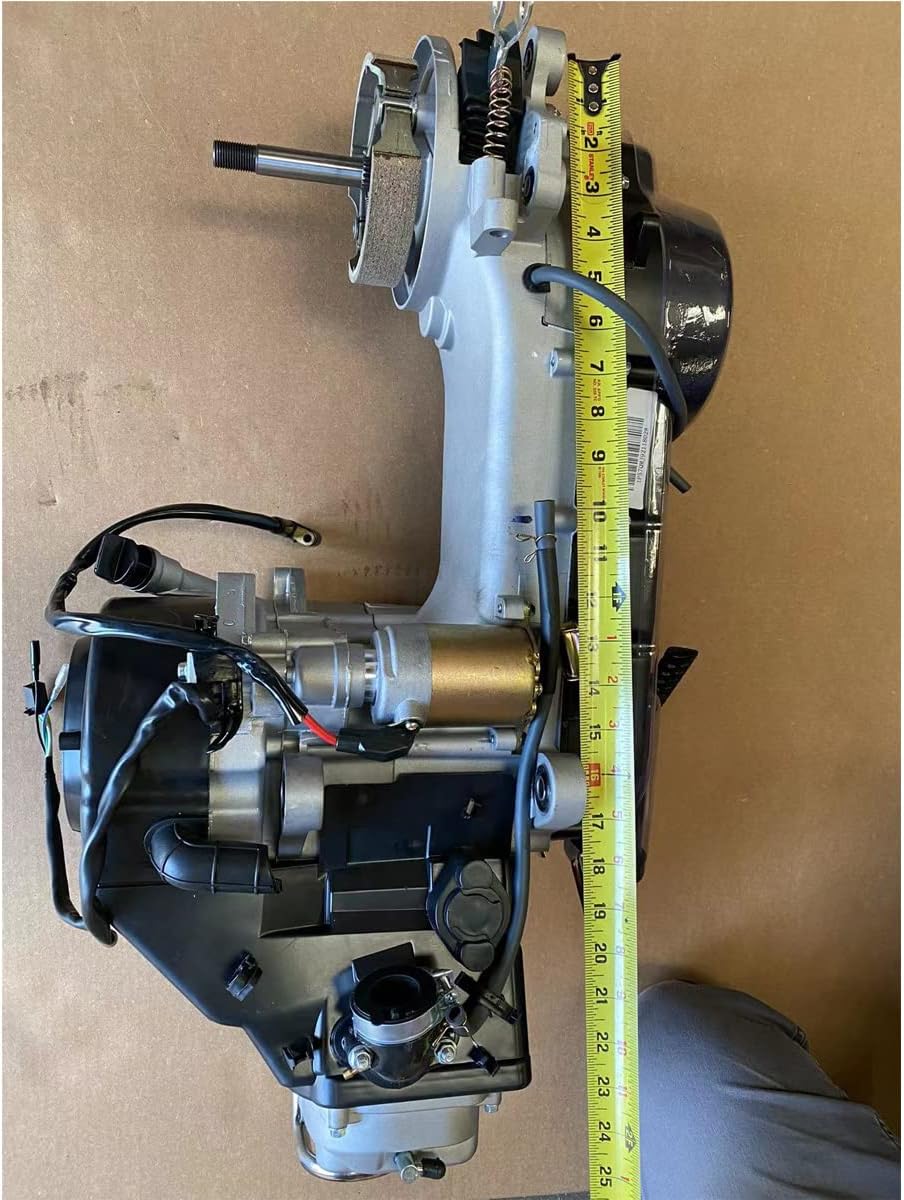

Figura 1: X-PRO 150cc GY6 engine with a measuring tape for dimension reference. Ensure this fits your scooter frame.

Passos d'instal·lació (orientació general):

1. Securely mount the engine into the scooter frame.
2. Connect all necessary electrical components, including the starter motor and CDI ignition. Refer to the wiring harness image for connection points.
3. Connect fuel lines and vacuum lines to the carburetor.
4. Instal·leu el sistema d'escapament.
5. Connect the rear wheel and brake assembly.
6. Fill the engine with the correct type and amount of engine oil (10W40, 1200ml).
7. Fill the fuel tank with recommended fuel (>=87#).
8. Perform a thorough check of all connections and fluid levels before attempting to start the engine.

Figura 2: A dalt view of the X-PRO 150cc GY6 engine, showing the general layout of components.

Figura 3: lateral view of the X-PRO 150cc GY6 engine, highlighting the CVT cover with X-PRO branding.

Figura 4: posterior view of the X-PRO 150cc GY6 engine, displaying the integrated brake assembly.

Figura 5: Detallada view of the rear brake shoes and drum assembly.

Figura 6: Davant view of the X-PRO 150cc GY6 engine, showing the cylinder head and intake manifold area.

Figura 7: Close-up of the main wiring harness connector, essential for electrical connections.

Funcionament

Once installed and all pre-checks are complete, the engine can be started using either the electric starter or the kick starter.

• Arrencada elèctrica: Ensure the ignition is on and the brake lever is engaged (safety switch). Press the electric start button.
• Inici de sessió: With the ignition on, firmly depress the kick start lever.

Allow the engine to warm up for a short period before riding, especially in colder conditions.

Manteniment

Regular maintenance is vital for the performance and longevity of your X-PRO engine.

Oli de motor:

• Tipus: Use SF15W/40-SE or equivalent 10W40 engine oil.
• Capacitat: 1200ml (0.26 Gallon).
• Interval de canvi: Refer to your scooter's specific maintenance schedule. Generally, engine oil should be changed every 500-1000 miles or every 3-6 months, whichever comes first.
• Initial Oil Change: As noted in the setup section, drain the factory shipping oil and replace it with fresh 10W40 oil before the first use.

Combustible:

• Use unleaded gasoline with an octane rating of 87# or higher.

Altres manteniments:

• Regularly inspect the air filter, spark plug (A7TC), and carburetor for cleanliness and proper function.
• Check the CVT belt (842 belt) for wear and tension.
• Inspeccioneu totes les mànegues i connexions per si hi ha fuites o danys.

Resolució de problemes

This section addresses common issues that may arise during the use of your engine.

Problemes comuns i solucions:

• Engine Not Starting / Poor Performance:
  • Incorrect Oil: Ensure the shipping oil has been drained and replaced with 10W40 engine oil. Running with shipping oil can cause severe engine damage.
  • Fuel Issues: Check fuel level, fuel quality, and ensure the fuel lines are not clogged. Inspect the carburetor for blockages.
  • Bujía: Check the spark plug (A7TC) for fouling or damage. Ensure it is gapped correctly.
  • Connexions elèctriques: Verify all wiring harness connections are secure and free from corrosion.
• Stator Overcharging:
  • If experiencing issues with overcharging (e.g., blown CDI, voltage regulator, or coil), the supplied stator might be overcharging. This may require checking the stator output and potentially adjusting pickup mounting holes or replacing the stator/voltage regulador.
• Engine Noise / Premature Wear:
  • Oil Level/Quality: Always ensure correct oil level and use recommended 10W40 oil. Low oil or incorrect oil can lead to rapid wear of internal components like the crankshaft.
  • Defectes de fabricació: In rare cases, manufacturing defects can occur. If significant engine noise or failure occurs shortly after proper installation and initial oil change, contact customer support.
• PAIR Emission System:
  • This engine may include a PAIR (Pulsed Secondary Air Injection) emission system. If you wish to remove or modify this system, consult online resources or a qualified mechanic for guidance.
• Engine Displacement Discrepancy:
  • Some users have reported receiving engines with 125cc components despite being advertised as 150cc. The serial number "1P57QMJ" indicates a 125cc variant, while "157QMJ" typically indicates a 150cc. If you suspect a discrepancy, verify the engine's serial number and internal components.

Notes i advertències importants

• Always wear appropriate safety gear when working on or operating a scooter.
• Ensure the work area is well-ventilated when handling fuel or performing maintenance.
• Dispose of used oils and fluids responsibly according to local regulations.
• Modifications to the engine or scooter may affect performance, safety, and warranty.

Garantia i Suport

For warranty information, technical support, or to inquire about replacement parts, please contact X-PRO customer service directly. Refer to your purchase documentation for specific warranty terms and contact details.

You can visit the official X-PRO store on Amazon for more products and support information: X-PRO Store
