Empava 59-inch Freestanding Whirlpool Bathtub User Manual

1. Introducció

Thank you for choosing the Empava 59-inch Freestanding Whirlpool Bathtub. This manual provides essential information for the safe installation, operation, and maintenance of your new bathtub. Please read all instructions carefully before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.

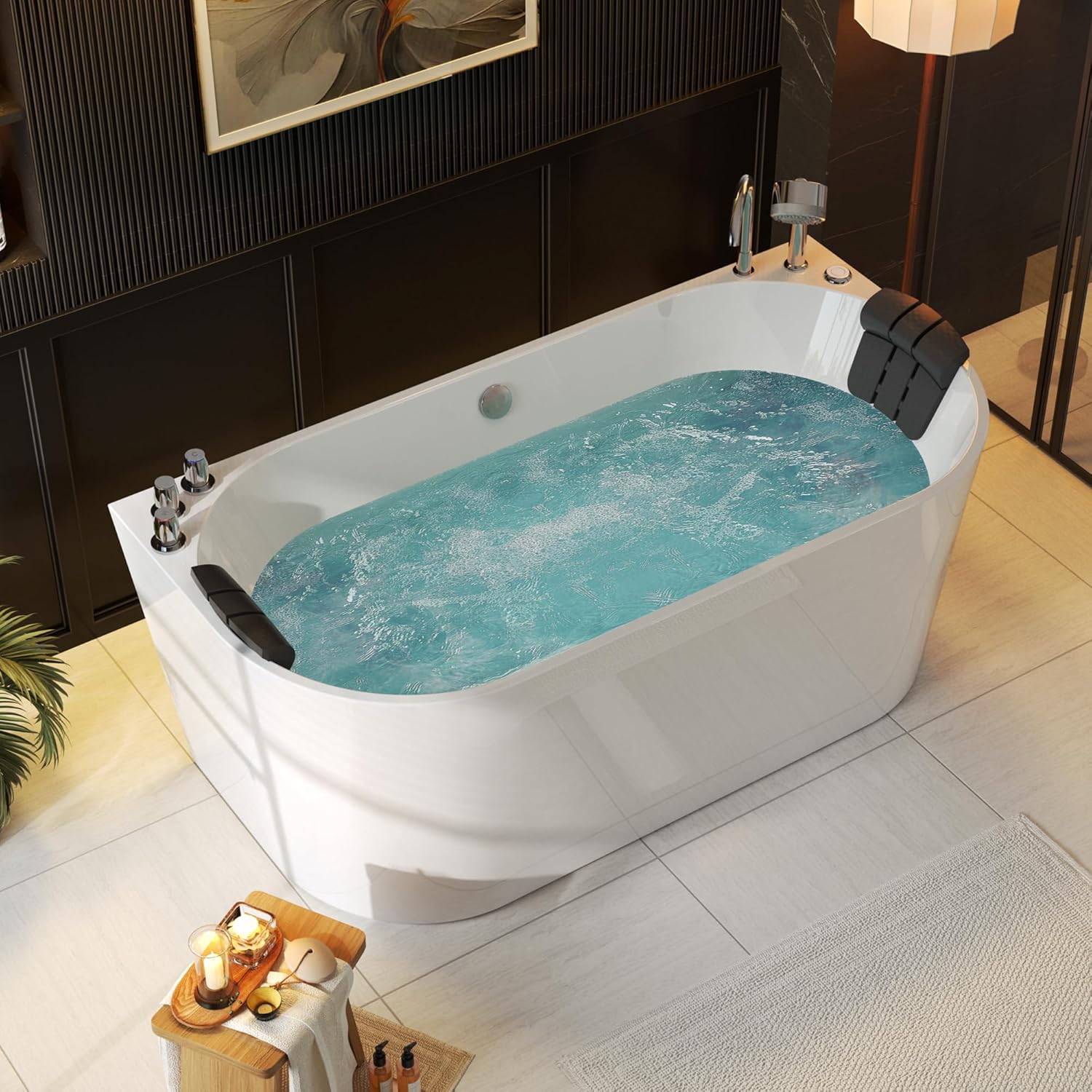

Image 1.1: The Empava 59-inch Freestanding Whirlpool Bathtub, showcasing its design and active hydromassage jets.

2. Informació de seguretat

ADVERTIMENT: To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Always ensure the bathtub is properly grounded.
• Do not operate the whirlpool system without sufficient water in the tub.
• Avoid using electrical appliances near the bathtub.
• Do not use harsh chemicals or abrasive cleaners that could damage the acrylic surface or internal components.
• Consult a qualified electrician and plumber for installation to ensure compliance with local codes and safety standards.
• The water temperature should not exceed 104°F (40°C) to avoid hyperthermia.

3. Característiques i components del producte

The Empava Freestanding Whirlpool Bathtub is designed for a comfortable and relaxing bathing experience. Key features include:

• Spacious Dimensions: 59.06"L x 29.53"W x 23.62"H, with a soaking depth of 14.56".
• 8 Hydromassage Jets: Adjustable nozzles to target specific muscle groups.
• Controls fàcils d'utilitzar: Integrated control switch for hydro massage activation and water pressure adjustment.
• Integrated Faucet and Handheld Shower: Pre-installed for convenience.
• Waterproof Pillows: For enhanced comfort.
• Construcció duradora: High-quality acrylic reinforced with fiberglass resin, supported by a 304 stainless steel frame.
• Certificat ETL: Ensures safety and performance standards are met.

Imatge 3.1: De dalt a baix view highlighting the placement of the 8 hydromassage jets within the bathtub.

Image 3.2: Detail of an active hydromassage jet, showing water flow.

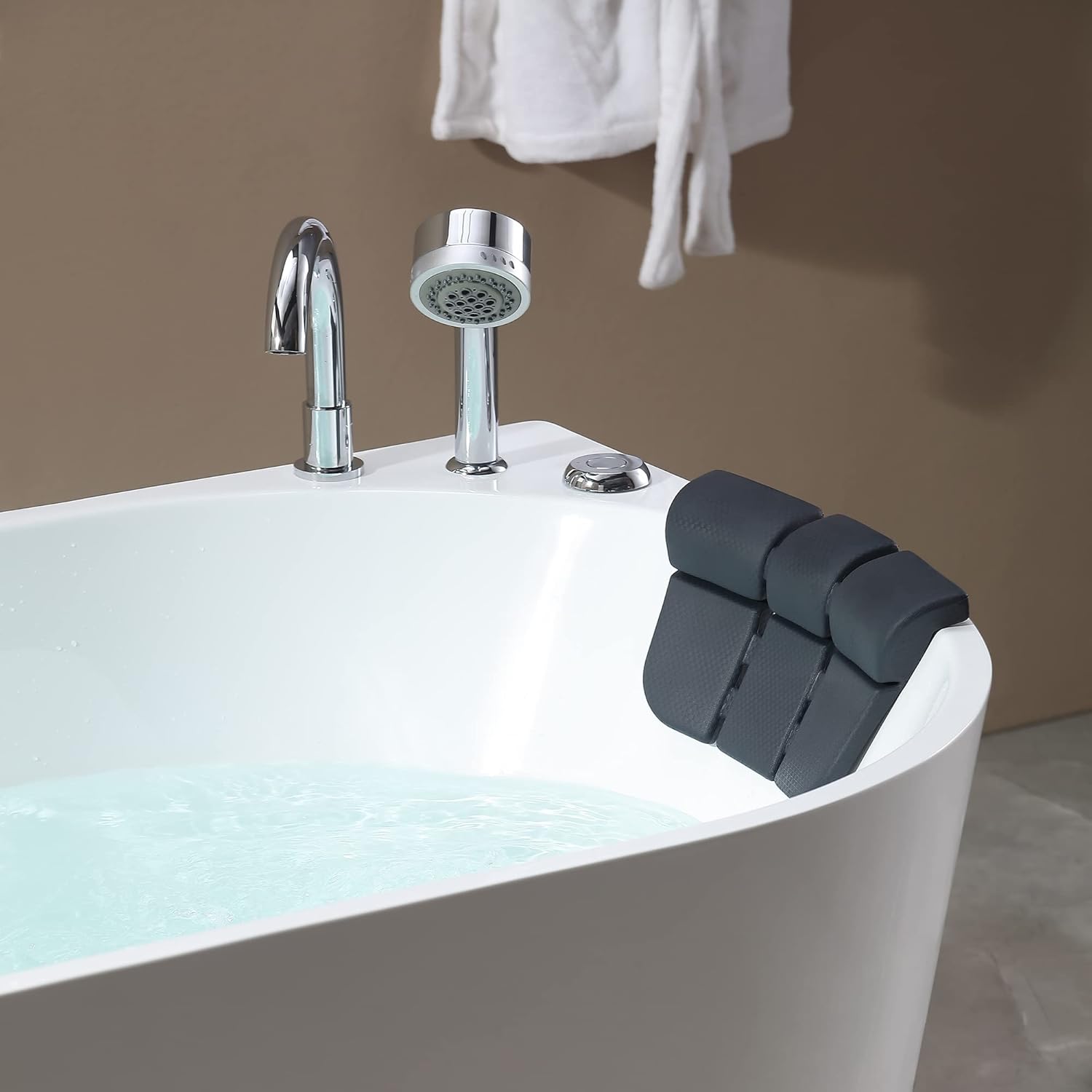

Image 3.3: Close-up of the pre-installed faucet, handheld shower, and comfortable pillow rest.

4. Configuració i instal·lació

Proper installation is crucial for the safe and efficient operation of your bathtub. It is recommended that installation be performed by a licensed professional.

4.1 Comprovacions prèvies a la instal·lació

• Comproveu que tots els components estiguin presents i sense danys.
• Ensure the installation area has adequate structural support for the filled bathtub and user weight.
• Confirm access to hot and cold water lines, a drain connection, and a dedicated electrical circuit.

4.2 Col·locació

Position the freestanding bathtub in its desired location, ensuring sufficient clearance for maintenance and cleaning. The flat back design allows for seamless placement against a wall.

4.3 Connexions de fontaneria

• Connect the hot and cold water supply lines to the pre-installed faucet inlets.
• Connect the bathtub drain to the floor drain system. Ensure all connections are watertight.

4.4 Connexions elèctriques

• The bathtub requires a dedicated electrical circuit. Connect the power plug to a properly grounded GFCI (Ground-Fault Circuit Interrupter) protected outlet.
• All electrical work must comply with local electrical codes.

4.5 Prova

After installation, fill the tub with water and operate the whirlpool system to check for leaks and proper functionality of all jets and controls. Drain the tub completely.

5. Instruccions de funcionament

5.1 Omplir la banyera

Turn on the hot and cold water faucets to fill the bathtub to the desired level. Ensure the water level is above the highest jets before activating the whirlpool system.

5.2 Activating Whirlpool Jets

Press the built-in control switch to activate the hydro massage function. The jets will begin to circulate water, providing a massaging effect.

5.3 Adjusting Jet Intensity and Direction

To adjust the water pressure, twist the control knob clockwise or counter-clockwise. The direction of individual jets can be modified by turning the nozzle up, down, left, or right.

5.4 Using the Handheld Shower

The pull-out handheld shower can be used for rinsing or targeted washing. Refer to the faucet controls for diverting water flow to the handheld shower.

5.5 Draining the Bathtub

After use, open the centrally located drain to empty the bathtub. Ensure all water is drained to prevent stagnació.

6. Cura i Manteniment

Regular cleaning and maintenance will prolong the life and appearance of your bathtub.

6.1 Neteja general

• Clean the acrylic surface with a soft cloth and a mild, non-abrasive cleaner.
• Esbandiu bé amb aigua neta després de la neteja.
• Avoid using abrasive pads, steel wool, or harsh chemical cleaners (e.g., acetone, ammonia-based products) as they can damage the finish.

6.2 Jet System Cleaning

Periodically clean the whirlpool system to prevent buildup of soap scum or bacteria.

1. Fill the tub with warm water to a level above the jets.
2. Add 2-3 tablespoons of dishwasher detergent or a specialized jet cleaner.
3. Run the whirlpool system for 10-15 minutes.
4. Drain the tub and refill with clean water.
5. Run the jets with clean water for another 5 minutes to rinse the system.
6. Escorreu completament la tina.

7. Solució De Problemes

This section addresses common issues you might encounter with your Empava whirlpool bathtub.

8. Especificacions

Detailed technical specifications for the Empava 59-inch Freestanding Whirlpool Bathtub.

• Model: AIS06
• Dimensions (L x A x A): 59.06" x 29.53" x 23.62"
• Dimensions internes (L x A x A): 37.4" x 21.27" x 17.72"
• Profunditat de remull: 14.56"
• Material: Acrílic, Acer inoxidable
• Color: Blanc Pur
• Tipus d'instal·lació: Autònom
• Capacitat: 60 galons
• Pes de l'article: 119 lliures
• Jets: 8 Hydromassage Jets
• Certificacions: Certificat ETL

8.1 Dimension Diagrams

Imatge 8.1: Part superior view diagram with key dimensions and component labels (e.g., water jet, drainer, overflow).

Imatge 8.2: Frontal view diagram illustrating height and width dimensions.

Imatge 8.3: Lateral view diagram illustrating length and height dimensions.

9. Garantia i atenció al client

This Empava Freestanding Whirlpool Bathtub comes with a 2 any de garantia del fabricant.

For warranty claims, technical assistance, or any questions regarding your product, please contact Empava customer support. Refer to the product packaging or the official Empava weblloc web per obtenir la informació de contacte més actualitzada.
