Kettler Ergometer Tour 800 Exercise Bike User Manual

1. Instruccions de seguretat importants

Before using the Kettler Ergometer Tour 800, please read and understand all safety instructions. Keep this manual for future reference.

• Límit de pes de l'usuari: The maximum user weight for this exercise bike is 150 kg (330 lbs). Do not exceed this limit.
• Consideracions de salut: Consult a physician before starting any exercise program, especially if you have pre-existing health conditions. Stop exercising immediately if you feel faint, dizzy, or experience pain.
• Col·locació adequada: Place the exercise bike on a stable, level surface. Ensure adequate clearance around the bike for safe operation and movement.
• Nens i animals de companyia: Mantingueu els nens i les mascotes lluny de l'equip durant el funcionament.
• Manteniment: Regularly inspect the equipment for wear and tear. Do not use if damaged.
• Font d'alimentació: The unit is battery-powered. Ensure batteries are correctly installed and replaced as needed.

2. Producte acabatview

The Kettler Ergometer Tour 800 is a high-quality exercise bike designed for both private and professional use, including rehabilitation and physiotherapy. It features an electromagnetic braking system for precise resistance control and a robust construction for stability.

Figura 1: Frontal view of the Kettler Ergometer Tour 800 exercise bike, showcasing its sturdy frame and console.

Característiques principals:

• Electromagnetic braking system for precise and smooth resistance.
• Two resistance modes: Auto-mode (constant Watt) and Manual mode (20 levels).
• High pedaling efficiency index of 9.2.
• Robust construction with an item weight of 54 kg for enhanced stability.
• Low frame design for easy access, suitable for rehabilitation settings.
• Includes 10 pre-programmed training programs.

3. Muntatge i muntatge

The Kettler Tour 800 is designed for stability and ease of use. While specific assembly steps are not detailed here, ensure all components are securely fastened before first use. Due to its 54 kg weight, it is recommended to have assistance during unboxing and initial placement.

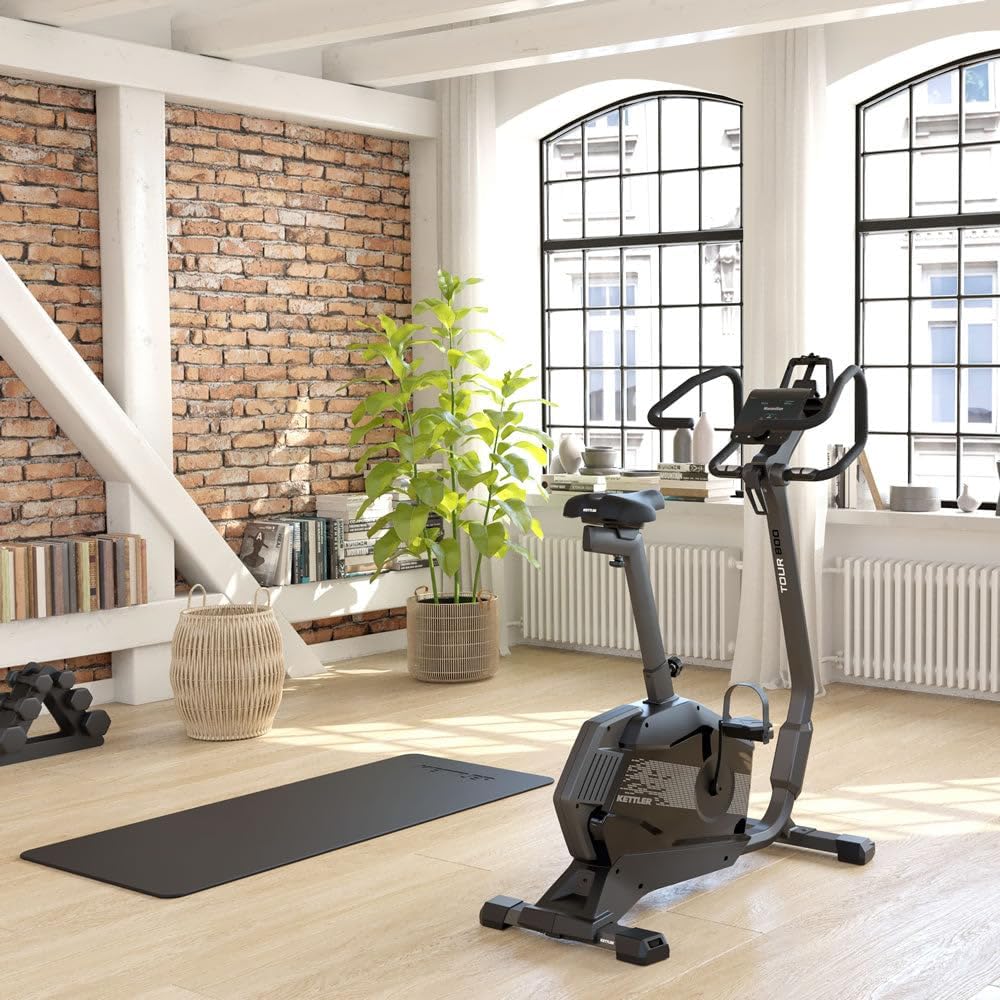

Figure 2: The Kettler Tour 800 exercise bike positioned in a room, demonstrating typical placement.

3.1 Col·locació

• Choose a flat, stable surface for the exercise bike.
• Ensure there is sufficient space around the bike for safe mounting, dismounting, and exercise.
• Avoid placing the bike in direct sunlight or near heat sources.

3.2 Ajustaments

Adjust the seat height to ensure a comfortable and ergonomically correct cycling position. Your leg should be slightly bent at the knee when the pedal is at its lowest point.

Figure 3: Detail of the seat adjustment knob and numbered post for personalized comfort.

4. Instruccions de funcionament

The Kettler Tour 800 features an intuitive console for controlling your workout.

Figure 4: The console display showing workout data and control buttons.

4.1 Engegada/apagada

The console typically activates when you begin pedaling or press any button. It will automatically power off after a period of inactivity to conserve battery life.

4.2 Resistance Modes

• Auto-Mode (Watt Control): This mode is ideal for precise performance settings, often used in rehabilitation or physiotherapy. The resistance is electronically controlled from 25 to 400 Watts, in 5 Watt increments, directly from the console. The Watt output remains constant regardless of your pedaling speed.
• Mode manual: In this mode, the resistance can be adjusted through 20 levels. The actual Watt output will vary depending on your pedaling speed (RPM).

4.3 Programes de formació

The Kettler Tour 800 includes 10 pre-programmed training routines. Refer to the on-screen menu for program selection and details.

4.4 Visualització de dades

The console displays various workout metrics, which may include:

• Temps
• Distància
• Velocitat
• Calories cremades
• Wattage (Power Output)
• Heart Rate (if compatible sensors are used)

5. Manteniment

Regular maintenance ensures the longevity and safe operation of your Kettler Tour 800.

• Neteja: Netegeu la bicicleta amb un anunciamp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
• Inspecció: Comproveu periòdicament tots els cargols, femelles i peces mòbils per assegurar-vos que estiguin ben ajustats i que no estiguin desgastats. Estrenyeu qualsevol element de fixació solt.
• Substitució de la bateria: Replace console batteries when the display becomes dim or unresponsive.
• Emmagatzematge: Store the exercise bike in a dry, temperate environment away from direct sunlight.

6. Solució De Problemes

If you encounter issues with your Kettler Tour 800, try the following basic troubleshooting steps:

• Sense pantalla/alimentació: Check the batteries in the console. Ensure they are correctly inserted and have sufficient charge.
• Sorolls inusuals: Inspect all visible connections and moving parts for loose components. Ensure the bike is on a level surface.
• Problemes de resistència: If resistance is not changing correctly, ensure the console is functioning and try restarting the unit (if applicable, by removing and reinserting batteries).
• Funcionament inestable: Verify that the bike is placed on a firm, level surface and that all stabilizing feet are properly adjusted.

For persistent issues, please contact Kettler customer support.

7. Especificacions

8. Garantia i Suport

The Kettler Ergometer Tour 800 comes with a 1-year semi-professional warranty. This warranty is specifically intended for communities, businesses (excluding gyms), and medical professionals. For private users, standard consumer warranty terms apply.

For technical support, warranty claims, or spare parts, please contact Kettler customer service through their official website or the retailer where the product was purchased. Please have your model number (EM1014-400) and proof of purchase ready.
