Introducció
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your ARTISTRY Falcon Professional Wireless Tattoo Machine. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.
The Falcon wireless machine is designed for professional tattoo artists, offering freedom of movement with its detachable batteries. Its robust construction from a solid rod ensures durability, while its lightweight design provides ideal weight distribution for comfortable use.
Producte acabatview
Figura 1: En general view of the ARTISTRY Falcon Professional Wireless Tattoo Machine.

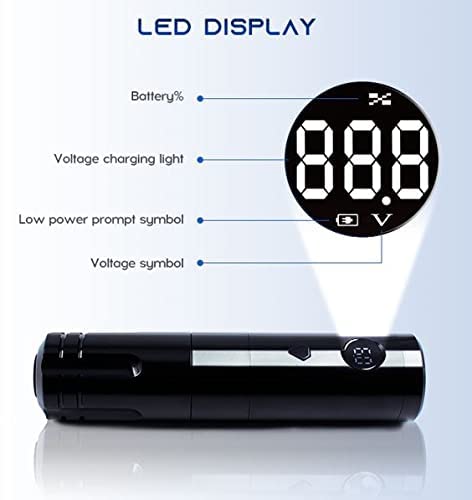

Figura 2: Close-up of the LED display, showing battery percentage, voltage, and charging indicators.

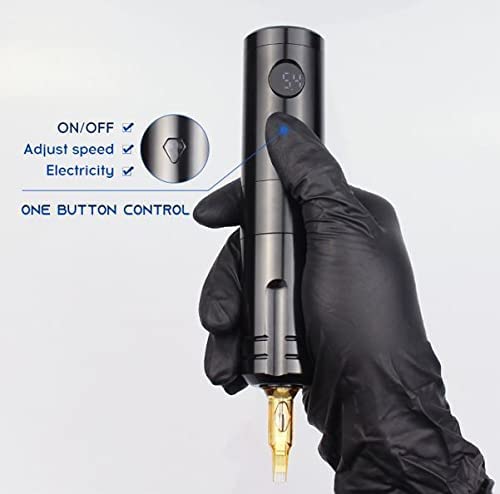

Figura 3: Illustration of the single-button control for power, speed adjustment, and battery check.
Característiques principals:
- Japanese coreless motor (10,000 RPM) for powerful and precise operation.
- LED display for real-time battery indicator, voltage, i l'estat de càrrega.
- Detachable 1200 mAh Lithium Battery for extended wireless operation (up to 6 hours on a single charge).
- One-key operation for power, speed adjustment, and battery level check.
- Compatible with universal tattoo cartridge needles.
Configuració
Càrrega de la bateria:
- Ensure the battery is properly inserted into the machine or connected to the charger.
- Connect the provided DC 5V/2A (Standard USB Adapter) battery charger to a power source.
- The LED display will indicate charging status. A full charge typically provides up to 6 hours of working time.

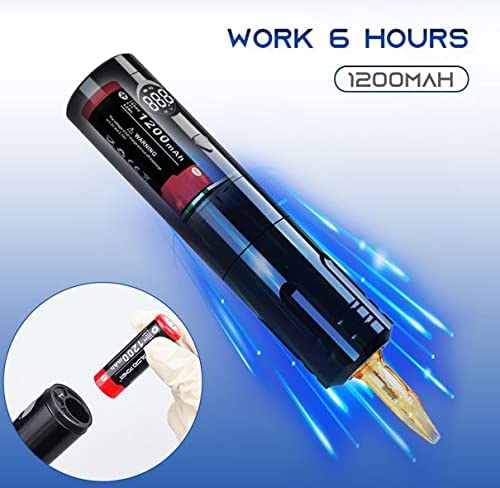

Figura 4: The machine is capable of up to 6 hours of continuous operation on a fully charged 1200mAh battery. The image also shows the detachable battery being inserted.
Attaching a Cartridge Needle:
- Ensure the machine is turned off before attaching or detaching needles.
- Carefully insert the universal tattoo cartridge needle into the machine's needle port until it clicks securely into place.
- Verify that there is no gap between the needle cartridge and the machine body for stable operation.

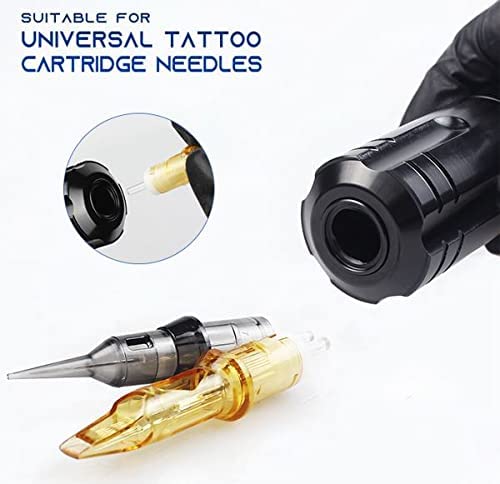

Figura 5: The machine is designed to be compatible with universal tattoo cartridge needles, shown here being inserted.

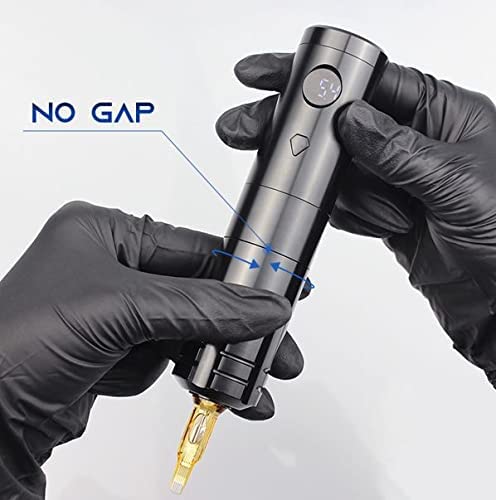

Figura 6: Proper attachment of the needle cartridge ensures a "no gap" fit, crucial for stable and precise tattooing.
Instruccions de funcionament
Encès/apagat:
- To turn on the machine, press and hold the power button until the LED display illuminates.
- To turn off the machine, press and hold the power button again until the LED display turns off.
Ajust Voltage/Speed:
- While the machine is on, short press the power button to cycle through voltage settings or adjust speed. The LED display will show the current voltage.
- The machine features a 10,000 RPM coreless motor, providing consistent power across various settings.

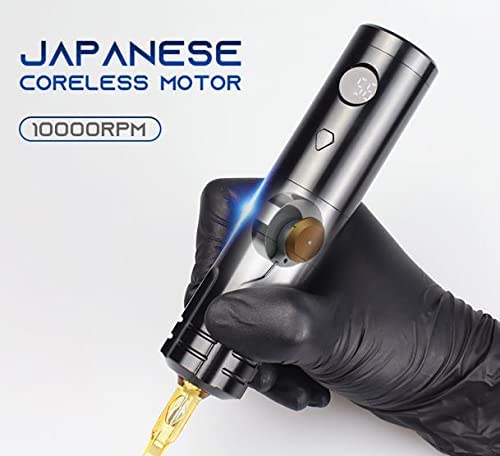

Figura 7: The machine is equipped with a powerful Japanese coreless motor, operating at 10,000 RPM for efficient tattooing.
Monitoring Battery and Voltage:
- The LED display provides real-time information on battery percentage and current voltage.
- A low power prompt symbol will appear when the battery needs recharging.
Figura 8: The ARTISTRY Falcon tattoo machine in active use, demonstrating its ergonomic design and wireless capability.
Manteniment
Neteja:
- Always disconnect the power and remove the battery before cleaning.
- Netegeu l'exterior de la màquina amb un drap net,amp cloth and a mild, non-abrasive disinfectant.
- Do not submerge the machine in any liquid.
- Assegureu-vos que totes les peces estiguin completament seques abans de tornar a muntar o emmagatzemar.
Cura de la bateria:
- Emmagatzemeu les bateries en un lloc fresc i sec, lluny de la llum solar directa i de temperatures extremes.
- Eviteu descarregar completament la bateria amb freqüència per allargar-ne la vida útil.
- Use only the specified DC 5V/2A charger.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La màquina no s'encén. | Battery is discharged or not properly inserted. | Carregueu la bateria. Assegureu-vos que la bateria estigui ben inserida. |
| Machine loses power during operation. | Baixa càrrega de la bateria. | Recarregueu o substituïu la bateria. |
| Needle not moving smoothly. | Needle cartridge not properly seated or damaged. | Re-seat the needle cartridge. Replace with a new cartridge if damaged. |
| La pantalla LED no funciona. | Problema de bateria o avaria interna. | Assegureu-vos que la bateria estigui carregada. Si el problema persisteix, poseu-vos en contacte amb el servei d'atenció al client. |
Especificacions
- Model: MA-RM-UTP-FLCN-BLU-FLAT-1B
- Longitud del traç: 3.6 MM
- Motor: Coreless 10,000 RPM Motor
- Bateria: 1200 mAH Lithium Battery (included)
- Carregador de bateria: DC 5V/2A (Standard USB Adapter)
- Temps de treball: Fins a 6 hores amb una única càrrega completa
- Construcció del cos: Solid rod
- Dimensions (paquet): 12 x 7 x 5 polzades
- Pes (paquet): 14.08 unces
- Fabricant: ARTISTRY
Garantia i Suport
ARTISTRY products are manufactured to the highest quality standards. For warranty information and customer support, please refer to the warranty card included with your purchase or visit the official ARTISTRY weblloc.
For technical assistance or service inquiries, please contact ARTISTRY customer support through the following channels:
- Assistència en línia: ARTISTRY Official Store on Amazon
- Fabricant: ARTISTRY
Conserveu el vostre comprovant de compra per a reclamacions de garantia.
