Introducció
Thank you for choosing the Mont Alpi MA-KEG Premium Outdoor Kegerator. This unit is designed to provide a reliable and efficient solution for dispensing draft beverages in an outdoor setting. It features a digital display for precise temperature control, a durable stainless steel construction, and a white granite countertop for easy cleaning and a refined appearance. This manual provides essential information for the safe and effective installation, operation, and maintenance of your kegerator.
Informació de seguretat
Please read all instructions carefully before operating the appliance to prevent injury or damage. Keep this manual for future reference.
- Ensure the unit is placed on a stable, level surface capable of supporting its weight when fully loaded.
- Connect to a grounded 110 Volt electrical outlet. Do not use extension cords.
- No feu funcionar la unitat si el cable d'alimentació està danyat.
- Mantenir les obertures de ventilació lliures d'obstruccions.
- No emmagatzemeu substàncies explosives com ara llaunes d'aerosol amb un propulsor inflamable en aquest aparell.
- Desconnecteu sempre l'alimentació abans de netejar o fer manteniment.
- This appliance is intended for outdoor use. Ensure it is protected from direct harsh weather conditions.
Contingut del paquet
Verifiqueu que tots els components siguin presents en desembalar-lo:
- Mont Alpi MA-KEG Kegerator Unit
- 3-Tap Tower
- CO2 Bottle (empty)
- Safata de goteig
- Regulador
- Wheels and Locking Casters (4)
Muntatge i instal·lació
1. Desembalatge i col·locació
Carefully remove all packaging materials. Place the kegerator on a firm, level surface. The unit is designed for freestanding installation. Ensure adequate clearance around the unit for proper ventilation, especially at the rear and sides.

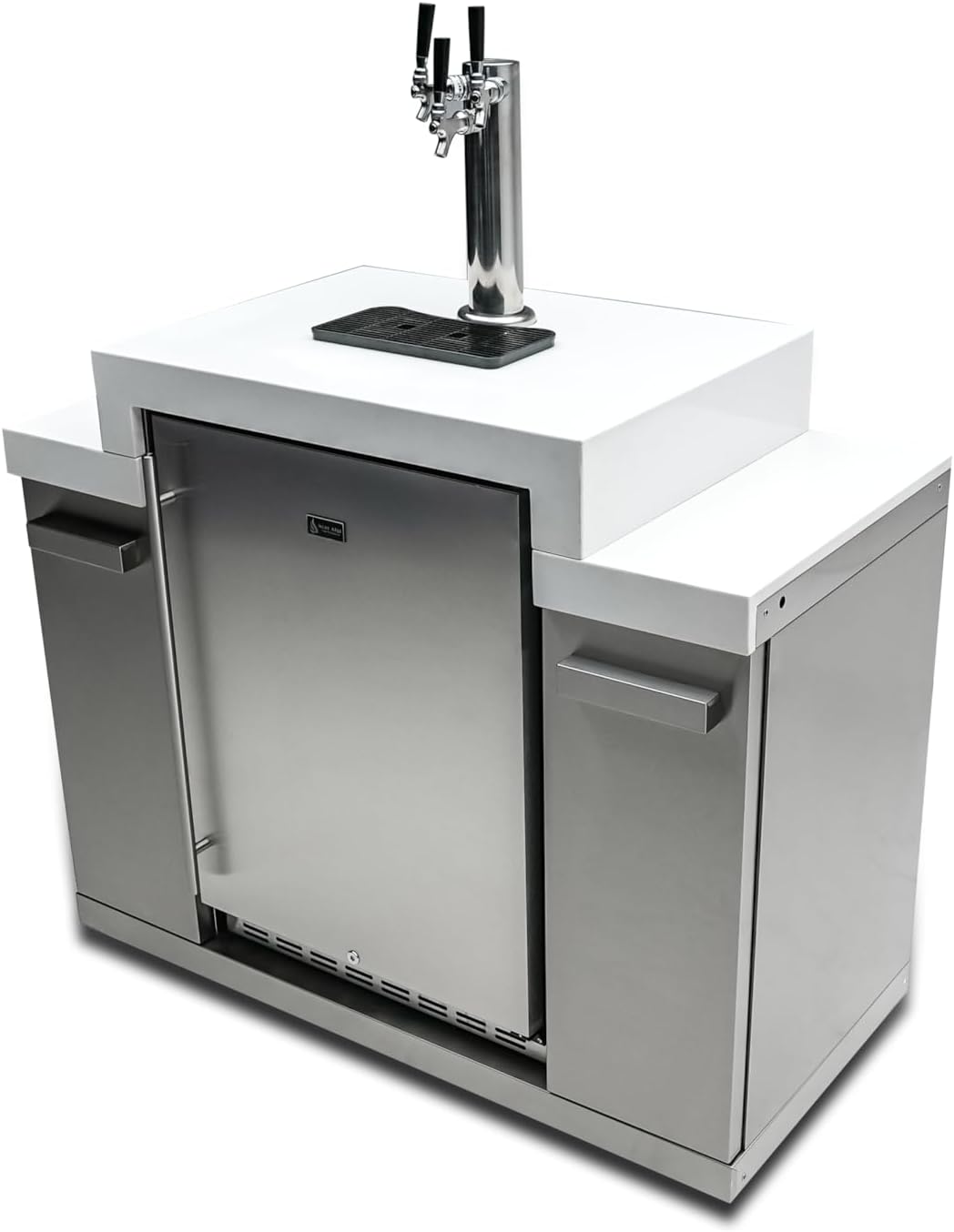

Davant view of the Mont Alpi MA-KEG Kegerator, showcasing its stainless steel body, white granite countertop, and three dispensing taps.
2. Attaching Wheels
Attach the four castor wheels to the bottom of the unit. Two of the wheels are locking casters; install these at the front for stability. Ensure they are securely tightened.
3. Installing the Tap Tower
Position the 3-tap tower onto the designated opening on the granite countertop. Secure it from underneath the countertop using the provided hardware. Connect the beer lines from the taps to the appropriate keg couplers inside the unit.
Primer pla view of the three-tap tower assembly and the black drip tray, positioned on the white granite countertop.
4. Connecting CO2 System
Connect the regulator to the CO2 bottle. Ensure a tight seal. Attach the CO2 line from the regulator to the gas input on the keg coupler(s). The CO2 bottle should be placed inside the kegerator or in a secure, well-ventilated area nearby.
5. Loading Kegs
The Mont Alpi MA-KEG can accommodate up to three slim kegs. Carefully place the kegs inside the unit. Attach the keg couplers to the kegs, ensuring a secure connection for both beer and gas lines.
Interior view of the kegerator with the door open, illustrating how two pony kegs fit inside the cooling compartment.
Instruccions de funcionament
1. Powering On and Initial Cooling
Plug the unit into a grounded 110 Volt outlet. The digital display will illuminate. Allow the unit to cool for several hours before loading kegs, or if kegs are already loaded, allow sufficient time for them to reach the desired temperature.
2. Digital Temperature Control
The Mont Alpi Kegerator features a digital LED display and intuitive controls. To set the desired temperature, press the 'Up' or 'Down' buttons. The temperature can be adjusted by one degree increments. The display will show the current internal temperature.
3. Dispensing Beverages
Ensure the CO2 tank is open and the regulator is set to the appropriate pressure for your beverage (typically 10-12 PSI for most beers). Pull the tap handle forward to dispense. Push it back to close. The included ball valve with male and female threads allows for dispensing various beverages, including soft drinks and seltzers.
4. Door Ajar Alarm
The unit is equipped with a door ajar alarm function. If the door is left open for an extended period, an audible alarm will sound to prevent temperature fluctuations and energy waste.
Cura i Manteniment
1. Neteja de l'exterior
The stainless steel exterior can be cleaned with a soft cloth and a mild stainless steel cleaner. For the white granite countertop, use a damp cloth and a non-abrasive cleaner. Wipe spills immediately to prevent staining.
2. Neteja de la safata de degoteig
Regularly remove and empty the drip tray. Wash it with warm, soapy water and rinse thoroughly. Ensure it is dry before replacing.
3. Cleaning Tap Lines
For optimal taste and hygiene, it is recommended to clean your beer lines regularly (e.g., every 2-4 weeks) using a specialized beer line cleaning solution and kit. Refer to the cleaning kit instructions for proper procedure.
4. Descongelació
The unit features an electric defrost system. If excessive ice buildup occurs, disconnect power and allow the ice to melt naturally. Do not use sharp objects to remove ice.
Resolució de problemes
Review these common issues before contacting customer support.
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén | No power to outlet; power cord disconnected or damaged | Check power outlet and cord connection. Ensure circuit breaker is not tripped. |
| La unitat no es refreda | Temperature setting too high; poor ventilation; door not sealed properly | Adjust temperature setting lower. Ensure adequate clearance around unit. Check door seal for obstructions. |
| Beer not dispensing | CO2 tank empty; regulator off or set too low; keg coupler not engaged | Check CO2 tank level. Verify regulator pressure. Ensure keg coupler is properly connected and engaged. |
| Excés d'escuma | Temperature too warm; CO2 pressure too high; dirty beer lines | Lower temperature. Reduce CO2 pressure. Clean beer lines. |
Especificacions del producte
Dimensional diagram of the Mont Alpi MA-KEG Kegerator, indicating height, width, and depth measurements.
| Característica | Detall |
|---|---|
| Número de model | MA-KEG |
| Marca | Mont Alpi |
| Dimensions del producte (P x A x A) | 23" x 48" x 55" |
| Pes de l'article | 400 lliures |
| Tipus d'instal·lació | Autònom |
| Factor de forma | Autònom |
| Característiques especials | Digital Temperature Control, Energy Efficient, Heavy Duty, Large Capacity, Low Noise |
| Color | White / Stainless Steel |
| Voltage | 110 Volts |
| Sistema de descongelació | Descongelació elèctrica |
| Frontisses de portes | D'acord |
| Tipus de material de la porta | Acer inoxidable |
| Tipus de prestatge | Acer inoxidable |
| Nombre De Portes | 1 |
| Refrigerant | R-600A |
Informació de la garantia
Mont Alpi products are designed for durability and performance. This unit comes with a:
- Garantia limitada de 5 anys on all stainless steel parts.
- 2 anys de garantia on the refrigerator components.
Limitations may apply. Please retain your proof of purchase for warranty claims.
Atenció al client
If you have any questions, concerns, or require assistance with your Mont Alpi MA-KEG Kegerator, please do not hesitate to contact Mont Alpi customer service. For more information, you may also visit the official Mont Alpi store online.
Botiga online: Mont Alpi Store
