Introducció
This manual provides detailed instructions for the safe installation, operation, and maintenance of your ASD 6 Inch Commercial Canless LED Downlight. Please read this manual thoroughly before installation and retain it for future reference.
Informació de seguretat
Always follow basic safety precautions when installing and maintaining electrical fixtures to reduce the risk of fire, electric shock, and personal injury.
- Desconnecteu l'alimentació a l'interruptor automàtic abans de la instal·lació o el manteniment.
- Assegureu-vos que totes les connexions elèctriques compleixin els codis i les ordenances locals, així com el Codi Elèctric Nacional (NEC).
- If you are not qualified to perform electrical installations, consult a licensed electrician.
- No modifiqueu l'aparell de cap manera.
- Do not install in areas with excessive vibration or heat.
- This fixture is rated for 120-277V circuits.
- Apte per a llocs humits.
- IC Rated: Suitable for direct contact with insulation.
Producte acabatview
The ASD 6 Inch Commercial Canless LED Downlight is a versatile lighting solution featuring adjustable power and color temperature settings. Its canless design simplifies installation, making it suitable for various commercial and residential applications.
Image: The ASD 6 Inch Commercial Canless LED Downlight, showing the fixture and its packaging. This model is designed for easy installation without a traditional can housing.
Característiques principals:
- Potència ajustable: Potència seleccionabletage options (e.g., 10W, 15W, 22W depending on size).
- Color Temperature Adjustable (CCT): 5 selectable options (2700K, 3000K, 3500K, 4000K, 5000K).
- Regulable: Compatible with 0-10V dimmable drivers.
- Classificació IC: Approved for direct contact with insulation.
- Wet Locations Rated: Apte per a damp i ambients humits.
- Eficient energètic: Llarga vida útil de 50,000 hores.
Image: Visual representation of the key features: Color and Power Selectable, CRI90+ for rich and natural colors, IC Rated Canless Solution, and Wet Locations Rated.
Especificacions
Image: Detailed product specification diagram showing dimensions (8-1/4" diameter, 4" height, 6-1/8" template size) and electrical ratings (120-277V, 0-10V dimming, Wet locations).
| Especificació | Detall |
|---|---|
| Nom del model | CDL7 A-CDL7-6DA22AC-8p |
| Mida | 6 polzades |
| Wattage | Adjustable (10W, 15W, 22W) |
| Brillantor | Fins a 1850 lúmens (a 22 W) |
| Temperatura de color (CCT) | Seleccionable (2700K, 3000K, 3500K, 4000K, 5000K) |
| Voltage | 120-277 V (CA) |
| Regulabilitat | 0-10V regulable |
| Material | Aluminum Housing, PC Lens |
| Dimensions del producte | 8.25 cm de llargada x 3.88 cm d'amplada x 8.25 cm d'alçada |
| Installation Template Size | 6-1/8" (156 mm) |
| Certificacions | UL, Energy Star, IC Rated |
| Vida útil | 50,000 hores |
| Garantia | Garantia limitada d'5 any |
Instal·lació
Follow these steps for proper installation of your canless LED downlight. Ensure power is OFF at the circuit breaker before beginning.
Prepara l'obertura:
Use the provided template (or measure 6-1/8" / 156 mm) to cut an appropriate sized hole in the ceiling. Ensure there are no obstructions within the ceiling space where the fixture will be installed.
Fer connexions elèctriques:
Connect the fixture's wires to the building's electrical wires using wire nuts (included). Connect Black to Black (Live), White to White (Neutral), and Green to Green (Ground). Secure the safety latch onto a structural part of the original fixture housing or ceiling joist above the ceiling.
Adjust Settings (Before Insertion):
Before inserting the fixture into the mounting surface opening, locate the simple switches on the fixture's junction box to choose your desired power (wattage) and color temperature (CCT) settings. Refer to the "Operating Instructions" section for details on these adjustments.

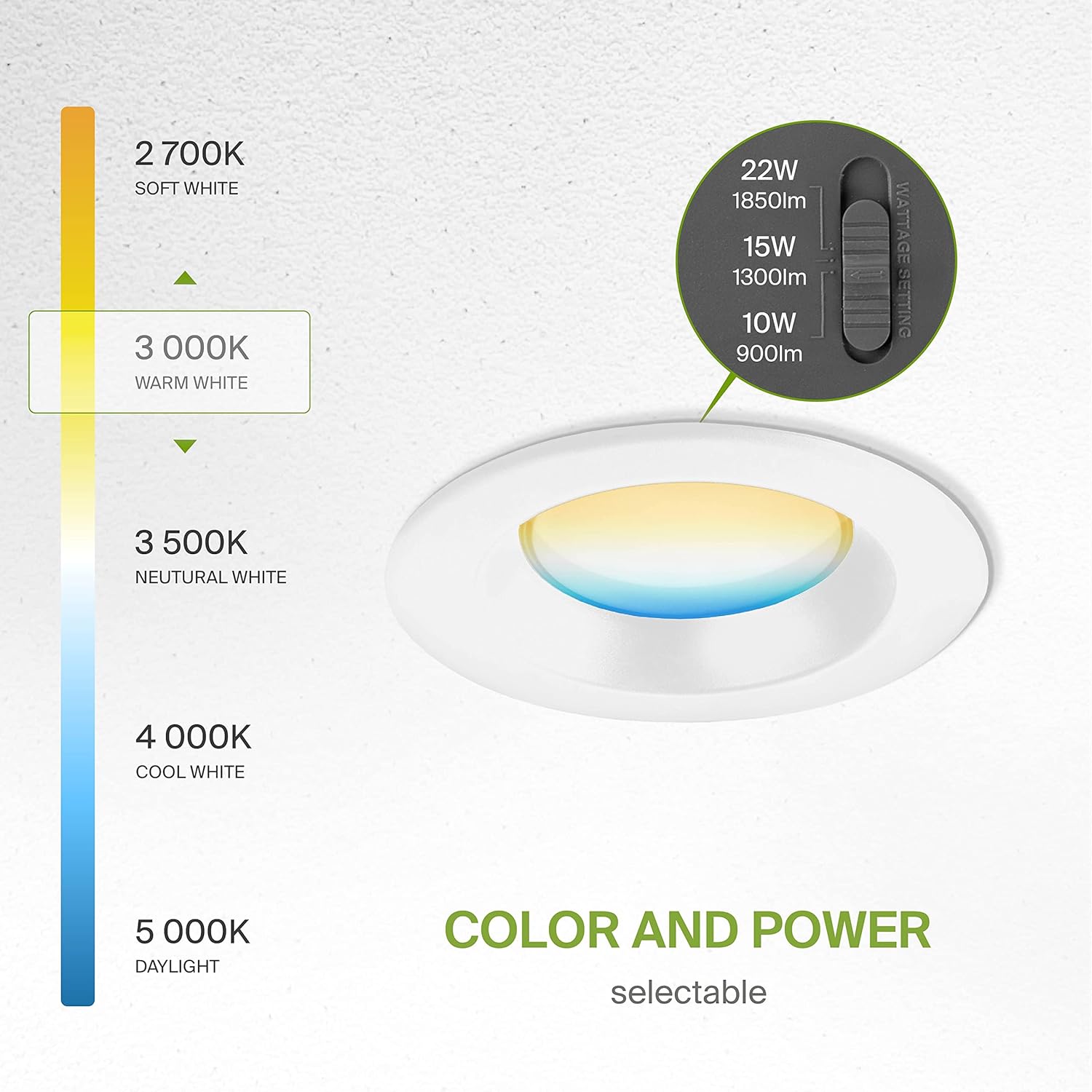

Image: Diagram illustrating the switches for adjusting color temperature (2700K to 5000K) and wattage (10W, 15W, 22W) on the fixture.
Inserir i fixar el dispositiu:
Fold up the two spring mounting tabs on the fixture. Carefully insert the fixture into the prepared ceiling opening. As the fixture is placed into the mounting surface, the spring-loaded clips will release and secure the fixture firmly against the ceiling. Ensure the front trim is flush against the mounting surface for a clean finish.
Image: A three-step visual guide for installation, showing cutting the hole, connecting wires, and securing the fixture with spring clips.
Restaura l'alimentació:
Un cop instal·lat el dispositiu de manera segura, restableu l'alimentació a l'interruptor.
Instruccions de funcionament
Your ASD LED Downlight offers adjustable settings for both light output and color temperature to suit your preferences and application needs.
Adjusting Color Temperature (CCT):
The fixture has a switch to select one of five color temperatures:
- 2700K: Soft White (warmest light)
- 3000K: Blanc càlid
- 3500K: Blanc neutre
- 4000K: Blanc fresc
- 5000K: Daylight (coolest light)
To change the CCT, locate the switch on the fixture's junction box. Slide the switch to your desired color temperature. This adjustment should be made before final installation into the ceiling opening.
Ajust de Wattage (Power Output):
The fixture also features a switch to select one of three wattage settings, which directly affects the brightness (lumens) of the light:
- 10 W: Lower brightness (e.g., 900lm)
- 15 W: Medium brightness (e.g., 1300lm)
- 22 W: Highest brightness (e.g., 1850lm)
Similar to CCT, the wattage switch is located on the fixture's junction box. Select your preferred power output before securing the fixture in the ceiling.
Funcionalitat d'atenuació:
This downlight is designed to be dimmable with a 0-10V dimming system. Ensure your dimmer switch and wiring are compatible with 0-10V dimming protocols for proper operation. Standard residential dimmers (e.g., leading-edge or trailing-edge) are typically not compatible with 0-10V dimming fixtures.
Manteniment
The ASD LED Downlight requires minimal maintenance due to its long-lasting LED technology.
- Neteja: Assegureu-vos que l'alimentació estigui apagada abans de netejar-la. Netegeu l'aparell amb un drap suau i sec.amp drap. No utilitzeu productes de neteja abrasius ni dissolvents, ja que poden danyar l'acabat o els components elèctrics.
- Inspecció: Periodically inspect the fixture for any signs of damage or loose connections. If any issues are found, turn off power immediately and consult a qualified electrician.
- Vida útil LED: The integrated LED light source is designed for 50,000 hours of operation and is not user-replaceable.
Resolució de problemes
Si teniu problemes amb el vostre downlight, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s'encén | No power to the fixture; Loose wiring connection; Faulty switch or circuit breaker. | Check circuit breaker and wall switch. Verify all wire connections are secure. Test the circuit with another device. |
| La llum parpelleja o s'atenua de manera inesperada | Interruptor de regulació d'intensitat incompatible; Cablejat solt; Voltage fluctuacions. | Ensure you are using a 0-10V compatible dimmer. Check all wiring connections. Consult an electrician if voltagEls problemes persisteixen. |
| Temperatura de color o brillantor incorrectes | CCT o wattagl'interruptor està mal configurat. | Turn off power, remove fixture, and adjust the CCT/wattage switches on the junction box to your desired setting. Reinstall. |
| Soroll de brunzit de l'aparell | Incompatible dimmer; Loose components. | Verify dimmer compatibility. Ensure fixture is securely installed and no components are loose. |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.
Garantia i Suport
ASD provides a 5 any de garantia for this product, guaranteeing top quality and safety. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical assistance, or any questions regarding your ASD 6 Inch Commercial Canless LED Downlight, please contact our customer support team. Our team aims to respond to your concerns within 24 hours.
Please have your model number (A-CDL7-6DA22AC-8p) and purchase information ready when contacting support.
For more information, visit the official ASD Store: ASD Lighting Corporation Store
