Coolfire Wooden Vibrating Alarm Clock User Manual

Model: 1735BK

1. Introducció

This manual provides detailed instructions for the setup, operation, and maintenance of your Coolfire Wooden Vibrating Alarm Clock, Model 1735BK. Please read this manual thoroughly before using the product to ensure proper function and longevity. This alarm clock is designed to provide multiple wake-up options, including a powerful vibrator, sound alarm, or a combination of both, catering to various user preferences, including heavy sleepers.

2. Contingut del paquet

  • Coolfire Wooden Vibrating Alarm Clock (Main Unit)
  • Vibrating Shaker Unit with Cable
  • Cable d'alimentació USB
  • Manual d'usuari (aquest document)
Coolfire Wooden Vibrating Alarm Clock with Vibrator and Phone Charging
Image 2.1: The Coolfire Wooden Vibrating Alarm Clock main unit, the separate vibrator unit, and a smartphone connected for charging. The clock displays 10:30, 60% RH, and 68°F.

3. Producte acabatview

The Coolfire alarm clock features a wooden finish and a digital LED display. It provides time, date, temperature, and humidity readings. The accompanying vibrator unit offers customizable alarm modes.

Característiques de la unitat principal:

  • Digital Time Display (12/24-hour format)
  • Visualització de la data
  • Temperature Display (°C/°F)
  • Humidity Display (%RH)
  • Nivells de brillantor ajustables
  • Sound Control Mode (Power Saving)
  • Configuració d'alarma

Vibrating Shaker Unit Features:

  • Powerful Vibration Alarm
  • Audible Buzzer Alarm
  • Combination Vibration and Sound Alarm
  • High/Low Vibration Intensity Switch
  • Snooze/Off Button
  • Port de càrrega USB per a dispositius externs
Underside of the vibrator unit showing three wake-up mode options
Image 3.1: The underside of the vibrator unit, illustrating the three wake-up modes: Vibrate Only, Sound Only, and Both Vibrate & Sound. It also shows the USB port.

4. Configuració

4.1 Connexió d'alimentació

  1. Connect the provided USB power cable to the DC 5V input port on the back of the main alarm clock unit.
  2. Plug the other end of the USB cable into a standard USB power adapter (not included) and then into a wall outlet.
  3. La pantalla s'il·luminarà, indicant que el rellotge està encès.

4.2 Vibrator Unit Connection

  1. Locate the cable attached to the vibrating shaker unit.
  2. Insert the vibrator cable's plug into the designated port on the back of the main alarm clock unit. Ensure it is securely connected.
  3. Place the vibrator unit under your pillow or mattress for optimal effect.
Coolfire alarm clock and vibrator on a bedside table next to a sleeping couple
Image 4.1: The Coolfire alarm clock and vibrator unit positioned on a bedside table, demonstrating its use for waking up without disturbing a partner.

5. Instruccions de funcionament

The alarm clock features several buttons on the back for setting and adjusting functions. Refer to the labels on the back of your unit for specific button identification.

5.1 Configuració de l'hora i la data

  1. Manteniu premut el botó SET button (usually located on the back) until the year display starts flashing.
  2. Utilitza el UP i ABAIX botons per ajustar l'any.
  3. Premeu SET again to confirm the year and move to the month setting.
  4. Repeat steps 2 and 3 for setting the month, day, 12/24-hour format, hour, and minute.
  5. After setting the minutes, press SET one last time to exit time/date setting mode.

5.2 Configuració d'alarmes

The clock supports multiple alarms (e.g., AL1, AL2, AL3). The process is similar for each.

  1. Premeu el botó ALARMA button (or a button labeled with an alarm icon) to cycle through AL1, AL2, AL3, and OFF.
  2. When the desired alarm (e.g., AL1) is displayed, press and hold the ALARMA button until the hour display for that alarm starts flashing.
  3. Utilitza el UP i ABAIX botons per ajustar l'hora de l'alarma.
  4. Premeu ALARMA de nou per confirmar l'hora i passar a la configuració dels minuts.
  5. Utilitza el UP i ABAIX botons per ajustar el minut de l'alarma.
  6. Premeu ALARMA again to confirm the minute. The alarm icon will appear on the display, indicating the alarm is active.
  7. To deactivate an alarm, press the ALARMA button to select it, then press ALARMA again until the alarm icon disappears.

5.3 Vibrator Alarm Modes

The vibrator unit has a switch on its underside to select the alarm mode:

  • 1. VIBRATION ONLY: The vibrator will activate without an audible alarm.
  • 2. SOUND ONLY: The vibrator will remain silent, and only the audible buzzer will sound.
  • 3. VIBRATION + SOUND: Both the vibrator and the audible buzzer will activate simultaneously.

A més, hi ha un ALTA/BAIXA switch to adjust the vibration intensity.

Close-up of the vibrator unit with an earthquake warning symbol and speaker icon
Imatge 5.1: Un primer pla view of the vibrator unit, highlighting its robust design and indicating its powerful vibration capability with an 'Earthquake' symbol and a speaker icon for the audible alarm.

5.4 Funció de repetició

Quan soni una alarma, premeu el botó SNOOZE/OFF button on the vibrator unit to temporarily silence the alarm. The alarm will sound again after a set snooze interval (typically 5-9 minutes, check product specifics if available).

5.5 Alarma desactivada

To turn off the alarm completely after it sounds, press and hold the SNOOZE/OFF button on the vibrator unit until the alarm stops.

5.6 Ajust de brillantor

The clock display has adjustable brightness levels. Press the UP or ABAIX button (or a dedicated brightness button if available) to cycle through different brightness settings (e.g., Dim, Medium, Bright).

Coolfire alarm clock displaying different brightness levels: Dim, Medium, Bright
Image 5.2: The Coolfire alarm clock shown with three distinct brightness settings: Dim, Medium, and Bright, illustrating its adaptability to different lighting conditions.

5.7 Sound Control Mode (Power Saving)

This feature allows the LED display to turn off automatically after approximately 5 seconds to save power. The display will reactivate when a sound above 60dB (e.g., a clap) is detected or when a button is pressed.

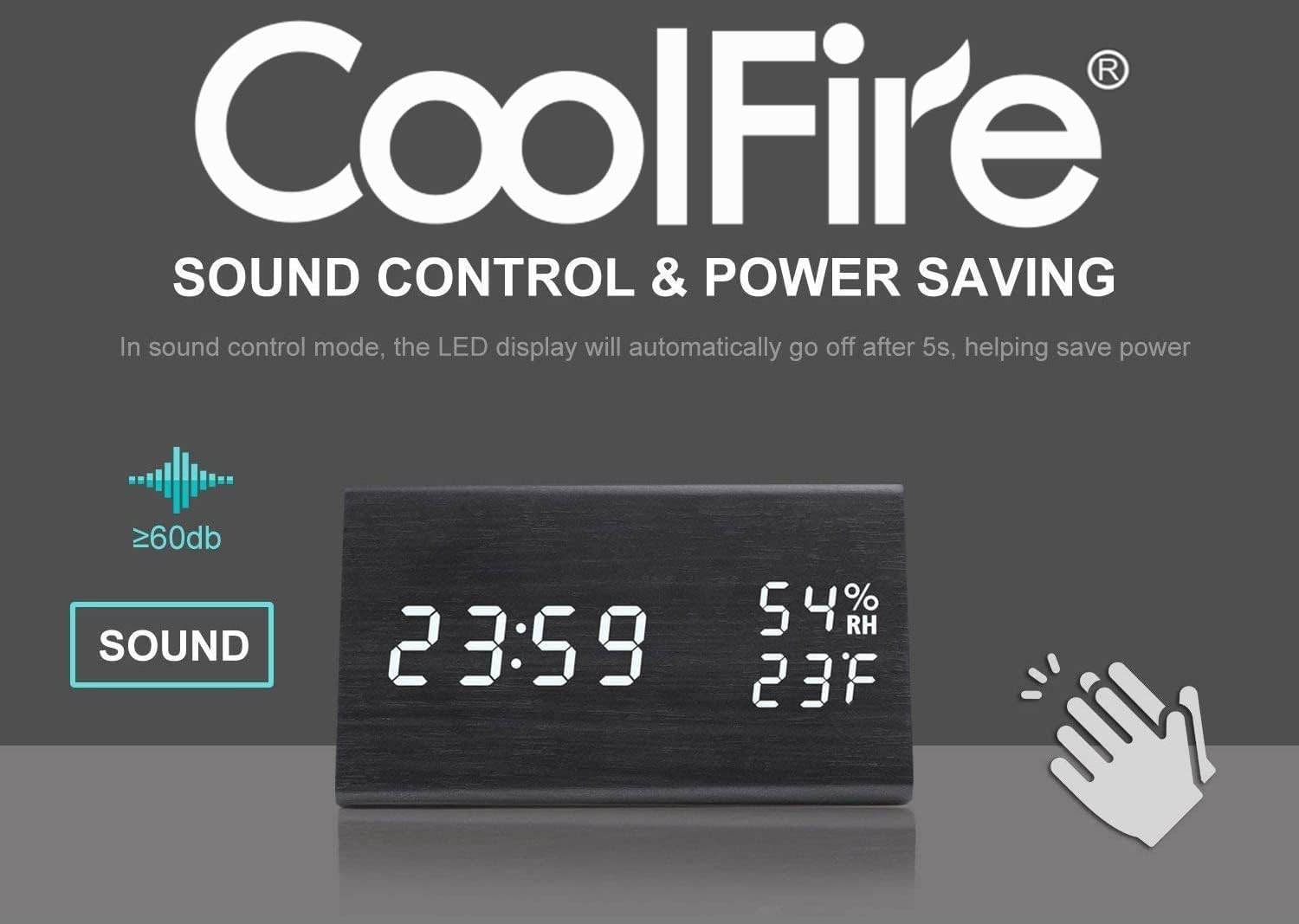

Coolfire alarm clock in sound control mode, activated by a clap
Image 5.3: The Coolfire alarm clock demonstrating its sound control and power-saving feature, where the display activates in response to a sound like a clap.

5.8 port de càrrega USB

The vibrator unit includes a USB port that can be used to charge external devices, such as smartphones, overnight. Connect your device's charging cable to this port.

Vibrator unit with a USB port for charging a smartphone
Image 5.4: The vibrator unit featuring a USB port, illustrating its capability to charge a smartphone or other USB-powered devices.

6. Manteniment

  • Clean the clock and vibrator unit with a soft, dry cloth. Do not use abrasive cleaners or solvents.
  • Eviteu exposar la unitat a temperatures extremes, llum solar directa o humitat elevada.
  • Assegureu-vos que tots els cables estiguin connectats correctament i que no estiguin doblegats ni danyats.

7. Solució De Problemes

Q: The display is blank or not turning on.
A: Ensure the USB power cable is securely connected to both the clock and a working power adapter/outlet. If using sound control mode, make a sound (e.g., clap) to activate the display.
Q: The vibrator is not working.
A: Check that the vibrator unit's cable is firmly plugged into the main clock unit. Verify the alarm mode switch on the vibrator is set to 'VIBRATION ONLY' or 'VIBRATION + SOUND'. Ensure an alarm is set and active.
Q: It is difficult to set the time or alarm.
A: Follow the instructions in sections 5.1 and 5.2 carefully. Ensure you press and hold the respective buttons to enter setting mode and press them briefly to confirm each step. If the display is flashing rapidly, you may be in a different setting mode; press the SET/ALARM button to cycle through options.
Q: The temperature/humidity readings seem inaccurate.
A: The sensors provide approximate readings. Ensure the clock is not placed near heat sources, direct sunlight, or in areas with significant air currents that could affect local measurements.

8. Especificacions

  • Marca: Coolfire
  • Número de model: 1735BK
  • Tipus de visualització: Digital
  • Estil: Modern
  • Font d'alimentació: Battery Powered (for backup, main power via USB)
  • Tipus d'habitació: Dormitori
  • Forma: Rectangular
  • Material: Fusta
  • Material del marc: Fusta
  • Tipus de muntatge: Taula
  • Despertador: Sí
  • Mode de funcionament: Elèctric
  • UPC: 724268990254
  • Dimensions del producte: 2.3 x 4 x 1 polzades
  • Pes de l'article: 14 unces

9. Vídeo oficial del producte

Watch this video for a visual guide on the features and operation of the Coolfire Wooden Vibrating Alarm Clock.

Video 9.1: An official product video demonstrating the Coolfire Wooden Vibrating Alarm Clock, its features, and how the vibrator functions.

10. Garantia i Suport

For warranty information and customer support, please refer to the contact details provided with your purchase documentation or visit the official Coolfire weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
