Introducció
Congratulations on your purchase of the Gevril Men's Lenox Swiss Automatic Watch. This timepiece combines classic design with Swiss automatic multifunction movement, offering precision and elegance. This manual provides essential information for the proper setup, operation, and care of your watch to ensure its longevity and optimal performance.
Figura 1: Frontal view of the Gevril Men's Lenox Swiss Automatic Watch, showcasing its black dial, gold-tone case, and brown leather strap.
Configuració
Enrotllant el rellotge
Your Gevril Lenox watch is equipped with a Swiss automatic movement. It is powered by the natural motion of your wrist. If the watch has stopped or its power reserve is low, it can be manually wound.
- Unscrew the crown (located at the 3 o'clock position) counter-clockwise until it pops out to position 1.
- Gently turn the crown clockwise approximately 20-30 times. This will initiate the movement and build up a power reserve.
- Push the crown back in and screw it clockwise to secure it, ensuring water resistance.
Setting Time, Day, Date, and Month
Figura 2: lateral view illustrating the watch crown and pushers for adjustments.
- Configuració de l'hora:
- Unscrew the crown and pull it out to position 3 (farthest out).
- Turn the crown to set the hour and minute hands. Ensure to set the correct AM/PM by advancing the time past 12 o'clock to see if the date changes.
- Once the time is set, push the crown back to position 1 and screw it in.
- Configuració de la data: (Located at 6 o'clock)
- Unscrew the crown and pull it out to position 2 (middle position).
- Gireu la corona en sentit horari per ajustar la data.
- Push the crown back to position 1 and screw it in.
- Configuració del dia: (Located at 9 o'clock)
- Use the recessed pusher located on the left side of the watch case (around 8 o'clock position).
- Press the pusher repeatedly with a small, non-sharp tool (like a toothpick) until the correct day is displayed.
- Configuració del mes: (Located at 3 o'clock)
- Use the recessed pusher located on the right side of the watch case (around 2 o'clock position).
- Press the pusher repeatedly with a small, non-sharp tool until the correct month is displayed.
Important: Avoid setting the date, day, or month between 9:00 PM and 3:00 AM, as this is when the watch's internal mechanisms are engaged in changing the date, and manual adjustment can damage the movement.
Funcionament del rellotge
Portant el rellotge
The Gevril Lenox watch features a genuine Italian leather strap with a deployment clasp for secure and comfortable wear. Adjust the strap to fit snugly but comfortably on your wrist.

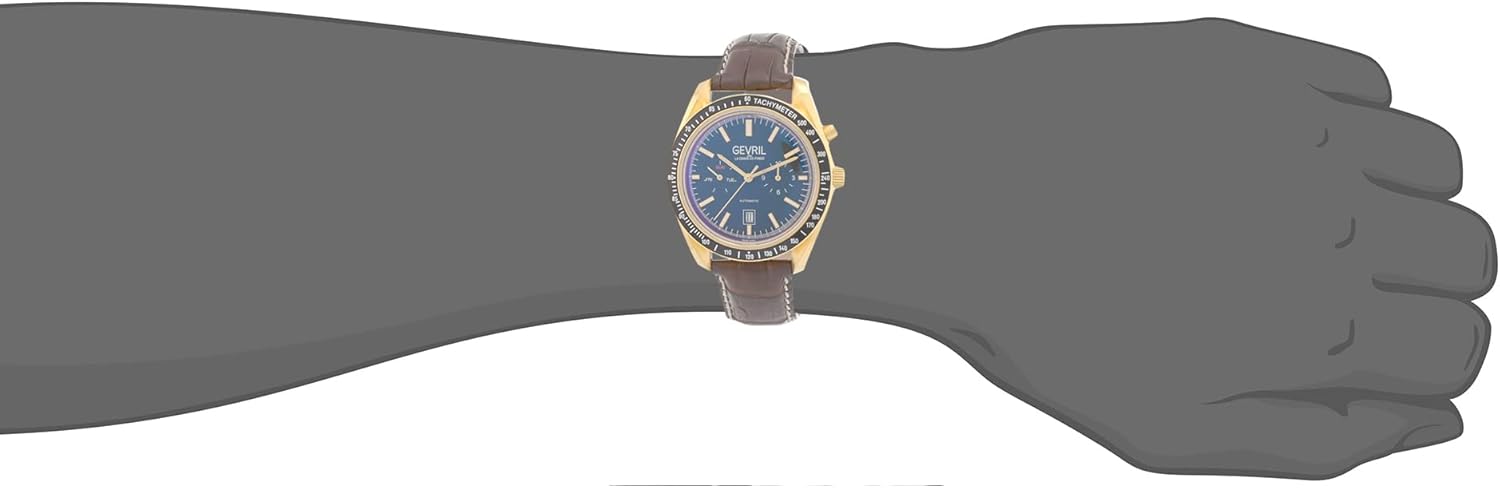

Figure 3: The Gevril Lenox watch comfortably worn on a wrist.
Resistència a l'aigua
This watch is water resistant to 50 meters (5 ATM). This rating means the watch is suitable for everyday use and can withstand splashes, rain, and brief immersion in water. It is no suitable for swimming, showering, or diving. Always ensure the crown is fully screwed in to maintain water resistance.
Manteniment
Neteja
To clean your watch, wipe the case and crystal with a soft, dry cloth. For the leather strap, avoid excessive moisture and harsh chemicals. If the strap gets wet, allow it to air dry naturally.
Emmagatzematge i cura
- Avoid exposing your watch to extreme temperatures (hot or cold), direct sunlight for prolonged periods, or strong magnetic fields.
- Store your watch in its original box or a watch winder when not in use to protect it from dust and scratches.
- Regular servicing by an authorized Gevril service center is recommended every 3-5 years to ensure optimal performance and longevity of the automatic movement.
Figure 4: The Gevril Lenox watch presented in its elegant box.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El rellotge s'atura o funciona de manera intermitent. | Reserva de marxa insuficient. | Doneu corda manualment al rellotge girant la corona en sentit horari de 20 a 30 vegades. Feu servir el rellotge regularment per mantenir-lo enrotllat. |
| Date/Day/Month does not change or changes at incorrect time. | Time set incorrectly (AM/PM). Date/Day/Month adjusted during restricted hours. | Reset the time, ensuring correct AM/PM. Avoid adjusting date/day/month between 9 PM and 3 AM. |
| Condensació sota el cristall. | Exposició a canvis extrems de temperatura o resistència a l'aigua compromesa. | Porteu immediatament el rellotge a un centre de servei autoritzat. No intenteu assecar-lo vosaltres mateixos. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact Gevril customer support or an authorized service center.
Especificacions
| Característica | Detall |
|---|---|
| Número de model | 49003L.1 |
| Moviment | Swiss Automatic Multifunction |
| Material de la caixa | Acer inoxidable 316L |
| Diàmetre de la caixa | 44 mm |
| Cristall | Cristall de safir antireflectant |
| Resistència a l'aigua | 50 Meters / 5 ATM |
| Material de la corretja | Genuine Italian Leather |
| Funcions | Day, Date, Month, Luminous Hands and Markers |
| Exhibition Case Back | Sí |
Figura 5: posterior view of the watch, highlighting the exhibition case back that reveals the automatic movement.
Vídeo oficial del producte
Video 1: A 26-second official product video showcasing the Gevril Men's Lenox Automatic Watch from various angles, highlighting its design and features.
Garantia i Suport
Your Gevril Men's Lenox Swiss Automatic Watch is covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms, registration, or to obtain service, please refer to the warranty card included with your purchase or visit the official Gevril weblloc.
For further assistance or inquiries, please contact Gevril customer support.
