Producte acabatview
The Zemismart Zigbee LED Downlight is a smart lighting solution designed for modern homes. This downlight offers a wide range of features including 16 million colors, dimmable brightness, and voice control capabilities through compatible Zigbee hubs. It is designed to integrate seamlessly with HomeKit, Tuya Zigbee, Echo, and NEST systems, providing versatile control options for a personalized lighting experience.
Image: The Zemismart Zigbee LED Downlight, showcasing its sleek, circular design and spring clips for installation.
Contingut del paquet
- Zemismart Zigbee LED Downlight (2.5inch 5W model)
- Maquinari de muntatge
Guia d'instal·lació
Proper installation is crucial for the safe and effective operation of your Zemismart Zigbee LED Downlight. Please follow these steps carefully. If you are unsure about any step, consult a qualified electrician.
- Prepara el sostre: Make suitable holes in the ceiling according to the downlight's dimensions. For the 2.5-inch model, refer to the specifications for precise cutout size.
- Cables d'enllaç: Connect the electrical wires to the downlight. Ensure power is off at the main circuit breaker before handling any wiring. Pay close attention to safety and proper wire connections (Live, Neutral).
- Insert Downlight: Put the spring buckles at both ends of the product vertically and fit them into the holes in the ceiling. The spring clips will secure the downlight in place.
- Encès: Once securely installed and wired, you can turn on the power to use the downlight.
Image: A four-panel diagram illustrating the installation process: cutting the hole, wiring, inserting the downlight with spring clips, and powering on.
Image: Technical drawing showing the dimensions of the 2.5-inch downlight, including its diameter and height, crucial for proper hole cutting.
Instruccions de funcionament
Connecting to a Zigbee Hub
The Zemismart Zigbee LED Downlight requires a compatible Zigbee hub for smart functionality. This includes Zemismart Zigbee hubs (for HomeKit integration) or Tuya Zigbee hubs (for Echo and NEST integration). The hub performs multiple controls through Zigbee transmission to achieve non-series grouping control.
Image: Diagram illustrating the Zigbee 3.0 connection technology, showing how downlights, smart bulbs, and other devices connect to a HomeKit Hub and iCloud for control.
Control de veu
Once connected to a compatible Zigbee hub, you can control your downlight using voice commands:
- Siri: Via Zemismart Zigbee hub (works with HomeKit).
- Amazon Echo / Google NEST: Via Tuya Zigbee hub.
You can drive multiple LED Downlights at the same time, operate them by voice, or form groups for unified control. For example, you can say "Hey Siri, turn on the light in the bedroom for me?"
Image: An illustration demonstrating voice control with Siri, showing a smart speaker and a user interacting with the downlight.
Image: A diagram showing the ZMHK-01 hub's capability to control various Tuya Zigbee smart devices, including lights, switches, and curtains, via HomeKit or Alexa/Google Home voice control.
App Control (Tuya / Smartlife App)
Control the downlight's color and luminance directly from the Tuya or Smartlife App. The app allows for precise adjustments to create your desired ambiance.
- 16 milions de colors: Choose from a vast spectrum of colors to personalize your lighting.
- Ajust de brillantor: Dim or brighten the light to suit any occasion.
- Sincronització de música: The brightness of the lights can change in sync with the rhythm of your music, creating dynamic atmospheres.
- Creació de l'escena: Transform any room into a dance floor or a relaxing retreat.
- Bulb Grouping: Control multiple lights simultaneously by creating groups within the app.
- Programació: Link to Apple HomeKit to set opening and closing times, and automate light behavior.
Imatge: Tres examples of adjustable light tones: Warm (3000K), Neutral (4000K), and White (6000K), demonstrating the versatility for different environments.
Image: A smartphone screen displaying the app's color adjustment interface, allowing users to freely adjust light color and brightness.
Image: Diagram illustrating the 120° wide-angle lighting and wide light coverage provided by the downlight, with a 10mm narrow edge design.
Manteniment i Seguretat
To ensure the longevity and safe operation of your Zemismart Zigbee LED Downlight, please observe the following guidelines:
- Neteja: Disconnect power before cleaning. Use a soft, dry cloth to wipe the surface of the downlight. Avoid abrasive cleaners or solvents.
- Reciclatge: LED bulbs contain electronic components. Please view local recycling information for proper disposal of this and other types of lamps.
- Breakage and Clean Up: In the event of breakage, avoid direct contact with broken glass. Learn more about how to clean up and dispose of broken or damaged lampsegons la normativa local.
- Medi ambient: This product has an Area Lighting Classification of IP20, meaning it is protected from solid objects over 12.5mm but has no protection against water. Install in dry indoor environments only.
Resolució de problemes
If you encounter issues with your Zemismart Zigbee LED Downlight, refer to the following common troubleshooting steps:
- La llum no s'encén:
- Check the power supply to the downlight. Ensure the circuit breaker is on.
- Verify that the wiring connections are secure and correct.
- Confirm the downlight is properly seated in its mounting hole.
- No es pot connectar al Zigbee Hub:
- Ensure your Zigbee hub is powered on and within range of the downlight.
- Check the hub's manual for pairing instructions specific to adding new devices.
- Reset the downlight (often involves cycling power).
- Ensure you are using a compatible Zemismart or Tuya Zigbee hub.
- El control per veu no respon:
- Verify that the downlight is successfully connected to your Zigbee hub.
- Ensure your voice assistant (Siri, Echo, NEST) is properly linked to your Zigbee hub and the downlight is recognized.
- Check your internet connection if using cloud-based voice services.
- Problemes de control d'aplicacions:
- Ensure your smartphone is connected to the internet and the Tuya/Smartlife app is up to date.
- Reinicieu l'aplicació i torneu-ho a provar.
- Check if the downlight is still paired and online within the app.
Especificacions
| Característica | Detall |
|---|---|
| Marca | zemismart |
| Model | JL-zb25 (2.5inch 5W) |
| Dimensions del producte | 20 x 20 x 6 cm (overall packaging) |
| Diameter (2.5inch model) | Aprox. 4 polzades (10.16 cm) |
| Height (2.5inch model) | Aprox. 2.8 polzades (7.11 cm) |
| Poder | 5W (for 2.5inch model) |
| Voltage | AC100-250V |
| Luminous Flux (White light) | 450 lm |
| Temperatura de color | 1600K ~ 12000K (RGBW) |
| Material | Plàstic |
| Característiques especials | Dimmable, RGBW, Voice Control, App Control, Music Sync |
| Classificació de la il·luminació de la zona | IP20 |
| Direcció de la llum | Downlight |
| Tipus de bombeta | LED |
| Etiqueta d’eficiència energètica de la UE | A++ |

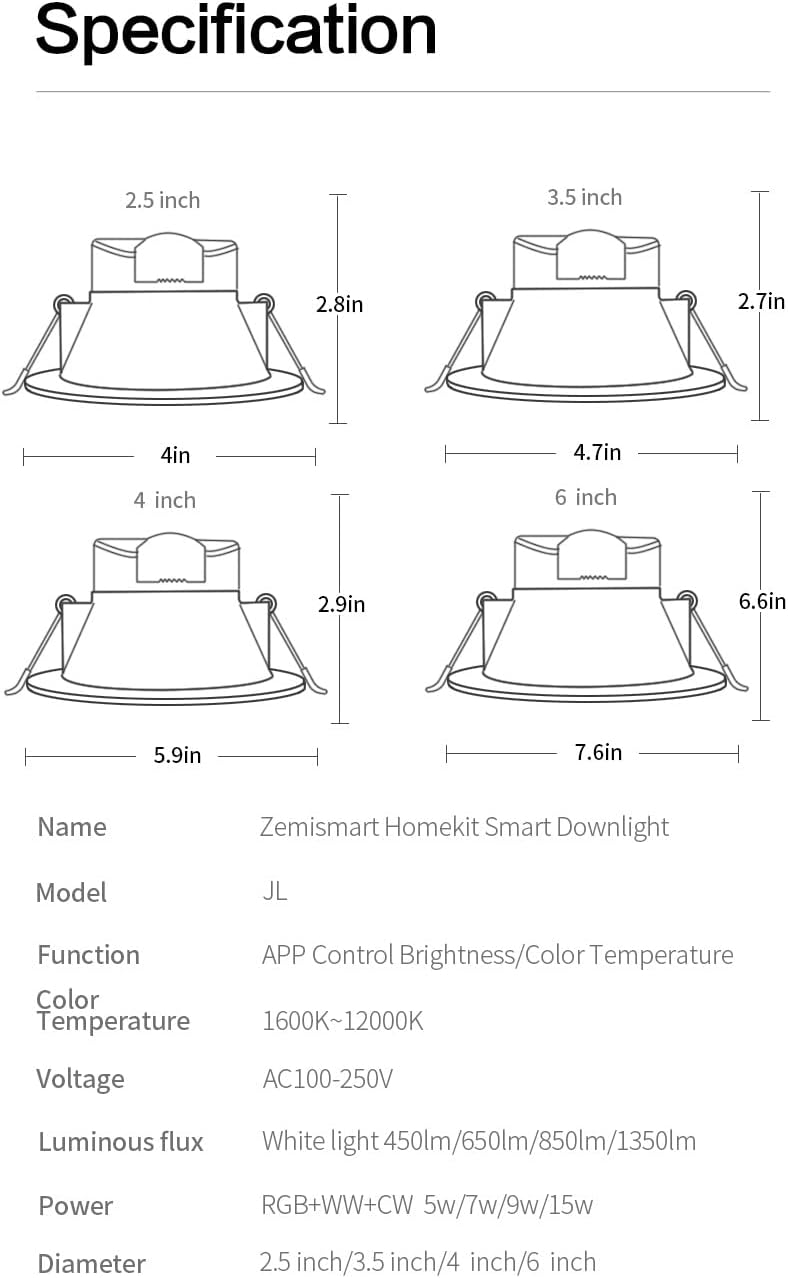

Image: A detailed specification sheet showing various models (2.5inch, 3.5inch, 4inch, 6inch) with their respective dimensions, power, luminous flux, and color temperature ranges.
Garantia i Suport
For warranty information and technical support, please contact the manufacturer directly. Keep your purchase receipt as proof of purchase.
Fabricant: huizhoushiduxingzhinengkeji youxiangongsi
Correu electrònic: euyoumi@163.com
Adreça: (changfangB) 401-1, Huifengdongerlu16hao, Zhongkaigaoxinqu, Huizhoushi, Guangdongsheng, China
Image: Product label displaying manufacturer details, model numbers, contact information, and regulatory marks (CE, recycling symbols).
