1. Introducció
Thank you for choosing the SENCOR Food Chopper SCB 6150SS-EUE3. This appliance is designed for efficient chopping, pureeing, and whisking of various food items. To ensure safe and optimal performance, please read this instruction manual thoroughly before first use and retain it for future reference.
The SENCOR Food Chopper SCB 6150SS-EUE3 features an 800 W motor, a 1.5-liter glass bowl, four titanium-coated blades for effective chopping, and a whisking disc for preparing creams and egg whites.
Image 1.1: SENCOR Food Chopper SCB 6150SS-EUE3 in operation, showing the motor unit, glass bowl, and chopped ingredients.
2. Instruccions de seguretat
Observeu sempre les següents precaucions de seguretat per evitar lesions o danys a l'aparell:
- Before connecting the appliance to a power outlet, ensure the voltage indicated on the rating label matches your local mains voltage.
- Do not immerse the motor unit, power cord, or plug in water or any other liquid.
- Desendolleu sempre l'aparell de la xarxa elèctrica abans del muntatge, desmuntatge, neteja o quan no l'utilitzeu.
- The blades are extremely sharp. Handle them with extreme care during assembly, disassembly, and cleaning to avoid injury.
- Never touch moving parts during operation. Ensure the appliance is fully assembled and the lid is securely in place before starting.
- Do not operate the appliance if the power cord or plug is damaged, or if the appliance malfunctions or has been dropped or damaged in any way. Contact authorized service for repair.
- Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat. .
- Do not overfill the glass bowl. Observe the maximum fill lines to prevent motor overload.
- Ensure the appliance is placed on a stable, flat, and dry surface during operation. The non-slip base helps maintain stability.
- Avoid sudden temperature changes to the glass bowl, such as placing a hot bowl into cold water or vice versa.
3. Components del producte
Familiarize yourself with the parts of your SENCOR Food Chopper:
- Unitat motora: Contains the 800 W motor and the power button.
- Tapa: Covers the glass bowl during operation.
- Chopping Blade Assembly: Features four titanium-coated blades for efficient chopping.
- Disc de batre: Used for whisking liquids like egg whites or cream.
- Bol de vidre: 1.5-liter capacity, with measurement markings.
- Base antilliscant: Provides stability and prevents movement during use.
Image 3.1: The motor unit of the SENCOR Food Chopper, showing the SENCOR logo and power button.
Image 3.2: The four titanium-coated chopping blades, labeled 'Quatro Blade'.
Image 3.3: The 1.5-liter glass bowl with internal measurement markings and chopped ingredients.
4. Configuració
Follow these steps to assemble your food chopper before use:
- Place the non-slip base securely on a clean, dry, and flat surface.
- Position the glass bowl onto the non-slip base.
- Carefully place either the chopping blade assembly or the whisking disc onto the central shaft inside the glass bowl. Ensure it sits correctly.
- Add your ingredients to the glass bowl. Do not exceed the maximum fill line. For best chopping results, cut larger ingredients into smaller, uniform pieces (approx. 2-3 cm).
- Place the lid onto the glass bowl, ensuring it is properly aligned and seated.
- Place the motor unit on top of the lid. The safety switch mechanism requires the motor unit to be correctly positioned for the appliance to operate.

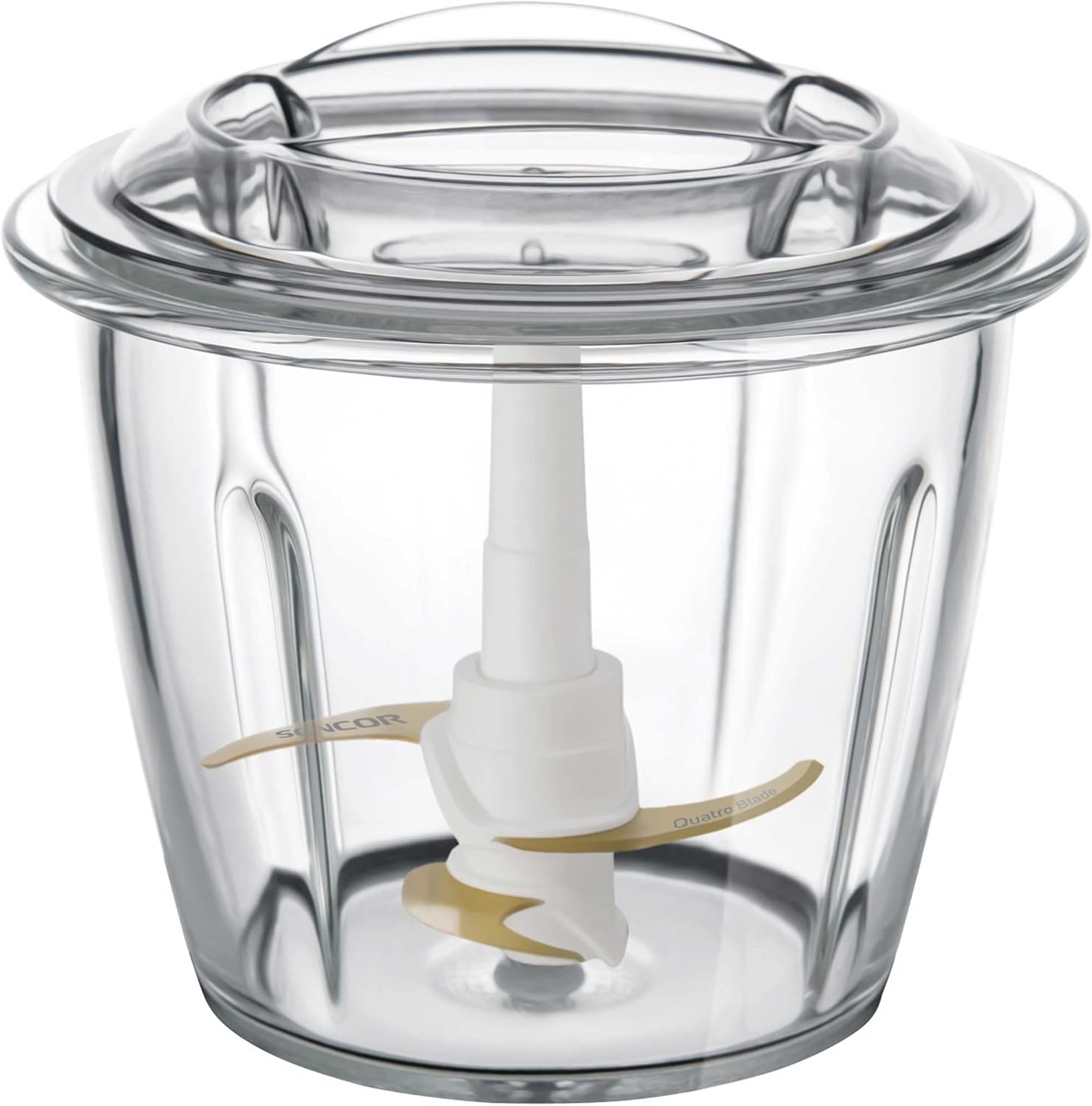

Image 4.1: The glass bowl with the chopping blade assembly correctly inserted.
Imatge 4.2: Part superior view of the fully assembled food chopper, ready for operation.
5. Instruccions de funcionament
Once assembled, operating the SENCOR Food Chopper is straightforward:
- Ensure the appliance is correctly assembled as described in Section 4.
- Connecteu el cable d'alimentació a una presa de corrent adequada.
- To operate, press and hold the power button located on top of the motor unit. The appliance will run as long as the button is pressed.
- For Chopping: Use short pulses (press and release the button quickly) to achieve desired consistency. This prevents over-processing and ensures even chopping. For coarser results, use fewer pulses; for finer results, use more pulses.
- For Pureeing/Whisking: For tasks like making purees, baby food, mayonnaise, or whipping egg whites with the whisking disc, you may hold the button down for a slightly longer duration, but do not operate continuously for more than 1 minute to prevent motor overheating. Allow the motor to rest for at least 2 minutes between cycles.
- After achieving the desired consistency, release the power button and unplug the appliance.
- Carefully remove the motor unit, then the lid. Remove the blade assembly or whisking disc before emptying the contents of the glass bowl.
Consells per obtenir els millors resultats:
- For chopping hard ingredients like nuts or ice, use short, powerful pulses.
- Do not process extremely hard items that could damage the blades or motor.
- When chopping meat, ensure it is boneless and cut into small cubes.
- For whisking, ensure the bowl and whisking disc are clean and dry.
6. Neteja i Manteniment
Proper cleaning and maintenance will extend the life of your SENCOR Food Chopper:
- Desconnecteu sempre l’aparell de la presa de corrent abans de netejar-lo.
- Disassemble all removable parts: the motor unit, lid, blade assembly/whisking disc, glass bowl, and non-slip base.
- Unitat motora: Netegeu la unitat del motor amb un suau, damp drap. No el submergiu en aigua ni l'esbandiu amb aigua corrent.
- Glass Bowl, Lid, Blade Assembly, Whisking Disc, Non-slip Base: These parts are dishwasher safe. Alternatively, they can be washed by hand in warm, soapy water. Rinse thoroughly and dry immediately.
- Fulles: Exercise extreme caution when cleaning the blades due to their sharpness. Use a brush if necessary to remove food residue.
- Assegureu-vos que totes les peces estiguin completament seques abans de tornar a muntar o guardar l'aparell.
- Store the food chopper in a dry place, away from direct sunlight and out of reach of children.
7. Solució De Problemes
If you encounter issues with your SENCOR Food Chopper, refer to the following table:
| Problema | Causa possible | Solució |
|---|---|---|
| L'aparell no s'engega. | Not plugged in; Motor unit not correctly placed on lid; Safety switch not engaged. | Check power connection; Ensure motor unit is properly seated on the lid; Press the power button firmly. |
| Poor chopping results or motor struggles. | Glass bowl is overfilled; Ingredients are too large or too hard; Blades are not properly installed. | Reduce ingredient quantity; Cut ingredients into smaller pieces; Ensure blades are correctly seated on the shaft. |
| Motor unit becomes hot or emits burning smell. | Appliance operated continuously for too long; Overloaded with ingredients. | Stop operation immediately, unplug, and allow to cool down for at least 30 minutes. Reduce load and use pulse function. |
| Vibracions o sorolls excessius. | Appliance not on a stable surface; Parts not assembled correctly. | Place on a flat, stable surface; Reassemble all parts, ensuring they are securely fitted. |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb el servei d'atenció al client de SENCOR.
8. Especificacions
Technical details for the SENCOR Food Chopper SCB 6150SS-EUE3:
| Característica | Detall |
|---|---|
| Número de model | SCB 6150SS-EUE3 |
| Poder | 800 W |
| Voltage | 240 V |
| Capacitat | 1.5 Liters (Glass Bowl) |
| Dimensions (L x A x A) | 15 x 15 x 25 cm |
| Pes | 2.19 kg |
| Material | Plàstic, vidre |
| Fulles | 4 Titanium-coated blades |
| Característiques | Safety switch, Non-slip base, Whisking disc |
Image 8.1: Dimensional drawing of the SENCOR Food Chopper, indicating 15cm width, 15cm depth, and 25cm height.
9. Garantia i Suport
SENCOR is committed to providing quality products. This appliance is designed for durability and performance.
- Recanvis: Les peces de recanvi per a aquest model estan disponibles durant un període de 5 anys a partir de la data de compra.
- Atenció al client: For any questions, technical assistance, or warranty claims, please contact SENCOR customer service.
- Recursos en línia: Additional information and support may be available on the official SENCOR website. You can find product details and support at: www.sencor.eu/8590669229826
