Manual d'usuari del suport de focus encastat quadrat pla Optonica OT2061 de 100 mm GU10 màx. 35 W

1. Introducció

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Optonica OT2061 Square Flat Recessed Spot Support. Please read these instructions carefully before installation and retain them for future reference.

2. Informació de seguretat

• Desconnecteu sempre l'alimentació a l'interruptor principal abans de la instal·lació, el manteniment o la substitució de la bombeta.
• La instal·lació l'ha de dur a terme un electricista qualificat o una persona competent.
• Ensure the product is compatible with your electrical system (220-240V).
• No supereu la potència màximatage of 35W for the GU10 bulb.
• This product is rated IP20, meaning it is not waterproof. Do not install in areas exposed to water or high humidity.
• Handle with care to avoid damage to the fixture or electrical components.

3. Producte acabatview

The Optonica OT2061 is a white, square, flat recessed spot support designed for ceiling installation. It is compatible with GU10 or MR16 GU5.3 bulbs (sold separately) up to a maximum of 35W. A GU10 socket is included.

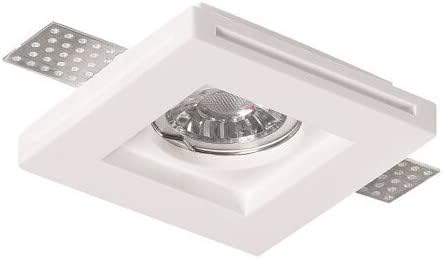

Figura 1: Frontal view of the Optonica OT2061 recessed spot support, showing the square frame and central bulb opening.

Característiques principals:

• Square flat design, white finish.
• Mides: 100 x 100 x 27 mm.
• Compatible with GU10 / MR16 GU5.3 bulbs (max 35W).
• Includes GU10 socket.
• Material: Plastic + Aluminum.
• Non-waterproof (IP20).

4. Instruccions d'instal·lació

Follow these steps for proper installation of your recessed spot support.

1. Prepareu l'àrea d'instal·lació: Ensure power is disconnected at the main circuit breaker. Mark the desired installation location on the ceiling.
2. Talla l'obertura: Create a square opening in the ceiling with dimensions of 100 x 100mm. The minimum installation height required is 97mm.
3. Connecteu el cablejat: Connect the electrical wiring from the ceiling to the provided GU10 socket. Ensure all connections are secure and comply with local electrical codes. The fixture operates on 220-240V.
4. Insereix la bombeta: Carefully insert a GU10 or MR16 GU5.3 bulb (max 35W, sold separately) into the GU10 socket.
5. Assegureu el dispositiu: Gently push the spot support into the prepared ceiling opening. The spring clips on the sides will secure the fixture in place.

Figura 2: posterior view of the spot support, illustrating the spring clips and the GU10 socket for electrical connection.

Figure 3: The recessed spot support with a GU10 bulb installed, ready for ceiling integration.

5. Instruccions de funcionament

Once installed and the bulb is inserted, restore power at the main circuit breaker. The light fixture will operate via your standard wall switch or dimmer (if compatible with the installed bulb).

• Activació/desactivació: Use the wall switch connected to the circuit to turn the light on or off.
• Dimecres: If a dimmable GU10 bulb and a compatible dimmer switch are installed, you can adjust the light intensity.

6. Manteniment

• Neteja: Desconnecteu l'alimentació abans de netejar-la. Netegeu l'aparell amb un drap suau i sec. No utilitzeu netejadors abrasius ni dissolvents.
• Substitució de bombetes: Disconnect power. Allow the bulb to cool completely. Carefully remove the old bulb and insert a new GU10 or MR16 GU5.3 bulb (max 35W). Ensure the new bulb is securely seated before restoring power.
• Inspecció: Inspeccioneu periòdicament l'aparell per detectar qualsevol signe de danys o connexions soltes. Si trobeu algun problema, desconnecteu l'alimentació i consulteu un electricista qualificat.

7. Solució De Problemes

• La llum no s'encén:
  • Check if the power is connected at the main circuit breaker.
  • Ensure the bulb is correctly inserted and not faulty.
  • Verifiqueu que les connexions elèctriques siguin segures.
• Parpelleig de llum:
  • Ensure the bulb is fully screwed in or seated.
  • Comproveu si hi ha connexions de cablejat soltes.
  • Si feu servir un regulador d'intensitat, assegureu-vos que la bombeta sigui regulable i compatible amb l'interruptor regulador.
• Fixture is hot:
  • Ensure the installed bulb does not exceed the maximum wattage de 35W.
  • Assegureu-vos que la ventilació sigui adequada al voltant de l'aparell.

8. Especificacions

9. Garantia i Suport

For warranty information and customer support, please refer to the retailer or manufacturer's official weblloc web. Conserveu el rebut de compra com a comprovant de compra.

For technical assistance or further inquiries, contact Optonica customer service.
