Introducció
This manual provides detailed instructions for the setup, operation, and maintenance of your Acogedor Bluetooth 5.0 Receiver Wireless Audio Adapter. Please read this manual thoroughly before using the product to ensure proper function and to prevent damage.
Image: The Acogedor Bluetooth 5.0 Receiver, highlighting its NFC capability.
Informació de seguretat
- No exposeu el dispositiu a l'aigua ni a la humitat.
- Eviteu temperatures extremes.
- Do not disassemble the device. This will void the warranty.
- Use only the provided or recommended power adapter (DC 5V).
- Mantenir fora de l'abast dels nens.
Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet:
- Acogedor Bluetooth 5.0 Receiver
- Cable d'àudio de 3.5 mm
- Cable d'àudio RCA
- Cable d'alimentació USB
- Manual d'usuari (aquest document)

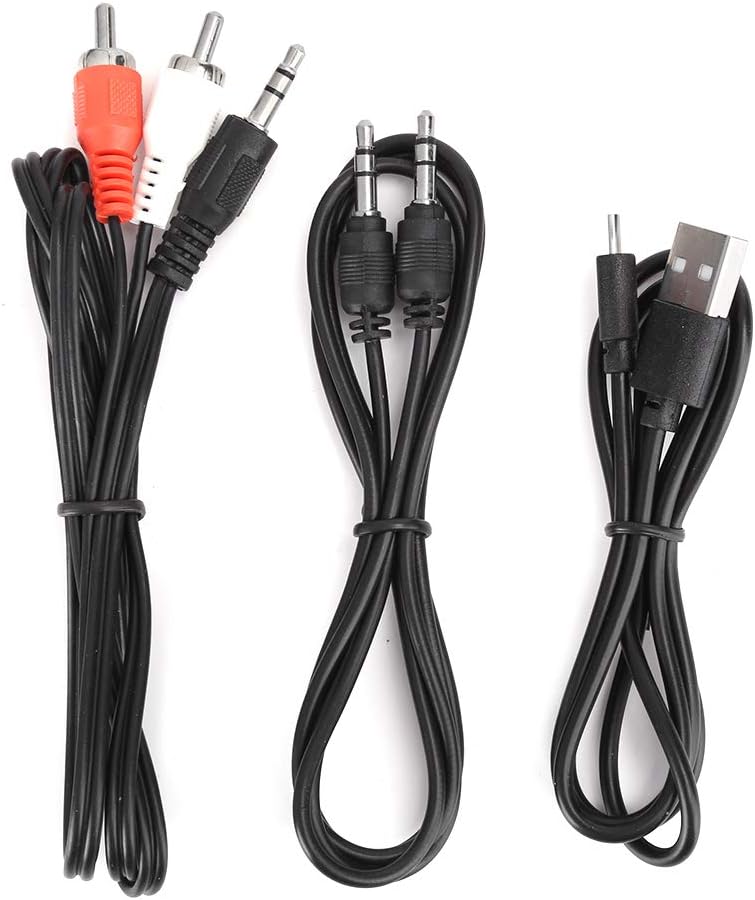

Image: The various audio and power cables included with the receiver.
Producte acabatview
Familiarize yourself with the ports and controls of the Acogedor Bluetooth 5.0 Receiver.
Image: Rear panel with power input, USB port, RCA audio output, and 3.5mm AUX output.
Image: Top panel with playback control buttons (Previous, Play/Pause, Next).
- Entrada DC 5V: Power connection port (Micro USB).
- Port USB: Per a la reproducció de discs U.
- Sortida d'àudio (RCA): Red and white RCA jacks for audio output to amplifiers o altaveus.
- Sortida AUX: 3.5mm jack for audio output to speakers or headphones.
- Botons de control: Previous track, Play/Pause, Next track.
- Àrea NFC: For near-field pairing with compatible devices.
Configuració
1. Connexió d'alimentació
- Connect the provided USB power cable to the Entrada DC 5V port al receptor.
- Plug the other end of the USB cable into a 5V USB power adapter (not included) or a USB port on your audio equipment.
- The indicator light on the receiver will illuminate, indicating it is powered on.
2. Audio Output Connection
Choose one of the following methods to connect the receiver to your audio system:
- Using RCA Cables: Connect one end of the RCA audio cable to the Sortida d'àudio (RCA) ports (red to red, white to white) on the receiver. Connect the other end to the corresponding RCA input ports on your amplifier o altaveus actius.
- Ús d'un cable AUX de 3.5 mm: Connecteu un extrem del cable d'àudio de 3.5 mm al Sortida AUX port on the receiver. Connect the other end to the 3.5mm AUX input port on your speaker, headphones, or ampmés viu.
Image: The receiver connected to an external speaker and a smartphone, demonstrating a typical setup.
3. Emparellament Bluetooth
The receiver will automatically enter pairing mode when powered on. The indicator light will flash.
- NFC Pairing (Recommended for NFC-enabled devices):
- Ensure NFC is enabled on your smartphone or other NFC-enabled device.
- Tap your NFC-enabled device gently against the Àrea NFC on the top of the receiver.
- Confirm the pairing request on your device. The receiver will connect automatically.
Image: A smartphone being used to initiate NFC pairing with the receiver.
- Vinculació manual de Bluetooth:
- Al telèfon intel·ligent o al dispositiu amb Bluetooth, aneu a la configuració de Bluetooth.
- Cerca available devices. The receiver will appear as "Acogedor Bluetooth Receiver" or similar.
- Select the receiver from the list to connect.
- Once connected, the indicator light will become solid blue.
Instruccions de funcionament
Reproducció d'àudio Bluetooth
- Ensure the receiver is powered on and successfully paired with your device.
- Start playing audio on your paired device. The sound will be transmitted wirelessly to the receiver and output through your connected speakers.
- Utilitza el Botons de control on the receiver or your paired device to manage playback:
- Reproduir/pausa: Premeu el botó central.
- Pista següent: Premeu el botó dret.
- Pista anterior: Premeu el botó esquerre.
Reproducció de disc U
The receiver supports playing audio files directament des d'una unitat flash USB.
- Inseriu una unitat flash USB que contingui àudio files a la Port USB al receptor.
- The receiver will automatically detect the U disk and begin playing audio.
- Utilitza el Botons de control to navigate tracks.
Image: The receiver demonstrating connections for both Bluetooth audio from a smartphone and direct playback from a USB flash drive.
Manteniment
- Netegeu el dispositiu amb un drap suau i sec. No utilitzeu netejadors líquids ni aerosols.
- Mantingueu els ports lliures de pols i deixalles.
- Store the receiver in a cool, dry place when not in use.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Sense indicador lluminós d'alimentació. | Power cable not connected or faulty power source. | Ensure the USB power cable is securely connected to both the receiver and a working 5V power source. Try a different USB port or adapter. |
| No es pot emparellar per Bluetooth. | Receiver not in pairing mode; Bluetooth disabled on source device; too many paired devices. | Ensure the receiver is powered on and the indicator light is flashing (pairing mode). Enable Bluetooth on your source device. Forget previous pairings on your device and try again. Move closer to the receiver. |
| Sense sortida de so. | Incorrect audio cable connection; volume too low; wrong input selected on amplificador/altaveu. | Verify audio cables are correctly connected to the Sortida d'àudio ports on the receiver and the correct input on your speaker/amplifier. Increase volume on both the source device and the connected audio system. Ensure the correct input source is selected on your amplificador/altaveu. |
| U Disk playback not working. | U disk not inserted correctly; unsupported file format; U disk corrupted. | Ensure the U disk is fully inserted into the Port USB. Check if audio files are in a supported format (e.g., MP3). Try a different U disk. |
Especificacions
| Característica | Detall |
|---|---|
| Model | Acogedordebyv7h1rw1035 |
| Versió Bluetooth | 5.0 |
| Tecnologia de connectivitat | Auxiliary, Bluetooth, NFC, RCA, USB |
| Mode de sortida d'àudio | estèreo |
| Tipus de connector | Jack de 3.5 mm, RCA, USB |
| Dispositius compatibles | Smartphone, Speaker, Ampmés viu |
| Entrada de potència | 5 V CC (via Micro USB) |
| Dimensions del producte | 6.3 x 5.12 x 1.57 polzades |
| Pes de l'article | 5.3 unces (0.15 quilograms) |
| abast sense fils | Up to 15 meters / 49.2 feet (barrier-free) |
Image: Key features of the receiver including Bluetooth reception, signal transmission range, USB playback, and decoding chip.
Garantia i Suport
Acogedor products are designed for reliability and performance. For any questions, technical support, or warranty claims, please contact Acogedor customer service through the retailer where the product was purchased.
Si us plau, conserveu el comprovant de compra per motius de garantia.
