Introducció
The Xiaomi 11T Pro 5G is a high-performance smartphone designed for advanced mobile computing and communication. It features a powerful processor, a versatile camera system, and a fast-charging battery, all housed within a durable design. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device.
Figura 1: Frontal view of the Xiaomi 11T Pro 5G smartphone, showcasing la seva pantalla.
Configuració
1. Inserir la targeta SIM i engegar
- Localitza la safata de la targeta SIM al lateral del dispositiu.
- Insert the provided SIM tray ejector tool into the small hole next to the SIM tray and gently push until the tray pops out.
- Place your Nano-SIM cards (up to two) into the designated slots on the tray, ensuring the gold contacts face downwards.
- Torneu a inserir amb cura la safata de la targeta SIM al dispositiu.
- Premeu i manteniu premut el botó d'engegada (situat al lateral) fins que aparegui el logotip de Xiaomi a la pantalla.
Figura 2: lateral view of the Xiaomi 11T Pro 5G, highlighting the SIM tray location.
2. Configuració inicial del dispositiu
Upon first power-on, follow the on-screen prompts to complete the initial setup. This includes selecting your language, connecting to a Wi-Fi network, signing in with your Google account, and setting up security features like fingerprint unlock or facial recognition.
Funcionament del vostre dispositiu
Visualització i interacció
- Pantalla: The device features a 6.67-inch FHD+ AMOLED DotDisplay with a resolution of 2400x1080 pixels. It supports a refresh rate of up to 120Hz for smooth visuals.
- Pantalla tàctil: Navigate the device using touch gestures. Tap to select, swipe to scroll, pinch to zoom.
- Sensors: Equipped with a proximity sensor, 360° ambient light sensor, color temperature sensor, barometer, accelerometer, gyroscope, electronic compass, X-axis linear motor, and IR Blaster.
Característiques de la càmera
The Xiaomi 11T Pro 5G boasts a powerful triple camera system on the rear and a high-resolution front camera.
- Sistema de càmera posterior:
- Càmera principal de 108MP: f/1.75 aperture, provides remarkable resolution and texture.
- Càmera ultra gran angular de 8 MP: f/2.2 aperture, 120° field of view, ideal for expansive scenes, including night mode.
- Càmera telemacro de 5MP: f/2.4 aperture, 3-7cm automatic focus for exploring miniature worlds.
- Càmera frontal: 16MP, f/2.45 aperture, for high-quality selfies and video calls.
- AI Cinema: Utilize multiple computational videography effects and one-tap switches to enhance your video creativity.
- Audio Zoom: Three microphones allow you to audibly zoom in on subjects while recording video.
- Gravació de vídeo: Supports up to 8K (7680x4320) at 30fps with the rear camera. Includes long exposure modes (Moving crowd, Neon trails, Oil painting, Light painting, Starry sky, Star trails).

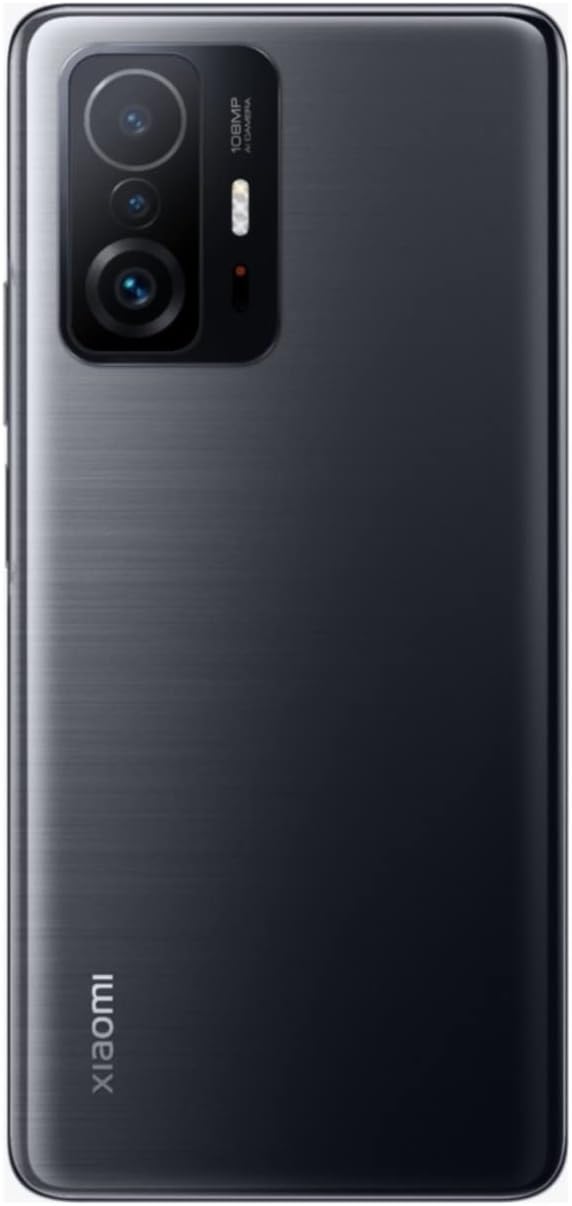

Figura 3: posterior view of the Xiaomi 11T Pro 5G, showcasing the 108MP triple camera module.
Experiència d'àudio
- Altaveus duals: Enjoy immersive audio with dual speakers.
- Dolby Atmos®: Equipped with cinema-grade Dolby Atmos® for an enhanced audio experience.
- Àudio d'alta resolució: Certified for Hi-Res Audio and Hi-Res Wireless Audio.
Rendiment i connectivitat
- Processador: Powered by a high-performance MediaTek 5G chipset with Kryo 680 CPU (up to 2.84GHz) and Qualcomm Adreno 660 GPU.
- Memòria i emmagatzematge: Features 8GB RAM and 256GB internal storage.
- Sistema operatiu: Runs on Android 11 with MIUI 12.
- Connectivitat 5G: Supports dual 5G SIM with integrated 5G modem (n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n66/n77/n78 bands).
- 4G/3G/2G Connectivity: Extensive support for LTE, HSDPA, and Quad Band 2G.
- Tecnologies sense fil: Includes NFC and Bluetooth 5.1.
Manteniment
Càrrega de la bateria
- The device is equipped with a 5000mAh Lithium Polymer battery.
- Utilize the included 67W turbo charger for rapid charging. A full charge can be achieved in approximately 36 minutes.
- Always use Xiaomi-approved chargers and cables to ensure optimal charging performance and battery longevity.
Atenció General
- The display is protected by Corning® Gorilla® Glass Victus™, offering enhanced scratch resistance and drop protection.
- Netegeu la pantalla i el cos amb un drap suau i sense borrissol. Eviteu materials abrasius o productes químics agressius.
- Protegiu el dispositiu de temperatures extremes, la llum solar directa i la humitat.
Resolució de problemes
This section addresses common issues you might encounter with your Xiaomi 11T Pro 5G.
| Problema | Causa possible | Solució |
|---|---|---|
| El dispositiu no s'encén | Bateria baixa; bloqueig del programari | Carregueu el dispositiu durant almenys 10 minuts. Feu un reinici forçat mantenint premut el botó d'engegada durant 10-15 segons. |
| Rendiment lent | Massa aplicacions en execució; poc emmagatzematge; programari obsolet | Close background apps. Clear cache. Free up storage. Check for system updates in Settings. |
| Cannot connect to network (GSM/LTE/5G) | Incorrect SIM insertion; network settings; carrier compatibility | Ensure SIM card is correctly inserted. Check network settings (Settings > SIM cards & mobile networks). Verify device compatibility with your carrier (Note: Not compatible with Verizon, Sprint, Boost, Metro, Cricket in the US). |
| La bateria s'esgota ràpidament | High screen brightness; background apps; intensive usage | Reduce screen brightness. Close unused apps. Limit gaming/video streaming. Check battery usage in Settings to identify power-hungry apps. |
Especificacions
| Característica | Detall |
|---|---|
| Nom del model | mi 11T pro |
| Dimensions | 6.44 x 3.01 x 0.31 polzades |
| Pes de l'article | 0.176 unces (4.99 g) |
| Mostra | 6.67 inches FHD+ AMOLED DotDisplay, 2400 x 1080 resolution, up to 120Hz refresh rate |
| Processador | Kryo 680 CPU (up to 2.84GHz), Qualcomm Adreno 660 GPU |
| RAM | 8 GB |
| Emmagatzematge | 256 GB |
| Càmera posterior | 108MP (f/1.75) + 8MP (f/2.2 ultra-wide) + 5MP (f/2.4 telemacro) |
| Càmera frontal | 16MP (f/2.45) |
| Bateria | Polímer de liti de 5000 mAh (inclosa) |
| Carregant | 67W Turbo Charging (approx. 36 mins for full charge) |
| Sistema operatiu | Android 11, MIUI 12 |
| Connectivitat | Dual Nano SIM 5G/4G/3G/2G, NFC, Bluetooth 5.1, GPS (A-GPS) |
| Àudio | Dual speakers, Dolby Atmos®, Hi-Res Audio certified |
| Protecció | Corning® Gorilla® Glass Victus™ |
| A la Caixa | Expulsor de la safata SIM |
Garantia i Suport
Per obtenir informació sobre la garantia i assistència tècnica, consulteu la pàgina oficial de Xiaomi. website or contact their customer service. Note that this is an International Model and may not carry a warranty in the US. Compatibility with US carriers is limited; it works with most GSM carriers like T-Mobile, AT&T, MetroPCS, but will NOT work with CDMA carriers such as Verizon, Sprint, Cricket, Boost.
For further assistance, visit the official Xiaomi Store online: Botiga oficial de Xiaomi
