MRCARTOOL V309 Fuel Injector Cleaner & Tester User Manual

1. Producte acabatview

The MRCARTOOL V309 is a professional mechatronic device designed for the diagnosis and cleaning of fuel injectors. It integrates ultrasonic cleaning technology with microcomputer-controlled oil pressure and circuit detection. This system supports the simulation of various engine operating conditions to thoroughly clean and inspect both standard and high-pressure EFI/FSI/GDI injectors.

Les característiques clau inclouen:

• Neteja per ultrasons: Efficiently removes carbon deposits and impurities from injectors.
• Proves exhaustives: Offers 9 distinct test functions to evaluate injector performance under various conditions.
• Smart Operation Panel: Digital controls for precise adjustment of test parameters and injection voltages (12V/70V/120V).
• 4-Cylinder Capacity: Equipped with four 140ml cylinders, allowing simultaneous cleaning and testing of up to four injectors.
• Àmplia compatibilitat: Suitable for 99% of vehicles, including those with GDI, EFI, and FSI systems.

Figure 1.1: The MRCARTOOL V309 Fuel Injector Cleaner and Tester.

2. Informació de seguretat

Please read and understand all safety warnings and instructions before operating the MRCARTOOL V309. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Feu funcionar el dispositiu sempre en una zona ben ventilada.
• Ensure the power supply matches the device's requirements (220V).
• No utilitzeu el dispositiu amb les mans mullades o en damp condicions.
• Use only approved cleaning and testing fluids. Refer to the fluid manufacturer's safety data sheet.
• Wear appropriate personal protective equipment (PPE), including safety glasses and chemical-resistant gloves.
• Mantingueu els nens i el personal no autoritzat allunyats de la zona d'operació.
• Disconnect power before performing any maintenance or cleaning on the unit.
• Avoid direct contact with ultrasonic cleaning fluid during operation.

3. Què hi ha a la caixa

En desembalar-lo, comproveu que tots els components que s'enumeren a continuació siguin presents i no estiguin danyats:

• MRCARTOOL V309 Main Unit
• Ultrasonic Cleaning Bracket
• Cleaning Fluid Drain Valve
• Ultrasonic Cleaning Cover
• Oil Separator (with pressure gauge)
• Les volanderes
• Anells de segellat
• Embut
• Perns de fixació
• Endolls
• Pulse Signal Cables
• Cleaning Connectors (various sizes)
• Cable d'alimentació
• Manual d'usuari (aquest document)

Figure 3.1: Contents of the MRCARTOOL V309 package.

4. Configuració

1. Col·locació: Place the V309 main unit on a stable, level surface in a well-ventilated area.
2. Connexió d'alimentació: Connect the power cable to the unit's power input and then to a 220V AC power outlet. Ensure the power switch is in the OFF position before connecting.
3. Cleaning Bracket Installation: For ultrasonic cleaning, place the cleaning bracket into the ultrasonic bath.
4. Instal·lació d'injectors: Securely install the fuel injectors into the appropriate slots on the test bench. Use suitable adapters and sealing rings to ensure a leak-free connection.
5. Ompliment de fluids: Fill the ultrasonic bath with appropriate cleaning fluid and the test cylinders with suitable testing fluid. Observe the visible test liquid tube on the side of the unit to ensure correct fluid levels.

Figure 4.1: Component details for setup, including the pressure gauge, visible test liquid tube, and drain valve.

5. Funcionament

5.1 Tauler de control acabatview

The intelligent control panel allows for precise control over all cleaning and testing functions. It features digital displays for pulse adjustment and working/injecting times, along with buttons for voltage selection and function control.

Figure 5.1: Intelligent Operation Panel with function descriptions.

5.2 Procediment de neteja per ultrasons

1. Place the injectors into the ultrasonic cleaning bracket within the ultrasonic bath.
2. Ensure the injectors are submerged in the cleaning fluid.
3. Enceneu l'interruptor d'alimentació.
4. Select the 'Ultrasonic Cleaning' function on the control panel.
5. Adjust the cleaning time as required using the panel controls.
6. Press the Start button to begin the ultrasonic cleaning process.
7. After cleaning, remove the injectors and rinse them thoroughly.

Figure 5.2: Ultrasonic cleaning in progress.

5.3 Injector Testing Procedures

The V309 offers 9 distinct test functions to assess injector performance:

• Prova de velocitat en ralentí: Checks spray pattern and volume at idle RPM.
• Medium Speed Test: Evaluates performance at medium engine speeds.
• Prova d'acceleració: Simulates rapid acceleration conditions.
• Variable Speed Test: Tests performance across a range of RPMs.
• Leak Checking Test: Detects any fuel leakage from the injector.
• Idle Spray Volume Test: Measures fuel volume at idle.
• Medium Spray Volume Test: Measures fuel volume at medium speed.
• High Spray Volume Test: Measures fuel volume at high speed.
• Prova d'alta velocitat: Assesses performance at high engine speeds.

Per fer una prova:

1. Install the injectors onto the test bench and connect the pulse signal cables.
2. Ensure the test cylinders are empty and the drain valve is closed.
3. Select the desired test function from the control panel.
4. Adjust parameters such as pulse width and injection times if applicable.
5. Select the appropriate injector voltage (12V, 70V, or 120V) based on the injector type.
6. Press the Start button to begin the test. Observe the spray pattern and measure the fuel volume in the graduated cylinders.
7. Compare the results with manufacturer specifications to determine injector health.

Figura 5.3: Mésview of the 9 testing functions.

5.4 Injector Voltage Selecció

The V309 supports different voltage settings to accommodate various injector types, including standard 12V injectors and high-pressure GDI injectors requiring 70V or 120V. Always select the correct voltage to prevent damage to the injectors or the unit.

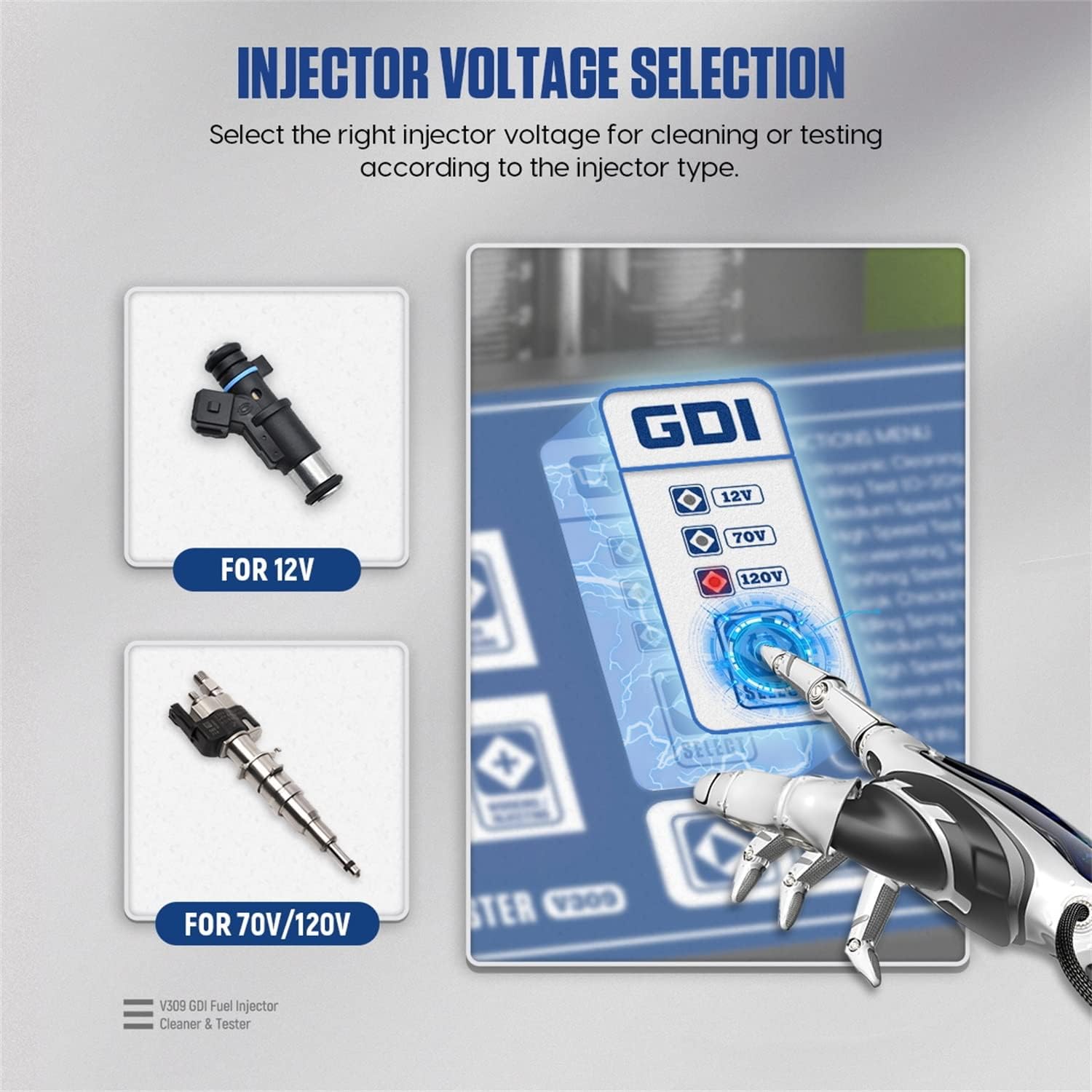

Figure 5.4: Injector voltage selection on the control panel.

6. Manteniment

• Gestió de fluids: Regularly drain used cleaning and testing fluids using the drain valve. Dispose of fluids according to local environmental regulations.
• Neteja: Keep the unit clean and free from dust and debris. Wipe surfaces with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Adaptadors d'injectors: Inspect injector adapters and sealing rings for wear or damage before each use. Replace as necessary to ensure proper sealing.
• Emmagatzematge: When not in use, store the V309 in a dry, cool place, away from direct sunlight and extreme temperatures.

7. Solució De Problemes

8. Especificacions

9. Garantia i Suport

MRCARTOOL provides a 24 mesos de garantia for the V309 Fuel Injector Cleaner & Tester from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper maintenance.

For technical support, warranty claims, or any inquiries, please contact MRCARTOOL customer service. Our team is available 7 dies a la setmana, 24 hores al dia, to assist you and ensure your satisfaction.

Si us plau, conserveu el comprovant de compra per validar la garantia.
