Manual d'usuari de l'equip de música per a cotxe XTRONS Android 11 per a BMW Sèrie 1 (E81, E82, E87, E88 CCC) - Unitat principal amb pantalla tàctil IPS de 10.25 polzades

1. Introducció i finalview

This manual provides detailed instructions for the installation, operation, and maintenance of your XTRONS Android 11 Car Stereo. This advanced head unit is specifically designed for select BMW 1 Series models, offering a seamless integration with your vehicle's existing systems while enhancing your driving experience with modern features.

Figure 1.1: XTRONS Android 11 Car Stereo (Model QEB1087CC) main unit.

2. Característiques del producte

The XTRONS Android 11 Car Stereo is equipped with a range of features designed to provide a comprehensive in-car entertainment and navigation solution:

• Sistema operatiu: Android 11
• Processador: Octa-core, 2.0GHz clock rate, 14nm Process
• Memòria i emmagatzematge: 2GB DDR4 RAM, 32GB SSD ROM (supports 64-bit applications)
• Visualització: 10.25-inch IPS Touch Screen with 178° viewing angle, supports 1080P video
• Connectivitat: Built-in 4G Module, Dual Wi-Fi Band (2.4GHz and 5GHz), Bluetooth 5.0
• Integració del telèfon intel·ligent: Built-in Wireless CarPlay and Wired Android Auto
• Millora d'àudio: Processador de so digital (DSP) integrat
• Multitasca: Split-Screen Mode, Picture-in-Picture (PIP) Mode for video playback
• Navegació: GPS Navigation with support for various Android OS compatible software

Figure 2.1: Key features including optimized Android 11, dual user interface themes, and quick access to reversing camera view.

3. Compatibilitat del vehicle

This head unit is designed for specific BMW 1 Series models equipped with the CCC system. Please verify your vehicle's system before installation.

• Models aplicables: BMW 1 Series E81, E82, E87, E88
• Applicable Years: 2006, 2007, 2008, 2009, 2010, 2011, 2012
• Sistema requerit: Must have the original CCC system.

Figure 3.1: Visual guide to identify your BMW's original system (CCC, CIC, or NBT) for compatibility.

4. Instal·lació

The installation process requires careful attention to detail. Refer to the included Instruccions d'instal·lació for a step-by-step guide specific to your vehicle. It is recommended that installation be performed by a qualified professional.

4.1. Connexions de cablejat

Ensure all wiring harnesses and cables are connected securely according to the provided diagram. Incorrect wiring can lead to malfunction or damage.

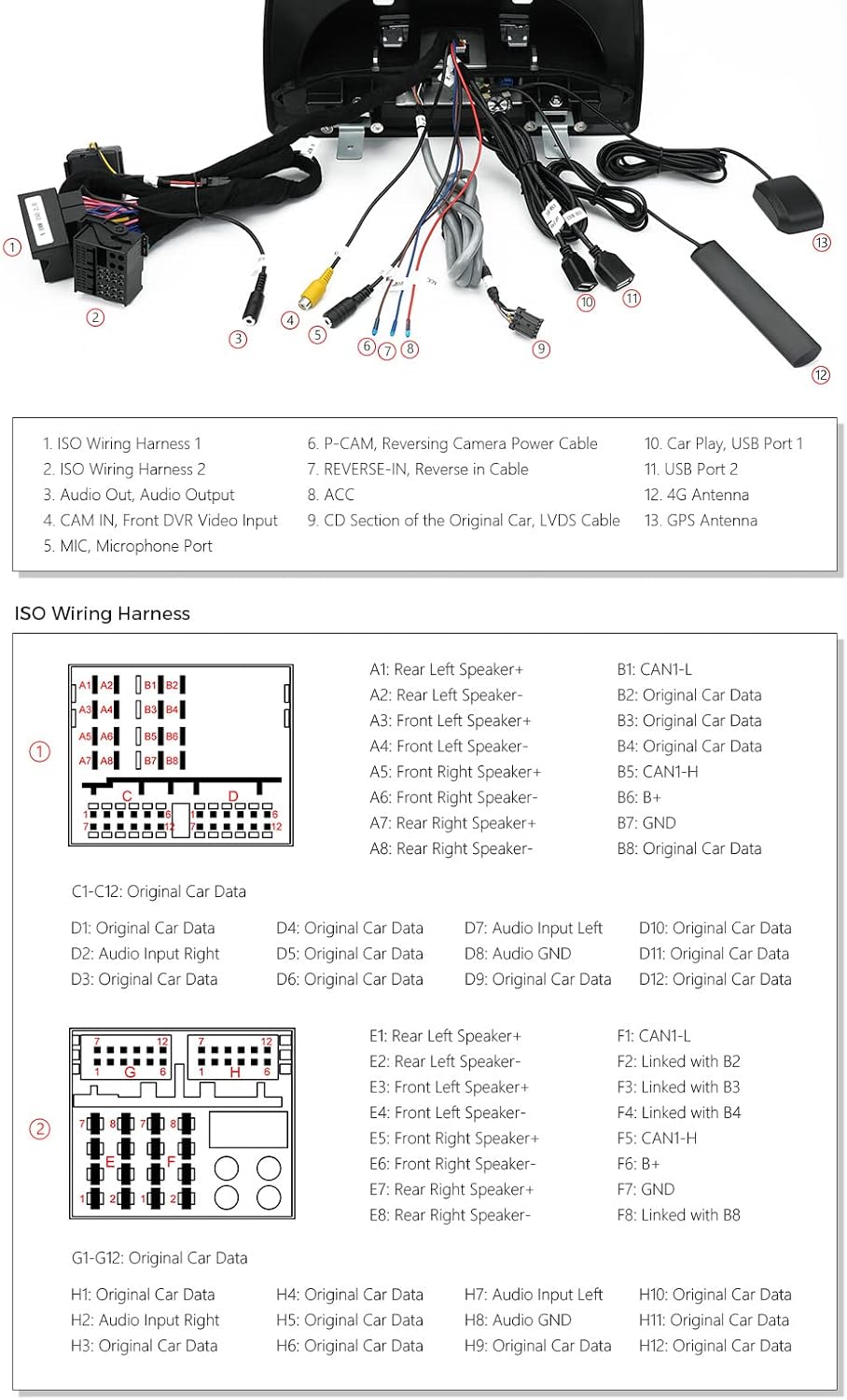

Figure 4.1: Detailed diagram illustrating the various wiring connections for the head unit, including ISO harnesses, USB, audio, 4G, and GPS antennas.

5. Instruccions de funcionament

5.1. Wireless CarPlay and Wired Android Auto

Connect your iPhone (iOS 8 and newer) wirelessly for CarPlay or your Android phone (Android 4.3 and newer) via USB for Android Auto. This allows access to navigation, music, calls, and voice assistants directly from the head unit's screen.

Figure 5.1: Display of both Android Auto and Apple CarPlay interfaces, demonstrating smartphone integration.

5.2. DSP (processador de so digital) integrat

Utilize the built-in DSP to customize your audio experience. Adjust equalizer settings, filters, delay, smart bass, balance, and loudness to achieve optimal sound quality.

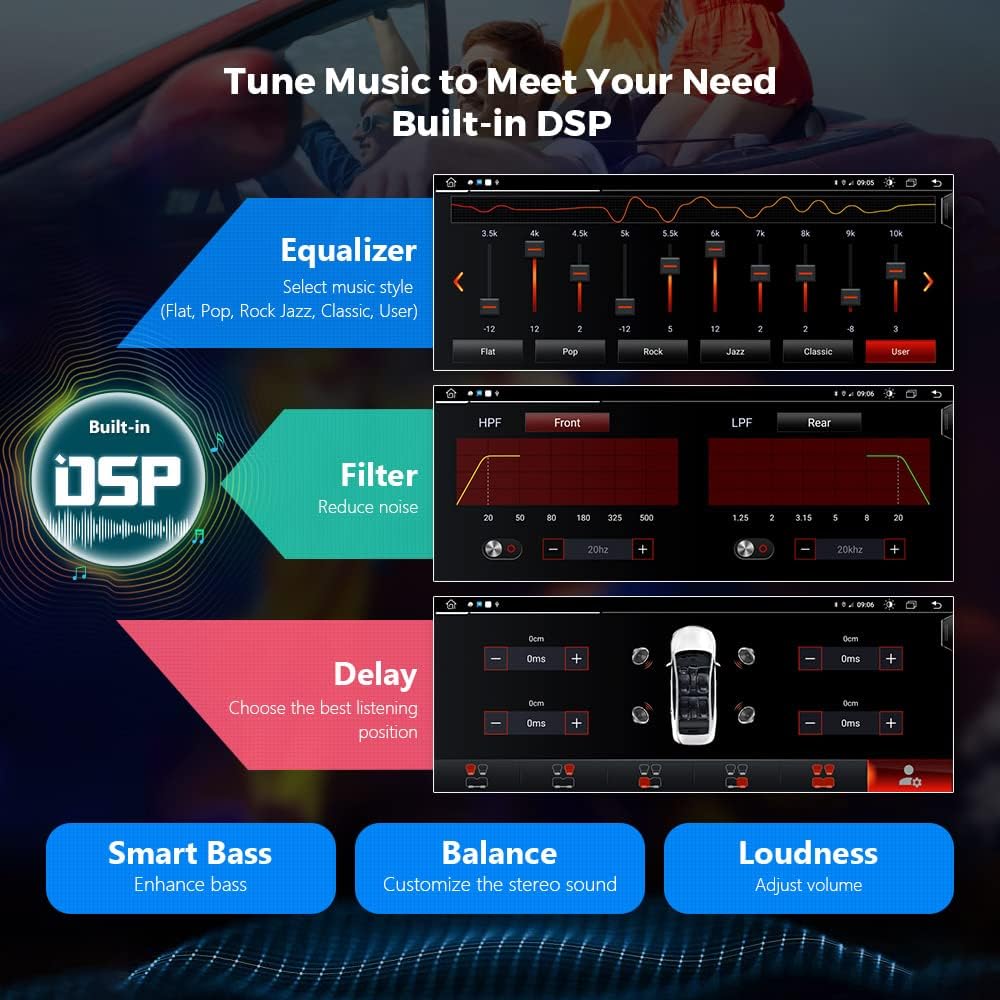

Figure 5.2: The DSP interface, allowing users to fine-tune audio settings such as equalizer, filters, and sound delay.

5.3. Navegació GPS

The unit supports various Android OS compatible navigation software, including Google Maps, Sygic, and Waze. Ensure your preferred navigation app is installed and updated for accurate routing.

5.4. Multi-Window and PIP Mode

The split-screen mode allows you to run two applications simultaneously, such as music playback and navigation. The Picture-in-Picture (PIP) mode enables a floating video player, allowing you to watch videos while performing other tasks.

5.5. 4G and Dual-Band Wi-Fi

Insert a data Micro-SIM card (not included) into the built-in 4G module for independent internet access. The dual-band Wi-Fi supports both 2.4GHz and 5GHz networks, providing faster and more stable connectivity.

Figure 5.3: Illustration of the integrated 4G module and compatible SIM card sizes (Mini-SIM, Micro-SIM, Nano-SIM).

5.6. Bluetooth 5.0

Connect your mobile phone via Bluetooth 5.0 for hands-free calls, contact management, and audio streaming. This ensures safe communication and entertainment while driving.

6. Manteniment

To ensure the longevity and optimal performance of your XTRONS Car Stereo, follow these general maintenance guidelines:

• Mantingueu la pantalla neta amb un drap suau i sense borrissol. Eviteu productes de neteja abrasius.
• Assegureu-vos una ventilació adequada al voltant de la unitat per evitar el sobreescalfament.
• Regularly update the system software to benefit from the latest features and security patches.
• Eviteu exposar la unitat a temperatures extremes o a la llum solar directa durant períodes prolongats.

7. Solució De Problemes

If you encounter any issues with your XTRONS Car Stereo, refer to the troubleshooting section in the full user manual or contact XTRONS technical support for assistance. Common issues can often be resolved by checking connections, restarting the unit, or performing a factory reset (refer to the full manual for instructions).

8. Especificacions

9. Accessoris inclosos

The following accessories are included with your XTRONS Android 11 Car Stereo:

• 1 × Arnès de cablejat ISO
• 1 cable USB
• 1 × cable d'àudio
• 1 × Antena 4G
• 1 × Antena GPS
• 1 × pinces
• 1 × LVDS Connect Cable
• 1 × Instruccions d'instal·lació
• 1 × Manual d'usuari

Figure 9.1: All accessories included in the product package.

10. Accessoris opcionals

Enhance the functionality of your head unit with these optional accessories (sold separately):

• OBD Function: For retrieving real-time data and trouble codes. (Search ASIN: B015MU8UN6 / B08HQ9LQ9X)
• Funció TPMS: For Tire Pressure Monitoring System. (Search ASIN: B07WQFKV5G)
• Front / Reversing Camera: For enhanced visibility. (Search ASIN: B07HMLYLJJ / B00GY3BVT6)
• External DVR: For driving video recording. (Search ASIN: B07MBYCG4C / B08MF1ZRJ3)

11. Garantia i Suport

XTRONS proporciona una 1 any de garantia for this head unit. For technical assistance or warranty claims, please contact XTRONS customer support. Ensure you have your product model and purchase details available when contacting support.
