Pipishell Full Motion TV Wall Mount Bracket User Manual

1. Producte acabatview

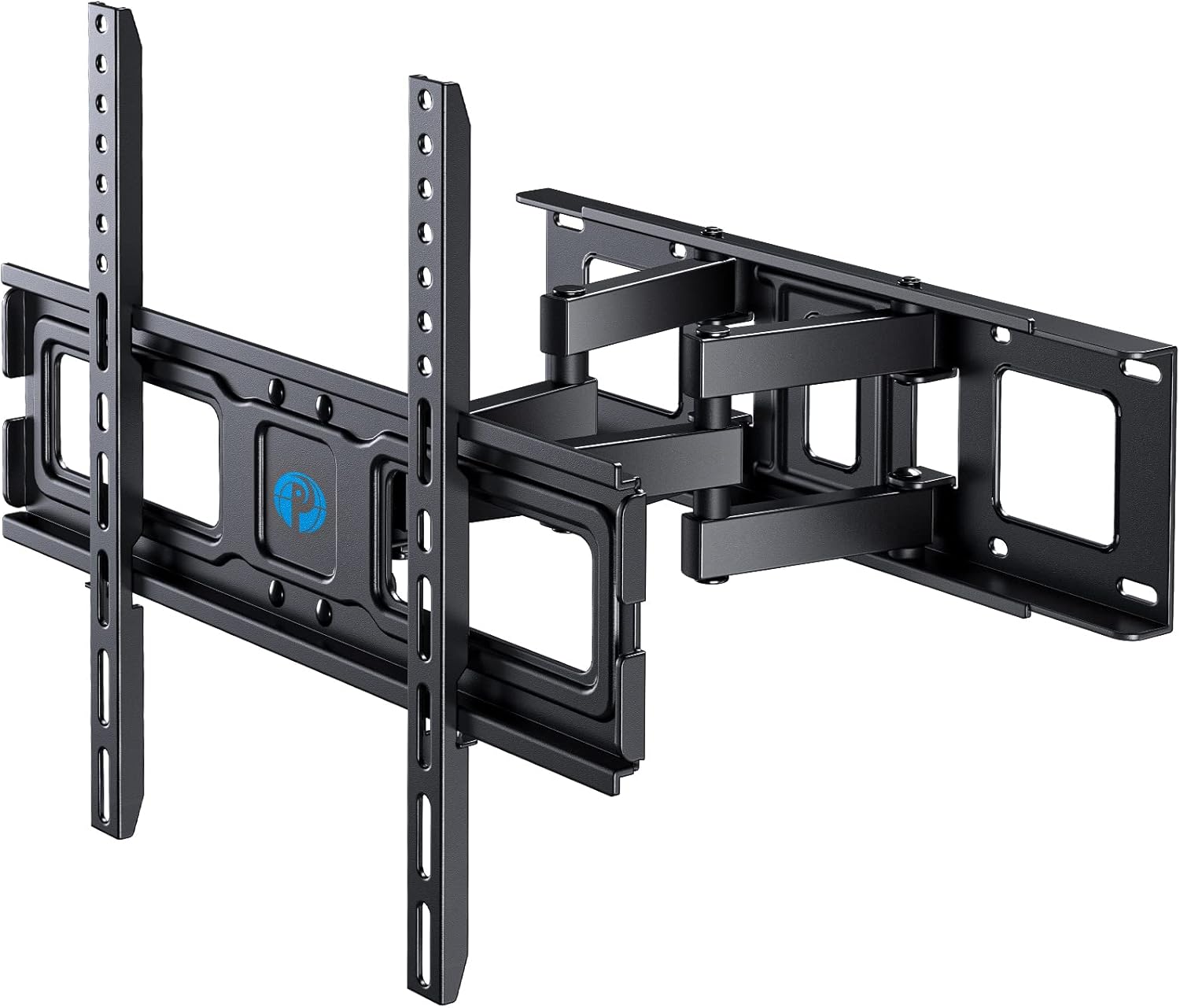

The Pipishell Full Motion TV Wall Mount Bracket is designed to securely hold most 26-60 inch LED, LCD, and OLED flat or curved TVs weighing up to 77 lbs. This mount offers versatile viewing options with its dual articulating arms, allowing for swivel, extension, tilt, and rotation adjustments. It is engineered for robust support and ease of installation.

2. Compatibility and Specifications

This TV wall mount is compatible with a wide range of televisions and wall types. Please verify your TV's specifications and wall construction before installation.

• Compatibilitat de la mida del televisor: Most 26-60 inch TVs.
• Capacitat de pes: Up to 77 lbs (35 kg).
• Compatibilitat VESA: Standard mounting holes from 100x100mm to 400x400mm.
• Tipus de paret: Suitable for 8" to 16" wood stud walls and concrete/brick walls.

Detailed Specifications:

3. Característiques clau

• Flexibilitat de moviment total: Swivels 45° left to right, tilts 5° up and 15° down, extends from 3" to 15.12" from the wall, and allows for ±3° rotation adjustment for leveling.



• Construcció resistent: Equipped with ultra-strong 6 arms made of alloy steel to securely hold your TV.

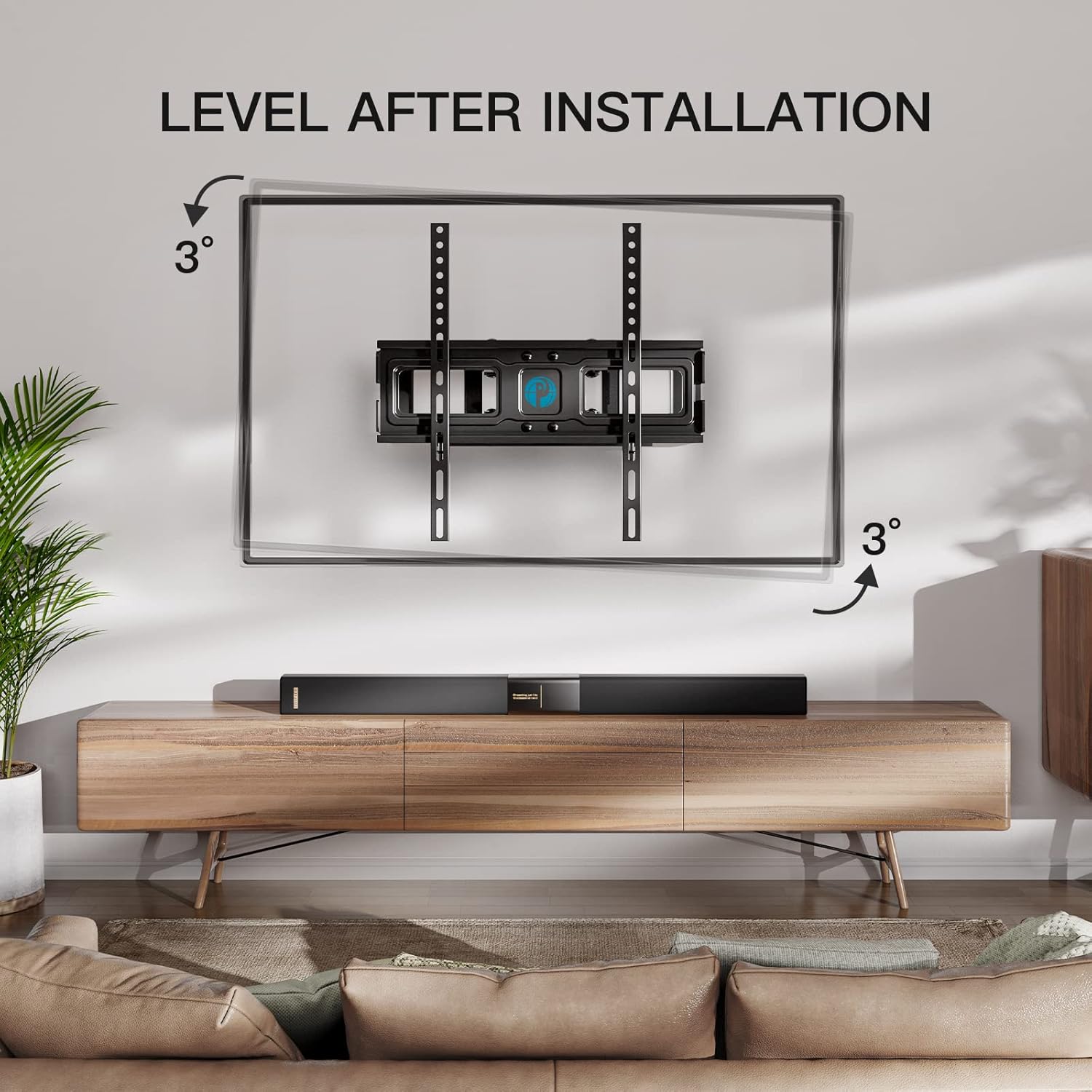

• Easy Leveling: Post-installation ±3° rotation adjustment ensures your TV is perfectly level.

4. Guia d'instal·lació

The Pipishell TV wall mount is designed for quick and easy installation. Follow these general steps. A detailed graphical installation guide is included with your product for specific instructions and hardware details.

1. Pas 1: Fixeu els suports de TV
   Secure the vertical TV brackets to the back of your television using the appropriate screws and spacers provided. Ensure the brackets are centered and firmly attached to your TV's VESA mounting holes.
2. Pas 2: instal·leu la placa de paret
   Locate the desired mounting position on your wall. Use a stud finder to identify wood studs or mark drill points for concrete/brick walls. Securely attach the wall plate to the wall using the provided lag bolts and anchors. Ensure the wall plate is level before tightening all fasteners.
3. Step 3: Hang TV
   Carefully lift your TV with the attached brackets and hook them onto the wall plate. Secure the TV to the wall plate using the safety screws or locking mechanisms as per the detailed instructions.

5. Instruccions de funcionament

Once installed, your Pipishell Full Motion TV Wall Mount allows for flexible adjustment to optimize your viewexperiència.

• Ajust de gir: Gently push or pull the TV to swivel it left or right up to 45 degrees. This allows you to direct the screen towards different seating areas.



• Ajust d'inclinació: Loosen the tilt knobs on the TV brackets, adjust the TV to your desired vertical angle (5° up to 15° down), and then re-tighten the knobs to secure the position. This helps reduce glare and optimize viewdes de diferents altures.
• Extensió i retracció: Pull the TV gently away from the wall to extend it up to 15.12 inches, or push it back towards the wall to retract it to a slim 3 inches. This feature is useful for accessing cables or achieving a flush look.
• Ajust de nivell: If your TV appears unlevel after installation, use the ±3° rotation adjustment feature. Refer to your detailed manual for specific instructions on how to loosen and adjust the leveling screws, then re-tighten.

6. Manteniment

Un manteniment regular garanteix la longevitat i el funcionament segur del suport de paret per a televisors.

• Neteja: Wipe the mount with a soft, dry cloth to remove dust. Avoid abrasive cleaners or solvents that could damage the finish.
• Comproveu les connexions: Periodically check all screws and bolts to ensure they remain tight, especially after initial installation and any significant adjustments.
• Lubricació: The articulating joints are designed for smooth movement. If any stiffness occurs over time, a small amount of silicone-based lubricant can be applied to the pivot points, avoiding contact with electrical components.

7. Solució De Problemes

Si teniu algun problema durant o després de la instal·lació, consulteu els següents consells habituals per a la resolució de problemes:

• El televisor no està anivellat: Use the post-installation leveling adjustment feature (±3° rotation). Loosen the designated screws, adjust the TV until level using a spirit level, and then re-tighten the screws firmly.
• La muntura sembla inestable: Ensure all lag bolts securing the wall plate to the wall studs or concrete are fully tightened. Verify that the TV brackets are securely hooked onto the wall plate and the safety screws/locking mechanisms are engaged. Do not exceed the maximum weight capacity of 77 lbs.
• Difficulty with movement (swivel/tilt/extension): Check for any obstructions. Ensure no cables are snagged. For tilt, confirm the tilt knobs are sufficiently loosened before attempting to adjust, and re-tighten afterward. If movement remains stiff, apply a small amount of silicone lubricant to the articulating joints.
• Input blocking: If the mount or TV position blocks access to input ports, utilize the extension and swivel features to pull the TV away from the wall and angle it for better access. Consider using right-angle adapters for cables if space is extremely limited.

8. Atenció al client i garantia

Pipishell is committed to providing excellent customer service. If you have any questions regarding compatibility, installation, or need assistance with your TV mount, please do not hesitate to contact our product support team.

While specific warranty details are not provided in this manual, please refer to the product packaging or the official Pipishell website for comprehensive warranty information and contact details.

For support, you can typically find contact information on the manufacturer's weblloc web o a través del venedor on es va comprar el producte.
