The Ledvion Universal LED Dimmer is designed for seamless dimming of LED lamps from 0% to 100%. This trailing edge dimmer supports a power range of 5W to 150W for LED loads and 10W to 300W for halogen loads, making it suitable for various lighting applications. Its integrated electronics ensure silent operation, eliminating the buzzing noise often associated with conventional dimmers.
The universal design of this dimmer supports LED loads from 0-150W and halogen loads from 10-300W.
Featuring built-in electronics, the Ledvion dimmer operates without buzzing noise or flickering, ensuring smooth light control.
Informació de seguretat
Always disconnect power at the circuit breaker before installing or servicing the dimmer. Installation should be performed by a qualified electrician in accordance with local electrical codes. Do not exceed the maximum load ratings. Ensure proper grounding to prevent electrical shock.
Instal·lació i Configuració
Before beginning installation, ensure the power supply is turned off at the main circuit breaker. This dimmer is designed for in-wall installation.
Connexions de cablejat
The dimmer supports both one-way and two-way switch functions, allowing control of a light from one or multiple locations. Refer to the diagrams below for correct wiring.
This image illustrates the wiring terminals on the Ledvion LED dimmer, ready for electrical connection.
Detailed wiring diagrams for both one-way and two-way switch configurations, allowing control from multiple locations.
- Connect the live wire(s) to the 'L' terminals.
- Connect the load wire (to the light fixture) to the 'L1' or 'L2' terminal, depending on your setup.
- For two-way switching, connect the switch wires between the dimmers as per the diagram.
- Assegureu-vos que totes les connexions estiguin segures abans de restablir l'alimentació.
Compatible Covers
This dimmer is compatible with standard dimmer cover materials from leading brands. Ensure you use a cover that fits the dimmer's dimensions.

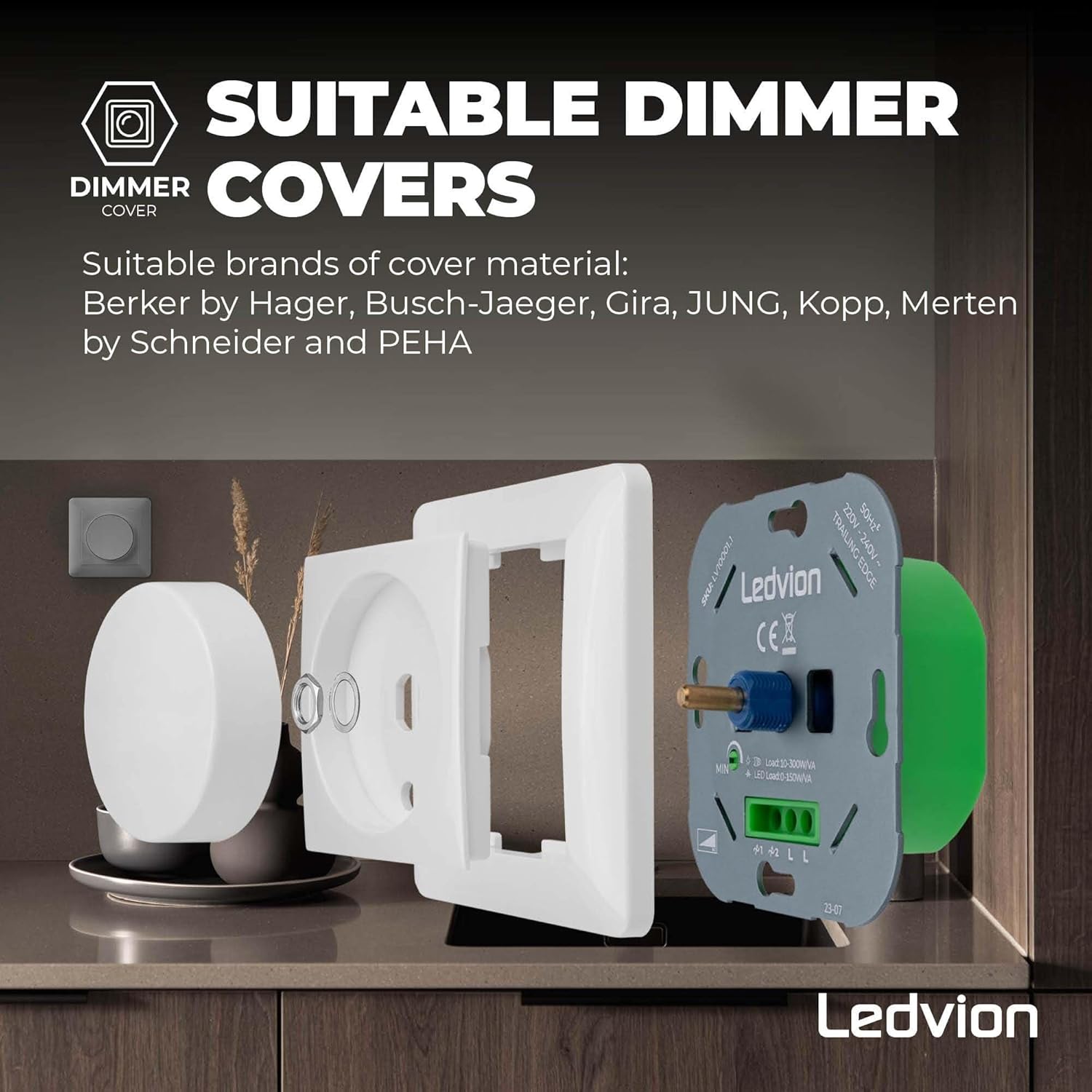

The dimmer is compatible with various standard cover materials from brands such as Berker by Hager, Busch-Jaeger, Gira, JUNG, Kopp by Schneider, Merten by Schneider, and PEHA.
Guia de vídeo d'instal·lació
This video demonstrates the installation process for a similar LED dimmer. While the brand shown in the video is 'Aroidful', the installation steps are generally applicable to this type of in-wall dimmer. It covers unboxing, wiring connections, and final assembly.
Instruccions de funcionament
Once installed and power is restored, the dimmer can be operated by rotating the control knob. Push the knob to turn the light ON/OFF, and rotate it to adjust the brightness level.
Ajust de brillantor mínima
To prevent flickering at low dimming levels, especially with certain LED bulbs, the dimmer features a minimum brightness adjustment knob. If your dimmable bulb flickers slightly at its lowest setting, use a small screwdriver to carefully turn the "MIN" knob on the dimmer module until the flickering stops and the light dims smoothly.
The Ledvion LED dimmer seamlessly integrates into your wall, providing convenient lighting control.
Especificacions
| Característica | Detall |
|---|---|
| Dimensions del producte | 8 x 8 x 5 cm; 70 g |
| Número de model | LV10001_1 |
| ASIN | B09RMG6Z9C |
| Power Range (LED) | 0-150W |
| Power Range (Halogen) | 10-300W |
| Tipus de dimmer | Trailing Edge (Phase Cut) |
| Origen | Xina |

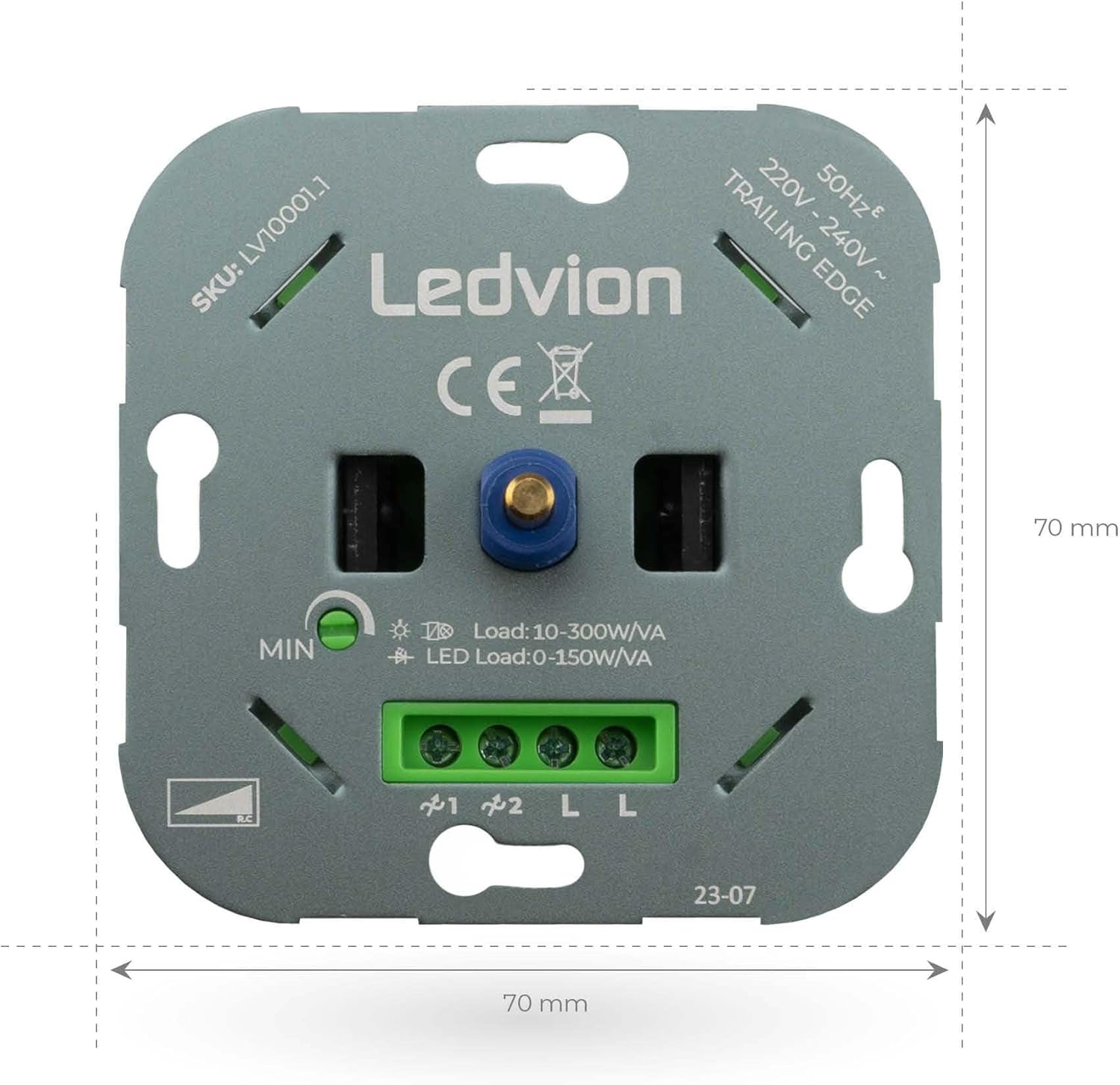

The dimmer has compact dimensions of 70mm x 70mm, suitable for standard installations.
Resolució de problemes
- El llum no s'encén: Check power supply at the circuit breaker. Verify all wiring connections are secure. Ensure the bulb is functional and correctly installed.
- Llum parpellejant: Adjust the "MIN" knob on the dimmer module using a small screwdriver until flickering stops. Ensure the connected bulbs are dimmable and compatible with trailing edge dimmers.
- Dimmer not responding: Ensure the dimmer is correctly installed and receiving power. Check for loose connections.
- Soroll de brunzit: This dimmer is designed to be silent. If buzzing occurs, ensure the load is within the specified range (0-150W for LED, 10-300W for Halogen) and that the bulbs are compatible.
Manteniment
The Ledvion LED dimmer requires minimal maintenance. Periodically, you may gently clean the surface with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure power is disconnected before cleaning.
Garantia
This Ledvion LED dimmer comes with a 2 any de garantia from the date of purchase. The product is manufactured to high-quality standards and complies with various quality marks, including Intertek, CE, RoHS, and REACH. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.
This high-quality LED dimmer comes with a 2-year warranty and complies with Intertek, CE, RoHS, and REACH standards.
Suport
For further assistance, technical support, or warranty claims, please contact Ledvion customer service through your retailer or the official Ledvion website. Please have your model number (LV10001_1) and proof of purchase ready when contacting support.
