This user manual provides detailed instructions for the installation, operation, and maintenance of your WALI Dual Monitor Stand (Model GSMP002W). This adjustable gas spring arm monitor mount is designed to enhance your workspace by providing ergonomic positioning for two monitors, freeing up valuable desk space.
Image: The WALI Dual Monitor Stand (GSMP002W) in white, supporting two monitors on a desk.
Característiques clau
- Compatibilitat: Fits most flat or curved LCD/LED screens from 17 to 32 inches, supporting up to 19.8 lbs per arm. Compatible with 75x75mm and 100x100mm VESA mounting patterns.
- Instal·lació versàtil: Features a two-stage locking system for C-clamp and Grommet Base installations, suitable for desks 0.4 to 3.3 inches thick.
- Ajustabilitat total: High-grade steel gas spring arms allow for extension, retraction, and precise positioning. Monitors can tilt +75°/-45°, swivel +90°/-90°, and rotate 360°.
- Disseny ergonòmic: Height adjustable to raise monitors to eye level, promoting a comfortable and correct posture to reduce neck and eye strain.
- Estalvi d'espai: Frees up valuable desk space, contributing to a more organized and efficient work area.
Contingut del paquet
Si us plau, comproveu que tots els components siguin presents abans de començar la instal·lació.
- WALI Dual Monitor Arm Gas Spring Mount (White) x 1
- Kit de maquinari de muntatge
- Manual d'usuari
Especificacions
| Especificació | Valor |
|---|---|
| Compatibilitat amb la mida de la pantalla | 17 - 32 polzades |
| Capacitat de pes per braç | Fins a 19.8 lliures (9 kg) |
| Compatibilitat VESA | 75x75mm, 100x100mm |
| Gruix de l'escriptori (C-Cl)amp/Ullerol) | 0.4 - 3.3 polzades (10-85 mm) |
| Interval d'inclinació | +75° a -45° |
| Gamma giratòria | +90° a -90° |
| Rotació | 360° |
| Altura màx | 16.5 polzades (41.9 cm) |
| Extensió màxima | 19.6 polzades (49.8 cm) |
| Material | Acer d'aliatge |
| Dimensions del producte | 5.83 x 11.14 x 16.46 polzades |
| Pes de l'article | 8.18 lliures |

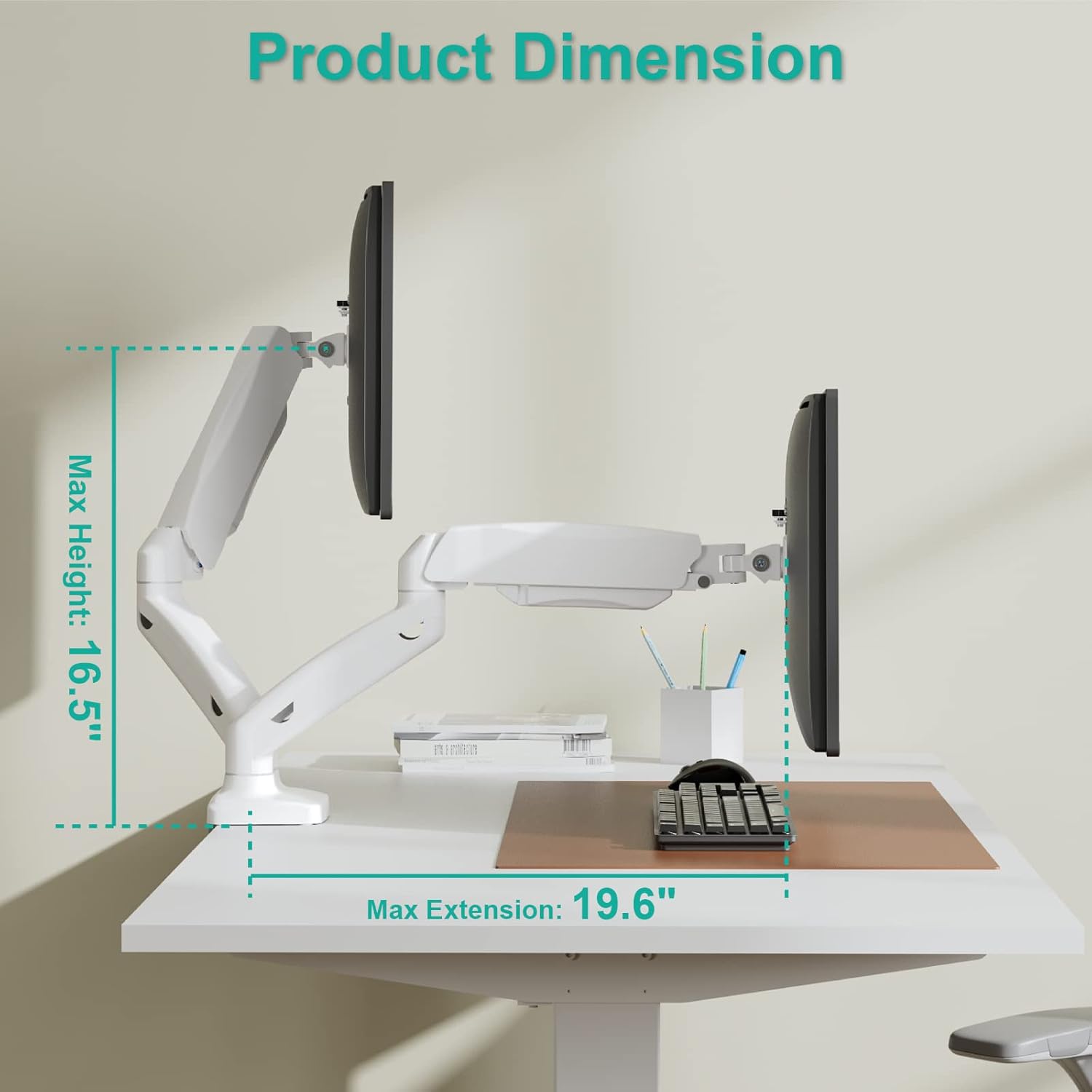

Image: Diagram illustrating the maximum height (16.5 inches) and maximum extension (19.6 inches) of the monitor arm.
Image: Visual guide to display compatibility, indicating a maximum weight capacity of 19.8 lbs per arm, VESA sizes of 75x75mm and 100x100mm, and screen size compatibility from 17 to 32 inches.
Configuració i instal·lació
The WALI Dual Monitor Stand offers two installation options: C-Clamp i base amb ullets. Trieu el mètode que millor s'adapti al vostre escriptori.
1. C-Clamp Instal·lació
For desks with an edge, the C-clamp provides a secure attachment without needing to drill holes.
- Enganxeu el C-clamp to the base of the monitor arm.
- Posicioneu el C-clamp a la vora del teu escriptori.
- Premeu el cargol fins que el clamp is firmly secured to the desk. Ensure the desk thickness is between 0.4 and 3.3 inches.

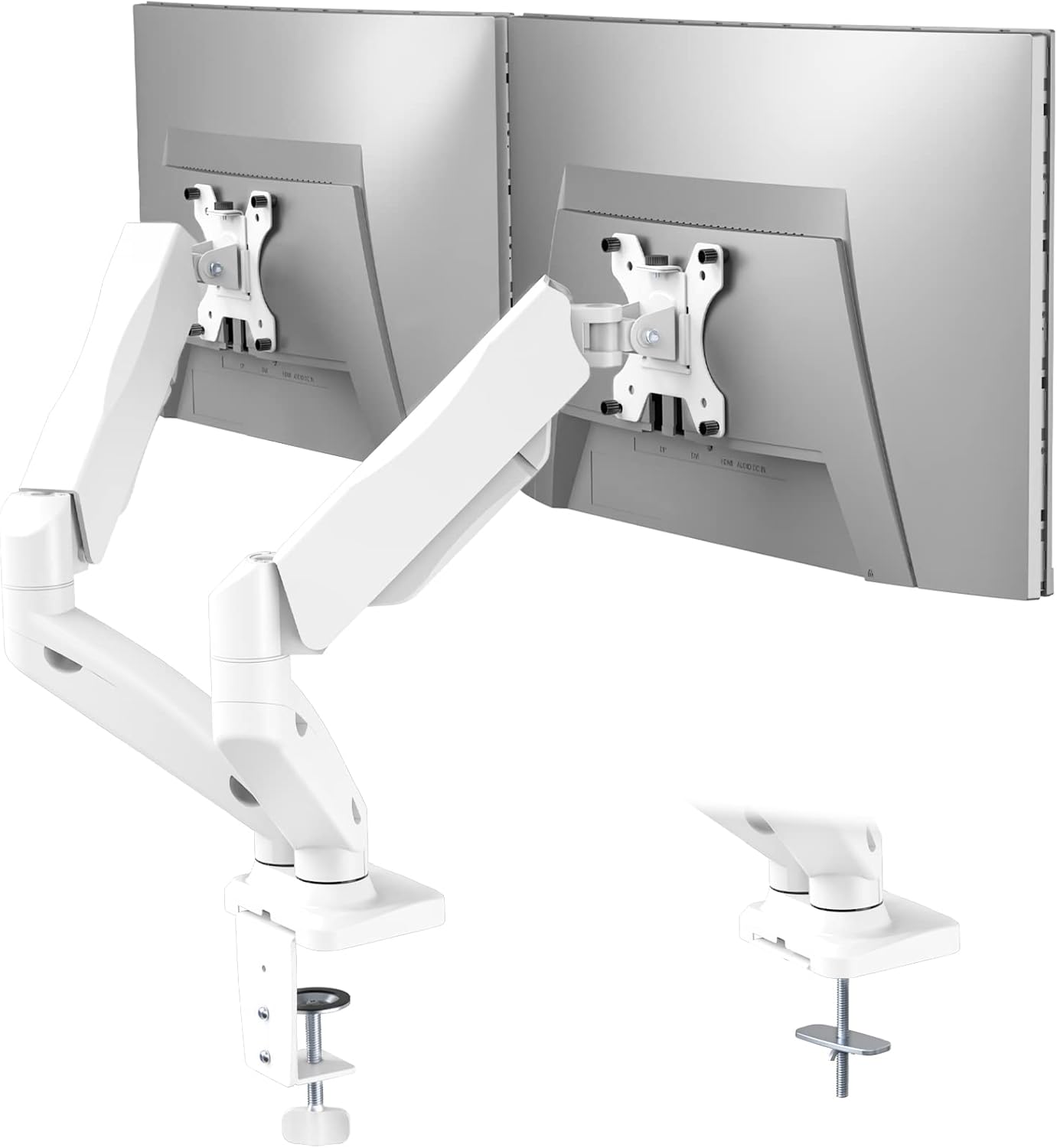

Image: Illustration of both C-clamp and grommet base installation methods for the monitor stand.
2. Instal·lació de la base del grommet
For desks with an existing grommet hole (cable management hole), this method provides a flush and stable mount.
- Desmunteu el C-clamp components from the base.
- Insert the grommet bolt through the desk's grommet hole.
- Secure the grommet base plate and tighten the nut from underneath the desk. Ensure the desk thickness is between 0.4 and 3.3 inches and the hole diameter is suitable (typically up to 2.75 inches).
3. Connexió de monitors
Once the base is securely installed, attach your monitors to the VESA plates.
- Fixeu les plaques VESA a la part posterior dels monitors amb els cargols proporcionats. Assegureu-vos que el patró VESA (75x75 mm o 100x100 mm) coincideixi amb el vostre monitor.
- Slide the monitor with the attached VESA plate onto the arm's mounting head until it clicks into place.
- Tighten any security screws on the VESA head to prevent accidental dislodgement.
Guia de vídeo d'instal·lació
Video: An official WALI video demonstrating the installation process for the dual monitor stand, including both C-clamp and grommet base options, and how to attach monitors.
Instruccions d'ús i ajustos
The WALI Dual Monitor Stand offers extensive adjustability to achieve your optimal viewexperiència.
1. Ajust de la tensió de la molla de gas
Adjust the gas spring tension to match the weight of your monitors. This ensures smooth and stable height adjustments.
- Locate the tension adjustment screw on the arm joint (usually covered by a plastic cap).
- Use the provided Allen key to turn the screw: turn clockwise to increase tension (for heavier monitors) or counter-clockwise to decrease tension (for lighter monitors).
- Ajusteu-ho fins que el monitor es mantingui a l'alçada desitjada quan el deixeu anar.
2. Ajust d'alçada
Once the gas spring tension is set, you can easily raise or lower your monitors to your preferred ergonomic height.
- Gently push or pull the monitor up or down. The gas spring will assist in holding the position.
3. Tilt Adjustment (+75°/-45°)
Adjust the vertical angle of your monitors to reduce glare and optimize viewcomoditat.
- Grasp the top or bottom edge of your monitor and gently tilt it forwards or backwards to the desired angle.
Image: Diagram illustrating the tilt range of the monitor, from +75 degrees upwards to -45 degrees downwards.
4. Swivel Adjustment (+90°/-90°)
Rotate your monitors horizontally to share your screen or adjust your viewangle de ing.
- Gently pivot the monitor left or right from its mounting point.
Image: Diagram illustrating the swivel range of the monitor, allowing rotation up to 90 degrees left or right.
5. Rotation (360°)
Change your monitor's orientation from landscape to portrait mode or vice versa.
- Carefully rotate the entire monitor screen clockwise or counter-clockwise.
Image: Diagram illustrating the 360-degree rotation capability of the monitor, allowing for easy switching between landscape and portrait orientations.
6. Gestió de cables
Utilize the integrated cable management clips on the arms to keep your cables organized and out of sight, contributing to a cleaner workspace.
- Route your monitor and power cables through the clips along the underside of the arms.
- Close the clips to secure the cables.
Manteniment
Regular maintenance ensures the longevity and optimal performance of your WALI Dual Monitor Stand.
- Neteja: Netegeu el suport amb un suau, damp drap. Eviteu productes de neteja abrasius o dissolvents que puguin danyar l'acabat.
- Comproveu les connexions: Periodically check all screws and bolts to ensure they remain tight and secure. Re-tighten if necessary.
- Ajust de la molla de gas: If your monitors begin to sag or are difficult to adjust, re-adjust the gas spring tension as described in the "Operating Instructions" section.
Resolució de problemes
If you encounter issues with your monitor stand, refer to the common problems and solutions below.
| Problema | Possible causa/solució |
|---|---|
| El monitor s'enfonsa o no es manté a l'alçada desitjada. | Gas spring tension is too low for the monitor's weight. Increase tension by turning the adjustment screw clockwise. |
| Monitor is difficult to move or push down. | Gas spring tension is too high for the monitor's weight. Decrease tension by turning the adjustment screw counter-clockwise. |
| El monitor trontolla o es nota inestable. | Assegureu-vos que l'escriptori clamp/grommet base is securely tightened. Check that the VESA plate screws are tight and the monitor is properly seated on the arm. |
| Cables are not neatly managed. | Ensure all cables are routed through the integrated cable management clips on the arms. |
| El monitor no encaixa amb la placa VESA. | Verify your monitor's VESA pattern (75x75mm or 100x100mm) matches the stand's compatibility. |
Garantia i assistència al client
WALI products are designed for durability and performance. For any questions, concerns, or assistance with your product, please contact WALI customer support.
- Atenció al client: Experienced and friendly US-based customer support is available to assist 7 days a week. Refer to your product packaging or the official WALI weblloc per obtenir dades de contacte.
- Informació de la garantia: Please retain your proof of purchase for warranty claims. Specific warranty terms and conditions can be found on the WALI official weblloc o posant-se en contacte amb el servei d'atenció al client.
