Introducció
Welcome to the JOYOR Y6-S Electric Scooter user manual. This guide provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before first use to ensure optimal performance and safety.
The JOYOR Y6-S Electric Scooter features a sleek black design, 10-inch pneumatic tires, and a robust aluminum frame. The image shows the scooter both in its upright riding position and folded for compact storage, highlighting its portability.
Pautes de seguretat
La vostra seguretat és primordial. Seguiu sempre les directrius següents:
- Porteu sempre casc i equip de protecció adequat (genolleres, colzeres) quan aneu en bicicleta.
- No circuleu sota pluja intensa, neu o sobre superfícies gelades.
- Ensure all bolts and quick releases are securely fastened before each ride.
- Observe local traffic laws and regulations. This product may not be street legal in all regions.
- The maximum recommended load is 120 kg (265 lbs).
- Not suitable for users under 16 years of age.
- Mantingueu una distància de seguretat amb altres vehicles i vianants.
- Avoid sudden braking, especially at high speeds.
- Do not attempt to modify the scooter.
A man is shown riding the JOYOR Y6-S Electric Scooter outdoors, demonstrating typical usage. The scooter's design allows for comfortable urban commuting.
Contingut del paquet
En obrir el paquet, comproveu que hi hagi tots els components següents:
- JOYOR Y6-S Electric Scooter
- Carregador
- Manual d'usuari (aquest document)
- Kit d'eines d'instal·lació
Instruccions de muntatge
The JOYOR Y6-S Electric Scooter comes partially assembled. Follow these steps to complete the setup:
- Desplegant el patinet: Aixequeu amb cura la tija del manillar fins que quedi bloquejada. Assegureu-vos que el mecanisme de plegat estigui ben enganxat.
- Instal·lació del manillar: Attach the handlebars to the stem, ensuring all cables are properly routed and not pinched. Tighten any screws as indicated in the quick start guide (refer to included installation tool kit).
- Inflat de pneumàtics: Check the tire pressure of the 10-inch pneumatic tires. Inflate to the recommended PSI if necessary.
- Càrrec inicial: Before first use, fully charge the scooter's battery using the provided charger. The charging port is typically located on the side of the deck.
This image illustrates the portable folding design of the JOYOR Y6-S Electric Scooter, allowing for easy storage and transport. The scooter can be quickly folded down to a compact size.
Funcionament del teu scooter
Encès/Apagat
To power on the scooter, insert the key into the ignition and turn it. Press and hold the power button on the display panel. To power off, reverse the process.
Modes de conducció
The scooter features multiple riding modes, selectable via the display panel. Refer to the LCD Digital Display section for more details.
Acceleració
Gently press the throttle lever to accelerate. Start slowly to get accustomed to the scooter's power.
Frenatge
The JOYOR Y6-S is equipped with dual front and rear disc brakes for effective stopping power. Apply both brake levers simultaneously for balanced braking.

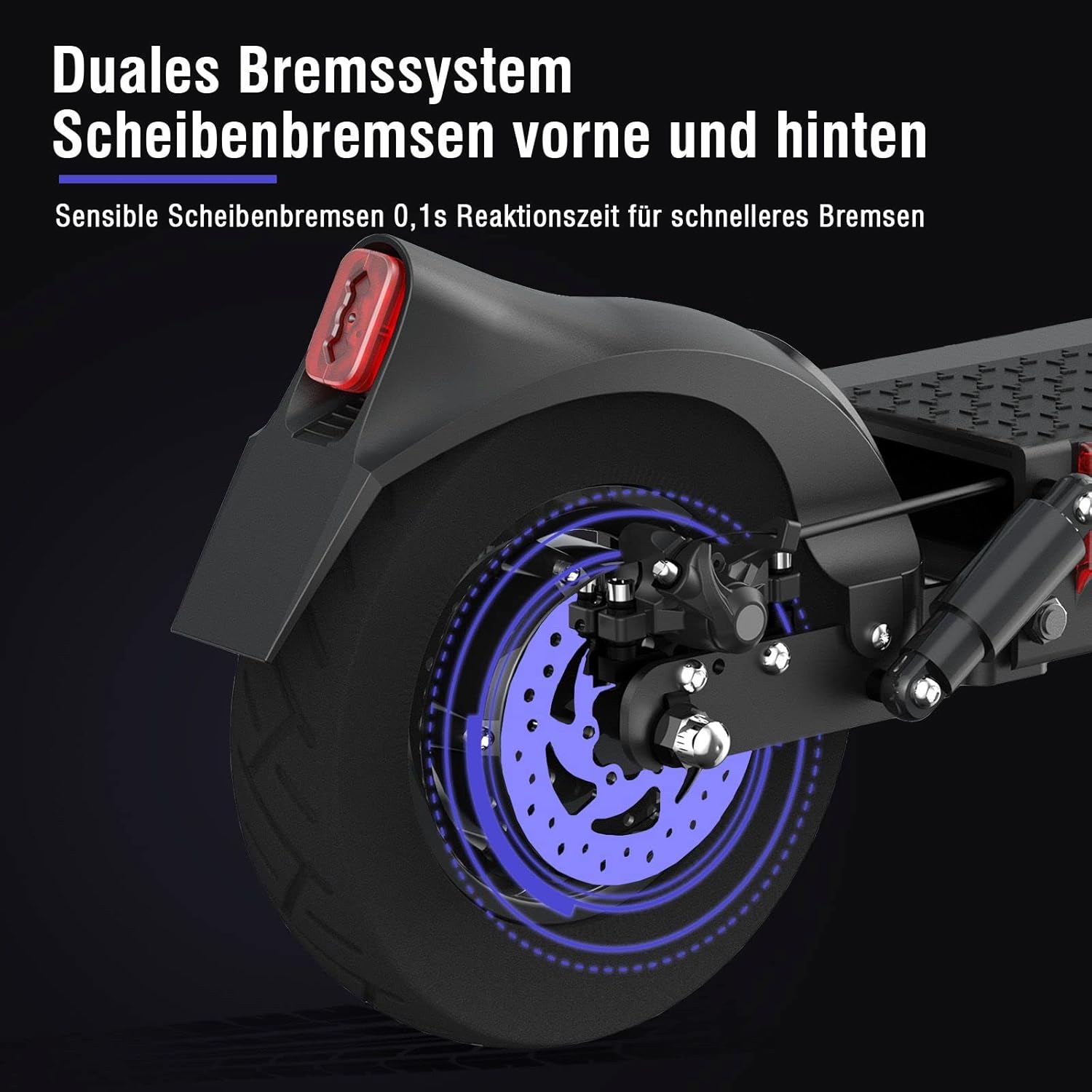

Un detallat view of the rear wheel and its disc brake, highlighting the dual braking system (front and rear disc brakes) for enhanced safety and responsive stopping.
Sistema d'il·luminació
The scooter includes an advanced lighting system for visibility and safety, featuring headlights, taillights, turn signals, and outline lights.
This image showcases the scooter's comprehensive lighting system, including a bright headlight, red taillight, and integrated turn signals, designed for improved visibility during commuting.
Pantalla digital LCD
The LCD display provides real-time information about your ride status.
- Meter Button: Cycles through various display metrics.
- Visualització de velocitat: Mostra la velocitat actual.
- Botó de model: Selects riding modes.
- Volt Display: Mostra el volum de la bateriatage.
- Interruptor de fars: Activates/deactivates the headlight.
- Interruptor de botzina: Activa la botzina.
A close-up of the scooter's handlebars, showing the LCD digital display which provides real-time ride status, speed, and battery information. Also visible are the headlight and horn switches.
Manteniment
Regular maintenance ensures the longevity and safe operation of your JOYOR Y6-S Electric Scooter.
- Neteja: Netegeu el patinet amb anunciamp drap. No utilitzeu aigua a alta pressió ni submergiu el patinet en aigua.
- Cura dels pneumàtics: Regularly check tire pressure and inspect for wear or damage. The 10-inch pneumatic tires require proper inflation for optimal performance and safety.
- Inspecció de frens: Periodically check the brake pads and discs for wear. Adjust or replace as needed.
- Cura de la bateria:
- Carregueu la bateria completament després de cada ús.
- No sobrecarregueu ni esgoteu completament la bateria.
- Store the scooter in a cool, dry place if not used for extended periods, with the battery charged to approximately 50-70%.
- Comprovació de fixació: Assegureu-vos que tots els cargols i perns estiguin ben ajustats abans de cada viatge.
- Suspensió: The scooter features full suspension (double front and single rear). Inspect the suspension components for any signs of damage or wear.
This image highlights the scooter's full suspension system, showing the double shock absorbers at the front and a single shock absorber at the rear, designed to provide a comfortable ride over varied terrain.
Resolució de problemes comuns
| Problema | Causa possible | Solució |
|---|---|---|
| El patinet no s'encén | Low battery, power button not pressed correctly, key not inserted/turned | Charge battery, ensure power button is held, check key ignition |
| Interval reduït | Low tire pressure, cold weather, heavy load, uphill riding, aggressive acceleration | Inflate tires to correct pressure, ride in moderate temperatures, reduce load, ride smoothly |
| Els frens es senten febles | Worn brake pads, loose brake cable | Inspect and replace brake pads, adjust brake cable tension |
| Sorolls inusuals | Loose components, debris in wheels/brakes | Check all fasteners, inspect wheels and brakes for obstructions |
Especificacions tècniques
| Característica | Especificació |
|---|---|
| Model | Y6-S |
| Marca | JOYOR |
| Potència del motor | Motor sense escombretes de 500 W |
| Capacitat de la bateria | 48V 18Ah (864Wh) |
| Interval màxim | Fins a 75 km (46.6 milles) |
| Càrrega màxima | 120 kg (265 lliures) |
| Mida del pneumàtic | Pneumàtics de 10 polzades |
| Tipus de fre | Dual Front and Rear Disc Brakes |
| Suspensió | Full Suspension (Double Front, Single Rear) |
| Material del marc | Alumini |
| Dimensions del producte | 120 x 57 x 119 cm (47.2 x 22.4 x 46.8 polzades) |
| Temps de càrrega | 8-10 hores (aprox.) |
| Característiques especials | Key Start, Advanced Lighting System (Turn Signals, Headlights, Taillights), LCD Digital Display |

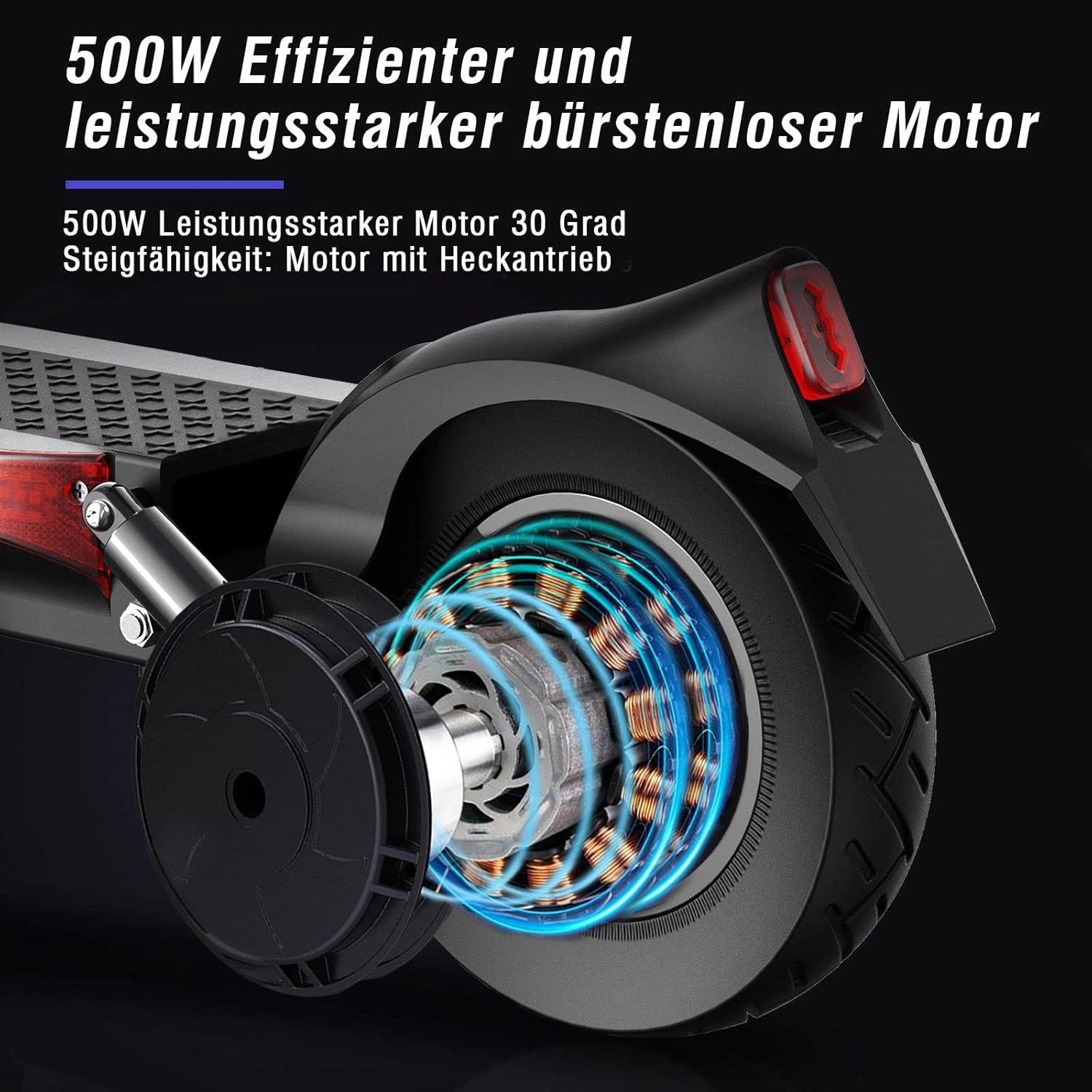

This image provides a cutaway view of the scooter's rear wheel, illustrating the powerful 500W brushless motor. This motor enables efficient propulsion and a climbing ability of up to 30 degrees.
A visual representation of the scooter's 48V 18Ah battery, indicating a long-distance range of 55-75 km and a fast charging time of 8-10 hours.
This image highlights the robust aluminum frame of the scooter, emphasizing its high strength and resistance to deformation, capable of supporting a weight capacity of 120 kg.
Un primer pla view of the scooter's 10-inch pneumatic tires, designed for anti-slip performance. The image also shows the kickstand and the broad anti-slip pad on the deck.
Garantia i assistència al client
For warranty information, please refer to the warranty card included with your purchase or visit the official JOYOR weblloc.
If you encounter any issues not covered in this manual or require further assistance, please contact JOYOR customer support through their official channels.
Manufacturer: JINHUA JOYOR VEHICLE CO.,LTD
First Available on Amazon.de: February 16, 2022
