1. Introducció
Thank you for choosing the Soozier Poolside Basketball Hoop Stand. This manual provides essential information for the safe assembly, operation, and maintenance of your new basketball system. Please read all instructions carefully before use and retain this manual for future reference.
This portable basketball hoop system is designed for poolside use, offering adjustable height for various age groups and skill levels. It features a durable backboard, a weatherproof net, and a stable, fillable base for secure placement.
Image 1.1: The Soozier Poolside Basketball Hoop Stand, featuring a blue backboard, orange rim, and a blue base with wheels.
Image 1.2: A family enjoying the Soozier Poolside Basketball Hoop Stand in a swimming pool setting.
2. Informació de seguretat
AVÍS: Si no es segueixen aquestes instruccions de seguretat, es poden produir lesions greus o danys materials.
- Always ensure the base is filled with the recommended amount of sand (99 lbs) or water (77 lbs) before use to prevent tipping.
- Do not hang on the rim or backboard. This can cause the unit to tip over, leading to injury.
- Keep children under supervision when using the basketball hoop, especially near water.
- Regularly inspect all components for wear, damage, or loose fasteners. Tighten any loose screws or bolts immediately.
- Do not attempt to move the unit when the base is filled. Drain the base or use the wheels carefully on a flat surface.
- Position the hoop on a stable, level surface away from obstacles.
- Aquest producte conté substàncies químiques que l'estat de Califòrnia sap que causen càncer i defectes congènits o altres danys reproductius. (Avís de la Proposició 65 de Califòrnia)
- Discontinue use if any part of the system becomes damaged or unstable.
3. Contingut del paquet
Please verify that all parts are present before beginning assembly. If any parts are missing or damaged, contact customer service.
- Tauler
- Rim and Net
- Main Pole Sections (Upper, Middle, Lower)
- Base amb rodes
- Suports de suport
- Hardware (Screws, Bolts, Washers, Nuts, Adjustment Knobs)
- Assembly Tools (may vary, typically wrenches)
4. Instruccions de muntatge (Configuració)
El muntatge normalment requereix dos adults. Seguiu aquests passos amb atenció:
- Fixeu les rodes a la base: Secure the wheels to the designated slots on the underside of the base.
- Muntar les seccions del pal: Connect the lower, middle, and upper pole sections. Ensure they are securely fastened with the provided bolts and nuts.
- Fixar el pal a la base: Insert the assembled pole into the base. Secure it using the appropriate bolts and support brackets.
- Mount Backboard: Attach the backboard to the upper pole section. Ensure it is centered and firmly secured.
- Install Rim and Net: Fasten the rim to the backboard using the provided hardware. Attach the weatherproof nylon net to the rim.
Image 4.1: Detail of the rim securely attached to the backboard with bolts.
Image 4.2: Visual representation of the durable net, stylish backboard design, and stable base.
5. Instruccions de funcionament
5.1. Filling the Base for Stability
Before using the basketball hoop, the base must be filled to ensure stability and prevent tipping. The base can be filled with either sand or water.
- Sorra: Fill with up to 99 lbs (approximately 45 kg) of dry sand. Sand provides greater stability and is less prone to freezing in colder temperatures.
- Aigua: Fill with up to 77 lbs (approximately 35 kg) of water. Water is easier to fill and empty but may freeze in cold weather, potentially damaging the base.
Ensure the fill cap is securely closed after filling.
Image 5.1: The sturdy base with its fill cap, indicating options to fill with sand or water for stability.
5.2. Ajust d'alçada
The basketball hoop's height can be adjusted to suit different users and activities. The adjustable range is from 36.5 inches to 48.5 inches (92.5 cm to 123 cm) at the rim.
- Locate the adjustment knob on the main pole.
- Afloixeu el botó d'ajust girant-lo en sentit antihorari.
- Carefully slide the upper pole section up or down to the desired height.
- Once the desired height is reached, tighten the adjustment knob securely by turning it clockwise to lock the pole in place.
Image 5.2: The adjustment knob used to modify the hoop's height.
Imatge 5.3: Un apropament view of the height adjustment mechanism, showing the knob and bolt.
5.3. Portabilitat
The base is equipped with two wheels for easy relocation. To move the basketball hoop:
- Ensure the base is empty or partially empty if moving a short distance on a smooth surface. For longer distances or uneven terrain, it is recommended to empty the base completely.
- Tilt the hoop slightly backward, lifting the front of the base off the ground so that the wheels engage.
- Roll the unit to the desired location.
- Carefully lower the base back onto the ground, ensuring it is stable before refilling (if emptied).
Image 5.4: The base features integrated wheels for convenient portability.
6. Manteniment
Regular maintenance will extend the life of your Soozier Poolside Basketball Hoop Stand.
- Neteja: Clean the backboard, rim, and pole with a mild soap and water solution. Rinse thoroughly and dry. Avoid abrasive cleaners.
- Comprovació de maquinari: Periodically check all bolts, nuts, and screws for tightness. Re-tighten as necessary to maintain structural integrity.
- Prevenció de l'òxid: The steel frame is powder-coated for rust resistance. However, prolonged exposure to moisture, especially chlorinated pool water, can lead to rust. Wipe down metal parts after use, particularly if used near a pool. Consider applying a rust-inhibiting spray to exposed metal components annually.
- Inspecció de la xarxa: Inspect the net for tears or excessive wear. Replace the net if it becomes damaged to ensure continued play.
- Base Condition: Check the base for cracks or leaks. Repair or replace if damage is found.
- Emmagatzematge d'hivern: If storing outdoors in freezing temperatures, empty the base of water to prevent damage from ice expansion. Store the unit in a dry, sheltered area if possible.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Hoop is unstable or tips easily. | Base not sufficiently filled; uneven ground; loose connections. | Ensure base is filled to maximum capacity (99 lbs sand / 77 lbs water). Place on level ground. Check and tighten all assembly bolts. |
| Dificultat per ajustar l'alçada. | Adjustment knob too tight; pole sections stuck. | Loosen the adjustment knob completely. Apply a silicone-based lubricant to the sliding pole sections if they are stiff. |
| Rust appearing on metal parts. | Prolonged exposure to moisture, especially chlorinated water. | Wipe down metal components after each use. Apply rust-inhibiting paint or spray to affected areas. Store in a dry place when not in use. |
| Net is tearing or worn out quickly. | Normal wear and tear; exposure to harsh weather. | Replace the net with a new, durable, weatherproof basketball net. |
8. Especificacions
- Marca: Soozier
- Nom del model: Stand de cèrcol de bàsquet
- Número de model: CAA61-0320231
- Material: Polyethylene (PE) backboard, Alloy Steel frame
- Color: Multi (typically blue backboard/base, black pole)
- Dimensions totals: 32" W x 52.25" D x 56.75"-68" H (81cm W x 132.7cm D x 144-173cm H)
- Dimensions del tauler: 32" d'amplada x 22.75" de profunditat (81 cm d'amplada x 58 cm de profunditat)
- Diàmetre de la vora: 15 polzades (38 cm)
- Adjustable Rim Height: 36.5"-48.5" (92.5 cm - 123 cm)
- Item Weight (empty): 18.7 lliures (8.5 kg)
- Base Capacity (Sand): Fins a 99 lliures (45 kg)
- Base Capacity (Water): Fins a 77 lliures (35 kg)
- Ús interior/exterior: A l'aire lliure
- Característiques especials: Adjustable Height, Portable (with wheels), Rust Resistant (powder-coated frame)
- Muntatge requerit: Sí
- Suitable for Basketballs: Size 5 (27.5" circumference) and below

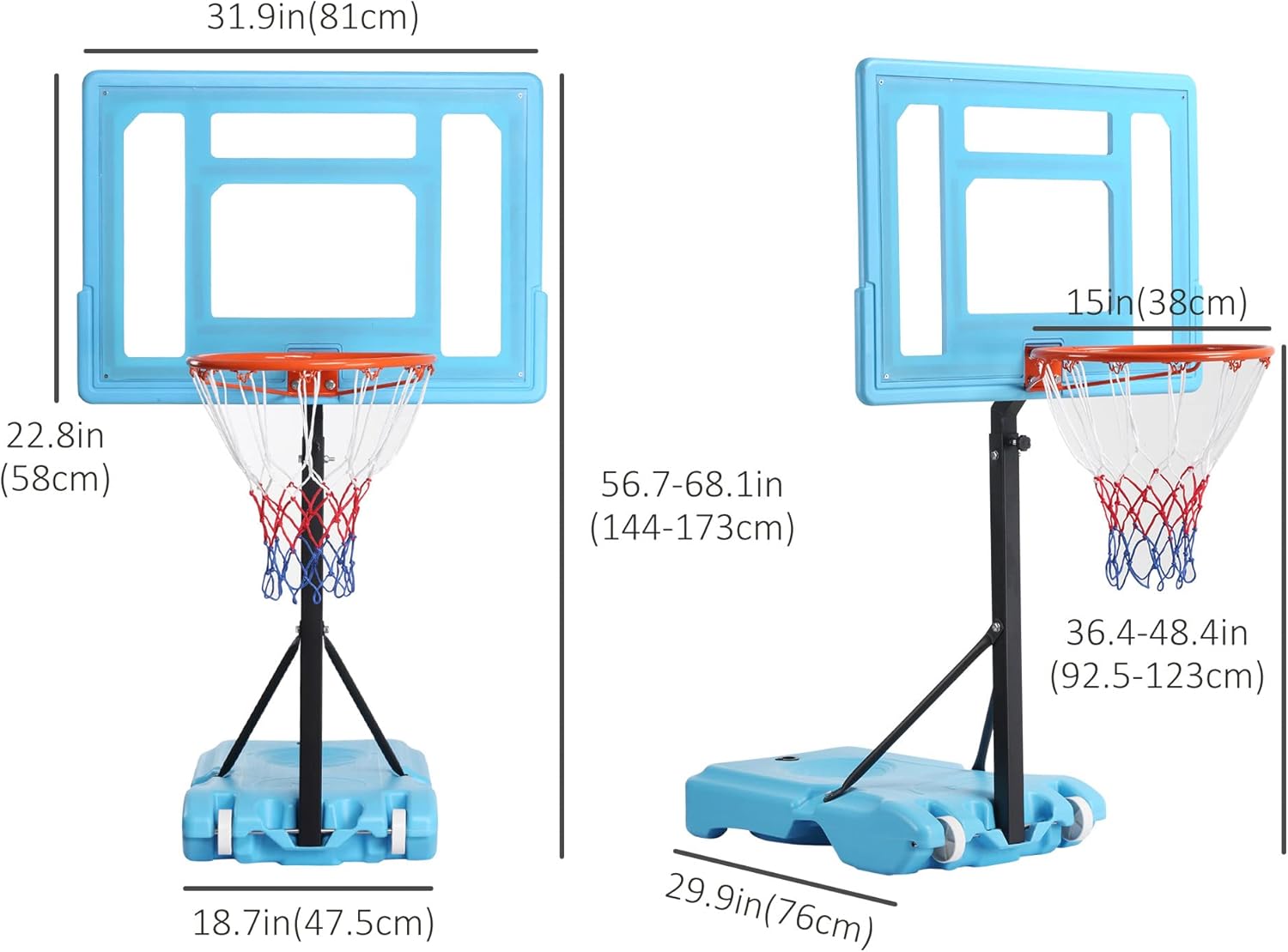

Image 8.1: Detailed dimensions of the basketball hoop stand, including backboard, rim, and overall height ranges.
9. Garantia i Suport
The Soozier Poolside Basketball Hoop Stand comes with a Garantia del fabricant de 1 anys des de la data de compra. Aquesta garantia cobreix els defectes de materials i de mà d'obra en ús normal.
La garantia no cobreix:
- Damage caused by improper assembly or installation.
- Damage resulting from misuse, abuse, neglect, or accidents.
- Normal wear and tear, including nets and cosmetic damage.
- Damage due to extreme weather conditions or natural disasters.
- Modificacions o reparacions no autoritzades.
For warranty claims, missing parts, or technical support, please contact Soozier customer service through the retailer where the product was purchased or visit the official Soozier website for contact information. Please have your model number (CAA61-0320231) and proof of purchase ready.
For more information about Soozier products, visit the Soozier Store on Amazon.
