1. Introducció
This manual provides detailed instructions for the setup, operation, and maintenance of your NPET Automatic PET Feeder, model AF020-BK. Please read this manual thoroughly before using the device to ensure proper function and longevity.

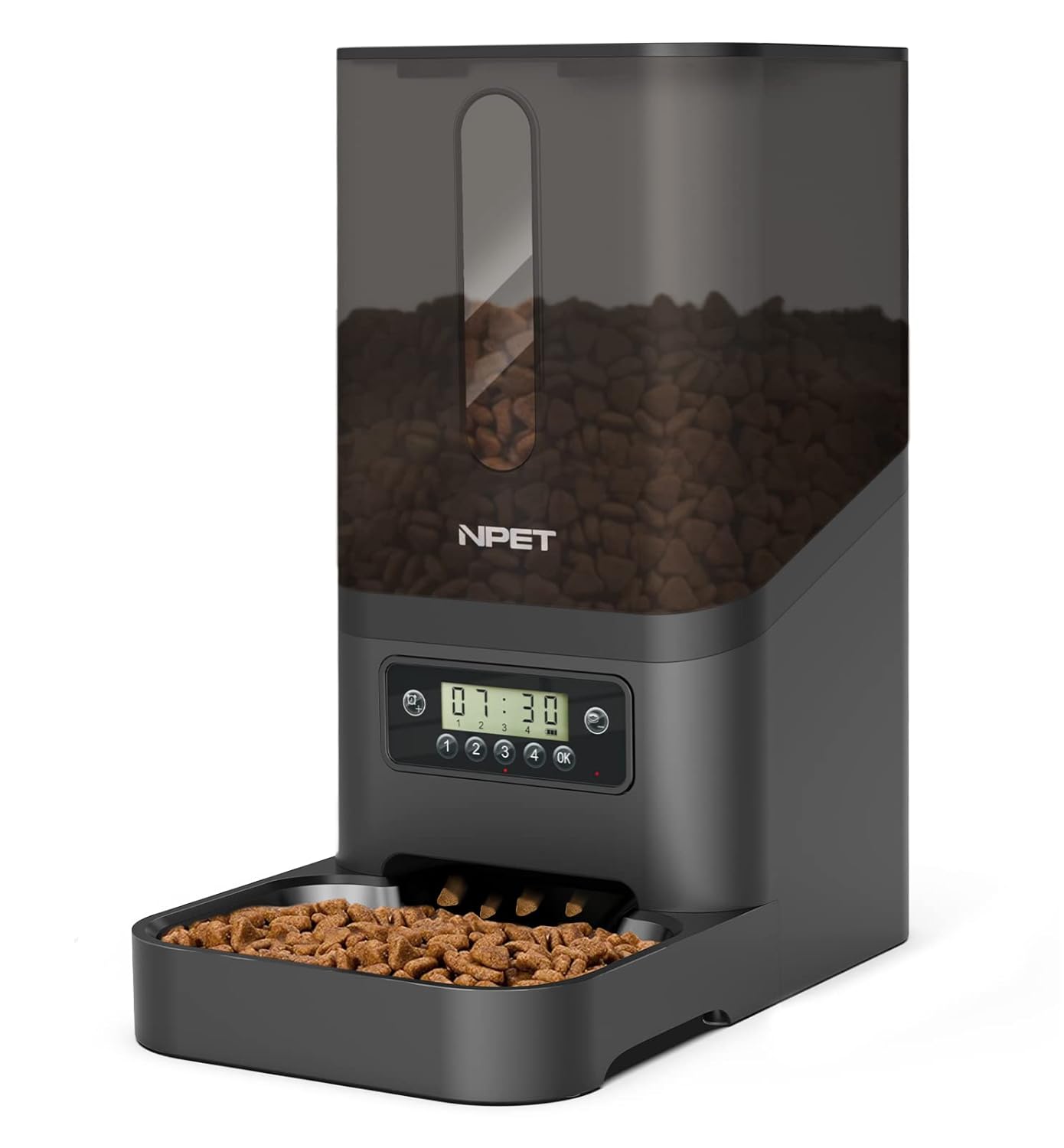

Imatge 1.1: Frontal view of the NPET Automatic PET Feeder AF020-BK, displaying the food reservoir filled with kibble and the control panel.
2. Producte acabatview
The NPET Automatic PET Feeder AF020-BK is designed to provide scheduled meals for your pets. It features a programmable timer and an anti-clog design to ensure consistent food delivery.
2.1 Components
- Main Feeder Unit (with food reservoir and control panel)
- Safata de menjar
- Power Adapter (USB cable included, adapter not always included)
- Manual d'usuari
2.2 Característiques clau
- Temporitzador programable: Schedule up to 4 meals per day.
- Porcions ajustables: Dispense up to 39 portions per meal.
- Disseny anti-obstrucció: Mechanism to prevent food blockages.
- Tapa segura: Press-lock lid to maintain food freshness and prevent spills.
- Doble font d'alimentació: Operates via power adapter or backup batteries (not included).
Imatge 2.1: Interna view illustrating the anti-clog design, which helps ensure smooth food dispensing.
Image 2.2: Close-up of the press-lock lid, designed to secure the food reservoir and maintain food freshness.
3. Configuració
- Desembalar: Traieu amb cura tots els components de l'embalatge.
- Muntar: Place the food tray securely at the base of the main feeder unit.
- Font d'alimentació:
- Connect the USB power cable to the feeder and plug it into a suitable power adapter (not always included) and wall outlet.
- For backup power, insert 3 D-size batteries (not included) into the battery compartment at the bottom of the unit. This ensures operation during power outages.
- Fill Food Reservoir: Open the top lid and fill the reservoir with dry pet food. Ensure the lid is securely closed after filling to maintain freshness.
4. Instruccions de funcionament
The control panel allows for precise scheduling of meal times and portion sizes.
Imatge 4.1: Detallada view of the control panel, indicating buttons for time setting, meal setting, and meal programming (1st, 2nd, 3rd, 4th meals).
4.1 Configuració de l'hora actual
- Manteniu premut el botó Configuració de l'hora button (usually represented by a clock icon) until the hour display flashes.
- Utilitza el Amunt/Avall buttons (often integrated with other buttons or separate) to adjust the hour.
- Premeu el botó Configuració de l'hora button again to move to the minute display, then adjust using the Amunt/Avall botons.
- Premeu el botó OK button to confirm and save the current time.
4.2 Programming Meal Times and Portions
The feeder supports up to 4 meals per day, with up to 39 portions per meal.
- Premeu el botó Configuració dels àpats button (often represented by a food bowl icon) to enter meal programming mode. The display will show "1" for the first meal.
- Hora de l'àpat: Utilitza el Amunt/Avall buttons to set the desired hour for the first meal. Press Configuració dels àpats again to set the minutes.
- Estableix la mida de la porció: After setting the time, the portion display will flash. Use the Amunt/Avall buttons to select the number of portions (1-39). One portion is approximately 10 grams of dry food.
- Premeu el botó OK button to confirm the settings for the first meal.
- Repeat steps 1-4 for the 2nd, 3rd, and 4th meals as needed. If a meal is not required, set its portion size to "0".
- After programming all desired meals, press OK per sortir del mode de programació.
Image 4.2: The feeder in operation, demonstrating its ability to provide scheduled meals for pets, supporting a consistent feeding routine.
Image 4.3: The automatic feeder provides convenience for pet owners, ensuring pets are fed on time even when owners are occupied or away for short periods.
5. Manteniment
Regular cleaning ensures the hygiene and proper functioning of your pet feeder.
- Cleaning the Food Tray: The food tray can be detached and washed with mild soap and water. Ensure it is completely dry before reattaching.
- Cleaning the Food Reservoir: Wipe the inside of the food reservoir with a dry or slightly damp tela. No submergiu la unitat principal a l'aigua.
- Atenció general: Keep the feeder indoors and in a dry place. Avoid direct sunlight or high humidity.
- Tipus d'aliment: Use only dry pet food. Do not use wet food, canned food, or treats that may clog the dispenser.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El dispensador no dispensa menjar. |
|
|
| Display is off or not responding. |
|
|
| Portion size seems too small. |
|
|
7. Especificacions
| Model | AF020-BK |
| Material | Acrilonitril butadiè estirè (ABS) |
| Capacitat | 6 litres |
| Espècie objectiu | Gat gos |
| Mode d'operació | Automàtic |
| Característica especial | Temporitzador |
| Dimensions del producte | 86.3L x 48.3W x 10.2H centímetres |
| Pes de l'article | 10 grams (Note: This weight may be a data entry error; refer to product packaging for accurate weight.) |
| Font d'alimentació | USB Power Adapter (main), 3 x D-size Batteries (backup, not included) |
8. Garantia i Suport
Your NPET Automatic PET Feeder AF020-BK comes with a 1 anys de garantia des de la data de compra.
For warranty claims, technical support, or any inquiries regarding your product, please contact NPET customer service through the retailer's support channels or visit the official NPET weblloc per obtenir informació de contacte.
Si us plau, conserveu el comprovant de compra per validar la garantia.
