1. Producte acabatview

The Xigmatek LUX S Arctic (Model EN48298) is a mid-tower PC case designed for computer enthusiasts and gamers. It features a distinctive triangular mesh front panel for optimal airflow and comes equipped with four 120mm X24A A-RGB fans to provide efficient cooling and customizable lighting. The case supports Micro ATX motherboards and is constructed with durable materials, including tempered glass for a clear view de components interns.

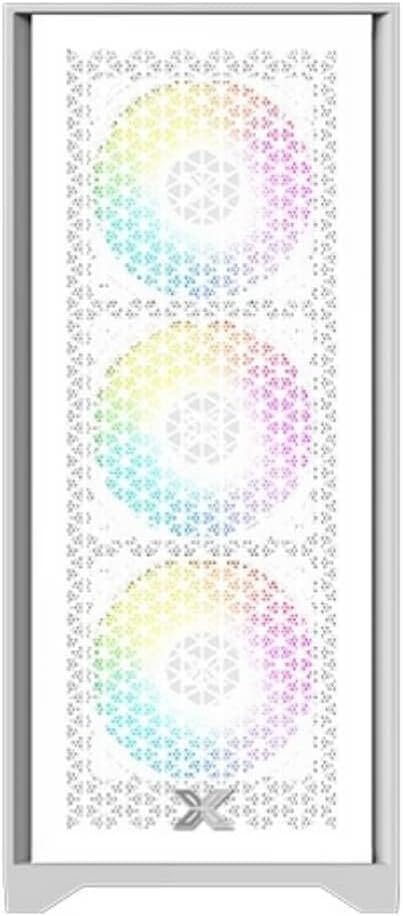

Figura 1.1: Davant view of the Xigmatek LUX S Arctic PC case, showcasing the triangular mesh design and the pre-installed A-RGB fans.

2. Contingut del paquet

Before proceeding with installation, please ensure all components listed below are present in your package. If any items are missing or damaged, contact your retailer or Xigmatek support.

• Xigmatek LUX S Arctic Mid-Tower PC Case
• 4 x 120mm X24A A-RGB Fans (pre-installed)
• Accessory box (screws, cable ties, standoffs, user manual)

3. Configuració i instal·lació

Follow these steps to install your computer components into the Xigmatek LUX S Arctic PC case. Ensure your system is powered off and unplugged before beginning any installation.

3.1. Preparació del cas

1. Col·loqueu la caixa sobre una superfície plana i estable.
2. Carefully remove the tempered glass side panel by unscrewing the thumb screws at the rear of the case and gently pulling the panel away.
3. Remove the opposite side panel (metal) in a similar manner to access the cable management area.

Figura 3.1: Interior view of the PC case, illustrating the spacious layout for component installation.

3.2. Instal·lació de la placa base

1. Install the I/O shield that came with your motherboard into the designated opening at the rear of the case.
2. Align your Micro ATX motherboard with the pre-installed standoffs. Ensure all screw holes on the motherboard match the standoffs.
3. Secure the motherboard using the provided screws from the accessory box. Do not overtighten.

3.3. Instal·lació de la font d'alimentació (PSU)

1. Localitzeu la zona de muntatge de la font d'alimentació a la part inferior posterior de la carcassa.
2. Slide your PSU into the bay from the rear, ensuring the fan faces the bottom (if the case has a filtered intake) or upwards.
3. Secure the PSU with screws from the outside rear of the case.

3.4. Instal·lació de la unitat d'emmagatzematge

The case supports various storage configurations. Refer to the accessory box for specific mounting hardware.

• SSD de 2.5 polzades: Mount SSDs to the designated brackets behind the motherboard tray.
• Discs durs de 3.5 polzades: Install HDDs into the drive cage located beneath the PSU shroud.

Figura 3.2: Interior posterior view, highlighting cable management cutouts and storage drive mounting locations.

3.5. Expansion Card Installation (GPU, etc.)

1. Traieu les cobertes de les ranures PCIe necessàries de la part posterior de la carcassa.
2. Insert your expansion card (e.g., graphics card) into the corresponding PCIe slot on your motherboard until it clicks into place.
3. Secure the card with a screw to the case chassis.

3.6. Cable Management and Connections

Connect all necessary cables from the PSU to your motherboard and components. Utilize the cable routing cutouts and tie-down points behind the motherboard tray for a clean build and improved airflow.

• Connect front panel headers (Power SW, Reset SW, HDD LED, Power LED) to the motherboard.
• Connect USB 2.0 and USB 3.0 headers to the motherboard.
• Connect audio header to the motherboard.
• Connect the pre-installed A-RGB fans to your motherboard's A-RGB header or a compatible controller. Ensure power is supplied to the fan hub/controller if applicable.

4. Instruccions de funcionament

Un cop instal·lats tots els components i connectats els cables, podeu engegar el sistema.

1. Replace both side panels and secure them with their respective screws.
2. Connecteu el monitor, el teclat, el ratolí i el cable d'alimentació a la part posterior de l'ordinador.
3. Flip the power switch on your PSU to the 'ON' position.
4. Press the power button on the front panel of the case.
5. The pre-installed A-RGB fans will illuminate. You can control their lighting effects via your motherboard's software (if connected to an A-RGB header) or a dedicated controller (if included with the fans or purchased separately).

5. Manteniment

Un manteniment regular ajuda a garantir un rendiment òptim i una llarga vida útil dels components del teu PC.

• Filtres de pols: The Xigmatek LUX S Arctic case likely includes removable dust filters (e.g., top, bottom, front). Clean these filters every 1-3 months, depending on your environment, by gently brushing or washing them with water and allowing them to dry completely before reinstallation.
• Neteja interior: Periodically (every 6-12 months), open the case and use compressed air to remove dust buildup from fans, heatsinks, and other components. Hold fan blades gently to prevent them from spinning too fast during cleaning.
• Neteja exterior: Netegeu les superfícies exteriors amb un damp cloth. Avoid harsh chemicals that may damage the finish or tempered glass.

6. Solució De Problemes

If you encounter issues with your PC build, refer to these common troubleshooting steps.

• El sistema no s'encén:
  • Assegureu-vos que l'interruptor de la font d'alimentació estigui a la posició "ON".
  • Check all power cables (24-pin ATX, 8-pin CPU, GPU power) are securely connected.
  • Verify front panel power switch header is correctly connected to the motherboard.
• Els ventiladors no giren / El RGB no s'il·lumina:
  • Check fan power connections to the motherboard or fan hub.
  • Ensure A-RGB cables are correctly connected to the motherboard's A-RGB header or controller.
  • Verify that any fan hub or controller is receiving power.
• Sense sortida de pantalla:
  • Ensure your monitor cable is connected to the graphics card (not the motherboard's integrated graphics ports, unless you are using integrated graphics).
  • Torneu a col·locar la targeta gràfica a la ranura PCIe.
  • Comproveu les connexions d'alimentació de la targeta gràfica.

For more complex issues, consult your motherboard manual or component manufacturer's support resources.

7. Especificacions

8. Garantia i Suport

For information regarding warranty coverage, technical support, or replacement parts, please refer to the warranty card included with your product or visit the official Xigmatek weblloc.

Visit Xigmatek Official Weblloc
