1. Introducció
Thank you for choosing the Hssio Portable Bladeless Neck Fan M5. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.
Image 1.1: The Hssio Portable Bladeless Neck Fan M5, featuring a sleek blue design.
2. Contingut del paquet
Verifiqueu que tots els elements que s'enumeren a continuació siguin presents al vostre paquet:
- 1 x Hssio Portable Bladeless Neck Fan M5
- 1 x cable de càrrega USB-C
- 1 x Manual d'usuari (aquest document)
Image 2.1: Contents included in the Hssio Neck Fan package.
3. Producte acabatview
The Hssio M5 Neck Fan is designed for personal cooling with a hands-free, wearable design. It features bladeless technology for safety and a 360° surround airflow system.
Característiques principals:
- Disseny sense fulles: Ensures safe use for all ages, preventing hair entanglement.
- 360° Surround Airflow: Provides comprehensive cooling around the neck and face.
- Pantalla digital LED: Shows battery level and fan speed settings.
- Ajust ajustable: The fan's structure is designed to be flexible for a comfortable fit.
Image 3.1: The Hssio Neck Fan M5 worn around the neck, highlighting its discreet and modern appearance.

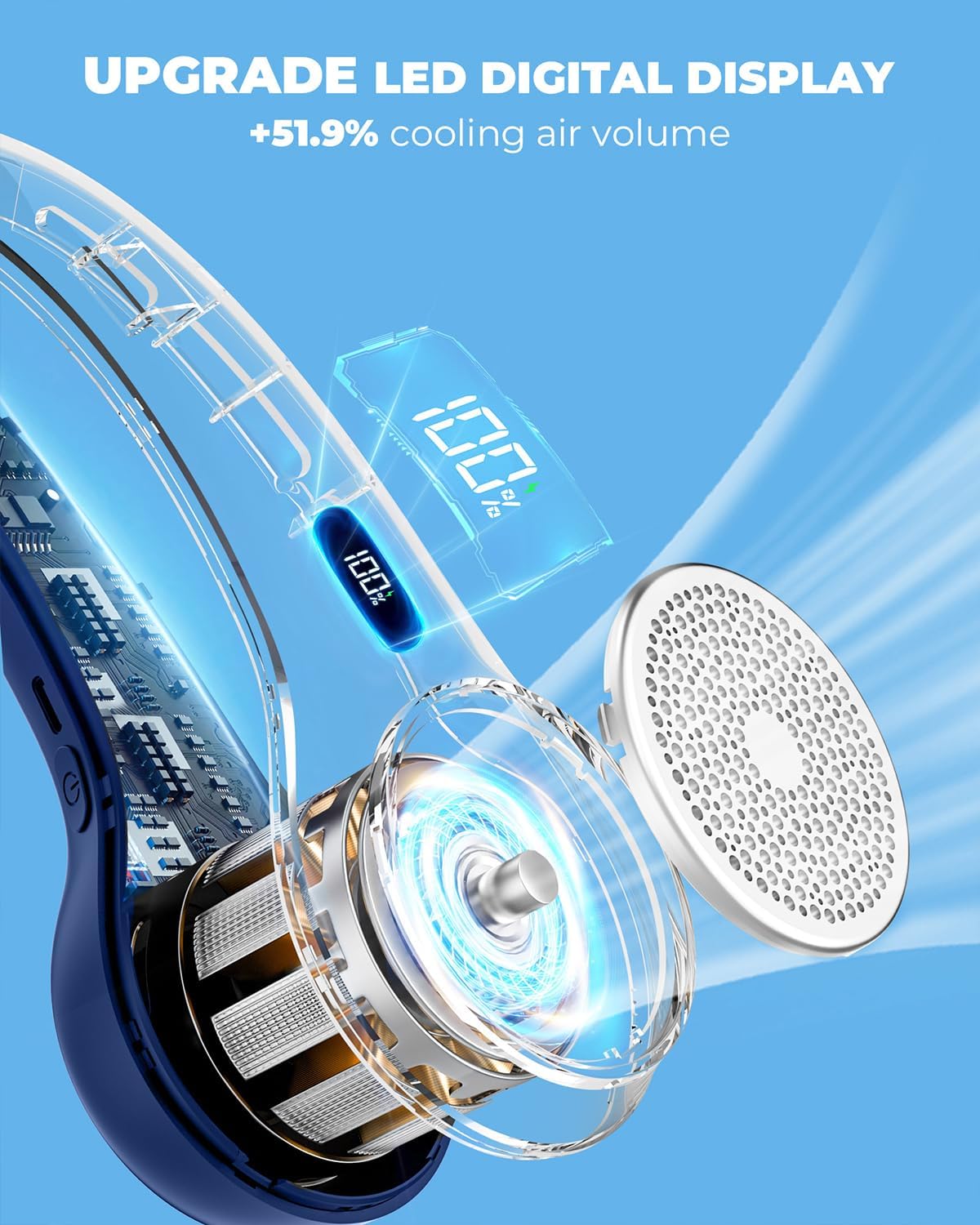

Imatge 3.2: Detallada view of the fan's internal components and LED digital display.
Image 3.3: Illustration of the 360° airflow and adjustable nature of the fan.
4. Configuració
Càrrega del dispositiu:
- Locate the USB-C charging port on the side of the neck fan.
- Connect the provided USB-C charging cable to the fan and plug the other end into a compatible USB power adapter (not included) or a computer USB port.
- The LED digital display will show the charging status. A full charge typically takes 3-4 hours.
- Un cop estigui completament carregat, desconnecteu el cable de càrrega.
The fan is equipped with a 4000mAh high-capacity battery, providing 3 to 12 hours of operation depending on the speed setting.
Image 4.1: Charging port and battery capacity details.
5. Instruccions de funcionament
The Hssio M5 Neck Fan features a simple push-button control for power and speed adjustment.
Encès/apagat i ajust de velocitat:
- Encès: Premeu el botó d'engegada una vegada per engegar el ventilador a la velocitat 1 (vent suau).
- Ajustar velocitat: Subsequent presses of the power button will cycle through the speeds:
- Velocitat 1: Soft Wind (Ideal for quiet rest)
- Velocitat 2: Comfortable Wind (Suitable for home working)
- Velocitat 3: Strong Wind (Recommended for daily exercise or intense cooling)
- Apagar: After Speed 3, pressing the button again will turn the fan off.
The LED digital display will indicate the current fan speed and remaining battery percentage.
Image 5.1: Visual representation of the three fan speed settings and their recommended uses.
6. Manteniment
Proper maintenance ensures the longevity and optimal performance of your neck fan.
Neteja:
- Ensure the fan is powered off and disconnected from any power source before cleaning.
- Wipe the exterior of the fan with a soft, dry, or slightly damp tela. No utilitzeu netejadors abrasius ni dissolvents.
- No submergiu el ventilador en aigua o cap altre líquid.
- Use a soft brush or compressed air to gently clean any dust from the air inlets and outlets.
Emmagatzematge:
- Guardeu el ventilador en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Si l'emmagatzemeu durant un període prolongat, carregueu la bateria aproximadament al 50% cada tres mesos per mantenir-la en bon estat.
7. Solució De Problemes
If you encounter any issues with your Hssio M5 Neck Fan, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no s'encén. | La bateria està esgotada. | Carregueu el ventilador amb el cable USB-C proporcionat. |
| Flux d'aire baix. | La velocitat del ventilador és massa baixa. | Press the power button to increase the fan speed. |
| Flux d'aire baix. | Air inlets/outlets are obstructed. | Ensure no clothing, hair, or debris is blocking the air vents. Clean if necessary. |
| El ventilador fa un soroll estrany. | Debris inside the fan. | Power off the fan and gently try to remove any visible debris. If the noise persists, contact customer support. |
| La durada de la bateria és més curta del que s’esperava. | Operating at high speed continuously. | Lower the fan speed to extend battery life. Ensure the fan is fully charged before use. |
If the problem persists after attempting these solutions, please contact Hssio customer support.
8. Especificacions
| Característica | Detall |
|---|---|
| Model | M5 |
| Marca | Hssio |
| Color | Blau |
| Disseny | Ventilador de coll sense fulles portàtil |
| Font d'alimentació | Funciona amb bateria (sense fils) |
| Capacitat de la bateria | Polímer de liti de 4000 mAh |
| Temps d'execució | 3-12 hores (segons la velocitat) |
| Temps de càrrega | Aproximadament 3-4 hores |
| Port de càrrega | USB-C |
| Flux d'aire | 360° Surround Cooling Air, 70% increased air volume |
| Velocitats del ventilador | 3 (Soft, Comfortable, Strong) |
| Nivell de soroll | 25 dB |
| Mètode de control | Botó tàctil |
| Dimensions del producte | 6.1 cm de profunditat x 21.6 cm d'amplada x 14 cm d'alçada |
| Pes de l'article | 200 grams (7.1 unces) |
| Voltage | 5 Volts |
| Wattage | 20 watts |
| UPC | 790757389601 |
Image 8.1: Key specifications of the Hssio Neck Fan M5.
9. Informació de seguretat
Per garantir un funcionament segur i evitar danys, observeu les següents precaucions de seguretat:
- Do not attempt to disassemble, repair, or modify the device. This will void the warranty and may cause injury.
- Keep the fan away from water, moisture, and high humidity.
- Avoid exposing the fan to direct sunlight or high temperatures for extended periods.
- Do not insert fingers or foreign objects into the air outlets or inlets.
- Feu servir només el cable de càrrega proporcionat o un cable USB-C certificat per carregar.
- Mantenir fora de l'abast dels nens petits.
- If the fan exhibits abnormal behavior, emits smoke, or has a strange odor, immediately power it off and disconnect it from the power source. Contact customer support.
10. Garantia i Suport
Hssio provides a limited warranty for this product. For detailed warranty information, please refer to the warranty card included with your purchase or visit the official Hssio weblloc.
For technical support, troubleshooting assistance, or any questions regarding your Hssio Portable Bladeless Neck Fan M5, please contact our customer service team through the retailer where you purchased the product or via the contact information provided on the Hssio official weblloc.
Please have your model number (M5) and purchase details ready when contacting support.
