NATERIAL Phoenix Alpha Charcoal Barbecue Instruction Manual

1. Introducció

Thank you for choosing the NATERIAL Phoenix Alpha Charcoal Barbecue. This manual provides essential information for the safe assembly, operation, and maintenance of your barbecue. Please read these instructions carefully before first use and retain them for future reference.

2. Informació important de seguretat

• Always use the barbecue outdoors in a well-ventilated area.
• Keep children and pets away from the hot barbecue.
• Do not use gasoline, alcohol, or other highly volatile fluids to light or relight charcoal. Use only firelighters complying with EN 1860-3.
• Never move the barbecue when it is hot or in use.
• Ensure the barbecue is placed on a stable, level, non-combustible surface.
• Deixeu que la barbacoa es refredi completament abans de netejar-la o guardar-la.
• Utilitzeu guants de protecció quan manipuleu components calents.
• Only use charcoal as fuel; do not use wood.

3. Producte acabatview

The NATERIAL Phoenix Alpha is a spherical charcoal barbecue designed for outdoor cooking. It features an enamelled steel bowl and lid for durability, adjustable ventilation, and a convenient ash catcher for easy cleaning. Its wheeled design allows for simple repositioning.

Image: The NATERIAL Phoenix Alpha Charcoal Barbecue, a black spherical grill with wheels and a handle.

3.1 Característiques clau

Image: A diagram illustrating the key features of the Phoenix Alpha barbecue, including its components and functionalities.

• Easy to Start: Equipped with a charcoal grate for optimal air circulation, facilitating quick ignition.
• Easy Cooking: The lid features adjustable ventilation to control heat intensity, suitable for grilling or baking.
• Disseny convenient: Includes a storage shelf for charcoal and two wheels with a handle for easy movement and storage.
• Construcció duradora: The bowl and lid are made of enamelled steel, providing resistance to heat and corrosion.
• Fàcil de netejar: Features an ash catcher for simplified cleaning and maintenance.

3.2 Dimensions

Image: A visual representation of the barbecue's dimensions: 98 cm height, 64 cm width (including wheels), and 69 cm depth.

The overall dimensions of the assembled barbecue are approximately 64 cm (width) x 65 cm (depth) x 97 cm (height).

4. Instruccions de muntatge

Assembly is required for this product. Please refer to the detailed assembly guide included in the product packaging for step-by-step instructions and diagrams. Ensure all components are present and undamaged before beginning assembly. It is recommended to have a second person assist with assembly for safety and ease.

1. Unpack all components and verify against the parts list in your physical manual.
2. Assemble the leg structure and attach the wheels.
3. Secure the lower storage shelf to the leg structure.
4. Attach the main barbecue bowl to the assembled stand.
5. Install the charcoal grate and cooking grate.
6. Attach the ash catcher and lid handle.
7. Assegureu-vos que tots els cargols i elements de fixació estiguin ben ajustats abans d'utilitzar-los.

5. Instruccions de funcionament

5.1 Fueling the Barbecue

Place charcoal directly onto the charcoal grate at the bottom of the barbecue bowl. Ensure the charcoal is evenly distributed for consistent heat. Do not overfill.

5.2 Encesa

Use appropriate firelighters to ignite the charcoal. Allow the charcoal to burn until it is covered with a light layer of ash, indicating it is ready for cooking. The design of the charcoal grate promotes air circulation for efficient ignition.

Imatge: Un interior view of the barbecue, showing the cooking grate and the adjustable ventilation system on the lid.

5.3 Cuina

Place food on the cooking grate. The lid can be used to retain heat and smoke, allowing for grilling or baking. Adjust the ventilation on the lid to control the airflow and thus the heat intensity. The lid can be conveniently hung on the side of the barbecue during cooking to keep your hands free.

Image: The NATERIAL Phoenix Alpha barbecue in an outdoor setting, with food cooking on the grate and the lid conveniently hung on the side.

Image: The NATERIAL Phoenix Alpha barbecue with its lid open, revealing various foods cooking on the grill grate.

6. Manteniment i Neteja

6.1 Cleaning the Grill

Allow the barbecue to cool completely before cleaning. The cooking grate can be cleaned with a special barbecue brush to remove food residue. The enamelled steel bowl and lid should be cleaned with warm soapy water and a non-abrasive sponge or cloth. The integrated ash catcher simplifies the disposal of ashes.

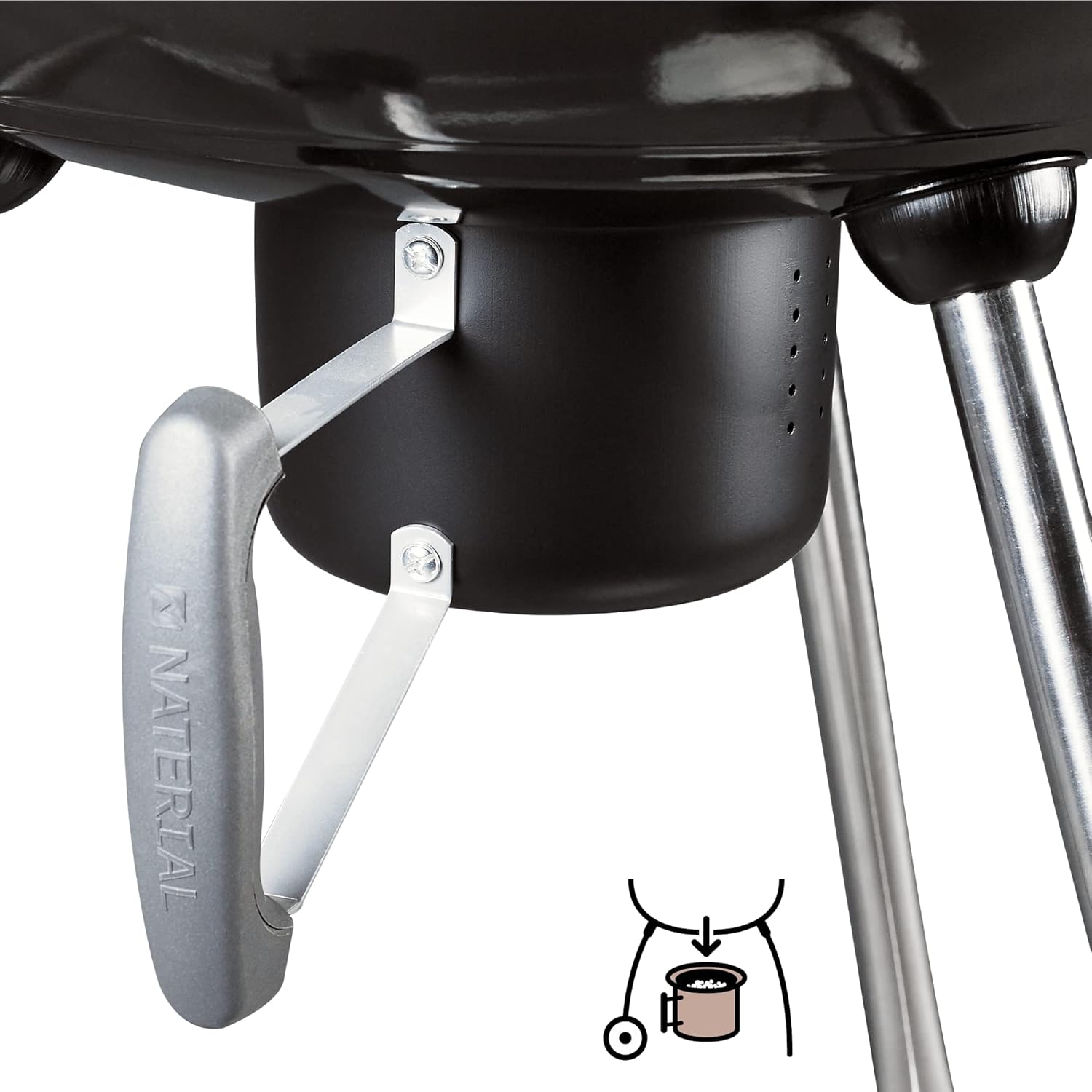

Imatge: Un primer pla view of the ash catcher mechanism located beneath the barbecue bowl, designed for easy ash collection and disposal.

6.2 Emmagatzematge

To prolong the lifespan of your NATERIAL Phoenix Alpha barbecue, especially when stored outdoors, it is highly recommended to use a protective cover. Store the barbecue in a dry, sheltered location when not in use for extended periods.

7. Solució De Problemes

• Difficulty igniting charcoal: Ensure the charcoal grate is clear and the bottom vents are open to allow sufficient airflow. Use proper firelighters.
• Distribució desigual de la calor: Spread charcoal evenly across the charcoal grate. Adjust lid ventilation as needed.
• Excés de fum: Ensure proper airflow by adjusting vents. Avoid using wood or excessive amounts of lighter fluid.
• Barbecue unstable: Check that all leg connections are secure and the barbecue is placed on a flat, stable surface.

8. Especificacions tècniques

9. Garantia i Suport

For warranty information, please refer to the documentation provided with your purchase. In case of issues or for technical support, please contact NATERIAL customer service through the retailer where the product was purchased. Keep your proof of purchase for warranty claims.
