Phomemo M120 Label Maker Instruction Manual

1. Introducció

The Phomemo M120 Label Maker is a compact and versatile Bluetooth thermal label printer designed for various labeling needs, from small business organization to personal use. This manual provides detailed instructions on how to set up, operate, maintain, and troubleshoot your M120 label maker to ensure optimal performance.

Característiques principals:

• Lightweight & Ultra-Portable: Weighing just 200g, the M120 is designed for on-the-go labeling, fitting easily into pockets or backpacks.
• Versatile & Easy to Use: Supports 20-50mm label sizes with an adjustable paper slot, suitable for barcodes, QR codes, addresses, and various organizational labels.
• Smart App with AI Recognition: The "Print Master" App offers voice and image (OCR) recognition, one-tap printing, and a vast library of symbols, templates, and fonts.
• Compatibilitat perfecta: Connects wirelessly via Bluetooth to iOS and Android devices, and via USB to PC (Windows, Mac OS, Chrome OS, Linux) using the "Labelife" software.
• Crisp, Ink-Free Printing: Utilizes thermal printing technology for clear, smudge-free results without the need for ink or toner.

2. Què hi ha a la caixa

Upon unboxing your Phomemo M120 Label Maker, please verify that all the following components are included:

• Etiquetadora Phomemo M120
• Cable de càrrega USB
• 3 Rolls Thermal Labels (2 rolls of 40x30mm, 1 roll of 50x30mm)
• Manual d'usuari (aquest document)

The Phomemo M120 Label Maker, a compact thermal printer, shown with various printed labels and rolls of thermal label paper.

This image illustrates the Phomemo M120 Label Maker alongside the three included thermal label rolls: two 40x30mm rolls and one 50x30mm roll, highlighting the different label dimensions.

3. Configuració

3.1 Càrrega d'etiquetes

1. Open the top cover of the label maker by gently lifting it.
2. Attach the label roll to the holder, ensuring the labels face upwards and feed smoothly into the printer slot.
3. Close the machine cover, making sure it clicks securely into place.

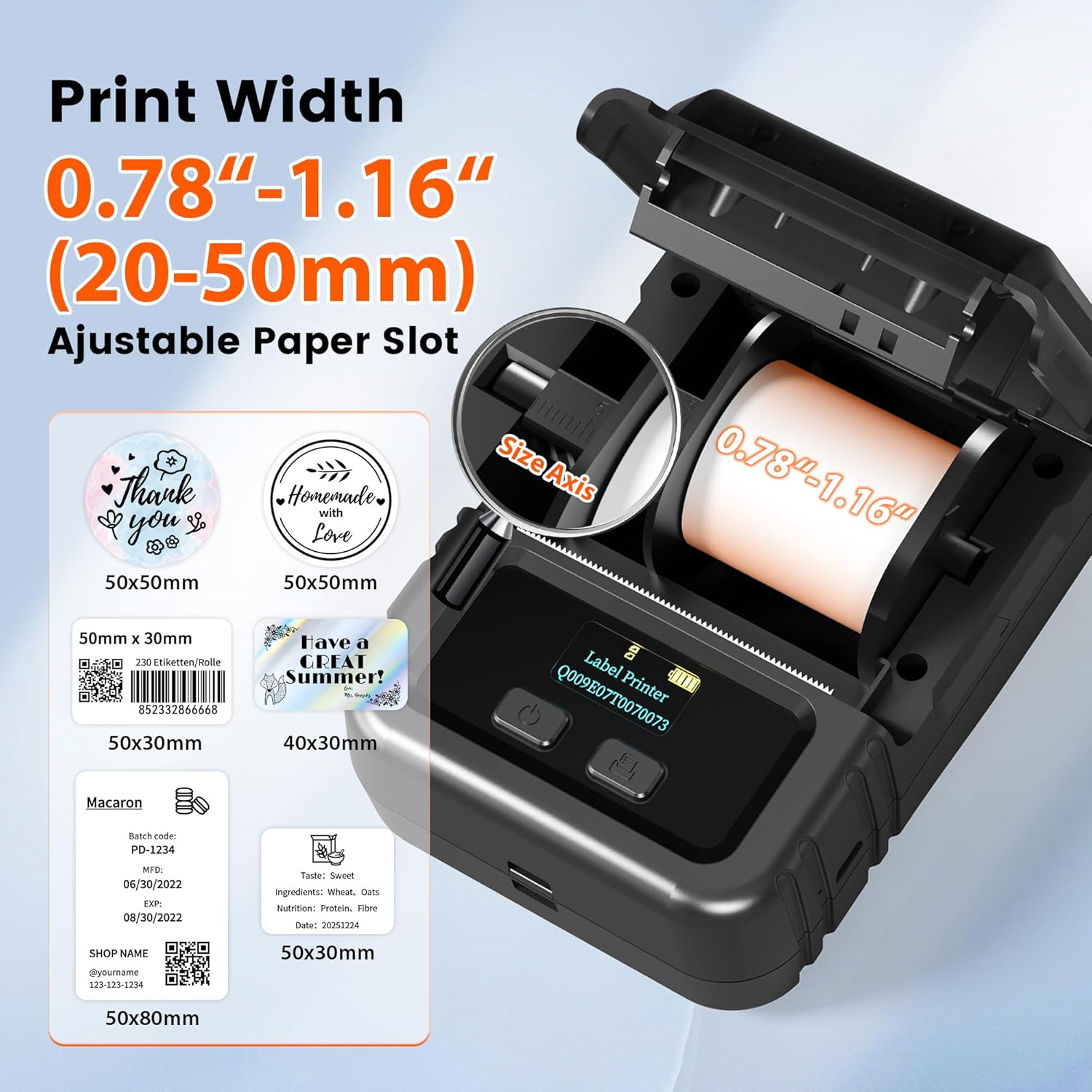

Un obert view of the Phomemo M120 Label Maker's paper compartment, demonstrating the adjustable paper slot that accommodates label widths from 20mm to 50mm, along with examples of various label sizes and designs.

3.2 Installing the App (for Mobile Devices)

The "Print Master" app is required for mobile use.

1. Download "Print Master" from the App Store (iOS) or Google Play Store (Android).
2. Assegureu-vos que el Bluetooth del telèfon estigui activat.

3.3 Connexió al dispositiu

For Mobile (Bluetooth Connection):

1. Open the "Print Master" app.
2. In the app, find your printer (e.g., "M120") and tap to connect. The app will guide you through the pairing process.
3. Once connected, you can edit your label and start printing.

For PC (USB Connection):

1. Download the "Labelife" software and drivers from the official Phomemo weblloc.
2. Connect the M120 Label Maker to your computer using the provided USB data cable.
3. Open the "Labelife" software. You can then select a document or images for printing, or edit your label directly within the software.

This image displays the Phomemo M120 Label Maker's versatile connectivity, showing it connected via USB to a laptop and wirelessly via Bluetooth to a smartphone, indicating compatibility with Mac OS, Windows, Chrome OS, Linux, iOS, Android, and iPad devices.

4. Instruccions de funcionament

4.1 Impressió bàsica

Once your M120 is connected to your device and labels are loaded, you can begin printing:

1. Design your label using the "Print Master" app or "Labelife" software.
2. Preview the label to ensure it meets your requirements.
3. Adjust print density and speed settings if necessary for optimal output.
4. Initiate the print command from the app or software.

4.2 Using the Print Master App (Mobile)

The "Print Master" app offers extensive features for label creation:

• Reconeixement d'IA: Utilize voice and image (OCR) recognition to effortlessly convert text into printable labels.
• Templates & Symbols: Access a library of over 7000 symbols and 200+ templates for quick and creative label designs.
• Fonts & Languages: Choose from 660+ fonts across more than 20 languages.
• Dissenys personalitzats: Create custom designs for barcodes, QR codes, addresses, and more.

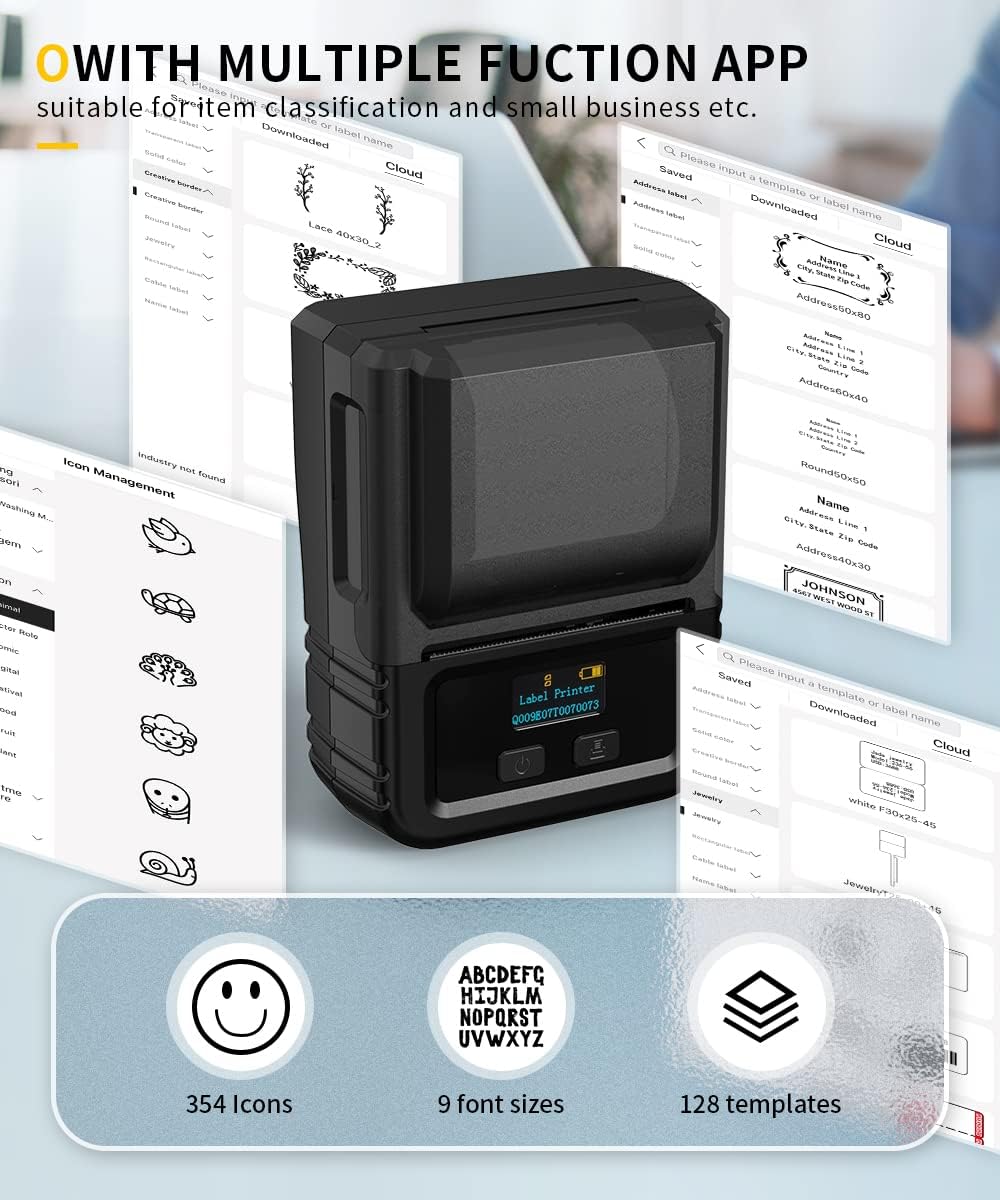

Screenshots of the Phomemo 'Print Master' app interface, showcasing its multiple functions including icon selection, font sizes, and template options for diverse labeling needs.

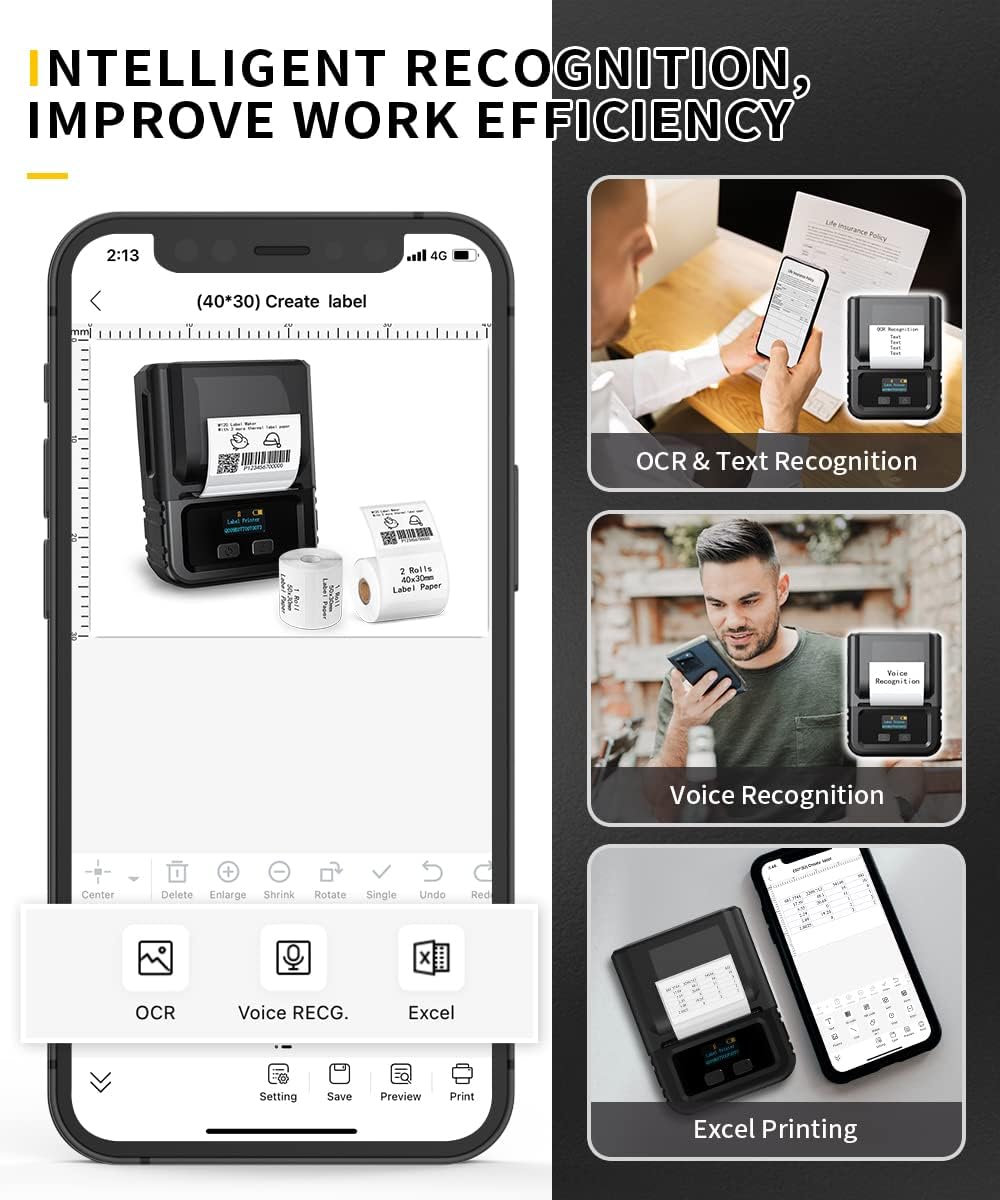

The 'Print Master' app's intelligent recognition features are highlighted, including Optical Character Recognition (OCR) for text conversion, voice recognition for input, and direct printing from Excel files, enhancing work efficiency.

4.3 Tipus d'etiquetes i aplicacions compatibles

The M120 supports various label types and is ideal for:

• Barcode labels (e.g., 644788655756, AQ123456789, 452357888888, 080480015305)
• QR code labels
• Address labels
• Jar labels
• Food labels
• Emmagatzematge tags
• Holiday stickers
• Etiquetes de productes
• Gift labels

This image emphasizes the Phomemo M120 Label Maker's lightweight and compact design, illustrating its portability by showing it easily fitting into a pocket and being held comfortably in hand. Dimensions are noted as 3.38 x 4.37 x 2.32 inches.

5. Manteniment

5.1 Neteja del capçal d'impressió

Per mantenir la qualitat d'impressió, netegeu regularment el capçal d'impressió:

• Apagueu l'etiquetadora i desconnecteu-la de qualsevol font d'alimentació.
• Obriu la coberta superior per accedir al capçal d'impressió.
• Netegeu suaument el capçal d'impressió amb un bastonet de cotóampamb alcohol isopropílic.
• Allow the print head to dry completely before closing the cover and resuming use.

5.2 Cura de la bateria

The M120 features a 1200mAh battery. To prolong battery life:

• Carregueu completament el dispositiu abans del primer ús.
• Eviteu esgotar completament la bateria amb freqüència.
• Guardeu el dispositiu en un lloc fresc i sec quan no el feu servir durant períodes prolongats.
• The auto-sleep mode activates after 5 minutes of inactivity to conserve power.

5.3 Label Compatibility

For best performance and to prevent damage, use only genuine Phomemo thermal labels. The M120 supports label widths from 20mm to 50mm.

6. Solució De Problemes

If you encounter issues with your Phomemo M120 Label Maker, refer to the common problems and solutions below:

For further assistance, please refer to the "Print Master" app's help section or the "Labelife" software's user guide.

7. Especificacions

8. Informació de la garantia

The Phomemo M120 Label Maker comes with a limited warranty. For specific details regarding the warranty period, coverage, and terms and conditions, please refer to the warranty card included in your product packaging or visit the official Phomemo weblloc web. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.

9. Suport

For technical support, customer service, or additional resources, please utilize the following options:

• Phomemo Official Weblloc: Visita el lloc web oficial de Phomemo website for FAQs, driver downloads, software updates, and contact information.
• "Print Master" App: The app often includes a help section or FAQs that can assist with common queries.
• "Labelife" Software: The PC software may offer built-in help or links to support resources.
• Atenció al client: Contact Phomemo customer support directly through their weblloc web per a assistència personalitzada.
