1. Introducció
Thank you for choosing the Vandlion Digital Voice Recorder. This compact and powerful device is designed for high-quality audio recording, perfect for lectures, meetings, interviews, and personal notes. With its user-friendly interface and robust features, capturing clear audio has never been easier. Please read this manual carefully to ensure proper operation and to maximize the device's potential.
2. Producte acabatview
The Vandlion V13 Digital Voice Recorder is a sleek, portable device crafted from a durable zinc alloy. It features a minimalist design with essential controls for ease of use.
Image: The Vandlion Digital Voice Recorder, showcasing el seu disseny compacte i elegant.
Característiques principals:
- Compacte i portàtil: Measuring approximately 0.3 x 1 x 3 inches (0.8 x 2.5 x 7.5 cm) and weighing only 37 grams, it's designed for discreet and convenient use.
- Gran capacitat d'emmagatzematge: Equipped with 32GB of internal memory, capable of storing up to 350 hours of recording files.
- Llarga vida útil de la bateria: Provides 20 to 25 hours of continuous recording on a full 2-hour charge.
- Construcció duradora: Features a stylish zinc alloy casing per a una major durabilitat.
Image: Visual representation of the voice recorder's dimensions (3.3 inches length, 1.0 inch width, 0.4 inch thickness) and the one-key record/save switch.
3. Primers passos
Càrrega del dispositiu:
Before first use, fully charge the voice recorder. Connect the device to a USB power source (e.g., computer USB port, USB wall adapter) using the provided USB cable. A full charge typically takes about 2 hours. The indicator light will show charging status (refer to the device's LED indicator guide in the manual for specific light behaviors).
Encès/apagat:
To power on the device, slide the power switch to the 'ON' position. To power off, slide the switch to 'OFF'.
4. Funcionament bàsic
Enregistrament amb un sol toc:
The Vandlion V13 features a convenient one-touch recording function. Simply slide the recording switch to the 'REC' position to start recording. To save the recording and stop, slide the switch to the 'SAVE' position. During recording, there is no sound or light emitted from the device.
Image: Illustration of the one-touch recording operation, showing a finger sliding the switch to initiate recording.
Voice Activated Recording (V.O.R.):
The voice activation feature allows the recorder to start recording automatically when it detects sound and pause when silent or at low volume. This feature is OFF by default. Refer to the detailed manual for instructions on how to activate and configure voice activation settings. Note: Do not use voice activation for critical occasions where continuous recording is essential.
Playback with Headphones:
To listen to your recordings directly from the device, ensure the recorder is off and saved. Connect the included headphones to the device. You can then play back your recording files. During playback, briefly press the play button to pause. Long-press the previous/next track button to fast forward or rewind.
Image: The voice recorder connected to an earphone control unit and earphones, illustrating the playback setup. Also shows compatibility with Android phones and Windows/Mac computers for file gestió.
5. Funcions avançades
File Gestió:
You can easily play, delete, rename, or transfer recording files by connecting the device to a Windows PC, Mac computer, or Android phone. Simply connect the recorder using the appropriate USB cable or adapter. The device will appear as a removable disk, allowing you to manage your files.

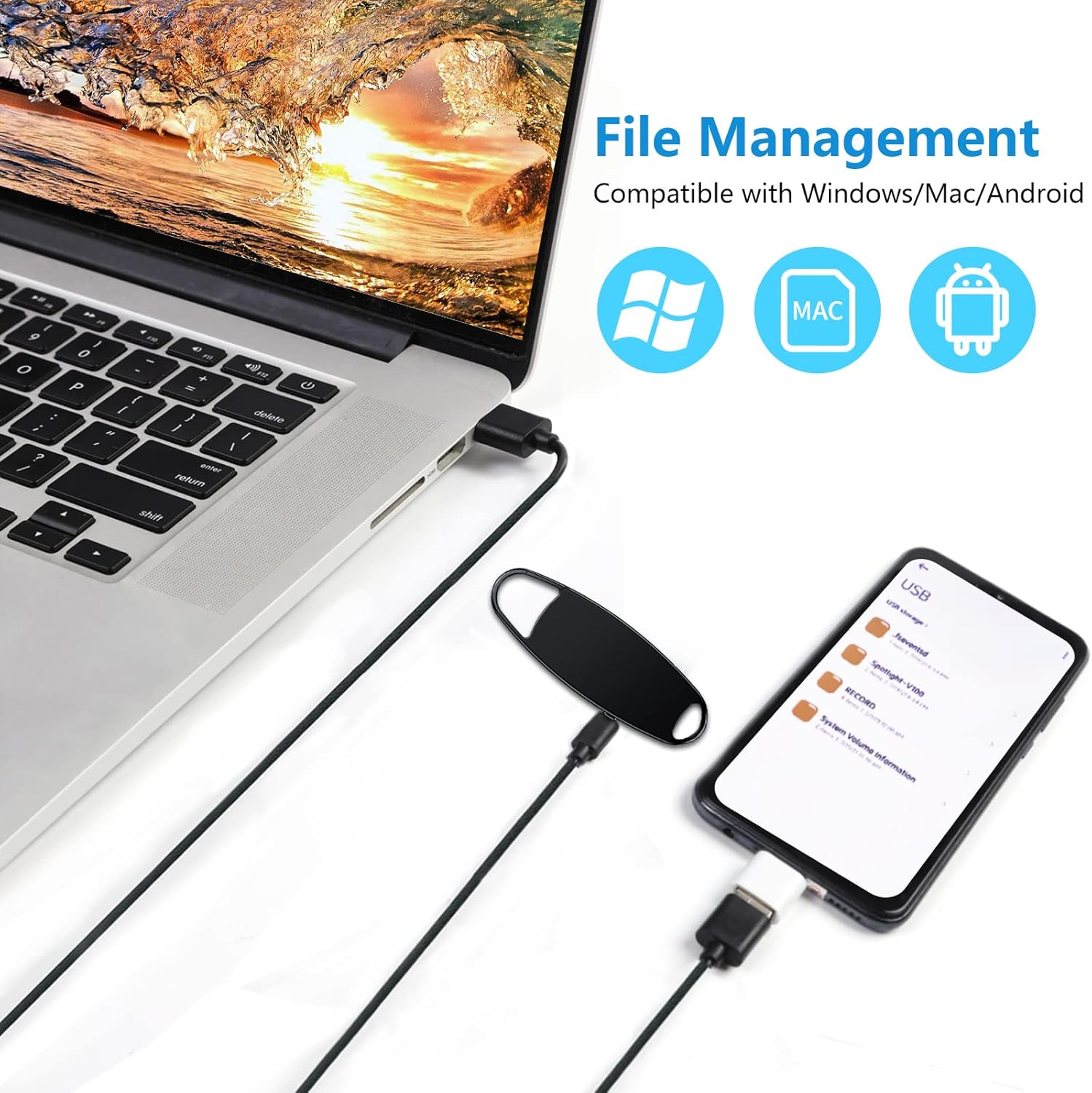

Image: The voice recorder connected to a laptop and an Android phone, demonstrating its compatibility with Windows, Mac, and Android for file gestió.
Timestamp Funció:
Gravació files are automatically named according to the date and time, making it easy to locate specific recordings. This feature helps in organizing and retrieving your audio files eficientment.
Image: A smartphone screen displaying recording files with names indicating year, month, day, and time, demonstrating the timestamp característica.
Automatic Save on Low Battery:
The device is equipped with an automatic save function. If the battery level becomes critically low, the red indicator light will blink for a few seconds, and the current recording will be automatically saved before the device powers off. This prevents loss of important recordings.
Image: An illustration showing the voice recorder connected to a charger, with an icon sequence indicating automatic saving when the battery is low.
6. Manteniment i cura
- Mantingueu el dispositiu sec. Eviteu l'exposició a la humitat o a líquids.
- No exposeu el dispositiu a temperatures extremes (calor o fred).
- Netegeu el dispositiu amb un drap suau i sec. No utilitzeu productes químics agressius ni netejadors abrasius.
- Eviteu deixar caure o sotmetre el dispositiu a forts impactes.
- Guardeu el dispositiu en un entorn net i sense pols quan no l'utilitzeu.
7. Solució De Problemes
Problemes comuns i solucions:
- Dispositiu no reconegut per l'ordinador:
- Ensure the USB cable is securely connected to both the recorder and the computer.
- Proveu un port USB diferent a l'ordinador.
- Reinicieu l'ordinador i proveu de connectar-vos de nou.
- Ensure the device is powered on when connecting to a computer for file transferència.
- Difficulty starting a recording:
- Ensure the recording switch is firmly slid to the 'REC' position.
- Check if the battery is charged. If the battery is low, the device may not initiate recording.
- Verify that there is sufficient storage space available on the device.
- Poor recording quality:
- Assegureu-vos que el micròfon no estigui obstruït.
- Grava en un entorn silenciós per minimitzar el soroll de fons.
- Keep the recorder within an optimal distance from the sound source.
- Cannot hear playback through headphones:
- Ensure headphones are fully plugged into the correct port.
- Check the volume level using the control unit.
- Test with another pair of headphones to rule out faulty headphones.
8. Especificacions
| Característica | Especificació |
|---|---|
| Número de model | V13 |
| Dimensions | 0.8 x 2.5 x 7.5 cm (0.3 x 1 x 3 polzades) |
| Pes | 37 grams |
| Capacitat d'emmagatzematge | 32 GB |
| Tipus de bateria | Lithium-Ion (1 required, included) |
| Durada de la bateria (enregistrament) | Fins a 25 hores |
| Temps de càrrega | Aprox. 2 hores |
| Format d'àudio | WAV |
| Interfície | USB 2.0 |
| Dispositius compatibles | PC, Smartphone (Windows, Mac, Android) |
| Conector d'auriculars | 3.5 mm |
9. Què hi ha a la caixa
Your Vandlion Digital Voice Recorder package includes:
- Vandlion Digital Voice Recorder (Model V13)
- Càrrega USB/Cable de dades
- Earphone Control Unit
- Auriculars
- Adaptador USB-C
- Adaptador micro-USB
- Manual d'usuari
Image: All components included in the Vandlion Digital Voice Recorder package: the recorder, USB adapters, earphone control unit, earphones, USB cable, and the user manual.
10. Garantia i Suport
Vandlion is committed to providing high-quality products and excellent customer service. If you encounter any issues or have questions regarding your digital voice recorder, please do not hesitate to contact our support team. We aim to respond quickly, typically within 24 hours, to assist you with any concerns.
For support, please refer to the contact information provided in the packaging or visit the official Vandlion weblloc.
