TAMIYA 1/14 TANKPOOL24 MP4 TT-01E Instruction Manual

1. Introducció

Gràcies per la compraasing the TAMIYA 1/14 TANKPOOL24 MP4 TT-01E. This model is a highly detailed replica designed for enthusiasts. This manual provides essential information for the assembly, operation, and maintenance of your new model. Please read this manual thoroughly before beginning assembly or operation to ensure safe and correct use.

2. Informació de seguretat

WARNING: To prevent injury or damage, always observe the following safety precautions.

• This product is not a toy. It is intended for users aged 14 months and up, as recommended by the manufacturer. Adult supervision is recommended for younger users.
• Mantingueu les peces petites fora de l'abast dels nens per evitar perills d'asfixia.
• Always operate the model in a safe, open area away from people, pets, and obstacles.
• Do not operate near public roads, water, or in crowded areas.
• Ensure all batteries are charged correctly and installed with the correct polarity.
• Disconnect the battery from the model when not in use to prevent accidental operation.
• Avoid contact with moving parts such as gears and wheels during operation.
• Do not modify the model or its components unless specifically instructed by TAMIYA.
• Guardeu el model en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.

3. Contingut del paquet

Please verify that all components listed below are present in your package. If any parts are missing or damaged, please contact your retailer or TAMIYA customer support.

• TAMIYA 1/14 TANKPOOL24 MP4 TT-01E Chassis Kit
• Pre-painted Body Shell (TANKPOOL24 MP4 design)
• Motor elèctric
• Controlador electrònic de velocitat (ESC)
• Full de calcomanies
• Manual d'instruccions (aquest document)
• Various screws, nuts, and small parts for assembly

Note: Radio control system (transmitter, receiver), servo, battery pack, and charger are sold separately and are required for operation.

4. Muntatge i muntatge

The TAMIYA TT-01E chassis requires assembly. Follow the detailed steps provided in the included assembly guide (separate from this manual) for proper construction. Below are general guidelines for initial setup.

1. Muntatge del xassís: Carefully follow the step-by-step instructions in the dedicated assembly manual to build the TT-01E chassis. Pay close attention to gear mesh, suspension setup, and differential assembly.
2. Motor and ESC Installation: Mount the electric motor to the motor mount. Connect the motor to the Electronic Speed Controller (ESC) according to the ESC's instructions. Secure the ESC to the chassis.
3. Servo and Receiver Installation: Install the steering servo and connect it to the receiver. Mount the receiver securely on the chassis, ensuring antenna placement is optimal.
4. Instal·lació de la bateria: Insert a fully charged battery pack into the battery compartment. Ensure it is secured and connected to the ESC.
5. Body Mounting: Attach the pre-painted TANKPOOL24 MP4 body shell to the chassis using the body posts and clips. Ensure it is securely fastened.
6. Comprovacions inicials: Before first use, perform a range check with your radio system. Verify that steering and throttle respond correctly and are properly trimmed.

Figure 4.1: Fully assembled TAMIYA 1/14 TANKPOOL24 MP4 TT-01E model truck. This image shows the detailed exterior of the truck, including its livery and sponsor decals.

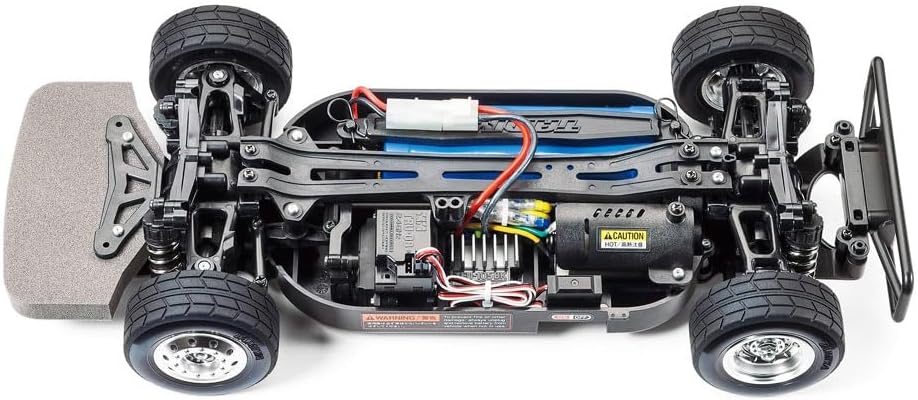

Figura 4.2: Part inferior view of the TT-01E chassis. This image displays the internal layout, including the battery compartment, motor, electronic speed controller (ESC), and steering servo connections.

5. Instruccions de funcionament

Once assembled and all components are installed, you are ready to operate your TAMIYA TT-01E model.

1. Encès: Turn on your radio transmitter first, then connect the battery to the ESC on the model.
2. Conducció: Use the throttle trigger on your transmitter to control forward and reverse movement. Use the steering wheel to control the direction of the model.
3. Frenatge: Gently push the throttle trigger forward (from neutral) to apply brakes.
4. Apagat: Disconnect the battery from the ESC on the model first, then turn off your radio transmitter.
5. Superfície d'execució: Operate the model on clean, flat surfaces. Avoid sand, dirt, or water to prevent damage to internal components.

6. Manteniment

Regular maintenance will ensure the longevity and optimal performance of your TAMIYA model.

• Neteja: After each use, clean the chassis and body with a soft brush or compressed air to remove dust and debris. Avoid using water or harsh chemicals.
• Inspecting Gears: Periodically check the motor pinion and spur gear for wear. Ensure proper gear mesh to prevent premature wear.
• Lubricació: Apply appropriate grease or oil to moving parts such as universal joints and bearings as recommended in the assembly manual.
• Estancament del cargol: Check all screws and nuts for tightness. Vibrations during operation can loosen fasteners.
• Cura de la bateria: Follow the manufacturer's instructions for charging and storing your battery pack. Never overcharge or completely discharge batteries.
• Tire Wear: Inspect tires for wear and replace them when traction significantly decreases.

7. Solució De Problemes

8. Especificacions

• Nom del model: TANKPOOL24 MP4 TT-01E
• Número de model: TAM58683A
• Escala: 1/14
• Tipus de xassís: TT-01E
• Dimensions del producte: 19.3 x 9.1 x 8.9 polzades (49.0 x 23.1 x 22.6 cm)
• Pes de l'article: 22.8 lliures (10.34 kg)
• Edat recomanada: 14 mesos i més
• Fabricant: Tamiya

9. Garantia i Suport

TAMIYA products are manufactured to high standards. For warranty information, please refer to the documentation included with your purchase or visit the official TAMIYA website. For technical support, replacement parts, or further assistance, please contact your local TAMIYA distributor or authorized service center.

Recursos en línia: For additional information, tips, and community forums, visit the official TAMIYA website or reputable RC hobbyist webllocs.

Conserveu el vostre comprovant de compra per a reclamacions de garantia.
