EMKE 75x40cm Anthracite Hot Water Towel Radiator Instruction Manual

1. Introducció

Thank you for choosing the EMKE Hot Water Towel Radiator. This radiator is designed to provide pleasant warmth and comfort in your bathroom, while also serving as a practical towel dryer. Its linear design offers a modern and clear aesthetic. This manual provides essential information for the safe installation, operation, and maintenance of your new towel radiator.

2. Instruccions de seguretat

• Llegiu atentament totes les instruccions abans de la instal·lació i l'ús.
• Installation must be performed by a qualified professional in accordance with local building and plumbing regulations.
• Ensure the radiator is securely mounted to a suitable wall structure to prevent accidental detachment.
• Do not cover the radiator with excessive items as this may impede heat dissipation and pose a fire hazard.
• The surface of the radiator can become hot during operation. Avoid prolonged direct contact to prevent burns.
• Keep children and pets away from the hot radiator.
• Do not use abrasive cleaners or solvents on the radiator surface, as this may damage the finish.
• Ensure the heating system is depressurized and cooled before performing any maintenance or adjustments.

3. Producte acabatview

The EMKE Hot Water Towel Radiator is constructed from high-quality SPCC steel, ensuring efficient and uniform heat distribution. Its robust design and seamless welding technology contribute to stability and consistent heat emission. The anthracite coating provides effective protection against oxidation and moisture, making it ideal for humid bathroom environments.

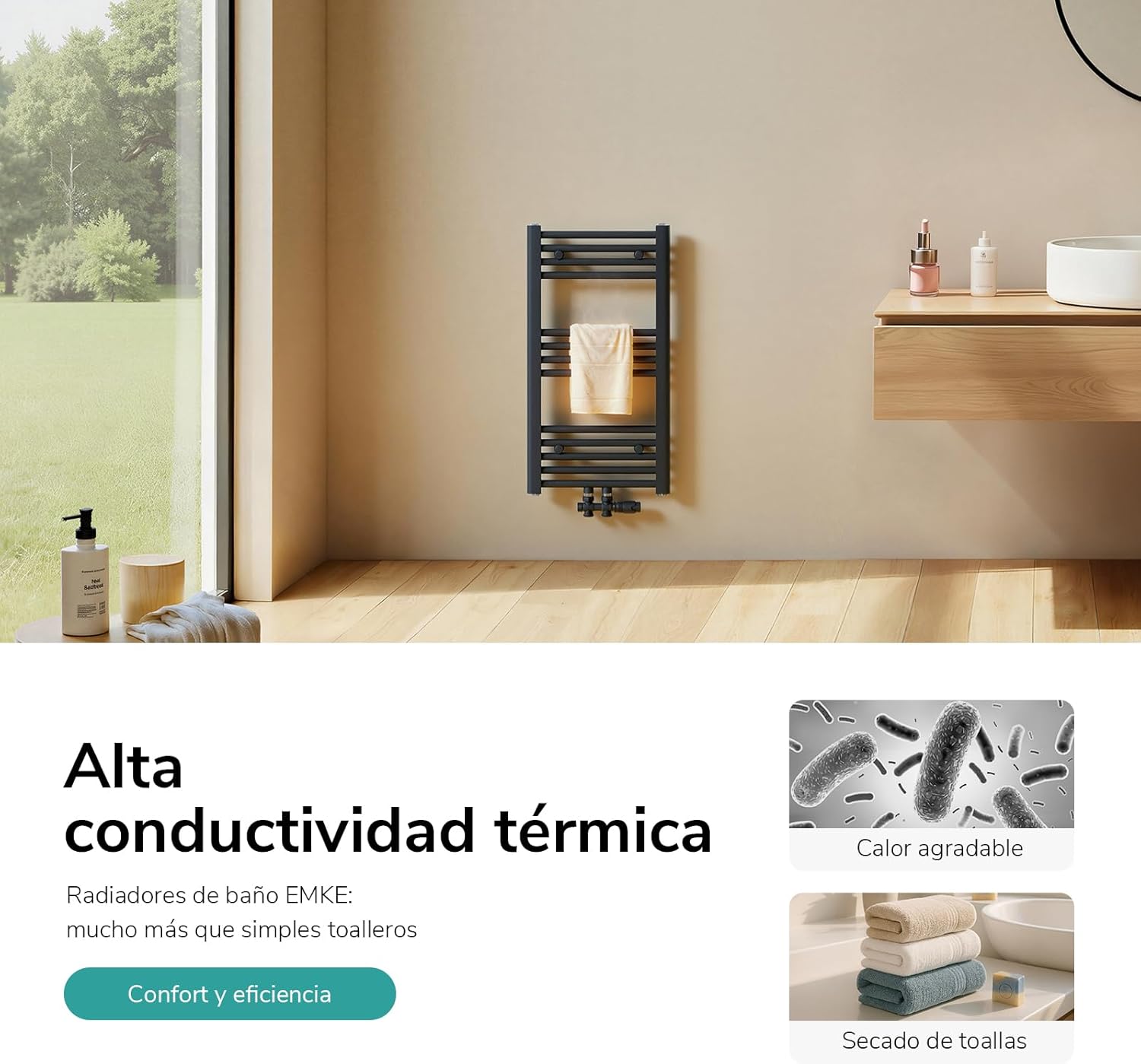

Image: EMKE Anthracite Towel Radiator installed in a modern bathroom, demonstrating its high thermal conductivity and aesthetic integration.

Característiques principals:

• Efficient Heat Output: Provides rapid and consistent warmth for your bathroom.
• Towel Drying Functionality: Effectively dries and warms towels.
• Construcció duradora: Made from high-grade SPCC steel with seamless welding.
• Corrosion Resistant Finish: Anthracite coating protects against rust and moisture.
• Connexió versàtil: Supports central connection, with flexible inlet/outlet options.

4. Instal·lació

Installation of the EMKE towel radiator is designed to be straightforward, but it is recommended to have it installed by a qualified professional. The radiator is intended for hot water central heating systems.

Contingut del paquet:

• Radiador tovalloler
• Mounting Kit (includes plug connector)

Note: Valves are not included and must be purchased separately.

Passos d'instal·lació:

1. Preparació: Ensure the heating system is turned off and depressurized. Identify the desired mounting location, ensuring it is structurally sound and allows for proper pipe connections.
2. Marcatge: Use the provided mounting brackets to mark the drilling points on the wall. Refer to the dimension diagrams for accurate placement.
3. Perforació i muntatge: Drill holes at the marked points and insert wall plugs. Secure the mounting brackets to the wall.
4. Col·locació del radiador: Carefully lift the radiator and attach it to the mounted brackets. Ensure it is level and securely seated.
5. Connexió de canonades: Connect the radiator to your hot water central heating system using appropriate valves (not included). The radiator supports a central connection with a 50mm distance between connections and a G1/2" thread. The ends of the radiator can also be used flexibly as water inlet or outlet points.

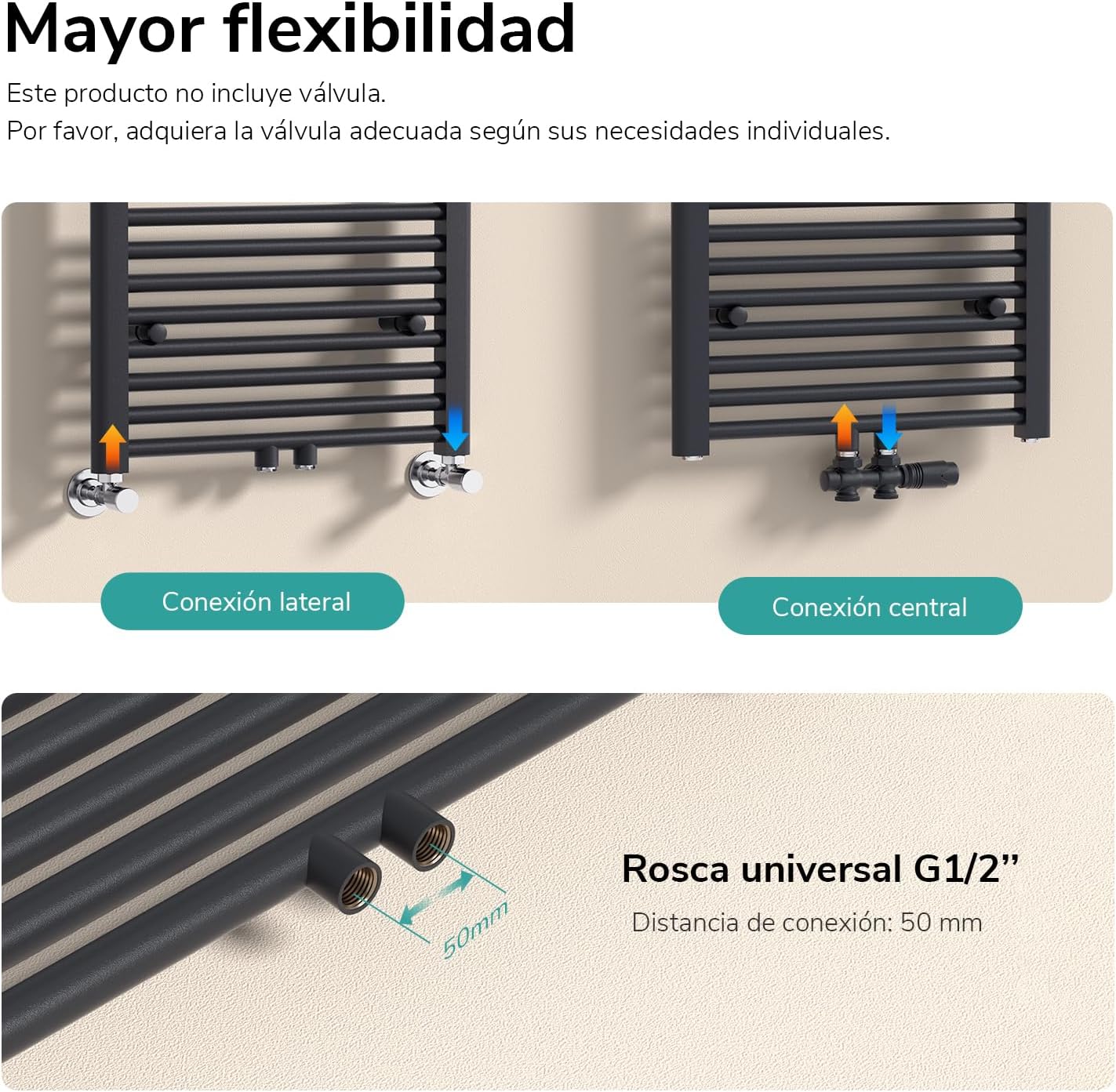

Image: Illustration of the flexible connection options, including lateral and central connections, and the G1/2" universal thread.

Image: Detail showing the adjustable wall distance (90-105 mm) and the 360° welding for leak prevention.

5. Funcionament

Once installed and connected to your central heating system, the EMKE towel radiator operates in conjunction with your home's heating. To activate the radiator, ensure the valves are open, allowing hot water to circulate through the unit. The heat output will correspond to the temperature of the circulating water and the settings of your central heating system.

• Calefacció: Turn on your central heating system. The radiator will gradually heat up as hot water flows through it.
• Towel Warming: Hang towels on the bars of the radiator to warm them or assist in drying. Ensure towels do not completely cover the radiator, which could reduce its heating efficiency.
• Control de temperatura: The heat output is controlled by the valves connected to the radiator and your central heating system's thermostat. Adjust these as needed to achieve your desired bathroom temperature.

6. Manteniment

Regular maintenance ensures the longevity and efficient performance of your EMKE towel radiator.

• Neteja: Netegeu el radiador regularment amb un drap suauamp cloth. For stubborn dirt, a mild, non-abrasive cleaning agent can be used. Rinse thoroughly and dry immediately.
• Eviteu productes químics durs: Do not use abrasive sponges, scouring agents, or chemical cleaners containing alcohol, ammonia, or bleach, as these can damage the anthracite finish.
• Bleeding the Radiator: If you notice cold spots or hear gurgling noises, the radiator may need bleeding to release trapped air. Consult your heating system's manual or a professional for instructions on how to safely bleed a hot water radiator.
• Inspecció anual: It is advisable to have your entire heating system, including the radiator, inspected annually by a qualified technician to ensure optimal performance and safety.

7. Solució De Problemes

If you encounter issues with your EMKE towel radiator, refer to the following common problems and solutions:

If these solutions do not resolve the issue, please contact a qualified heating engineer or EMKE customer support for assistance.

8. Especificacions

The following table details the specifications for the EMKE Hot Water Towel Radiator, including the 75x40cm model:

Image: Detailed specification table for various EMKE towel radiator sizes, including the 75x40cm model.

9. Garantia i Suport

EMKE is committed to providing reliable products and excellent customer service. Your EMKE towel radiator comes with a guarantee of quality and performance.

• Satisfacció del client: We strive for high customer satisfaction, as evidenced by positive feedback.
• Servei: For any questions, technical support, or warranty claims, please refer to your purchase documentation for contact details or visit the official EMKE weblloc.
• Assistència professional: In case of complex issues or repairs, always consult a qualified professional.
