VASAGLE UBBC846P31 Small Bathroom Storage Cabinet Instruction Manual

1. Introducció

Thank you for choosing the VASAGLE UBBC846P31 Small Bathroom Storage Cabinet. This compact and functional cabinet is designed to optimize storage in small bathroom spaces, featuring a toilet paper holder, a drawer, and an adjustable shelf within a lower cabinet. Please read this manual carefully before assembly and use to ensure proper installation and safe operation.

Figura 1: Frontal view of the assembled VASAGLE UBBC846P31 Small Bathroom Storage Cabinet.

2. Informació de seguretat

• Kit antibolcada: For safety, always attach the product to the wall using the included anti-tip kit. This prevents accidental tipping, especially in households with children or pets.
• Capacitat de pes: Do not exceed the maximum static load capacity of the top compartment, which is 11 lb (5 kg).
• Col·locació estable: Ensure the cabinet is placed on a flat, stable surface. The waterproof feet help prevent slipping on wet floors.
• Muntatge: Follow all assembly instructions carefully. If you encounter difficulties, refer to the troubleshooting section or contact customer support.
• Neteja: Utilitza l'anunciamp cloth for cleaning. Avoid harsh chemicals that may damage the finish.

Figure 2: Key safety and maintenance features, including the anti-tip kit, easy-to-clean surface, and waterproof feet.

3. Contingut del paquet

Abans de començar el muntatge, verifiqueu que totes les peces que s'enumeren a continuació siguin presents i no estiguin danyades. Si hi ha alguna peça que falti o estigui danyada, no continueu amb el muntatge i poseu-vos en contacte amb el servei d'atenció al client.

• 1 x Bathroom Storage Cabinet (components for assembly)
• 1 x Accessory Kit (screws, dowels, hinges, drawer slide, handle, anti-tip kit)
• 1 x Manual d'instruccions (aquest document)

4. Muntatge i muntatge

Assembly of the VASAGLE UBBC846P31 cabinet requires patience and attention to detail. Please follow the included graphical instructions carefully. It is recommended to have a standard screwdriver and potentially a shorter screwdriver for tight spaces.

Figura 3: Explotat view and dimensions of the cabinet components, illustrating the various sections and their measurements.

Consells de muntatge:

• Organitzar peces: Lay out all components and hardware before starting. Group similar items to avoid confusion.
• Segueix els passos seqüencialment: Adhere strictly to the numbered steps in the provided instruction booklet.
• Instal·lació de la frontissa: It may be easier to attach the door hinges to the cabinet frame after assembling the main cabinet body, rather than attaching them to the door first and then to the cabinet.
• No apretar massa: Tighten screws firmly but avoid overtightening to prevent damage to the engineered wood.
• Kit antibolcada: Once assembled and placed in its final position, securely attach the cabinet to the wall using the anti-tip kit as instructed in the safety section.

5. Instruccions d'ús

The VASAGLE UBBC846P31 cabinet offers multiple storage solutions for your bathroom.

5.1 Multiple Storage Sections

This cabinet is designed with five distinct storage areas to accommodate various items:

• Compartiment superior: Ideal for small decorative items, diffusers, or a mobile phone.
• Calaix: Suitable for small personal items, hair accessories, or other bathroom essentials.
• Toilet Paper Holder Section: Designed to hold one roll of toilet paper for immediate use.
• Armari inferior: Features an adjustable shelf to store extra toilet rolls, cleaning supplies, or towels.

Figura 4: Mésview of the cabinet's multiple storage sections in use.

5.2 Removable Toilet Paper Roller

The toilet paper roller is designed for easy use and versatility. To replace a roll, simply pull the roller out from one side. The roller can also be completely removed if you prefer to store tubeless toilet paper or a box of tissues in this section.

Figure 5: The removable toilet paper roller and alternative storage options for the compartment.

5.3 prestatge ajustable

The shelf within the lower cabinet is adjustable, allowing you to customize the storage space to fit items of varying heights. To adjust, carefully remove the shelf and reposition it into the desired set of pre-drilled holes, ensuring it is level and secure.

Figure 6: Adjusting the shelf in the lower cabinet to accommodate different item sizes.

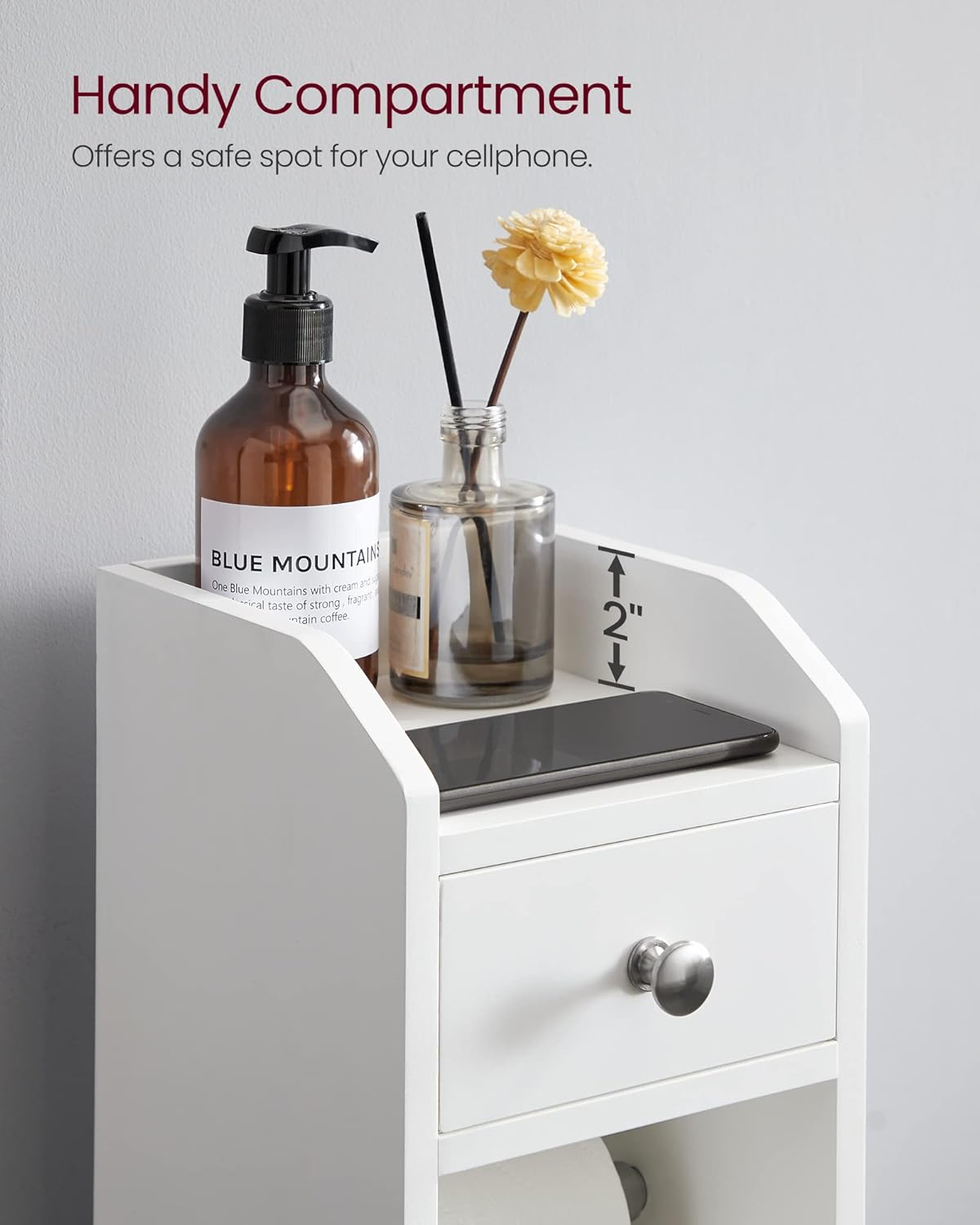

5.4 Handy Top Compartment

The top compartment features a raised edge on three sides, providing a secure spot for items like your mobile phone, preventing it from falling off or getting wet.

Figure 7: The top compartment providing a secure space for small items.

6. Manteniment

• Neteja: Netegeu les superfícies de l'armari amb un drap suau iamp drap. Per a marques difícils, es pot utilitzar una solució de sabó suau i, a continuació, netejar amb un drap net i sec.amp drap i assecant-lo completament.
• Eviteu els netejadors durs: Do not use abrasive cleaners, solvents, or strong chemical agents, as these can damage the finish of the engineered wood.
• Protecció contra la humitat: While the feet are waterproof, avoid prolonged exposure to excessive moisture. Promptly wipe up any spills.
• Comprovacions periòdiques: Reviseu periòdicament tots els cargols i accessoris per assegurar-vos que romanen ajustats. Torneu a apretar-los si cal.

7. Solució De Problemes

8. Especificacions

9. Garantia i Suport

For warranty information, missing parts, assembly assistance, or any other product-related inquiries, please contact VASAGLE customer support directly. Refer to the contact information provided with your purchase or visit the official VASAGLE weblloc d'assistència.

Fabricant: VASAGLE

Venedor: SONGMICS HOME CA

Conserveu el vostre comprovant de compra per a reclamacions de garantia.
