HandyLux Color Click Wireless LED Lights User Manual

Introducció

Thank you for choosing the HandyLux Color Click Wireless LED Lights. This manual provides essential information for the safe and efficient use of your new LED lights. Please read it thoroughly before installation and operation, and retain it for future reference.

Image: Three HandyLux Color Click LED lights (one white, one blue, one green) and their remote control, illustrating the product components.

Informació de seguretat

• Mantingueu les piles fora de l'abast dels nens.
• No barregeu piles velles i noves, o diferents tipus de piles.
• Introduïu les piles amb la polaritat correcta (+/-).
• Traieu les bateries si el dispositiu no s'utilitzarà durant un període prolongat.
• Do not expose the lights to extreme temperatures or direct moisture.
• The lights are designed for indoor use only.

Contingut del paquet

• 3 x HandyLux Color Click LED Lights
• 1 x Remote Control (with 1x CR 2025 3V battery included)
• Adhesive Pads (pre-applied or separate, for mounting)

Note: 3x AAA 1.5V batteries per lamp are required and not included.

Configuració

1. Instal·lació de la bateria

1. For each LED Light: Open the battery compartment on the back of the light. Insert 3 AAA 1.5V batteries, ensuring correct polarity. Close the compartment securely.
2. Per al comandament a distància: The remote control comes with a CR 2025 3V battery pre-installed. If necessary, remove the plastic tab to activate it, or replace the battery by sliding out the battery tray.

2. Muntatge dels llums

The HandyLux Color Click lights are designed for easy, drill-free installation using adhesive pads.

1. Choose a clean, dry, and smooth surface for mounting.
2. Peel off the protective film from the adhesive pad located on the back of each LED light.
3. Firmly press the light onto the desired surface for at least 30 seconds to ensure a strong bond.

Image: A hand demonstrating the removal of the protective film from the adhesive backing of a HandyLux LED light, prior to mounting.

Instruccions de funcionament

1. Turning Lights On/Off

• Funcionament manual: Press the center of the light to turn it on or off.
• Comandament a distància: Press the 'ON' button to turn on the lights or the 'OFF' button to turn them off.

Image: A close-up of a finger pressing the center of a HandyLux LED light, demonstrating the manual 'click' operation to turn it on or off.

2. Changing Colors and Modes

Use the remote control to access various lighting options:

• Llum blanca: Press the 'WHITE' button for standard white illumination.
• Selecció de color: Press any of the 12 color buttons on the remote to select a specific color.
• Multi-Color Mode: Press the 'FULL COLOR' button to activate an automatic color-changing sequence.

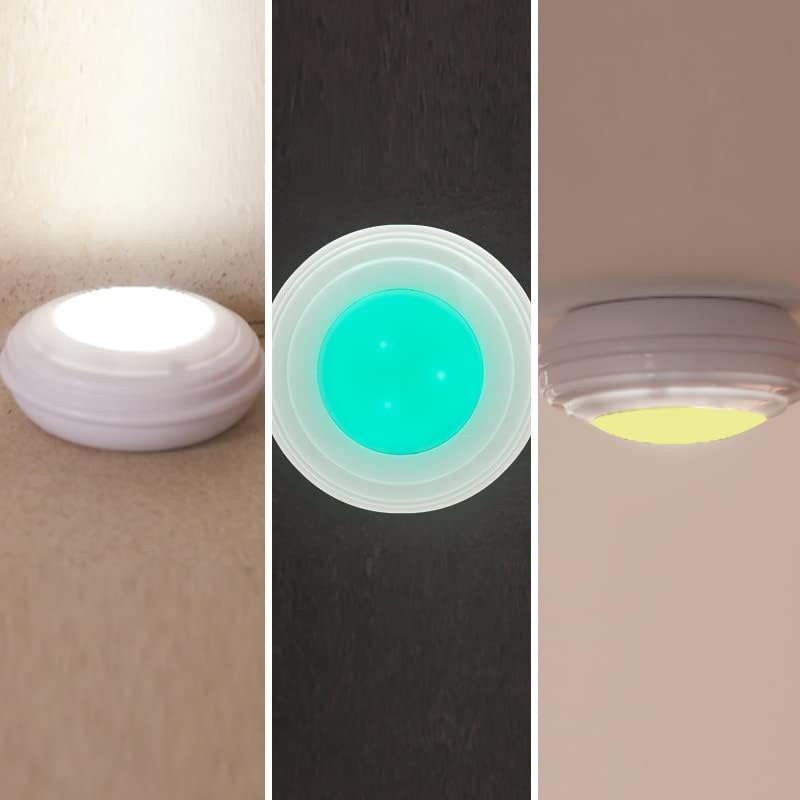

Image: A visual representation of three HandyLux LED lights, each illuminated in a different color (white, blue, and yellow), showcasing the color-changing capability.

3. Dimmer Function

Adjust the brightness of the lights using the dimmer buttons on the remote control:

• Premeu la tecla '+' button to increase brightness.
• Premeu la tecla '-' button to decrease brightness.

4. Funció de temporitzador

Set the lights to automatically turn off after a specified period:

• Press the '4H' button to set a 4-hour timer.
• Press the '8H' button to set an 8-hour timer.

Manteniment

1. Substitució de la bateria

When the lights dim or the remote control becomes unresponsive, it is time to replace the batteries. Follow the battery installation steps in the Setup section.

2. Neteja

Netegeu els llums amb un drap suau i sec. No utilitzeu productes de neteja abrasius ni submergiu els llums en aigua.

Resolució de problemes

• Els llums no s'encenen:
  • Comproveu si les piles estan inserides correctament amb la polaritat correcta.
  • Substituïu les piles velles per unes de noves.
• El comandament a distància no funciona:
  • Ensure the remote's battery is active (remove plastic tab if new) or replace it.
  • Make sure there are no obstructions between the remote and the lights.
  • Ensure the remote is within operating range.
• Lights not changing color:
  • Verify that the remote control is functioning correctly.
  • Check battery levels in the lights.

Especificacions

Informació de la garantia

Warranty information for this product is not available in the provided data. Please refer to your purchase documentation or contact the retailer for details regarding warranty coverage.

Suport

For further assistance or inquiries, please contact HandyLux customer support through the retailer's weblloc web o la informació de contacte proporcionada amb la compra.
