Enchen Sharp X Adjustable Beard and Hair Trimmer User Manual

1. Introducció

Thank you for choosing the Enchen Sharp X Adjustable Beard and Hair Trimmer. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your device. Please read it thoroughly before first use and retain it for future reference.

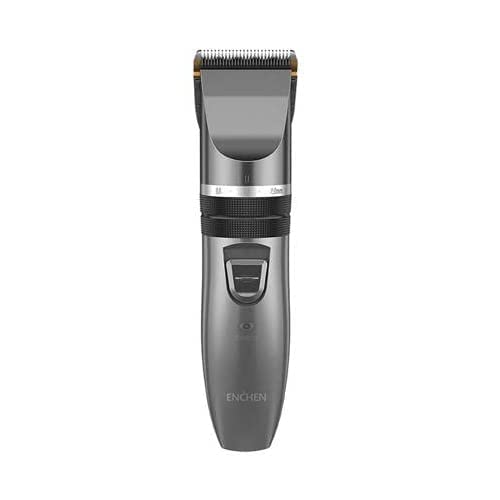

Image 1.1: The Enchen Sharp X Trimmer. This image displays the main product unit, highlighting its sleek design and adjustable length settings.

2. Instruccions de seguretat importants

Per reduir el risc de descàrrega elèctrica, lesions o incendi, seguiu sempre aquestes precaucions de seguretat bàsiques:

• Do not immerse the trimmer in water while charging.
• Keep the appliance dry. Do not use it in the shower or bath.
• No utilitzeu el tallador si està danyat o funciona malament.
• Mantenir fora de l'abast dels nens.
• Utilitzeu només el carregador subministrat amb l'aparell.
• Unplug the trimmer before cleaning or performing maintenance.
• Eviteu el contacte amb les peces mòbils.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al vostre paquet:

• Enchen Sharp X Trimmer Unit
• Cable de càrrega USB (tipus C)
• 4 Pintes Guia
• Raspall de neteja
• Manual d'usuari

Image 3.1: The Enchen Sharp X Trimmer with its four included guide combs. This image illustrates the various length attachments available for different trimming needs.

4. Producte acabatview

Familiarize yourself with the components of your Enchen Sharp X trimmer:

• Capçal de la fulla: Titanium black ceramic blade for precise cutting.
• Maneta d'ajust de longitud: Rotates to select cutting lengths from 0.8mm to 2.0mm.
• Botó d'encesa: Turns the trimmer on and off.
• Llum indicador de càrrega: Mostra l'estat de càrrega.
• Port de càrrega USB-C: Per connectar el cable de càrrega.

Imatge 4.1: Primer pla view of the Enchen Sharp X trimmer's blade and adjustment dial. This image highlights the titanium black ceramic blade and the precision length settings.

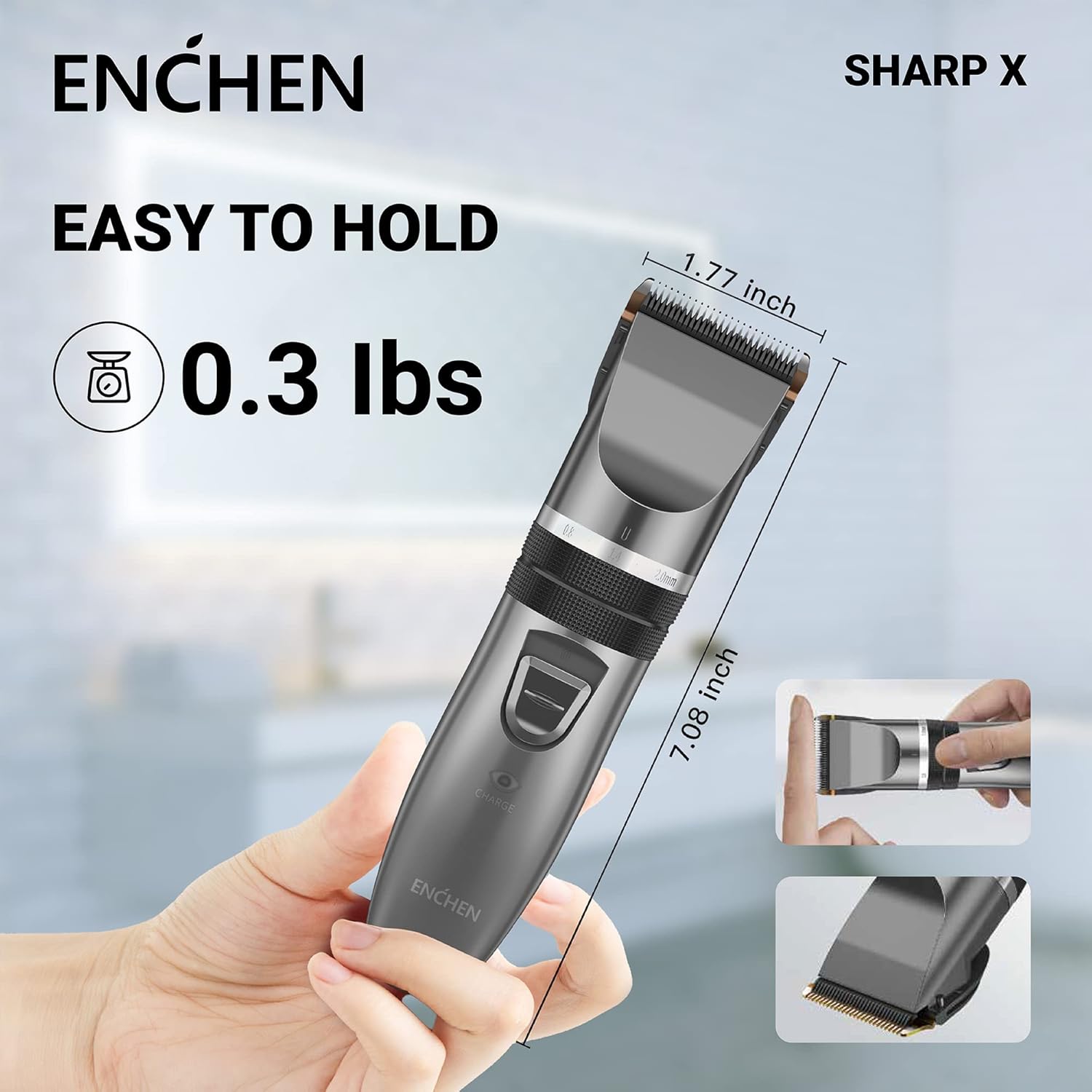

Image 4.2: Enchen Sharp X Trimmer held in hand, illustrating its ergonomic design and compact dimensions (1.77 inches width, 7.08 inches length). This image demonstrates the comfortable grip and portable size of the device.

5. Càrrega de la retalladora

The Enchen Sharp X trimmer is equipped with a 600mAh Lithium battery and supports USB Type-C charging.

1. Assegureu-vos que la retalladora estigui apagada.
2. Connect the Type-C end of the USB charging cable to the charging port at the bottom of the trimmer.
3. Connecteu l'altre extrem del cable USB a una font d'alimentació USB compatible (per exemple, un ordinador, un adaptador de paret).
4. The charging indicator light will illuminate to show that the trimmer is charging.
5. A full charge takes approximately 1 hour and provides up to 120 minutes of run-time.

For optimal battery life, avoid overcharging and fully discharge the battery occasionally before recharging.

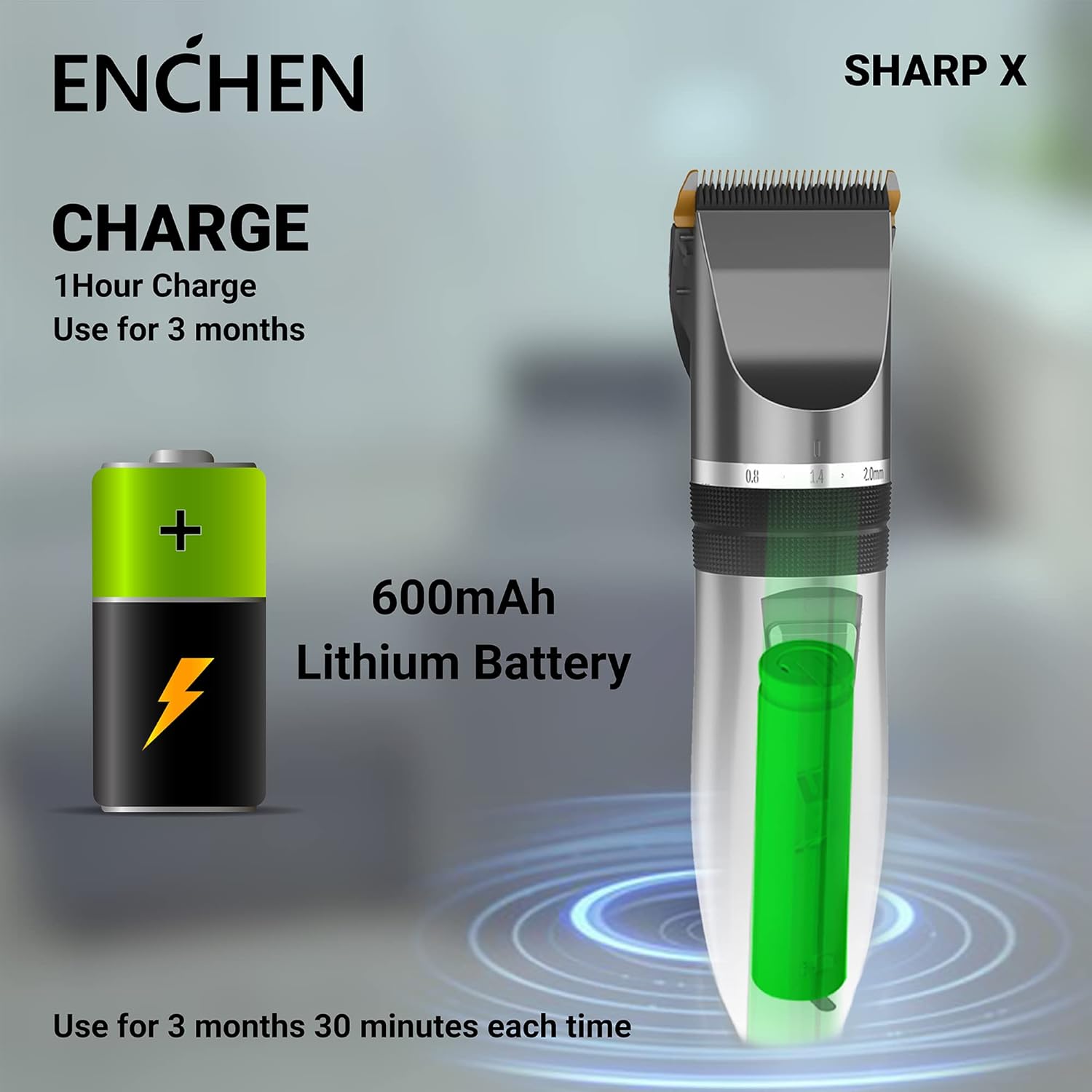

Image 5.1: Illustration of the Enchen Sharp X trimmer's internal battery and charging process. This image visually represents the 600mAh Lithium battery and the quick 1-hour charging time for extended use.

Image 5.2: Close-up of the Enchen Sharp X trimmer's Type-C charging port. This image demonstrates the universal compatibility of the charging interface with mobile phones and computers.

6. Configuració i preparació

Before using your trimmer, ensure it is fully charged and clean.

1. Col·locació de pintes guia: Select the desired guide comb for your preferred hair length. Align the comb with the trimmer head and push it firmly until it clicks into place.
2. Ajust de la longitud de tall: The trimmer features a 5-gear rotation knob for micro-adjustment of cutting length from 0.8mm to 2.0mm. Rotate the knob to select the desired length.
3. Preparació de la pell: Assegureu-vos que la pell i els cabells estiguin nets i secs abans de retallar-los.

7. Instruccions de funcionament

Segueix aquests passos per a una poda eficaç:

1. Encès: Press the power button to turn on the trimmer. The device operates with a 7500 RPM/min professional motor, designed for efficient cutting with low noise (less than 65dB).
2. Retall: Hold the trimmer against the direction of hair growth. Use light pressure and smooth, even strokes. For best results, stretch the skin taut with your free hand.
3. Retall de barba: Start with a longer guide comb setting and gradually reduce the length until you achieve your desired style.
4. Hair Trimming: Use the guide combs to achieve uniform hair length. For fading or blending, use different comb lengths.
5. Detalls: For precise lines and edges, remove the guide comb and use the bare blade carefully. The rounded edge on the cutting head provides extra safety.
6. Apagar: Once finished, press the power button to turn off the trimmer.

Image 7.1: A person using the Enchen Sharp X trimmer for a haircut. This image demonstrates the trimmer's application for hair cutting, highlighting its low noise operation and powerful motor.

Image 7.2: The Enchen Sharp X trimmer positioned alongside a family, emphasizing its suitability for all ages. This image conveys the product's safe design for use by men, women, and children.

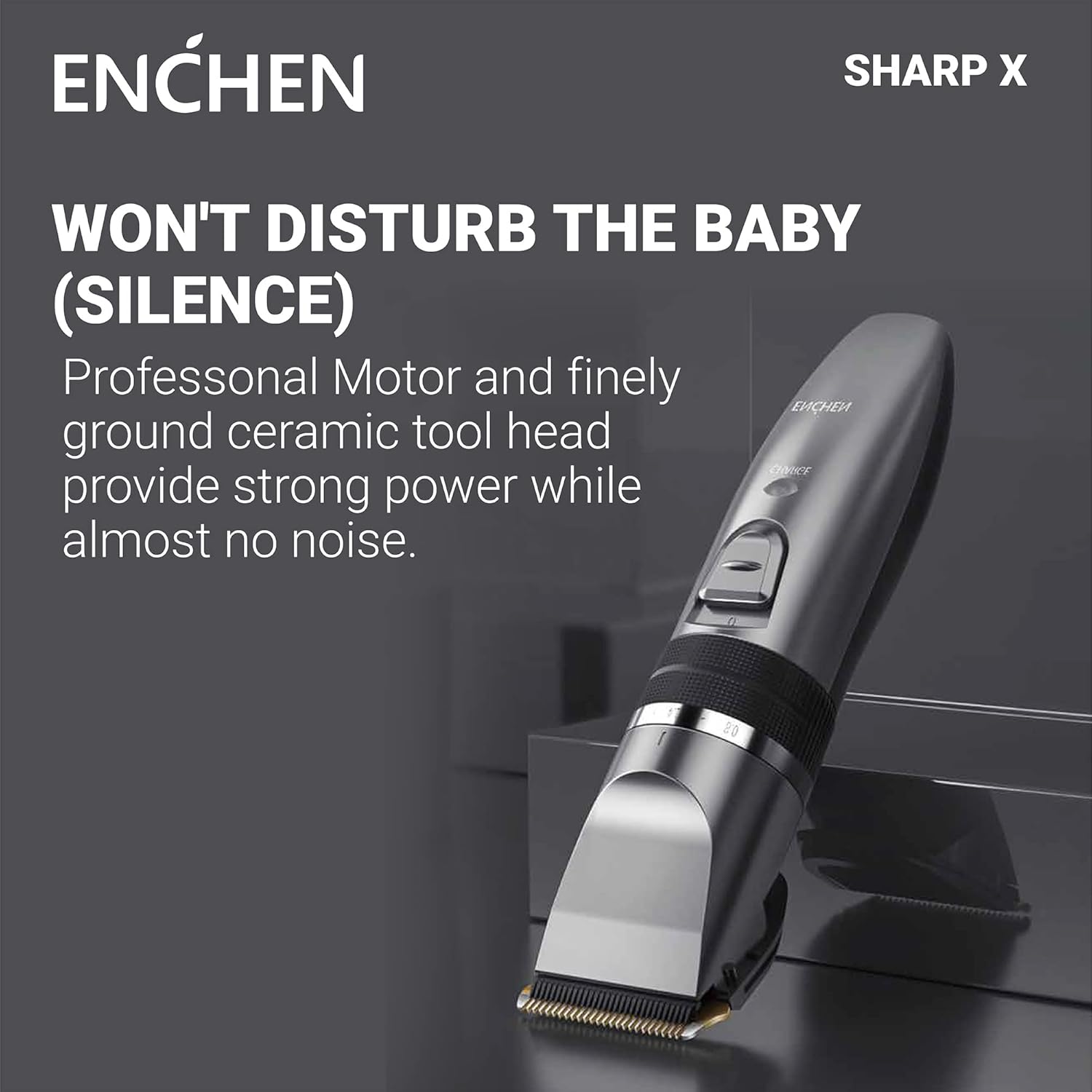

Image 7.3: The Enchen Sharp X trimmer with a visual representation of its quiet operation. This image highlights the professional motor and ceramic tool head that provide strong power with minimal noise, ensuring it won't disturb others, including infants.

8. Neteja i Manteniment

Una neteja regular garanteix un rendiment òptim i allarga la vida útil de la teva retalladora.

1. Després de cada ús: Turn off the trimmer and remove the guide comb. Use the cleaning brush to remove any loose hairs from the blade head.
2. Removable Washing: The blade head is designed for removable washing. Carefully detach the blade head and rinse it under running water. Ensure the main body of the trimmer does not get wet unless it is explicitly stated as waterproof.
3. Assecat: Allow the blade head to air dry completely before reattaching it to the trimmer body.
4. Lubricació: Periodically apply a small drop of clipper oil (not included) to the blades to maintain smooth operation and prevent rust.
5. Emmagatzematge: Store the trimmer in a dry, cool place, away from direct sunlight and moisture.

Image 8.1: Illustration of the Enchen Sharp X trimmer's removable blade head being rinsed under water. This image demonstrates the ease of cleaning the blade for hygiene and maintenance.

9. Solució De Problemes

Si teniu problemes amb la retalladora, consulteu els següents problemes i solucions habituals:

Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

10. Especificacions tècniques

• Model: EN-Shp_X
• Marca: Enchen
• Font d'alimentació: Battery Powered (Cordless/Corded Use)
• Tipus de bateria: 1 bateria de ions de liti (inclosa)
• Temps d'execució: Fins a 120 minuts
• Temps de càrrega: Aproximadament 1 hora
• Velocitat del motor: 7500 RPM/min
• Material de la fulla: Ceràmica
• Longitud ajustable: 0.8 mm - 2.0 mm (5 engranatges)
• Característiques especials: Cordless, Rechargeable, Waterproof (blade head), Low Noise
• Dimensions del producte: 22 x 8 x 7 cm
• Pes de l'article: 400 g
• País d'origen: Xina

11. Garantia i atenció al client

The Enchen Sharp X trimmer comes with a 1 any de garantia des de la data de compra, cobrint defectes de fabricació.

For warranty claims, technical assistance, or any product-related inquiries, please contact our customer support:

• Importador: Empreses Excèntrics Private Limited
• Número de contacte: +91 93541 70767
• Correu electrònic: support@eccentricindia.com

Please retain your purchase receipt as proof of purchase for warranty services.
