Manual d'usuari de l'aspiradora i la fregona BLACK+DECKER 5 en 1

Introducció

Thank you for choosing the BLACK+DECKER 5-in-1 Vacuum & Mop. This versatile cleaning appliance is designed for efficient cleaning of various surfaces, offering both upright and handheld functionality. Its powerful corded motor ensures unlimited runtime for thorough cleaning tasks. Please read this manual carefully before operating the appliance to ensure safe and optimal performance.

Instruccions importants de seguretat

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. Keep the appliance away from water. Do not use to pick up flammable or combustible liquids. Do not operate with a damaged cord or plug. Ensure the filter is properly installed before use. Unplug the appliance before cleaning or performing maintenance.

Muntatge i muntatge

The BLACK+DECKER 5-in-1 Vacuum & Mop is designed for easy assembly. Follow these steps to prepare your appliance for use:

1. Desempaquetar components: Carefully remove all parts from the packaging. Verify that all components are present: main vacuum unit, extension handle, floor head, and included accessories (brush, crevice tool).
2. Attach Floor Head: Align the floor head with the bottom of the main vacuum unit and push firmly until it clicks into place.
3. Connect Extension Handle: Insert the extension handle into the top of the main vacuum unit. Ensure it is securely fastened.
4. Gestió de cordons: Wrap the power cord around the integrated cord wraps on the handle for neat storage when not in use. The cord wrap can be rotated for quick release.

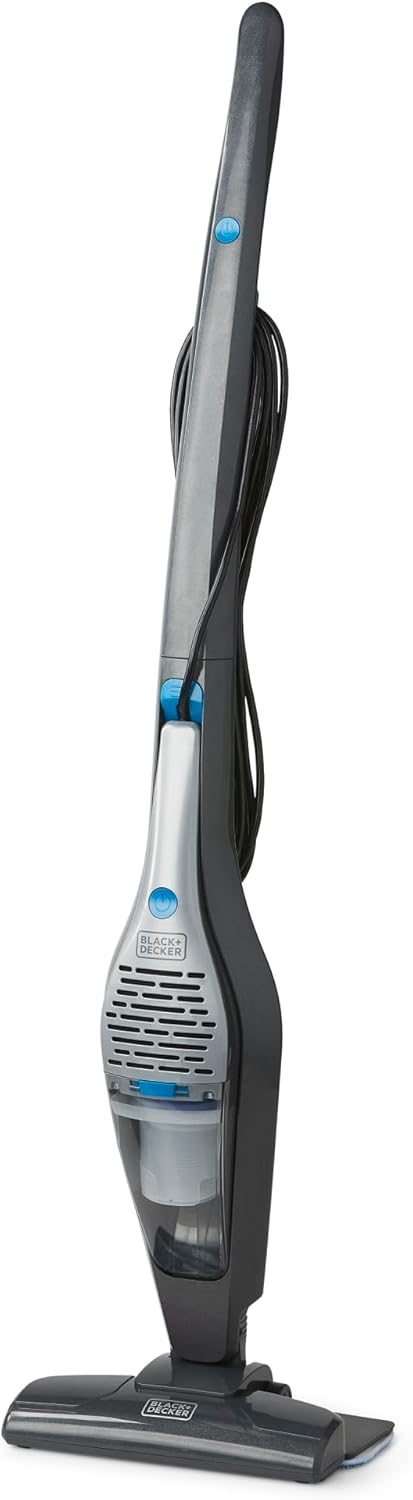

Figure 1: Fully assembled 5-in-1 Vacuum & Mop.

Figure 2: Illustrates the simple assembly process of the vacuum.

Instruccions de funcionament

Your 5-in-1 Vacuum & Mop offers versatile cleaning modes:

Upright Vacuum Mode

For general floor cleaning, use the appliance in its upright configuration. Plug the power cord into a suitable electrical outlet. Press the power button located on the handle to turn on the vacuum. The powerful 480-watt motor provides strong suction for hard floors, carpets, and rugs. The swivel steering allows for easy maneuverability around furniture and obstacles.

Figure 3: Operating the vacuum in upright mode for floor cleaning.

Figura 4: Detallada view of the vacuum head effectively cleaning debris from a hard floor.

Handheld Vacuum Mode

To convert to handheld mode, detach the main vacuum unit from the extension handle and floor head. This mode is ideal for cleaning furniture, stairs, car interiors, and other hard-to-reach areas. Attach the brush or crevice tool accessories as needed for specific cleaning tasks.

Figure 5: Converting the vacuum to handheld configuration.

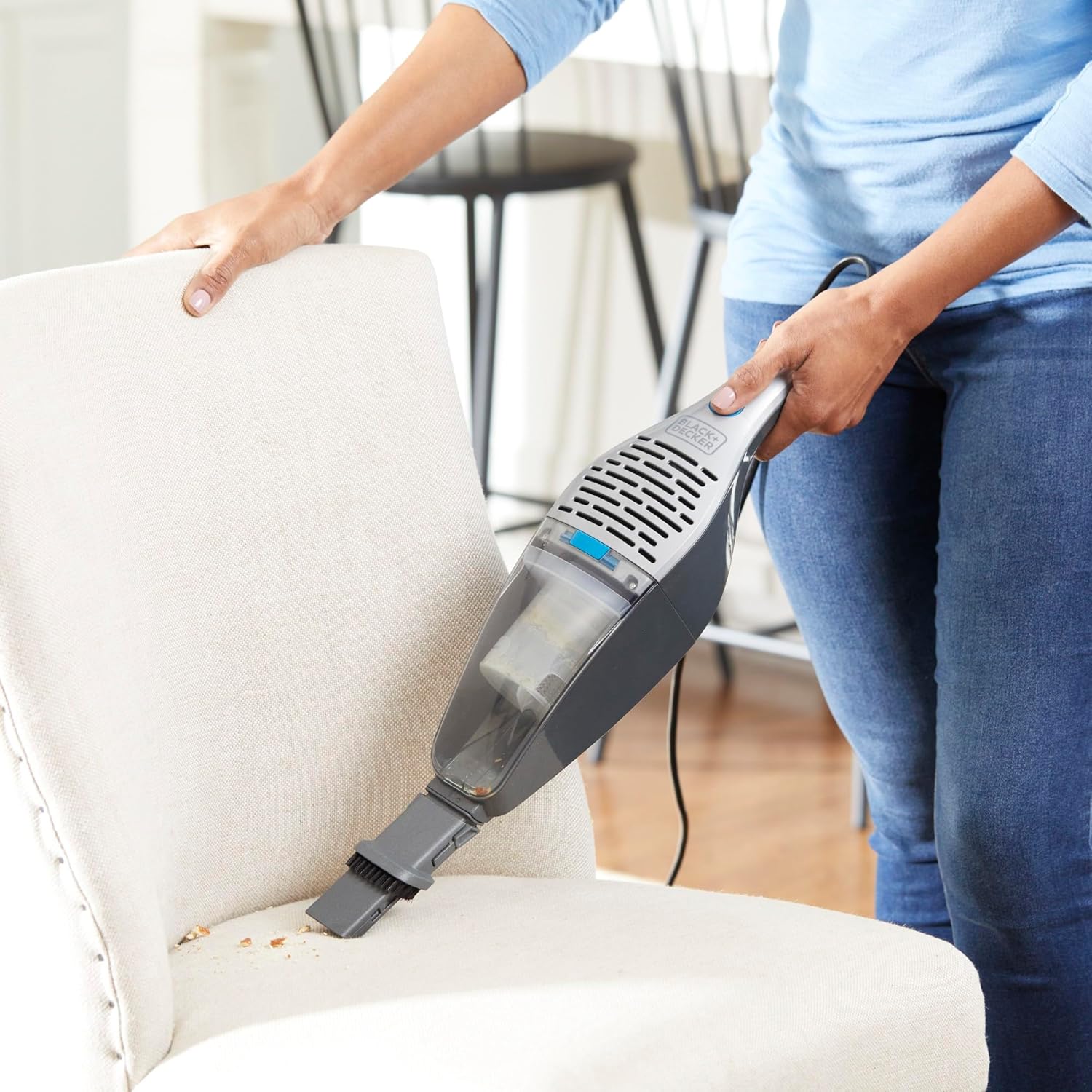

Figure 6: Handheld vacuum in use with the brush attachment for upholstery.

Figure 7: Handheld vacuum in use with the crevice tool for tight spaces.

Funció de fregona

The 5-in-1 unit also includes a mop function for hard floors. Attach the mop pad to the floor head as instructed. This feature is designed for light wet/dry cleaning, complementing the vacuuming action. Ensure the floor head is clean before attaching the mop pad.

Figure 8: The floor head with the integrated mop pad for wet/dry cleaning.

Manteniment

Regular maintenance ensures the longevity and efficiency of your vacuum and mop.

Buidant el got de pols

The appliance features a bagless design with a clear dust cup. To empty, locate the release button on the main unit, press it, and separate the dust cup. Dispose of collected debris into a waste bin. It is recommended to empty the dust cup after each use or when it reaches the MAX fill line.

Neteja del filtre rentable

The vacuum is equipped with a washable filter. To clean, remove the dust cup and then carefully remove the filter. Tap the filter gently over a waste bin to dislodge loose dirt. For a more thorough cleaning, rinse the filter under cool running water until the water runs clear. Allow the filter to air dry completely for at least 24 hours before reinserting it into the dust cup. Do not use a dryer or other heating methods to dry the filter. Replace the filter every 6 to 9 months, or more frequently with heavy use, to maintain optimal suction performance.

Neteja del coixinet de fregona

Remove the mop pad from the floor head after each use. The mop pad can be hand-washed or machine-washed with mild detergent. Allow it to air dry completely before reattaching or storing.

Resolució de problemes

If you encounter issues with your BLACK+DECKER 5-in-1 Vacuum & Mop, refer to the following common problems and solutions:

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb el servei d'atenció al client de BLACK+DECKER.

Especificacions

• Marca: BLACK+DECKER
• Nom del model: BDXMVV007G
• Característica especial: Humit/Sec
• Tipus de filtre: Rentable
• Components inclosos: Raspall
• És sense fil?: No
• Capacitat: 0.8 litres
• Wattage: 480 watts
• Usos recomanats: Hard Floor, Carpet, Rug, Furniture
• Factor de forma: Handheld or Upright
• Color: Teal/White/Gray
• Dimensions del producte: 28.74 cm de llargada x 12.91 cm d'amplada x 7.09 cm d'alçada
• Nivell de soroll: 70 dB
• Ampera: 4 Amps
• Fabricant: CT Nova Floorcare
• Nombre d'articles: 1
• Tipus de controlador: Pulsador
• Mètode de control: Toca
• Estil: 5-in-1 Ultra Lightweight Vacuum + Mop
• Portàtil: Sí
• Tipus d'acabat: brillant
• Número d'identificació comercial global (GTIN): 00850015104732
• UPC: 850015104732
• Pes de l'article: 7.28 lliures

Garantia i Suport

For detailed warranty information and customer support, please refer to the documentation included with your product packaging or visit the official BLACK+DECKER website. You may also find additional support resources, FAQs, and contact information there.
