GYMAX Walking Pad, 2.25HP Foldable Treadmill User Manual

1. Introducció

This manual provides essential information for the safe and effective use of your GYMAX Walking Pad, 2.25HP Foldable Treadmill. This innovative 2-in-1 fitness equipment is designed for both walking and running, offering versatility for home and office environments. Please read this manual thoroughly before operating the treadmill and retain it for future reference.

Image 1.1: The GYMAX Walking Pad shown in both its under-desk walking mode and upright running mode, alongside its remote control.

2. Informació important de seguretat

To reduce the risk of serious injury, read all important precautions and instructions in this manual before using the treadmill. GYMAX assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

• ADVERTIMENT: Do not use the treadmill on carpet, especially with long fur, to avoid overheating of the motor and potential damage to the unit.
• Ensure the treadmill is placed on a flat, stable surface with adequate clear space around it (at least 2 feet on all sides and 6 feet behind).
• Porteu sempre calçat esportiu adequat quan feu servir la cinta de córrer.
• Mantingueu els nens i les mascotes lluny de la cinta de córrer durant el funcionament.
• Use the safety key/lock feature at all times. In case of an emergency, the safety key will immediately stop the treadmill.
• Do not attempt to service the treadmill yourself. Contact customer support for assistance.
• The maximum user weight recommendation for this treadmill is 265 pounds.

3. Contingut del paquet

Upon unpacking, please verify that all components are present and undamaged. The GYMAX Walking Pad is largely pre-assembled, requiring minimal setup.

• GYMAX Walking Pad Treadmill Unit
• Control remot
• Cable d'alimentació
• Clau de seguretat
• Manual d'usuari (aquest document)

4. Producte acabatview

Familiarize yourself with the various parts of your GYMAX Walking Pad treadmill.

Imatge 4.1: Detallada view of the treadmill with key components labeled for identification.

• Mànec: Provides support and stability during running mode.
• Bloqueig de seguretat: Magnetic key that must be in place for the treadmill to operate. Pulling it off stops the machine.
• Titular del telèfon: Convenient slot to place your smartphone or tablet.
• Pantalla LED: Shows real-time exercise data such as time, speed, distance, and calories.
• Altaveu Bluetooth: Permet la reproducció d'àudio des de dispositius connectats.
• Non-slipping Belt: The running surface designed for traction and safety.
• Tail Cap: Protective cover at the rear of the treadmill.
• Mànec plegable: Mechanism for folding and unfolding the treadmill's upright section.
• Moving Wheels: Integrated wheels for easy transport and storage.
• Interruptor d'alimentació: Controls the main power supply to the treadmill.

5. Configuració i ús inicial

The GYMAX Walking Pad arrives mostly pre-assembled. Follow these steps for initial setup:

1. Desembalar: Traieu amb cura la cinta de córrer del seu embalatge.
2. Posició: Place the treadmill on a firm, level surface, ensuring sufficient clear space around it.
3. Unfold (for Running Mode): If you intend to use the running mode, gently lift the handle assembly until it locks into the upright position. Ensure it is securely locked before use.
4. Connectar l'alimentació: Plug the power cord into the treadmill and then into a grounded electrical outlet.
5. Inseriu la clau de seguretat: Col·loqueu la clau de seguretat a la ranura designada de la consola. La cinta de córrer no funcionarà sense la clau de seguretat col·locada.
6. Encès: Flip the main power switch to the 'ON' position. The LED display should illuminate.

6. Modes de funcionament

Your GYMAX Walking Pad offers two distinct operating modes:

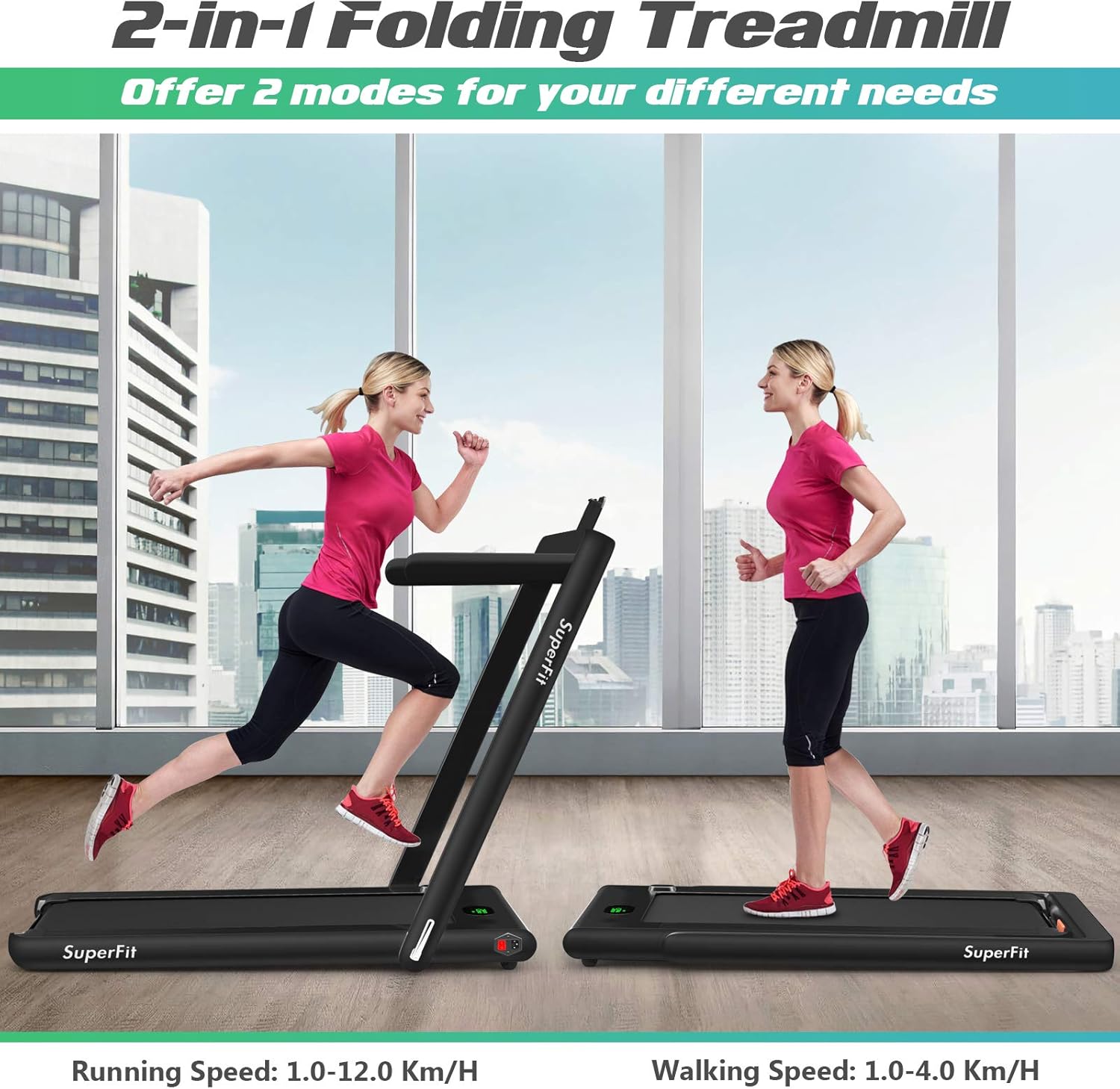

Image 6.1: Illustration of the treadmill's dual functionality, supporting both running and walking exercises.

6.1. Under Desk Walking Mode

This mode is ideal for light exercise while working or performing other tasks. The handrails are folded down, allowing the treadmill to be placed under a desk.

• Activació: Ensure the handrails are folded down.
• Interval de velocitat: In this mode, the speed is limited to 1.0-4.0 km/h (or equivalent mph).
• Control: Use the remote control or the smart app to start, stop, and adjust speed.

Image 6.2: The treadmill in use as an under-desk walking pad, integrated into a workspace.

6.2. Mode d’execució

For more intense workouts, raise the handrails to engage the running mode.

• Activació: Lift and secure the handrails in the upright position.
• Interval de velocitat: The running speed can be adjusted between 1.0-12.0 km/h (or equivalent mph).
• Control: Use the remote control or the smart app to manage your workout.

7. Control intel·ligent d'aplicacions

Enhance your workout experience by connecting your treadmill to the GYMAX smart app via Bluetooth. The app allows for comprehensive control and tracking of your exercise data.

Image 7.1: The GYMAX app interface showing real-time exercise data, alongside the treadmill's LED display.

7.1. Connexió a l'aplicació

1. Descarregar l'aplicació: Cerca the "GYMAX" app on the Google Play Store or Apple App Store and install it on your smartphone.
2. Activa el Bluetooth: Assegureu-vos que el Bluetooth estigui habilitat al vostre telèfon intel·ligent.
3. Cinta de córrer encesa: Turn on your GYMAX Walking Pad.
4. Parella el dispositiu: Open the GYMAX app and follow the on-screen instructions to pair with your treadmill.

7.2. Funcions de l'aplicació

• Dades en temps real: View time, speed, distance, and calories burned.
• Treadmill Control: Start, stop, and adjust the speed of the treadmill directly from your phone.
• Canvi d'unitat: Switch the speed unit between miles and kilometers per hour.
• Workout History: Track and review your past workout sessions.

8. Operació de control remot

The included remote control provides convenient access to basic treadmill functions.

• Inici/Parada: Press the designated button to start or stop the treadmill belt.
• Ajust de velocitat: Use the '+' and '-' buttons to increase or decrease the treadmill speed.
• Selecció del mode: Some remotes may offer quick mode selection or preset speed options. Refer to the remote's specific markings.

Ensure the remote control has working batteries and is pointed towards the treadmill's receiver for optimal functionality.

9. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim de la cinta de córrer.

9.1. Neteja

• Desendolla sempre la cinta de córrer abans de netejar-la.
• Netegeu la consola i les superfícies exteriors amb un drap suau i sec.amp drap. Eviteu productes de neteja o dissolvents abrasius.
• Passa l'aspiradora periòdicament sota la cinta de córrer per evitar l'acumulació de pols i deixalles.

9.2. Running Belt Lubrication

The running belt requires periodic lubrication to reduce friction and extend its lifespan. Refer to the specific instructions provided with your treadmill's lubrication kit, or consult customer support for guidance on appropriate lubricants and application frequency.

9.3. Ajust del cinturó

If the running belt becomes off-center or slips, it may require adjustment. Consult the troubleshooting section or contact customer support for detailed instructions on how to properly adjust the belt tension and alignment.

10. Solució De Problemes

Aquesta secció tracta els problemes habituals que podeu trobar amb la vostra cinta de córrer.

If you encounter an issue not listed here, or if the suggested solutions do not resolve the problem, please contact GYMAX customer support for further assistance.

11. Especificacions del producte

Detailed technical specifications for the GYMAX Walking Pad, 2.25HP Foldable Treadmill.

12. Emmagatzematge

The GYMAX Walking Pad features a foldable design and integrated moving wheels for convenient storage and transport.

12.1. Folding the Treadmill

1. Apagar: Ensure the treadmill is turned off and unplugged from the power outlet.
2. Lower Handrails: Release the locking mechanism for the handrails and gently lower them until they are flat against the deck.
3. Compact Position: The treadmill is now in its compact, folded state, measuring 52" x 27" x 5" (L x W x H).

Image 12.1: Visual guide to folding the treadmill and examples of its compact storage options.

12.2. Moure la cinta de córrer

Once folded, the built-in moving wheels allow for easy relocation.

1. Inclinació: Gently tilt the folded treadmill onto its moving wheels.
2. roll: Roll the treadmill to your desired storage location, such as under a bed or sofa, or upright against a wall.

Image 12.2: A user demonstrating the ease of moving the folded treadmill with its transport wheels.

13. Garantia i Suport

13.1. Informació de la garantia

The GYMAX Walking Pad comes with a 90 dies de garantia des de la data de compra. Aquesta garantia cobreix els defectes de fabricació en condicions d'ús normal. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.

13.2. Atenció al client

For any questions, concerns, troubleshooting assistance, or warranty claims, please contact GYMAX customer support. Refer to your purchase documentation or the GYMAX official weblloc per obtenir dades de contacte.
