1. Introducció
This manual provides essential instructions for the installation, operation, and maintenance of your Chieftec Scorpion 3 White ATX Case (Model GL-03W-OP). Please read this manual thoroughly before beginning assembly to ensure proper setup and to maximize the lifespan of your product.

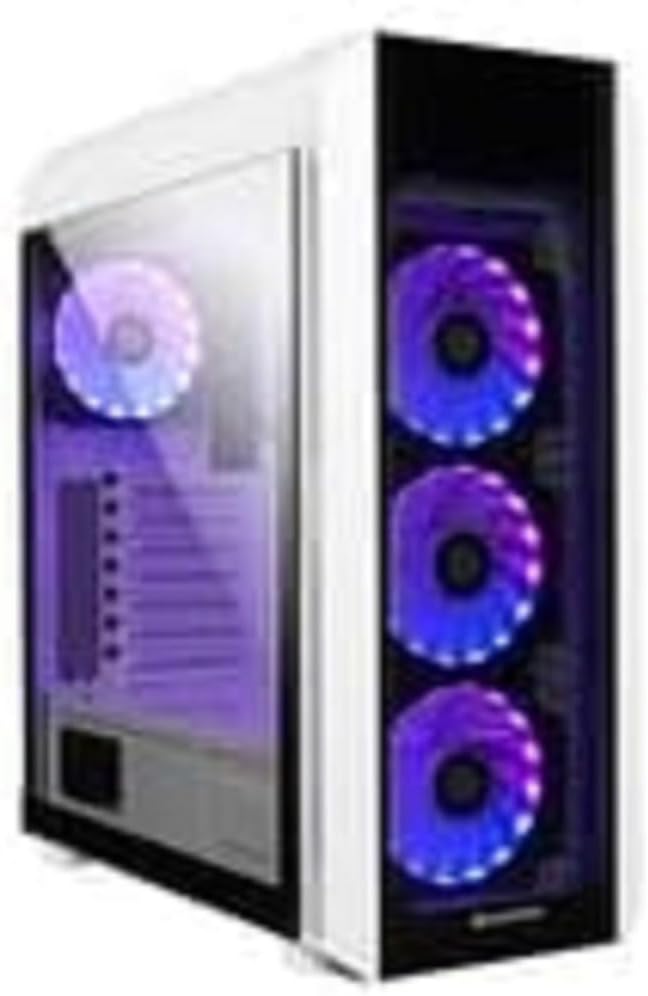

Figura 1: The Chieftec Scorpion 3 White ATX Case, showcasing its white exterior, tempered glass side panel, and three front-mounted, illuminated cooling fans. A single illuminated fan is visible at the rear.
2. Setup and Component Installation
This section guides you through the process of installing your computer components into the Chieftec Scorpion 3 White ATX Case.
2.1. Preparació
- Ensure you have all necessary components: motherboard, CPU, RAM, graphics card, storage drives, and power supply unit (PSU).
- Gather tools: Phillips head screwdriver, zip ties for cable management.
- Work on a clean, static-free surface. Consider using an anti-static wrist strap.
2.2. Obertura de la caixa
- Carefully remove the side panels. Typically, the tempered glass side panel is secured with thumbscrews at the rear.
- Set the panels aside on a soft, non-abrasive surface to prevent scratches.
2.3. Instal·lació de la font d'alimentació (PSU)
- The Chieftec Scorpion 3 supports rear-mount PSUs.
- Slide the PSU into its designated bay at the bottom rear of the case.
- Secure the PSU with screws from the exterior rear of the case.
2.4. Instal·lació de la placa base
- Install the I/O shield into the cutout at the rear of the case.
- Align your ATX motherboard with the pre-installed standoffs.
- Carefully place the motherboard onto the standoffs and secure it with screws.
2.5. Instal·lació de la unitat d'emmagatzematge
- Locate the drive bays for 2.5" SSDs and 3.5" HDDs.
- Install your storage drives into the appropriate bays and secure them.
2.6. Targeta gràfica i targetes d'expansió
- Traieu les cobertes de les ranures PCIe necessàries de la part posterior de la carcassa.
- Insert your graphics card or other expansion cards into the motherboard's PCIe slots and secure them with screws.
2.7. Gestió de cables
- Route all cables (PSU, data, front panel) through the designated cutouts to the rear of the motherboard tray.
- Use zip ties or Velcro straps to bundle and secure cables for improved airflow and aesthetics.
2.8. Closing the Case
- Once all components are installed and cables managed, reattach the side panels.
- Secure the tempered glass panel with its thumbscrews.
3. Funcionament de la caixa
The Chieftec Scorpion 3 White ATX Case provides the housing and cooling for your PC components. Its operation primarily involves the use of the front panel controls and integrated cooling system.
3.1. Controls del tauler frontal
- Botó d'encesa: Press to turn on or off your computer.
- Botó de restabliment: Press to restart your computer.
- Ports USB: Connecteu dispositius USB.
- Preses d'àudio: Connecteu auriculars i micròfons.
3.2. Sistema de refrigeració
The case is equipped with multiple fan mounts and pre-installed 120mm fans to ensure optimal airflow.
- Ensure all fans are properly connected to your motherboard or a fan controller.
- Monitor system temperatures using software to ensure adequate cooling.
- The illuminated fans provide aesthetic appeal and can often be controlled via motherboard software for RGB lighting effects.
4. Manteniment
Regular maintenance helps ensure optimal performance and longevity of your Chieftec Scorpion 3 White ATX Case and its components.
4.1. Neteja de pols
- Freqüència: Clean dust filters and interior components every 3-6 months, or more frequently in dusty environments.
- Filtres de pols: The case features removable dust filters (e.g., top, front, bottom). Gently remove and clean them with water and mild soap, or use a vacuum cleaner. Ensure they are completely dry before reinstallation.
- Interior: Use compressed air to blow dust out of fans, heatsinks, and other components. Hold fan blades gently to prevent over-spinning.
4.2. Neteja exterior
- Netegeu les superfícies exteriors amb un damp drap. Eviteu productes de neteja o dissolvents abrasius.
- For the tempered glass panel, use a glass cleaner and a microfiber cloth to prevent streaks.
5. Solució De Problemes
This section addresses common issues you might encounter with your PC build within the Chieftec Scorpion 3 White ATX Case.
5.1. El sistema no s'encén
- Comproveu les connexions d'alimentació: Ensure the PSU is switched on and all power cables (24-pin ATX, 8-pin CPU, PCIe power) are securely connected to the motherboard and components.
- Connectors del panell frontal: Verify that the front panel power switch cable is correctly connected to the motherboard's front panel header. Refer to your motherboard manual for the correct pinout.
- Funcionalitat de la font d'alimentació: Test the PSU independently if possible, or try a known working PSU.
5.2. Fans Not Spinning or RGB Not Lighting Up
- Connexions del ventilador: Assegureu-vos que tots els cables d'alimentació del ventilador estiguin connectats correctament als capçals dels ventiladors de la placa base o a un controlador de ventilador.
- RGB Connections: If applicable, verify that RGB cables are connected to the correct RGB headers on the motherboard or a dedicated RGB controller.
- Control de programari: Check your motherboard's BIOS/UEFI settings or dedicated fan/RGB control software for fan speed and lighting settings.
5.3. Poor Airflow or High Temperatures
- Acumulació de pols: Netegeu els filtres de pols i els components interns tal com es descriu a la secció Manteniment.
- Orientació del ventilador: Ensure fans are oriented correctly for optimal airflow (e.g., front fans as intake, rear/top fans as exhaust).
- Gestió de cables: Improve cable management to reduce obstructions to airflow.
6. Especificacions
Detailed technical specifications for the Chieftec Scorpion 3 White ATX Case (Model GL-03W-OP).
| Característica | Detall |
|---|---|
| Marca | Chieftec |
| Sèrie | Scorpion 3 White |
| Número de model | GL-03W-OP |
| Tipus de cas | Torre mitja |
| Compatibilitat amb la placa base | ATX |
| Material | Plàstic acrilonitril butadiè estirè (ABS). |
| Color | Black (Note: Product name indicates White, but specification lists Black. Please verify product color upon receipt.) |
| Pes de l'article | 2.2 lliures |
| Dimensions del producte (LxWxH) | 19.69 x 19.69 x 11.02 polzades |
| Tipus de muntatge de la font d'alimentació | Muntatge posterior |
| Mètode de refrigeració | Aire |
| Mida del ventilador | 120 Millimeters (pre-installed fans) |
Note: Specifications are subject to change without prior notice. Please refer to the manufacturer's official weblloc per obtenir la informació més actualitzada.
7. Informació de la garantia
Chieftec products are manufactured to high-quality standards. For specific warranty terms and conditions applicable to your Chieftec Scorpion 3 White ATX Case (Model GL-03W-OP), please refer to the warranty card included with your product or visit the official Chieftec weblloc.
Typically, product warranties cover defects in materials and workmanship under normal use. Damage resulting from improper installation, accident, abuse, modification, or unauthorized repair is generally not covered.
8. Atenció al client
Should you encounter any issues or have questions regarding your Chieftec Scorpion 3 White ATX Case, please contact Chieftec customer support.
- Assistència en línia: Visit the official Chieftec weblloc web per a preguntes freqüents, descàrregues de controladors i recursos d'assistència.
- Informació de contacte: Refer to the product packaging or Chieftec's official weblloc web per a les dades de contacte regionals (telèfon, correu electrònic).
When contacting support, please have your product model (GL-03W-OP) and purchase information readily available.
