HIKOKI DS18DAWCZ 18V Cordless Driver Drill

Introducció

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your HIKOKI DS18DAWCZ 18V Cordless Driver Drill. The DS18DAWCZ is a compact and lightweight cordless driver drill designed for high performance and efficiency. It features a 2-speed gear system, a 20-stage clutch function, and a built-in LED light that activates when the trigger is pulled. Please read this manual thoroughly before using the tool.

Informació de seguretat

Observeu sempre les precaucions de seguretat bàsiques per reduir el risc d'incendi, descàrrega elèctrica i lesions personals. Conserveu aquest manual per a futures consultes.

• Seguretat de l'àrea de treball: Mantingueu la zona de treball neta i ben il·luminada. Les zones desordenades o fosques conviden als accidents. No feu servir eines elèctriques en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables.
• Seguretat elèctrica: Eviteu el contacte corporal amb superfícies connectades a terra o amb connexió a terra, com ara canonades, radiadors, fogons i neveres. No exposeu les eines elèctriques a la pluja ni a condicions humides.
• Seguretat personal: Utilitzeu sempre protecció ocular. Feu servir protecció auditiva quan feu servir l'eina durant períodes prolongats. Vestiu-vos correctament; eviteu roba ampla o joies. Assegureu-vos els cabells llargs.
• Ús i cura de l'eina: No forceu l'eina elèctrica. Feu servir l'eina elèctrica adequada per a la vostra aplicació. Desconnecteu la bateria de l'eina elèctrica abans de fer qualsevol ajust, canviar accessoris o guardar eines elèctriques.
• Ús i cura de la bateria: Recarregar només amb el carregador especificat pel fabricant. No utilitzar bateries amb altres eines elèctriques. Quan no s'utilitzi la bateria, mantenir-la allunyada d'altres objectes metàl·lics.

Contingut del paquet

Verifiqueu que hi hagi tots els elements en desempaquetar:

• HIKOKI DS18DAWCZ Cordless Driver Drill
• 18V Lithium-ion Batteries (2 included)
• Carregador de bateria
• Bit del conductor
• Maleta de transport

Configuració

1. Carregant la bateria

Before first use, fully charge the battery pack. Insert the battery pack into the charger, ensuring it clicks into place. The charger indicator light will show the charging status. Once fully charged, remove the battery from the charger.

2. Instal·lació/extracció de la bateria

To install the battery, slide it into the base of the drill handle until it locks securely. To remove, press the battery release button (usually located at the front or sides of the battery) and slide the battery out.

3. Installing/Removing Drill Bits or Driver Bits

The HIKOKI DS18DAWCZ features a 13mm keyless chuck for quick and easy bit changes. To install a bit, rotate the chuck counter-clockwise to open the jaws. Insert the bit fully into the chuck, then rotate the chuck clockwise to tighten the jaws firmly around the bit. Ensure the bit is centered and secure before operation. To remove, rotate the chuck counter-clockwise to loosen and pull the bit out.

Instruccions de funcionament

1. Engegada/apagada i disparador de velocitat variable

The drill is activated by pressing the trigger switch. The speed of the drill is variable and controlled by the amount of pressure applied to the trigger. Pressing lightly results in lower speed, while pressing fully results in maximum speed. Release the trigger to turn the drill off.

2. Forward/Reverse Rotation Switch

A switch located above the trigger controls the direction of rotation. Push the switch to the left for forward (clockwise) rotation, suitable for drilling and driving screws. Push it to the right for reverse (counter-clockwise) rotation, used for removing screws or freeing a jammed drill bit. Ensure the switch is in the desired position before starting the drill.

3. 2-Speed Gear Selector

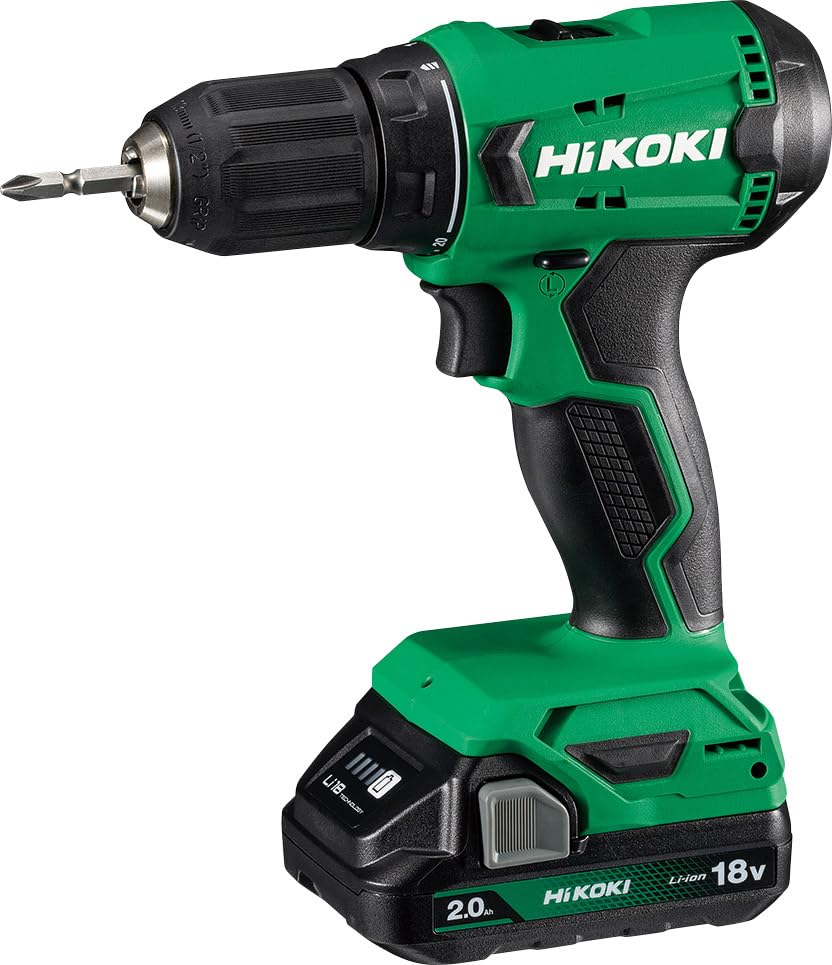

The drill features a 2-speed gear selector switch located on top of the tool. Position '1' provides lower speed and higher torque, ideal for driving screws and drilling larger holes. Position '2' provides higher speed and lower torque, suitable for faster drilling of smaller holes. Always select the appropriate gear before starting the drill.

4. Torque Adjustment Collar (20-Stage Clutch)

The torque adjustment collar, located behind the chuck, allows you to set the desired torque for screw driving applications. It has 20 settings, plus a drill mode. Rotate the collar to align the desired number with the indicator mark. Lower numbers provide less torque, preventing over-tightening or stripping screw heads. The drill symbol bypasses the clutch for maximum torque, suitable for drilling.

5. Built-in LED Light

The integrated LED light illuminates the work area when the trigger is pulled, improving visibility in dimly lit conditions.

6. Drilling and Screw Driving

For drilling, select the drill mode on the torque collar and the appropriate speed gear. Apply steady, even pressure. For screw driving, select a torque setting appropriate for the screw size and material. Start slowly and increase speed as needed. The clutch will disengage when the set torque is reached, preventing over-driving.

The drill is capable of drilling up to 13mm in mild steel and 36mm in wood. For screw driving, it can handle wood screws up to 6 x 75mm.

Manteniment

1. Neteja

Netegeu regularment les obertures de ventilació de l'eina per evitar el sobreescalfament. Feu servir un drap suau i sec.amp cloth to wipe down the exterior. Do not use harsh chemicals or abrasive cleaners. Keep the chuck jaws free of debris.

2. Cura de la bateria

Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. Do not store fully discharged batteries for extended periods. Recharge batteries before they are completely depleted to prolong their lifespan.

3. Emmagatzematge

When not in use, store the drill, batteries, and charger in the provided carry case in a secure, dry location out of reach of children.

Resolució de problemes

• El trepant no s'engega: Ensure the battery is fully charged and properly inserted. Check the forward/reverse switch is not in the center (locked) position.
• Pèrdua de potència durant el funcionament: Pot ser que la bateria estigui baixa. Torneu a carregar la bateria.
• La broca no es subjecta fermament: Ensure the chuck is tightened sufficiently. Check for debris in the chuck jaws.
• Over-tightening screws: Adjust the torque collar to a lower setting.
• Drill bit getting stuck: Reduce pressure, ensure the correct bit is used for the material, and clear any debris from the hole.

If problems persist, contact HIKOKI customer support.

Especificacions

Informació de la garantia

This HIKOKI product is covered by the manufacturer's standard warranty. Please refer to the warranty card included with your purchase or visit the official HIKOKI website for detailed terms and conditions. Keep your purchase receipt as proof of purchase for any warranty claims.

Suport

For technical assistance, spare parts, or service, please contact HIKOKI customer support. You can find contact information on the official HIKOKI website or through your local dealer. When contacting support, please have your product model number (DS18DAWCZ) and serial number (if applicable) ready.

Fabricant: HIKOKI INDIA PVT LTD, Plot no. 9A, 1st Phase, Peenya Industrial Area, Bengaluru - 560058. India
