Razor C35 Electric Scooter User Manual

1. Producte acabatview

The Razor C35 electric scooter is designed for daily commutes, quick errands, and recreational use. It features a SuperCushion™ 12.5-inch (318 mm) front pneumatic tire and an 8.5-inch (216 mm) rear pneumatic tire for a smooth ride. Powered by a 350-watt brushless hub-driven motor, it can reach speeds of up to 18 mph (29 km/h) in Sport Mode and offers a range of up to 18 miles (29 km) on a single charge from its 37V rechargeable lithium-ion battery pack.

Figure 1: Razor C35 Electric Scooter

2. Característiques clau

• Smoother Ride: Innovative offset wheel design with a 12.5-inch (318 mm) front pneumatic tire and an 8.5-inch (216 mm) rear pneumatic tire for comfort over uneven surfaces.
• Long Range at High Speeds: Two speed modes (Sport Mode up to 18 mph / 29 km/h, Normal Mode up to 10 mph / 16 km/h) and up to 18 miles (29 km) range on a single charge.
• Tracció posterior: Enhances drive traction and ease of steering.
• Resistent i durador: High-quality steel construction for rugged use.
• Certificació UL2272: Electrical system certified compliant with UL2272 by Guangdong UTL Co., LTD.

Figure 2: SuperCushion Front Tire for a Smoother Commute

Figure 3: Powerful 350 Watt Brushless Hub Motor

Figure 4: LED Headlight and Digital Display for Better Visibility

Figure 5: Regenerative Electric Brake and Rear Fender Brake Light

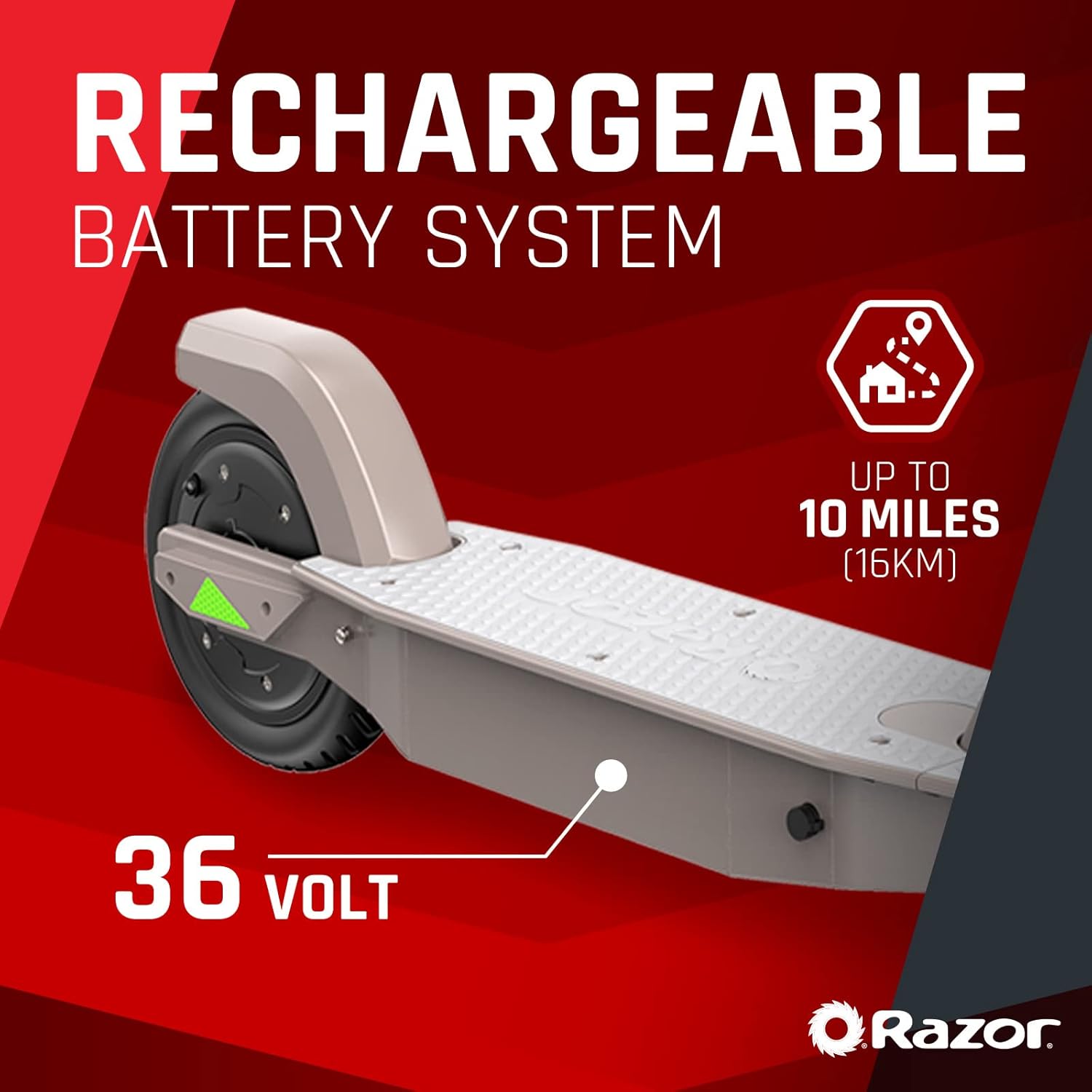

Figure 6: Rechargeable 36V Lithium-Ion Battery System

Figure 7: UL 2272 Certification for Electrical System Safety

3. Configuració

3.1 Desembalatge i muntatge inicial

1. Traieu amb cura el patinet i tots els components de l'embalatge.
2. Desplegueu el patinet alliberant-loasing the quick-release latch. Ensure the handlebar stem is securely locked into the upright position.
3. Adjust the handlebar height to a comfortable position and secure it using the provided mechanism.

Figure 8: Easy Fold and Carry Design

3.2 Càrrega inicial

Before first use, fully charge the scooter's battery. Connect the charger to the charging port located on the scooter's deck and then to a standard wall outlet. The charging indicator light will change when charging is complete. Refer to the specifications for estimated charging time.

4. Instruccions de funcionament

4.1 Engegada/apagada

• To power on, press and hold the power button on the handlebar display until the screen illuminates.
• Per apagar l'aparell, premeu i manteniu premut el botó d'engegada de nou fins que la pantalla s'apagui.

4.2 modes de velocitat

The C35 offers two speed modes:

• Mode normal: Up to 10 mph (16 km/h) for casual riding.
• Mode esportiu: Up to 18 mph (29 km/h) for higher performance.

Switch between modes by double-pressing the power button while the scooter is on.

4.3 Acceleració i frenada

• Acceleració: Use the thumb-activated accelerator on the right handlebar to control your speed.
• Frenatge: The scooter features dual braking systems: a thumb-activated electronic brake on the left handlebar and a foot-activated rear-fender brake. Use both for optimal stopping power.

4.4 Control de creuer

To activate cruise control, maintain a consistent speed for a few seconds. The scooter will automatically hold this speed. To disengage, simply press the accelerator or brake.

5. Manteniment

5.1 Cura dels pneumàtics

Regularly check the tire pressure of both pneumatic tires. Proper inflation is crucial for ride quality and preventing flats. Refer to the tire sidewall for recommended PSI. Inspect tires for wear, cuts, or punctures before each ride.

5.2 Cura de la bateria

• Always fully charge the battery after each use, especially if storing for extended periods.
• Eviteu esgotar completament la bateria, ja que això pot reduir-ne la vida útil.
• Guardeu el patinet en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.

5.3 Neteja i emmagatzematge

Netejar el patinet amb l’anunciamp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the scooter is dry before storing. When storing, especially for long periods, ensure the battery is charged and the scooter is in a protected environment.

6. Solució De Problemes

6.1 El patinet no s'encén

• Check if the battery is charged. Connect the charger and observe the charging indicator.
• Ensure all connections, especially around the handlebar and deck, are secure.

6.2 Abast o velocitat reduïts

• Verify tire pressure. Under-inflated tires can significantly impact performance.
• Ensure the battery is fully charged before each ride. Battery performance can degrade over time with improper charging habits.
• Consider rider weight and terrain. Steep inclines or heavier loads will reduce range and speed.

6.3 Pneumàtic punxat

Due to the pneumatic tires, occasional flats may occur. If a tire goes flat, it will need to be repaired or replaced. This often involves disassembling the wheel and potentially the motor assembly for the rear wheel. It is recommended to consult a professional or refer to detailed repair guides if you are not experienced with such repairs.

If issues persist after basic troubleshooting, please contact Razor customer support for further assistance.

7. Especificacions

8. Garantia i Suport

8.1 Informació de la garantia

The Razor C35 Electric Scooter comes with a Garantia limitada de 90 diesAquesta garantia cobreix els defectes de fabricació i els problemes derivats de l'ús normal dins del període especificat. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.

8.2 Recursos addicionals

For detailed instructions, safety guidelines, and further support, you may refer to the official User Manual PDF available at: Razor C35 User Manual (PDF).

For direct customer support, please visit the official Razor website or contact their customer service department using the contact information provided on their weblloc o embalatge del producte.
