SimPure T1-400UV Tankless Reverse Osmosis System with UV User Manual

1. Producte acabatview

The SimPure T1-400UV is an advanced tankless reverse osmosis (RO) water filtration system designed for under-sink installation. It features an 8-stage filtration process, including UV sterilization, to deliver purified water with near 0 Total Dissolved Solids (TDS). This system is SGS certified against NSF/ANSI 58 standards, ensuring high quality and performance in removing over 99.99% of contaminants.

Figure 1: SimPure T1-400UV Tankless Reverse Osmosis System

Característiques principals:

• SGS Certified: Tested against NSF/ANSI 58 Standard for effective removal of over 99.99% of 1000+ contaminants, including TDS, PFAS/PFOA/PFOS, heavy metals, and chloride.
• Near 0 TDS Water: Achieves ultra-pure water by efficiently reducing TDS levels to near 0 PPM or below 25 PPM, with up to 99.99% removal rate.
• UV Power & Tankless Design: Integrated UV system for extra sterilization, operating automatically with water flow. Tankless design saves under-sink space and prevents secondary contamination.
• Alta capacitat: Produces up to 400 gallons per day (GPD) of purified water.
• Ús eficient de l'aigua: Features a 1.5:1 pure-to-drain ratio, minimizing wastewater compared to traditional RO systems.
• Rentable: Long-lasting quick-change filter cartridges provide approximately 1057 gallons of purified water, reducing reliance on bottled water.

Figure 2: Contaminant Removal Capabilities of SimPure T1-400UV

Figura 3: Detallada view dels 8tage procés de filtració

2. Informació de seguretat

Please read and understand all safety instructions before installing, operating, or maintaining your SimPure T1-400UV system. Failure to follow these instructions could result in property damage, personal injury, or death.

• Always disconnect power before performing any maintenance or filter changes.
• Ensure all water connections are secure to prevent leaks. Check for leaks periodically after installation.
• Do not expose the system to freezing temperatures, as this can cause damage.
• Use only genuine SimPure replacement filters to ensure proper performance and avoid voiding your warranty.
• La UV lamp contains mercury. Handle with care and dispose of according to local regulations. Do not look directly at the UV light when it is on.
• Mantingueu el sistema allunyat de la llum solar directa i de fonts de calor.

3. Configuració i instal·lació

The SimPure T1-400UV system is designed for easy under-sink installation. Its tankless design frees up significant space and simplifies the setup process.

Llista de verificació prèvia a la instal·lació:

• Verify you have adequate under-sink space (dimensions: 15.6"L x 5.3"W x 15.7"H).
• Ensure access to a cold water supply line and a drain.
• Confirm you have a power outlet available for the system's pump and UV light.
• Gather necessary tools (drill, wrench, etc.).

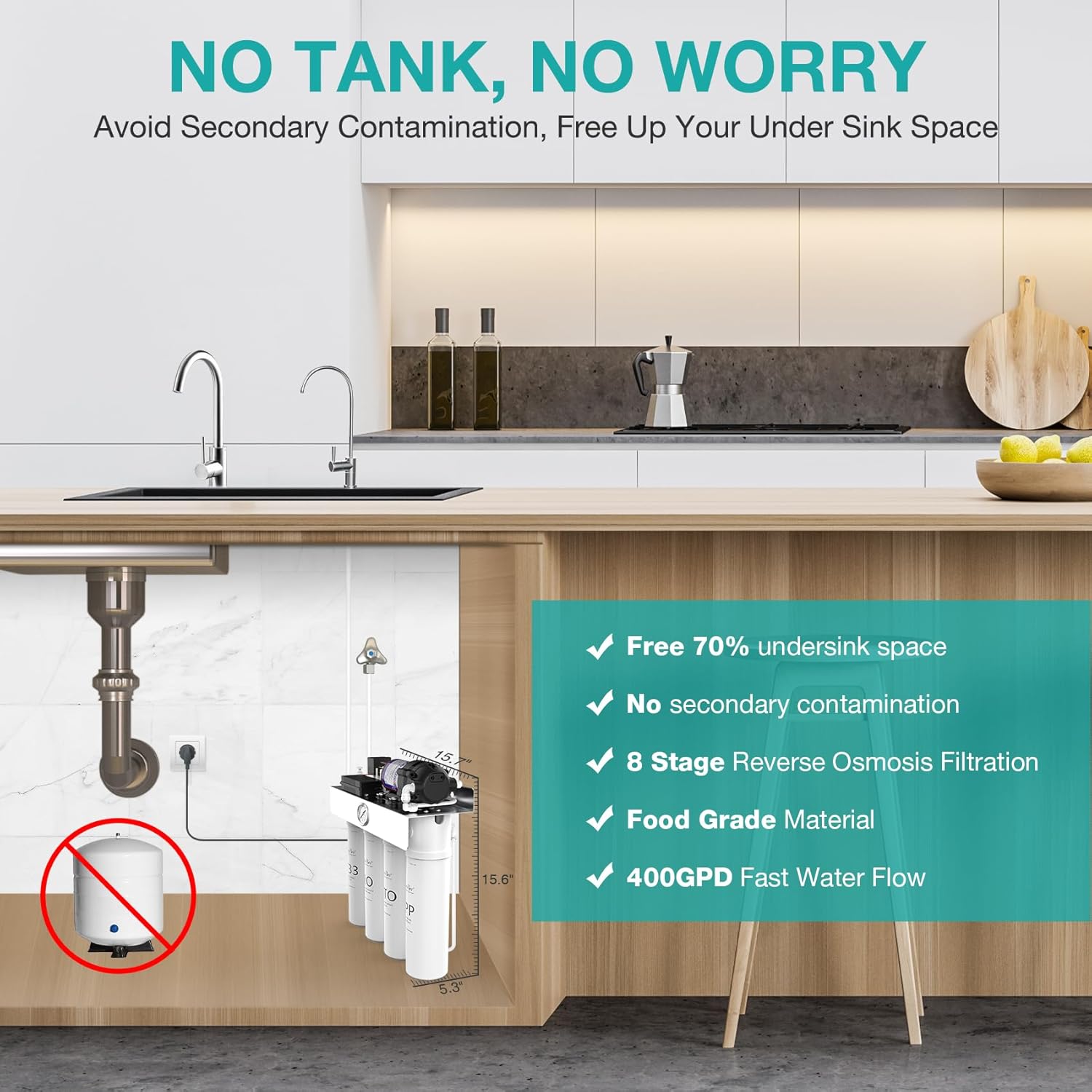

Figure 4: Tankless design maximizes under-sink space.

Figure 5: Benefits of the tankless design, including space-saving and prevention of secondary contamination.

Passos d'instal·lació:

1. Mount the System: Secure the main unit under the sink in a suitable location.
2. Instal·leu l'aixeta: Drill a hole in your countertop (if not already present) for the dedicated purified water faucet. Connect the pure water line from the RO system to this faucet using the provided quick-connect fittings.
3. Connecteu l'entrada d'aigua: Connect the cold water supply line to the system's inlet using the provided adapter valve.
4. Connecteu la línia de drenatge: Attach the wastewater line from the system to the drain saddle on your sink's drain pipe. A 1/4-inch hole may need to be drilled for this connection.
5. Connexió d'alimentació: Plug the system's power adapter into a grounded electrical outlet.
6. Netegeu el sistema: Before first use, open the purified water faucet and allow the system to flush for at least 20 minutes. This purges air and carbon fines from the new filters.

Figure 6: Installation requirements and pre-measure dimensions for the SimPure T1-400UV system.

4. Instruccions de funcionament

Once installed and flushed, your SimPure T1-400UV system is ready to provide clean, purified water on demand.

Distribució d'aigua:

• Simply open the dedicated purified water faucet to dispense water.
• The system's 400 GPD capacity ensures a fast and constant flow, filling a cup in approximately 12 seconds.

Figure 7: Fast and constant water flow from the SimPure T1-400UV faucet.

Figure 8: Comparison of 400 GPD water flow with traditional systems.

TDS Monitoring:

The system is designed to produce water with near 0 TDS. You can verify this using a TDS meter.

Figure 9: TDS meter showing near 0 PPM for purified water.

Escenaris d'aplicació:

Figure 10: Various uses for purified water, including drinking, cleaning, cooking, and for pets.

5. Manteniment

Regular maintenance, primarily filter replacement, is crucial for optimal performance and longevity of your SimPure T1-400UV system.

Substitució del filtre:

The system uses quick-change twist filter cartridges for easy replacement.

• Pre-filters (PP, CTO, T33): Typically replaced every 3-6 months, depending on water quality and usage.
• Membrana RO: Replaced every 1-2 years, depending on water quality and usage.
• UV Lamp: Replace annually to ensure continuous sterilization.

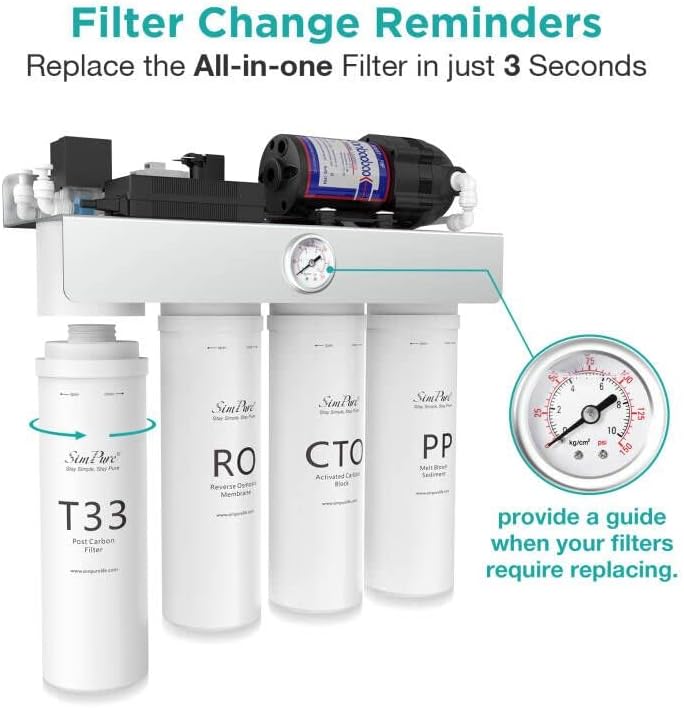

Figure 11: Filter change reminders and pressure gauge for monitoring filter status.

Figure 12: The pressure gauge indicates when filters require replacement (e.g., exceeding 130 PSI for RO filter).

Com substituir els filtres:

Place the machine flat, insert the cartridge vertically, then rotate the cartridge into place until secure.

6. Solució De Problemes

This section provides solutions to common issues you might encounter with your SimPure T1-400UV system.

Problemes comuns i solucions:

• Baix cabal d'aigua:
  • Check the pressure gauge; if it indicates high pressure, filters may be clogged and require replacement.
  • Assegureu-vos que la vàlvula de subministrament d'aigua estigui completament oberta.
  • Verify there are no kinks in the water lines.
• Fuga d'aigua:
  • Inspect all quick-connect fittings and ensure tubing is fully inserted and secured.
  • Check filter cartridges to ensure they are properly seated and twisted into place.
  • Premeu les connexions soltes.
• Gust o olor inusuals:
  • Flush the system for an extended period (e.g., 30 minutes) if it's a new installation or after filter replacement.
  • Replace pre-filters (PP, CTO, T33) if they are past their recommended lifespan.
  • Ensure the UV lamp està funcionant correctament.
• El sistema no s'encén:
  • Comproveu si l'adaptador de corrent està ben connectat a una presa de corrent que funcioni.
  • Verify the water supply is on, as the system may have a low-pressure shut-off.

7. Especificacions

8. Garantia i Suport

SimPure is committed to delivering world-class water filtration solutions and stands behind its products.

• Informació de contacte: For any questions or support, please reach out to SimPure's team of trained water specialists.
• Número gratuït: 1-866-528-4572
• Correu electrònic d'atenció al client: service@simpurelife.com
• Assistència en línia: Visit simpurelife.com for additional resources and replacement filter options.
