1. Introducció
Thank you for choosing the OLEVS Skeleton Chronograph Watch, Model TX-S-G9947G. This manual provides detailed instructions for the proper setup, operation, and maintenance of your new timepiece. Please read it thoroughly to ensure optimal performance and longevity of your watch.

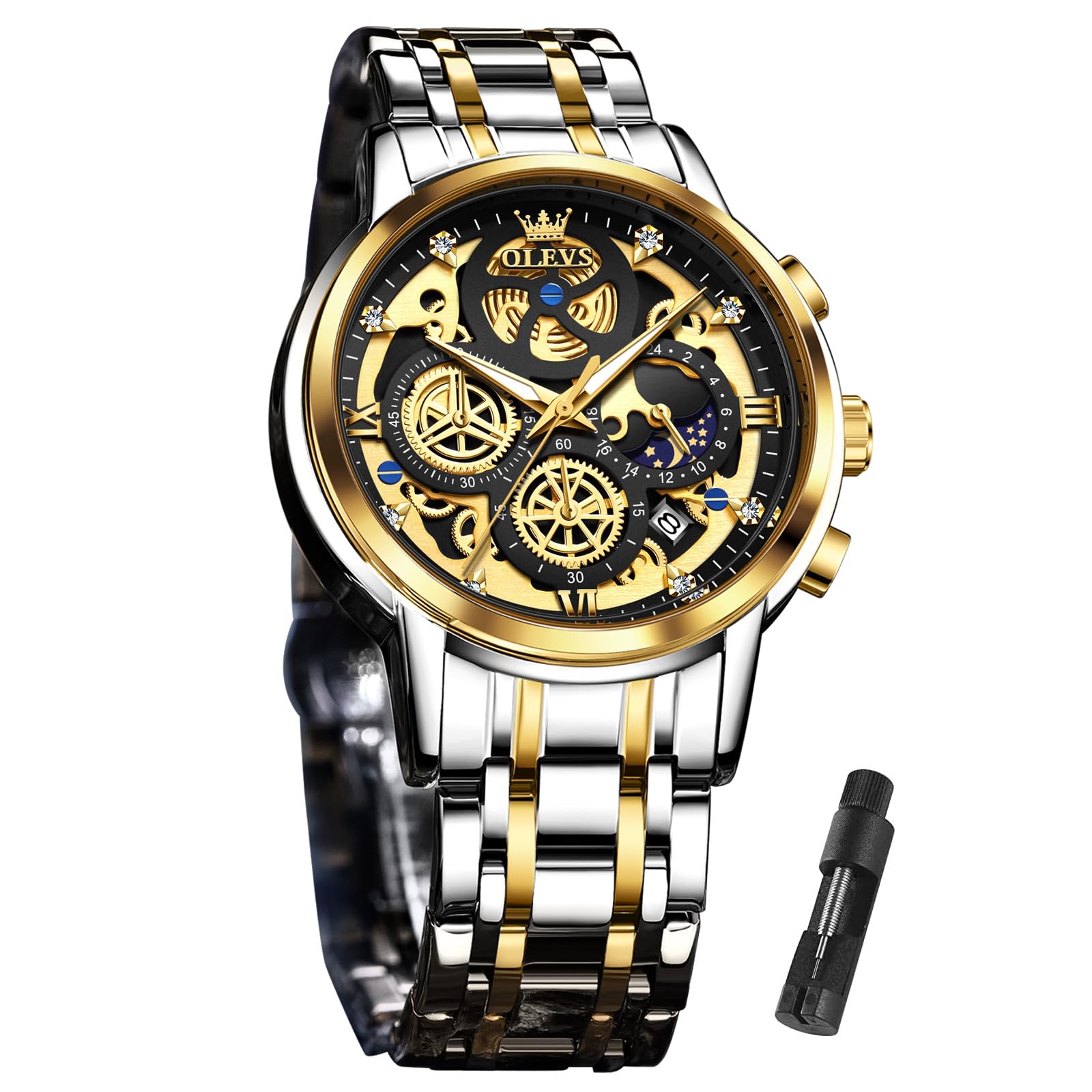

Imatge 1.1: Frontal view of the OLEVS Skeleton Chronograph Watch, showcasing its intricate dial and two-tone stainless steel band.
2. Característiques del producte
- Moviment de quars: Ensures precise and reliable timekeeping.
- Funció de cronògraf: Features minute and seconds counters for elapsed time measurement.
- Visualització de la data: Convenient calendar window to show the current date.
- Marcador de 24 hores: Auxiliary dial indicating the time in a 24-hour format.
- Mans lluminoses: High-definition luminous coating on hands for visibility in low-light conditions.
- Resistència a l'aigua de 30 metres: Suitable for daily use, splashes, and brief immersion, but not for swimming or diving.
- Hardlex Coated Mirror: Durable and scratch-resistant crystal.
- Construcció d'acer inoxidable: Case and band crafted from robust stainless steel for durability and a premium feel.
- Double Locking Foldover Clasp: Secure and comfortable closure mechanism.
- Skeleton Face Style: Unique dial design revealing internal watch mechanisms.
Imatge 2.1: Detallada view of the watch dial highlighting the minute counter, seconds counter, 24-hour dial, and calendar window.
Image 2.2: Visual representation of key features including water resistance, crystal durability, quartz movement, and luminous display.
3. Configuració
3.1 Configuració de l'hora
- Pull the crown (the knob on the side of the watch) out to the segona posició.
- Gireu la corona en sentit horari o antihorari per ajustar les agulles de les hores i els minuts a l'hora correcta.
- Un cop configurada l'hora, torneu a prémer la corona a la seva posició original per engegar el rellotge.
3.2 Configuració de la data
- Estireu la corona cap a la primera posició.
- Rotate the crown to adjust the date in the calendar window. Avoid setting the date between 9 PM and 3 AM, as this can interfere with the automatic date change mechanism.
- Un cop configurada la data, torneu a prémer la corona a la seva posició original.
3.3 Ús del cronògraf
- A començar the chronograph, press the upper button (pusher) located above the crown. The chronograph seconds hand will begin to move.
- A parar the chronograph, press the upper button again. The elapsed time will be displayed.
- A restablir the chronograph, press the lower button (pusher) located below the crown. The chronograph hands will return to their zero positions.
3.4 Ajust de la corretja
The stainless steel band may require adjustment to fit your wrist comfortably. It is recommended to have this done by a professional jeweler or watch repair service to prevent damage to the band or clasp.
Imatge 3.1: Lateral view of the watch indicating the crown for time/date adjustment and the pushers for chronograph control.
Video 3.1: A demonstration of the OLEVS Skeleton Chronograph Watch, showing its design, how it looks on the wrist, and its water resistance. This video provides a visual guide to the watch's features and general handling.
4. Instruccions de funcionament
The watch operates using a precise quartz movement. The main hands display the current time (hours, minutes, seconds). The sub-dials provide additional functionality:
- Top Sub-dial: Chronograph minute counter.
- Subesfera inferior: Chronograph seconds counter.
- Subdial dret: 24-hour indicator, synchronized with the main time.
- Finestra de data: Mostra la data actual.
Ensure the crown is fully pushed in after any adjustments to maintain water resistance and proper operation.
5. Manteniment
5.1 Resistència a l'aigua (30 metres / 3 ATM)
Your OLEVS watch is water-resistant to 30 meters (3 ATM). This means it is suitable for daily use, such as accidental splashes, rain, and hand washing. It is no recomanable for showering, swimming, diving, or any activities involving prolonged water immersion or high-pressure water exposure. Always ensure the crown is fully pushed in before any contact with water.
5.2 Neteja
To clean your watch, wipe it gently with a soft, dry cloth. For the stainless steel band, a slightly damp cloth can be used, followed by immediate drying. Avoid using harsh chemicals, solvents, or abrasive materials, as these can damage the watch's finish and seals.
5.3 Substitució de la bateria
The watch is powered by one LR44 battery. When the watch stops or the hands move erratically, it may be time for a battery replacement. It is highly recommended to have the battery replaced by a qualified watch technician to ensure proper sealing and maintain water resistance.
5.4 Emmagatzematge
Store your watch in a cool, dry place away from direct sunlight, extreme temperatures, strong magnetic fields, and chemicals. When not in use for extended periods, consider storing it in its original watch box.
6. Solució De Problemes
6.1 El rellotge no funciona
- Check if the crown is fully pushed in. If it is pulled out, the watch will not run.
- Pot ser que la bateria estigui esgotada. Consulteu la secció 5.3 per a la substitució de la bateria.
6.2 Time or Date Incorrect
- Re-adjust the time and date according to sections 3.1 and 3.2.
6.3 Chronograph Not Resetting to Zero
- Ensure the chronograph is stopped before attempting to reset. Press the upper button to stop, then the lower button to reset.
- If the issue persists, a professional inspection may be required.
7. Especificacions
| Característica | Especificació |
|---|---|
| Nom del model | TX-S-G9947G |
| Dimensions del producte | 8.27 x 1.65 x 0.47 polzades |
| Pes de l'article | 7.05 unces (0.2 quilograms) |
| Diàmetre de la caixa | 42 mil·límetres |
| Gruix de la caixa | 12 mil·límetres |
| Amplada de banda | 20 mil·límetres |
| Longitud de banda | 22 centímetres |
| Tipus de moviment | Quars |
| Profunditat de resistència a l'aigua | 30 metres (3 caixers automàtics) |
| Tipus de cristall | Hardlex |
| Tipus de material de la banda | Acer inoxidable |
| Case Material Type | Acer inoxidable |
| Tipus de bateria | 1 LR44 (inclosa) |
Image 7.1: Diagram illustrating the key dimensions of the OLEVS watch, including case diameter, case thickness, chain width, and chain length.
8. Garantia i Suport
8.1 Garantia del fabricant
This OLEVS watch comes with a 1 any de garantia del fabricant. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from improper handling, accidents, unauthorized repairs, or normal wear and tear.
8.2 Atenció al client
For warranty claims, technical assistance, or any questions regarding your OLEVS watch, please contact OLEVS customer service through the retailer where the watch was purchased or visit the official OLEVS weblloc per obtenir informació de contacte d'assistència.
