Aresrora Vintage Bluetooth Speaker DW13 User Manual

1. Producte acabatview

The Aresrora Vintage Bluetooth Speaker DW13 combines modern audio technology with a classic aesthetic. This compact and portable speaker offers wireless audio streaming, hands-free calling, and multiple input options for a versatile listening experience.

Imatge 1.1: Frontal view of the Aresrora Vintage Bluetooth Speaker in Light Blue. It features a retro design with a gold trim, three speaker grilles, a volume knob, and control buttons.

2. Contingut del paquet

Si us plau, comproveu el paquet per veure si hi ha els elements següents:

• 1 x Aresrora Vintage Bluetooth Speaker (Model DW13)
• 1 x cable d'àudio
• 1 x cable de càrrega tipus C
• 1 x Manual d'usuari

3. Configuració

3.1 Càrrega de l'altaveu

Before first use, fully charge the speaker. Connect the provided Type-C charging cable to the speaker's charging port and the other end to a USB power adapter (not included). The LED charging indicator will illuminate during charging and turn off when fully charged.

• Temps de càrrega: Aproximadament 2 hores per a una càrrega completa.
• Battery Life: Up to 3 hours of playtime (varies by volume level).

Image 3.1: Illustration of the speaker's battery charging indicator, showing a battery icon filling up to indicate charging status.

3.2 Identifying Ports and Controls

Familiarize yourself with the speaker's ports and controls:

Image 3.2: A detailed diagram highlighting the speaker's components, including the PU handle, AUX input, charging port (Type-C), LED charging indicator, TF (SD) card slot, USB disk port, power ON/OFF/volume knob, LED indicator, and buttons for previous/next song and play/pause/answer/hang up.

• PU Handle: Per a la portabilitat.
• Entrada AUX: Per a connexió d'àudio amb cable.
• Port de càrrega (tipus C): Per carregar l'altaveu.
• Indicador LED de càrrega: Mostra l'estat de càrrega.
• TF (SD) Card Slot: For playing music directly from a memory card.
• USB Disk Port: For playing music directly from a USB flash drive.
• Power ON/OFF / Volume Knob: Turns the speaker on/off and adjusts volume.
• Indicador LED: Shows operational status (e.g., Bluetooth pairing mode).
• Botó amunt: Premsa curta per a la cançó anterior.
• Botó avall: Prem breument per a la següent cançó.
• Botó central: Double press for Play/Pause; during a call, press to Answer/Hang Up.

4. Instruccions de funcionament

4.1 Engegada/Apagada i control de volum

• Encès: Rotate the Power ON/OFF / Volume Knob clockwise until you hear a click and the speaker powers on.
• Apagar: Rotate the Power ON/OFF / Volume Knob counter-clockwise until you hear a click and the speaker powers off.
• Ajustar el volum: Rotate the Power ON/OFF / Volume Knob clockwise to increase volume and counter-clockwise to decrease volume.

Image 4.1: A hand demonstrating how to rotate the power/volume knob to adjust the speaker's volume.

4.2 Vinculació Bluetooth

1. Power on the speaker. The LED indicator will flash, indicating it is in pairing mode.
2. Activeu el Bluetooth al vostre telèfon intel·ligent, tauleta o altre dispositiu compatible amb Bluetooth.
3. Cerca available Bluetooth devices and select "DW13" (or similar name) from the list.
4. Once paired, the LED indicator will stop flashing and remain solid. You can now play audio wirelessly.
5. The speaker uses Bluetooth 5.0 technology for a stable connection up to 32.8 feet (10 meters).

4.3 Using Other Audio Inputs

• Entrada AUX: Connect an audio cable from your device's headphone jack to the speaker's AUX input port. The speaker will automatically switch to AUX mode.
• TF (SD) Card: Insert a TF (microSD) card with MP3 audio files into the TF card slot. The speaker will automatically detect and play music from the card.
• Disc USB: Inseriu una unitat flash USB amb àudio MP3 files into the USB disk port. The speaker will automatically detect and play music from the drive.

4.4 Trucades de mans lliures

When connected via Bluetooth, the built-in microphone allows for hands-free calling:

• Respon a la trucada: Double press the middle button.
• Finalitzar la trucada: Double press the middle button.

5. Manteniment

• Netegeu l'altaveu amb un drap suau i sec. No utilitzeu productes de neteja abrasius ni dissolvents.
• Eviteu exposar l'altaveu a temperatures extremes, llum solar directa o humitat.
• Guardeu l'altaveu en un lloc fresc i sec quan no l'utilitzeu durant períodes prolongats.
• Do not attempt to disassemble or repair the speaker yourself, as this may void the warranty.

6. Solució De Problemes

If you encounter issues with your speaker, please refer to the following common solutions:

• L'altaveu no s'encén: Assegureu-vos que la bateria estigui carregada. Connecteu el cable de càrrega i torneu-ho a provar.
• No es pot emparellar per Bluetooth:
  • Ensure the speaker is in pairing mode (LED indicator flashing).
  • Make sure Bluetooth is enabled on your device and it is within 32.8 feet (10 meters) of the speaker.
  • Oblida't del dispositiu de la configuració de Bluetooth del telèfon i intenta emparellar-lo de nou.
  • Turn both the speaker and your device off and on again.
• Sense so:
  • Comproveu el nivell de volum tant a l'altaveu com al dispositiu connectat.
  • Ensure the correct input mode (Bluetooth, AUX, TF card, USB) is selected.
  • Si feu servir AUX, assegureu-vos que el cable estigui completament inserit i que no estigui danyat.
• Mala qualitat del so:
  • Acosteu l'altaveu al dispositiu Bluetooth per reduir les interferències.
  • Assegureu-vos que no hi hagi obstacles entre l'altaveu i el dispositiu.
  • Try playing a different audio source to rule out file quality issues.

7. Especificacions

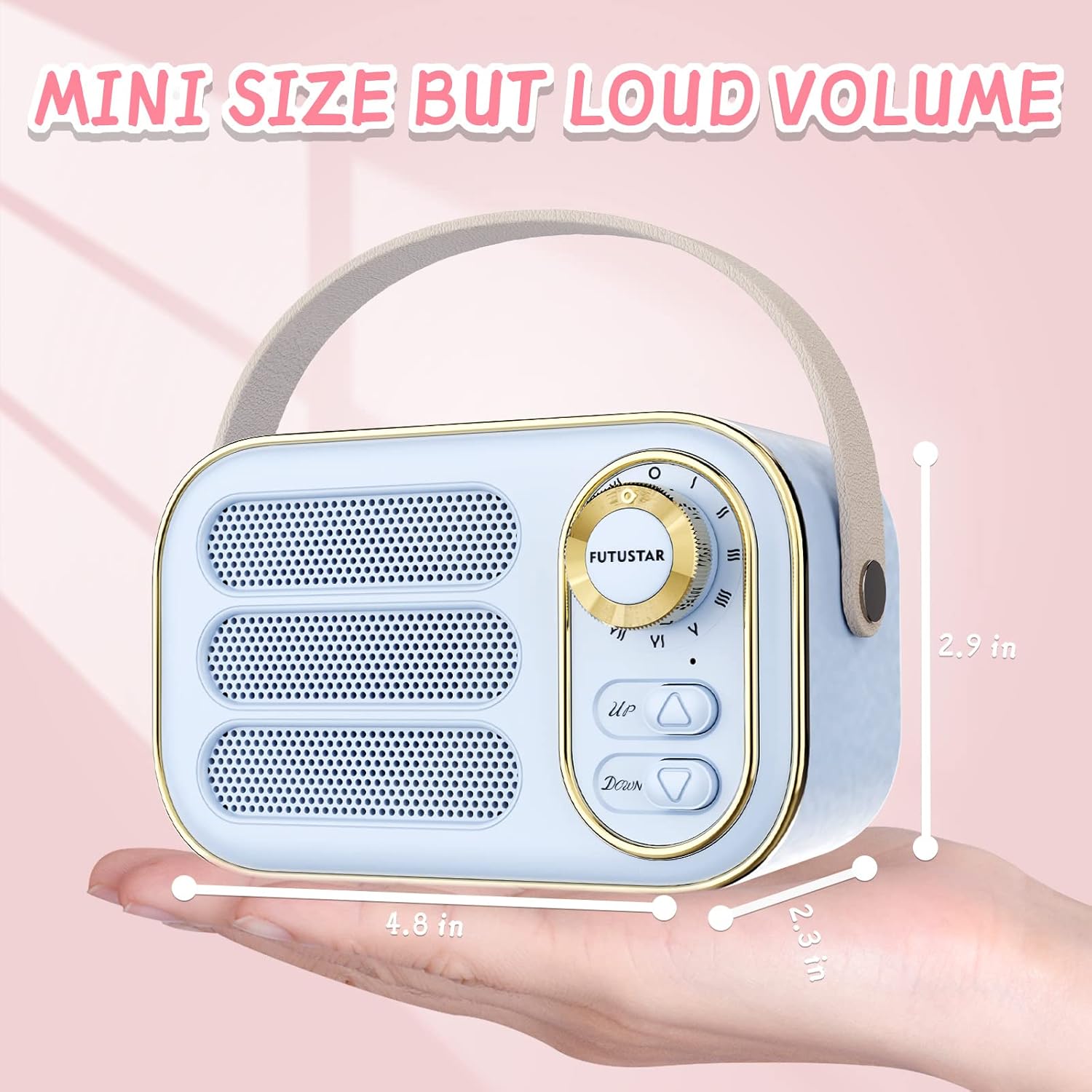

Image 7.1: The speaker held in a hand, illustrating its compact dimensions of 4.8 inches (width), 2.9 inches (height), and 2.3 inches (depth).

8. Informació de la garantia

This product comes with a limited warranty. Please refer to the warranty card included in your package for specific terms and conditions. The warranty covers manufacturing defects under normal use.

9. Suport

For further assistance, technical support, or warranty claims, please contact Aresrora customer service through the retailer where the product was purchased or visit the official Aresrora weblloc per obtenir informació de contacte.
